Phillips Pan Head Screw

material
Thread
mm
inch
Length
mm
inch
Introduction of Phillips Pan Head Screw

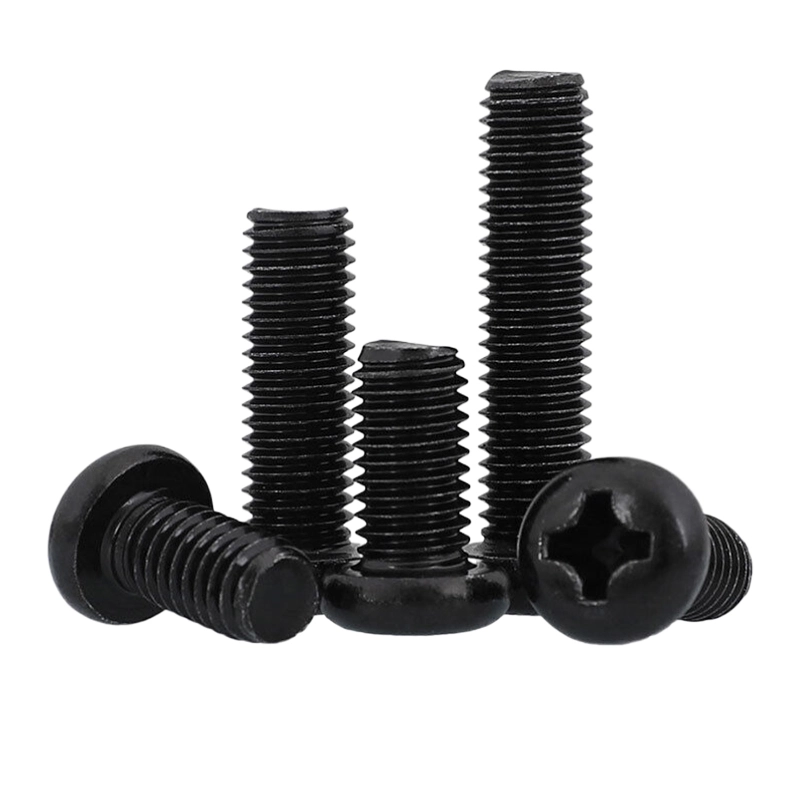

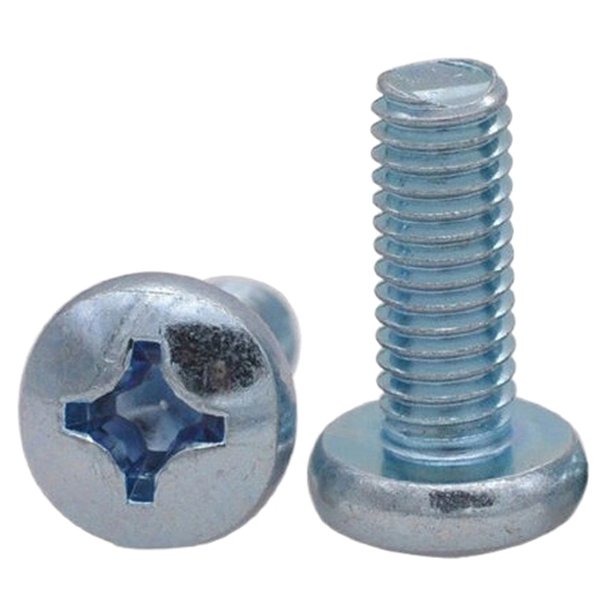

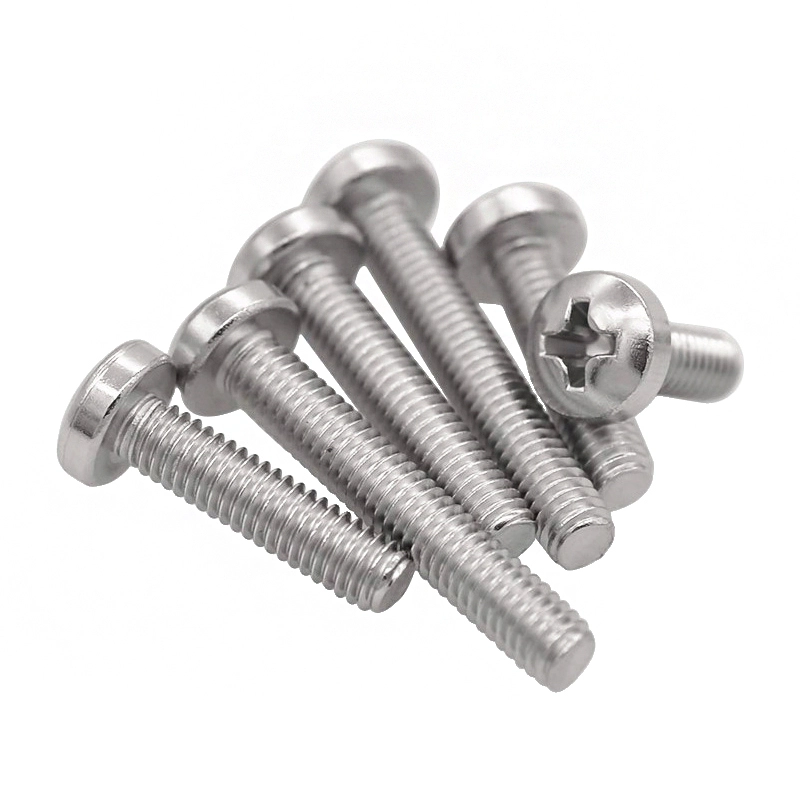

Phillips Pan Head Machine Screw: SUS304, Blue Zinc and Black Zinc, M2-M6

Phillips pan head machine screws combine the wide, high-clamp-load pan head with a cross recess that self-centres the driver, which is why they are the default fastener in appliances, electronics and sheet metal assemblies. We stock and custom make them in SUS304 stainless steel and blue zinc or black zinc plated carbon steel.
Sizes run from M1.6 to M6 and 2-56 to 10-32, with Phillips no.1, no.2 and no.3 drive. Stock sizes ship within 24 hours; custom lengths, threads and finishes are made to drawing with factory price quoted in one working day.
M1.6 phillips pan head machine screw, M2 phillips pan head machine screw, M2.5 phillips pan head machine screw, M3 phillips pan head machine screw, M3.5 phillips pan head machine screw, M4 phillips pan head machine screw, M5 phillips pan head machine screw, M6 phillips pan head machine screw.
2-56 phillips pan head screw, 3-48 phillips pan head screw, 4-40 phillips pan head screw, 5-40 phillips pan head screw, 6-32 phillips pan head screw, 8-32 phillips pan head screw, 10-32 phillips pan head screw.

Phillips Pan Head Machine Screw Size Chart: Metric and Inch

Size Thread Head Diameter Head Height Phillips Drive Material
M1.6 M1.6 x 0.35 2.9-3.2 mm 1.18 -1.42 mm PH1 SUS304 / zinc plated steel
M2 M2 x 0.4 3.7 - 4.0 mm 1.48 - 1.72 mm PH1 SUS304 / zinc plated steel
M2.5 M2.5 x 0.45 4.7 - 5.0 mm 1.88 - 2.12 mm PH1 SUS304 / zinc plated steel
M3 M3 x 0.5 5.7 - 6.0 mm 2.28 - 2.52 mm PH2 SUS304 / zinc plated steel
M4 M4 x 0.7 7.64 - 8.0 mm 2.95 - 3.25 mm PH2 SUS304 / zinc plated steel
M5 M5 x 0.8 9.64 - 10.0 mm 3.65 - 3.95 mm PH2 SUS304 / zinc plated steel
M6 M6 x 1.0 11.57 - 12.0 mm 4.45 - 4.75 mm PH3 SUS304 / zinc plated steel
2-56 #2-56 UNC 0.155 - 0.167 in 0.053 - 0.062 in PH1 SUS304 / zinc plated steel
4-40 #4-40 UNC 0.205 - 0.219 in 0.07 - 0.08 in PH1 SUS304 / zinc plated steel
6-32 #6-32 UNC 0.256 - 0.27 in 0.087 - 0.097 in PH2 SUS304 / zinc plated steel
8-32 #8-32 UNC 0.306 - 0.322 in 0.105 - 0.115 in PH2 SUS304 / zinc plated steel
10-32 #10-32 UNF 0.357 - 0.373 in 0.122 - 0.133 in PH2 SUS304 / zinc plated steel

Screws Standard and Non-standard head diameter, drive size, thread and material are made to drawing; send your size list and we quote factory price within 24 hours.
