Torx Pan Head Screws
-

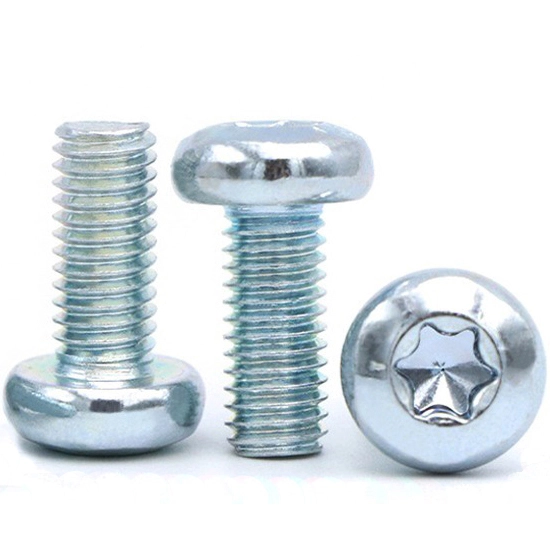

Blue Zinc Plated Steellg USD$ MOQ10k
-
M2
-
M2.5
-
M3
-
M3.5
-
M4
-
M5
-
M6
-
2-56
-
4-40
-
6-32
-
8-32
-
10-32
-
-

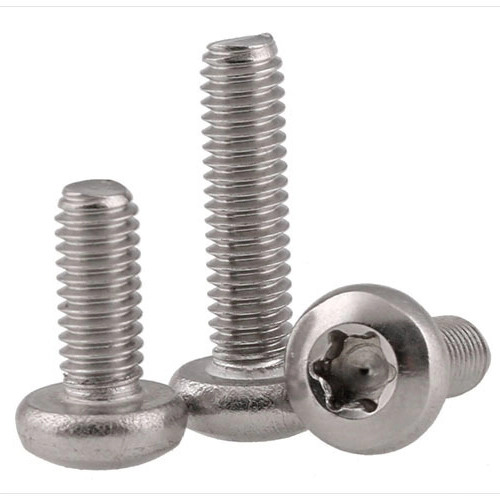

Sus304 Stainless Steellg USD$ MOQ10k
-
M2
-
M2.5
-
M3
-
M3.5
-
M4
-
M5
-
M6
-
2-56
-
4-40
-
6-32
-
8-32
-
10-32
-
-

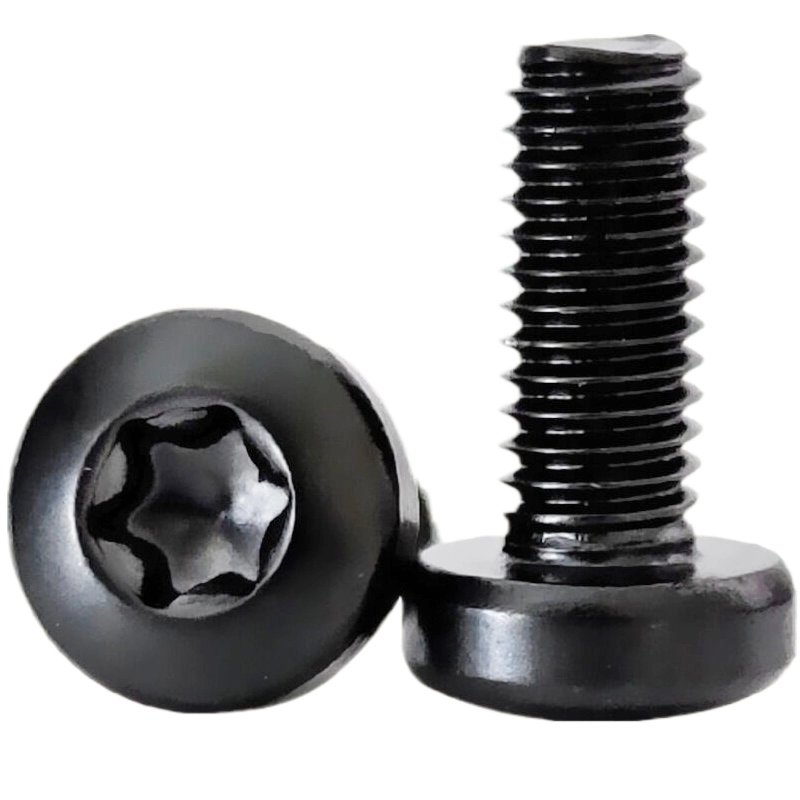

Black Zinc Plated Steellg USD$ MOQ10k
-
M2
-
M2.5
-
M3
-
M3.5
-
M4
-
M5
-
M6
-
2-56
-
4-40
-
6-32
-
8-32
-
10-32
-
Viewed Parts
Introduction of Torx Pan Head Screws
Torx Pan Head Screw
Torx Pan Head Screw are widely used where fastening is required.Torx drive, known as Torx or 6-Lobe or star drive, uses a star-shaped recess in the fastener with six rounded points.
Superneer supply torx pan head screws in SUS304 stainless steel, steel blue zinc plated, steel black.
Stainless steel torx pan head screws,
Blue zinc torx pan head screws,
Black screws torx pan head screws.
Thread size from M1.6 to M10,length from 5mm to 120mm, some are stock, some we will custom do.
M2 torx pan head screws,
M2.5 torx pan head screws,
M3 torx pan head screws,
M3.5 torx pan head screws,
M4 torx pan head screws,
M5 torx pan head screws,
M6 torx pan head screws,
2-56 torx pan head screws,
4-40 torx pan head screws.
6-32 torx head screws,
8-32 torx head screws,
10-32 torx head screws.
For stock parts, parts will in hand in 20 days through air express.
For onsite immediate production parts, parts will in hand within 48 days by air express. [include production lead time 25 days]
t5 screw head screw head torx,
t6 screw head screw head torx,
t8 screw head screw head torx.
t10 screw head screw head torx,
t15 screw head screw head torx,
t20 head screw screw head torx,
t25 torx head screw head torx,
t30 torx head screw head torx.
Torx Pan Head Screw Size and Drive Chart (T5 - T30)
| Size | Thread | Head Diameter | Head Height | Torx Drive (6-Lobe) | Material |
|---|---|---|---|---|---|
| M2 | M2 x 0.4 | 3.7 - 4.0 mm | 1.46 - 1.6 mm | T6 | SUS304 / zinc plated steel |
| M2.5 | M2.5 x 0.45 | 4.7 - 5.0 mm | 1.96 - 2.1 mm | T8 | SUS304 / zinc plated steel |
| M3 | M3 x 0.5 | 5.3 - 5.6 mm | 2.26 - 2.4 mm | T10 | SUS304 / zinc plated steel |
| M4 | M4 x 0.7 | 7.64 - 8.0 mm | 2.92 - 3.1 mm | T20 | SUS304 / zinc plated steel |
| M5 | M5 x 0.8 | 9.14 - 9.5 mm | 3.52 - 3.7 mm | T25 | SUS304 / zinc plated steel |
| M6 | M6 x 1.0 | 11.57 - 12.0 mm | 4.3 - 4.6 mm | T30 | SUS304 / zinc plated steel |
| 2-56 | #2-56 UNC | 0.155 - 0.167 in | 0.053 - 0.062 in | T8 | SUS304 / zinc plated steel |
| 4-40 | #4-40 UNC | 0.205 - 0.219 in | 0.07 - 0.08 in | T10 | SUS304 / zinc plated steel |
| 6-32 | #6-32 UNC | 0.256 - 0.27 in | 0.087 - 0.097 in | T15 | SUS304 / zinc plated steel |
| 8-32 | #8-32 UNC | 0.306 - 0.322 in | 0.105 - 0.115 in | T20 | SUS304 / zinc plated steel |
| 10-32 | #10-32 UNF | 0.357 - 0.373 in | 0.122 - 0.133 in | T25 | SUS304 / zinc plated steel |
The head dimensions are identical to our phillips pan head screws; only the drive recess differs. Torx drive is also called star drive or 6-lobe drive and is measured as T3 to T30. Non-standard head diameter, drive size, thread and material are made to drawing; send your size list and we quote factory price within 24 hours.
