M2.5 x 7 mm Pan Head Torx Machine Screw Steel Blue Zinc Plated ISO 14583
Why Choose MPTM2507Z?
MPTM2507Z is a M2.5 Pan Head head Torx drive screw with 7 mm length, featuring a Blue Zinc Plated Steel finish. Compared to alternative finishes in the same specification such as MPTM2507S (SUS304 Stainless Steel), MPTM2507B (Black Zinc Plated Steel), the Blue Zinc Plated Steel of MPTM2507Z offers moderate corrosion resistance with a distinctive blue iridescent appearance, commonly used in automotive assembly, machinery, and general industrial fastening. The Pan Head head design ensures optimal load distribution across the mating surface, while the Torx drive allows efficient torque transmission during installation. Each MPTM2507Z screw is manufactured to industry standards, RoHS compliant, and supplied with material test reports (MTR) for full quality traceability.
Payment Method: T/T & Paypal and other payment method
Shipment Method: Air Express , Air Freight, Sea Shippment
1. Order online directly, made payment via Paypal or bank transfer.
2. Superneer arrange production according to drawing,all demensions are within drawing specification.
3. Parts ready, ship to customer.
Frequently Asked Questions about MPTM2507Z
What is MPTM2507Z screw?
MPTM2507Z is a M2.5 Pan Head head Torx drive screw made of Blue Zinc Plated Steel, manufactured by Superneer Limited. It has a length of 7 mm and is commonly used in electronics, watches, precision instruments, and 3D printers.
What are the specifications of MPTM2507Z?

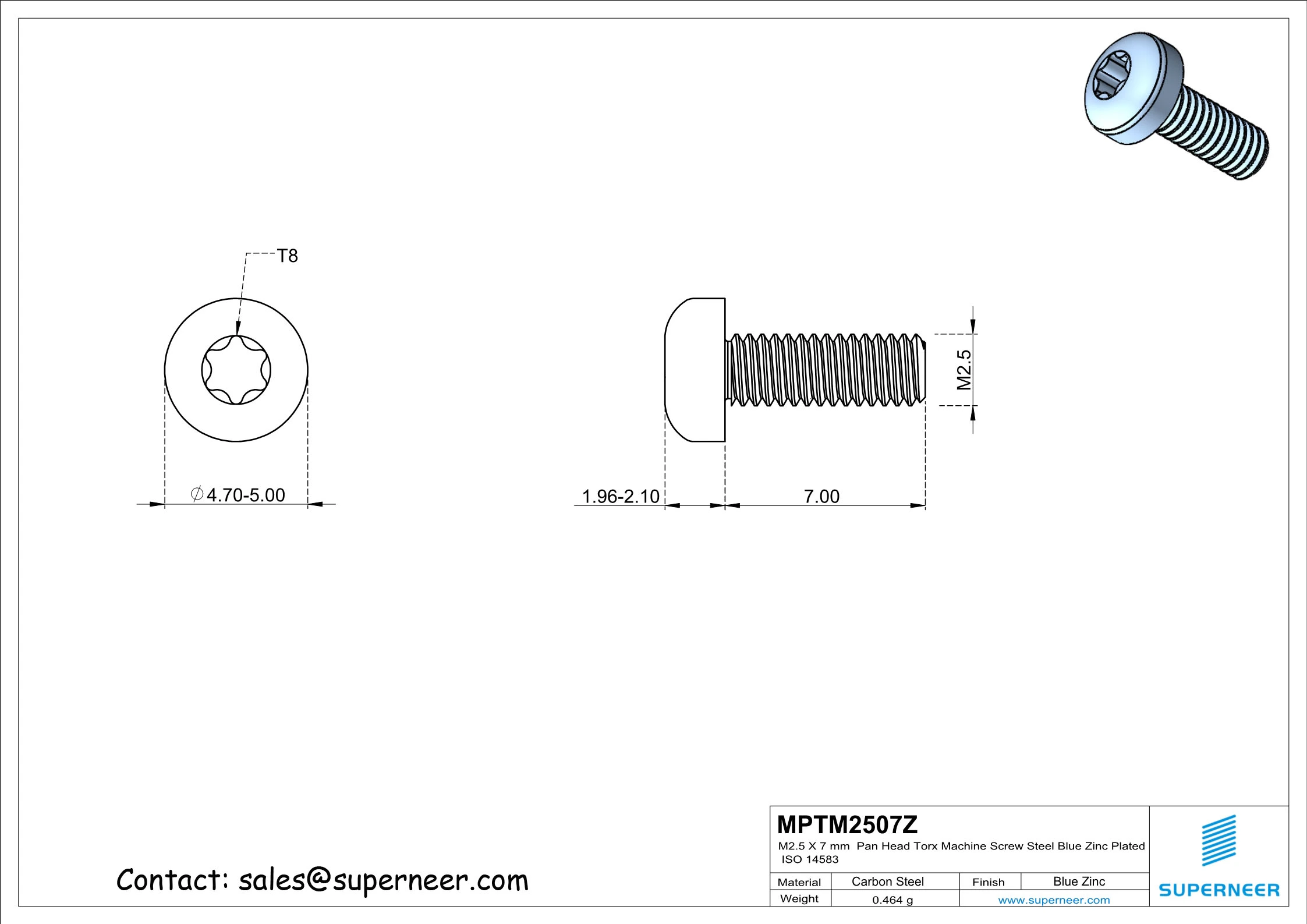

The MPTM2507Z screw features thread size M2.5, length of 7 mm, head type Pan Head (head diameter 4.7-5.0 mm), drive type Torx (drive size T8), and is made of Blue Zinc Plated Steel.
What material is the MPTM2507Z screw made of?
The MPTM2507Z screw is made of Blue Zinc Plated Steel. Superneer provides material test reports (MTR) and RoHS compliance certificates for all products. Blue Zinc Plated Steel offers excellent corrosion resistance and mechanical strength.
What is the thread size of MPTM2507Z?
The MPTM2507Z screw has a M2.5 thread. This is a metric thread with M2.5 specification, commonly used in international applications following ISO standards.
What are MPTM2507Z screws used for?
MPTM2507Z Pan Head head Torx drive screws are used in electronics assembly, PCB mounting, precision instruments, watches, 3D printers, optical devices, medical equipment, and consumer products where reliable fastening with Pan Head head aesthetics is required.
What is the MOQ and price for MPTM2507Z?
The minimum order quantity (MOQ) for MPTM2507Z is 10,000 pieces. The unit price is $0.011 USD for MOQ quantity. Larger quantities receive discounted pricing. Contact [email protected] for custom quotes.
What is the lead time and shipping for MPTM2507Z?
The lead time for MPTM2507Z is 15-25 days for production. Shipping to USA takes 5-15 days via sea freight, with shipping cost starting from $50 USD. Air freight is available for urgent orders. DDP and FOB terms are both available.
What is the inch equivalent of M2.5 thread?
The M2.5 thread is approximately equivalent to #5 (approx). When substituting metric screws with inch screws, always verify the actual diameter and pitch compatibility.
What head type does MPTM2507Z use and why?
The MPTM2507Z uses a Pan Head head type. Pan Head head provides a specific head design optimized for its intended application. This head type is selected based on the specific application requirements for load distribution, aesthetics, and accessibility.
How to choose the right screw size for my application?
To choose the right screw: 1) Determine the required thread size based on the tapped hole or nut; 2) Select the appropriate length based on the material thickness; 3) Choose the head type based on clearance and aesthetics; 4) Select the drive type based on torque requirements; 5) Choose the material based on environmental conditions. For MPTM2507Z (M2.5, 7 mm), ensure your application requires this specific size.
What is the difference between MPTM2507Z and similar parts?
MPTM2507Z uses Blue Zinc Plated Steel finish, while alternative variants in the same thread/length specification include MPTM2507S (SUS304 Stainless Steel), MPTM2507B (Black Zinc Plated Steel). The Blue Zinc Plated Steel of MPTM2507Z is specifically selected because it offers moderate corrosion resistance with a distinctive blue iridescent appearance, commonly used in automotive assembly, machinery, and general industrial fastening. This distinction makes MPTM2507Z the preferred choice when these properties align with your application requirements.
