M6 x 16 mm Pan Head Torx Machine Screw SUS304 Stainless Steel ISO 14583
Why Choose MPTM616S?
MPTM616S is a M6 Pan Head head Torx drive screw with 16 mm length, featuring a SUS304 Stainless Steel finish. Compared to alternative finishes in the same specification such as MPTM616Z (Blue Zinc Plated Steel), MPTM616B (Black Zinc Plated Steel), the SUS304 Stainless Steel of MPTM616S offers superior corrosion resistance for outdoor, marine, and humid environments, excellent hygiene properties for food and medical equipment, and good mechanical strength at low cost relative to exotic alloys. The Pan Head head design ensures optimal load distribution across the mating surface, while the Torx drive allows efficient torque transmission during installation. Each MPTM616S screw is manufactured to industry standards, RoHS compliant, and supplied with material test reports (MTR) for full quality traceability.
Payment Method: T/T & Paypal and other payment method
Shipment Method: Air Express , Air Freight, Sea Shippment
1. Order online directly, made payment via Paypal or bank transfer.
2. Superneer arrange production according to drawing,all demensions are within drawing specification.
3. Parts ready, ship to customer.
Frequently Asked Questions about MPTM616S
What is MPTM616S screw?
MPTM616S is a M6 Pan Head head Torx drive screw made of SUS304 Stainless Steel, manufactured by Superneer Limited. It has a length of 16 mm and is commonly used in electronics, watches, precision instruments, and 3D printers.
What are the specifications of MPTM616S?

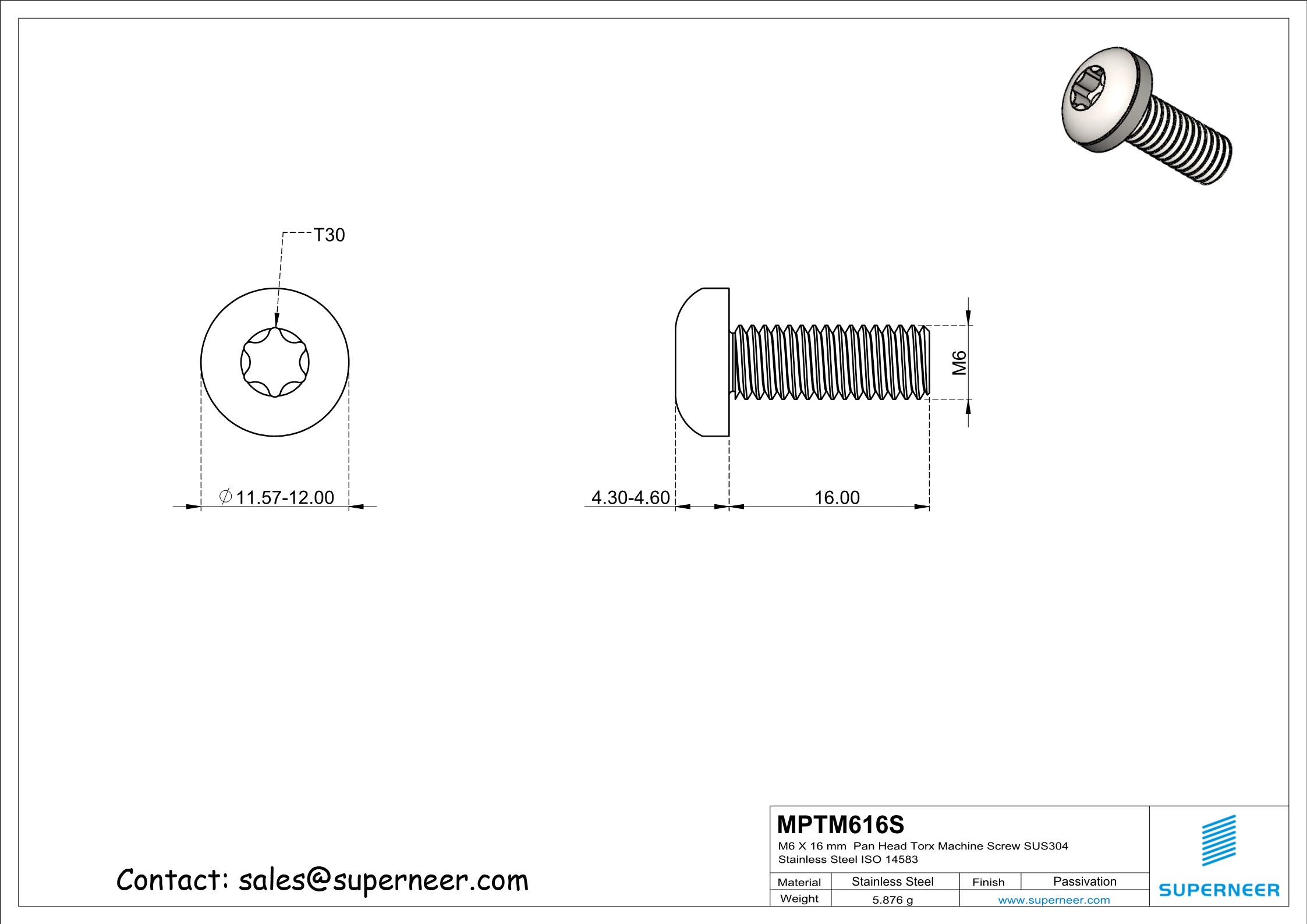

The MPTM616S screw features thread size M6, length of 16 mm, head type Pan Head (head diameter 11.57-12 mm), drive type Torx (drive size T30), and is made of SUS304 Stainless Steel.
What material is the MPTM616S screw made of?
The MPTM616S screw is made of SUS304 Stainless Steel. Superneer provides material test reports (MTR) and RoHS compliance certificates for all products. SUS304 Stainless Steel offers excellent corrosion resistance and mechanical strength.
What is the thread size of MPTM616S?
The MPTM616S screw has a M6 thread. This is a metric thread with M6 specification, commonly used in international applications following ISO standards.
What are MPTM616S screws used for?
MPTM616S Pan Head head Torx drive screws are used in electronics assembly, PCB mounting, precision instruments, watches, 3D printers, optical devices, medical equipment, and consumer products where reliable fastening with Pan Head head aesthetics is required.
What is the MOQ and price for MPTM616S?
The minimum order quantity (MOQ) for MPTM616S is 10,000 pieces. The unit price is $0.070 USD for MOQ quantity. Larger quantities receive discounted pricing. Contact [email protected] for custom quotes.
What is the lead time and shipping for MPTM616S?
The lead time for MPTM616S is 15-25 days for production. Shipping to USA takes 5-15 days via sea freight, with shipping cost starting from $50 USD. Air freight is available for urgent orders. DDP and FOB terms are both available.
What is the inch equivalent of M6 thread?
The M6 thread is approximately equivalent to 1/4"-20. When substituting metric screws with inch screws, always verify the actual diameter and pitch compatibility.
What head type does MPTM616S use and why?
The MPTM616S uses a Pan Head head type. Pan Head head provides a specific head design optimized for its intended application. This head type is selected based on the specific application requirements for load distribution, aesthetics, and accessibility.
How to choose the right screw size for my application?
To choose the right screw: 1) Determine the required thread size based on the tapped hole or nut; 2) Select the appropriate length based on the material thickness; 3) Choose the head type based on clearance and aesthetics; 4) Select the drive type based on torque requirements; 5) Choose the material based on environmental conditions. For MPTM616S (M6, 16 mm), ensure your application requires this specific size.
What is the difference between MPTM616S and similar parts?
MPTM616S uses SUS304 Stainless Steel finish, while alternative variants in the same thread/length specification include MPTM616Z (Blue Zinc Plated Steel), MPTM616B (Black Zinc Plated Steel). The SUS304 Stainless Steel of MPTM616S is specifically selected because it offers superior corrosion resistance for outdoor, marine, and humid environments, excellent hygiene properties for food and medical equipment, and good mechanical strength at low cost relative to exotic alloys. This distinction makes MPTM616S the preferred choice when these properties align with your application requirements.
