M5 x 10 mm Pan Head Torx Machine Screw Steel Black ISO 14583
Why Choose MPTM510B?
MPTM510B is a M5 Pan Head head Torx drive screw with 10 mm length, featuring a Black Zinc Plated Steel finish. Compared to alternative finishes in the same specification such as MPTM510S (SUS304 Stainless Steel), MPTM510Z (Blue Zinc Plated Steel), the Black Zinc Plated Steel of MPTM510B offers a black decorative finish combined with good corrosion resistance, ideal for consumer electronics, automotive interiors, and applications where both appearance and rust prevention matter. The Pan Head head design ensures optimal load distribution across the mating surface, while the Torx drive allows efficient torque transmission during installation. Each MPTM510B screw is manufactured to industry standards, RoHS compliant, and supplied with material test reports (MTR) for full quality traceability.
Payment Method: T/T & Paypal and other payment method
Shipment Method: Air Express , Air Freight, Sea Shippment
1. Order online directly, made payment via Paypal or bank transfer.
2. Superneer arrange production according to drawing,all demensions are within drawing specification.
3. Parts ready, ship to customer.
Frequently Asked Questions about MPTM510B
What is MPTM510B screw?
MPTM510B is a M5 Pan Head head Torx drive screw made of Black Zinc Plated Steel, manufactured by Superneer Limited. It has a length of 10 mm and is commonly used in electronics, watches, precision instruments, and 3D printers.
What are the specifications of MPTM510B?

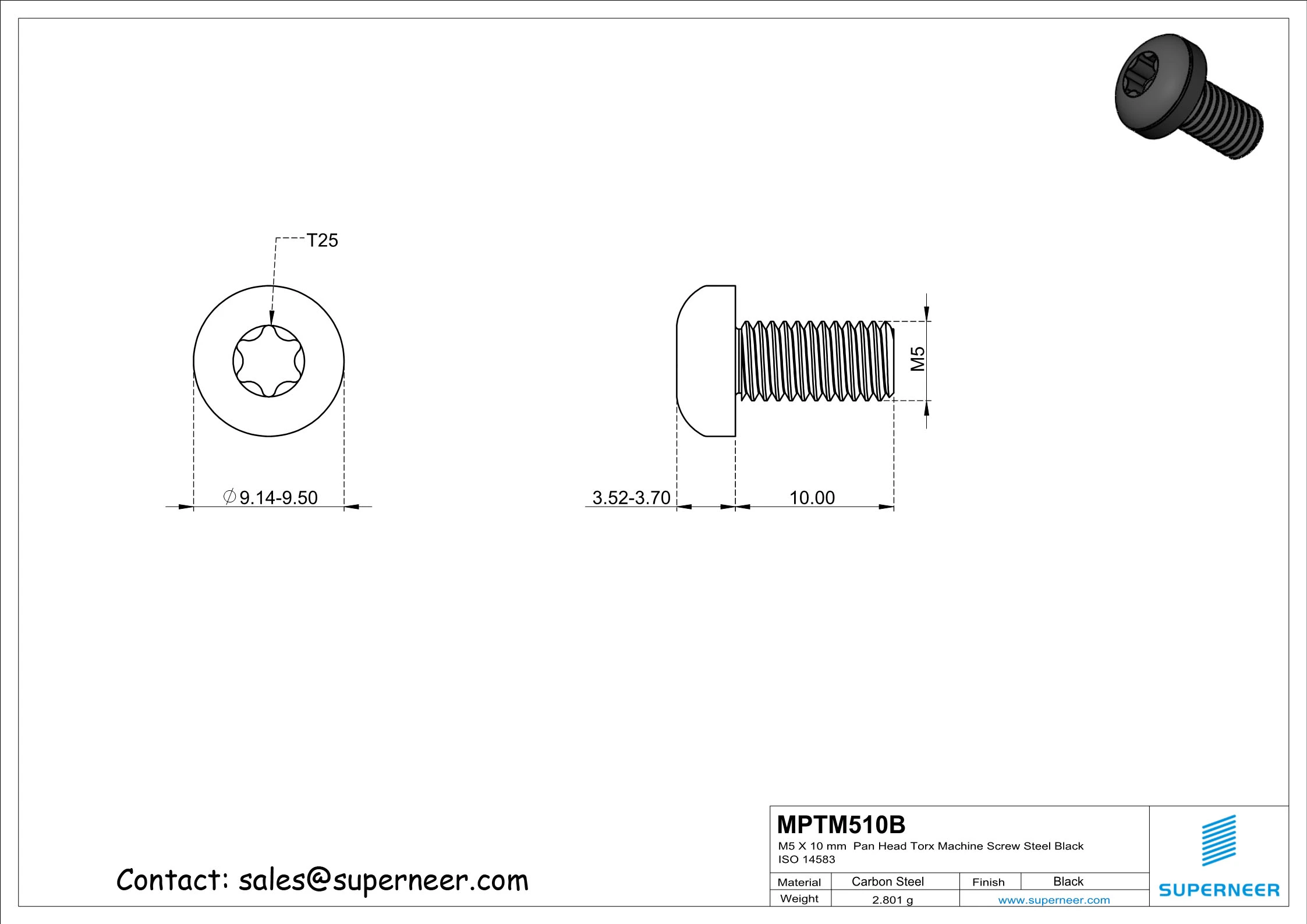

The MPTM510B screw features thread size M5, length of 10 mm, head type Pan Head (head diameter 9.14-9.50 mm), drive type Torx (drive size T25), and is made of Black Zinc Plated Steel.
What material is the MPTM510B screw made of?
The MPTM510B screw is made of Black Zinc Plated Steel. Superneer provides material test reports (MTR) and RoHS compliance certificates for all products. Black Zinc Plated Steel offers excellent corrosion resistance and mechanical strength.
What is the thread size of MPTM510B?
The MPTM510B screw has a M5 thread. This is a metric thread with M5 specification, commonly used in international applications following ISO standards.
What are MPTM510B screws used for?
MPTM510B Pan Head head Torx drive screws are used in electronics assembly, PCB mounting, precision instruments, watches, 3D printers, optical devices, medical equipment, and consumer products where reliable fastening with Pan Head head aesthetics is required.
What is the MOQ and price for MPTM510B?
The minimum order quantity (MOQ) for MPTM510B is 10,000 pieces. The unit price is $0.033 USD for MOQ quantity. Larger quantities receive discounted pricing. Contact [email protected] for custom quotes.
What is the lead time and shipping for MPTM510B?
The lead time for MPTM510B is 15-25 days for production. Shipping to USA takes 5-15 days via sea freight, with shipping cost starting from $50 USD. Air freight is available for urgent orders. DDP and FOB terms are both available.
What is the inch equivalent of M5 thread?
The M5 thread is approximately equivalent to #10 (approx 10-32). When substituting metric screws with inch screws, always verify the actual diameter and pitch compatibility.
What head type does MPTM510B use and why?
The MPTM510B uses a Pan Head head type. Pan Head head provides a specific head design optimized for its intended application. This head type is selected based on the specific application requirements for load distribution, aesthetics, and accessibility.
How to choose the right screw size for my application?
To choose the right screw: 1) Determine the required thread size based on the tapped hole or nut; 2) Select the appropriate length based on the material thickness; 3) Choose the head type based on clearance and aesthetics; 4) Select the drive type based on torque requirements; 5) Choose the material based on environmental conditions. For MPTM510B (M5, 10 mm), ensure your application requires this specific size.
What is the difference between MPTM510B and similar parts?
MPTM510B uses Black Zinc Plated Steel finish, while alternative variants in the same thread/length specification include MPTM510S (SUS304 Stainless Steel), MPTM510Z (Blue Zinc Plated Steel). The Black Zinc Plated Steel of MPTM510B is specifically selected because it offers a black decorative finish combined with good corrosion resistance, ideal for consumer electronics, automotive interiors, and applications where both appearance and rust prevention matter. This distinction makes MPTM510B the preferred choice when these properties align with your application requirements.
