M4 x 12 mm Pan Head Torx Machine Screw Steel Blue Zinc Plated ISO 14583

MPTM412Z is a M4 Pan Head head Torx drive screw made of Blue Zinc Plated Steel, manufactured by Superneer Limited. It has a length of 12 mm and is commonly used in electronics, watches, precision instruments, and 3D printers.

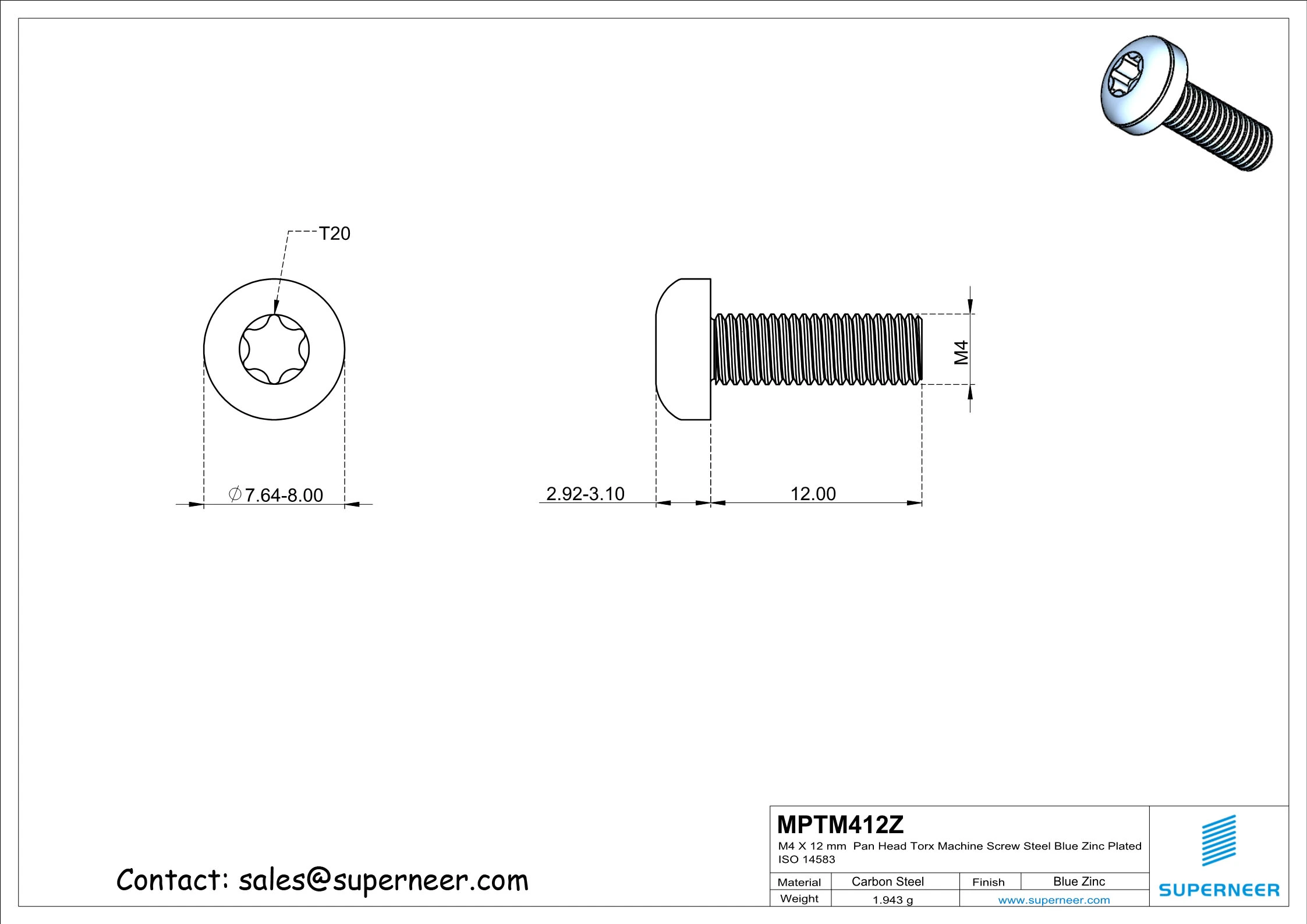

The MPTM412Z screw features thread size M4, length of 12 mm, head type Pan Head (head diameter 7.64-8 mm), drive type Torx (drive size T20), and is made of Blue Zinc Plated Steel.

The MPTM412Z screw is made of Blue Zinc Plated Steel. Superneer provides material test reports (MTR) and RoHS compliance certificates for all products. Blue Zinc Plated Steel offers excellent corrosion resistance and mechanical strength.

The MPTM412Z screw has a M4 thread. This is a metric thread with M4 specification, commonly used in international applications following ISO standards.

MPTM412Z Pan Head head Torx drive screws are used in electronics assembly, PCB mounting, precision instruments, watches, 3D printers, optical devices, medical equipment, and consumer products where reliable fastening with Pan Head head aesthetics is required.

The minimum order quantity (MOQ) for MPTM412Z is 10,000 pieces. The unit price is $0.019 USD for MOQ quantity. Larger quantities receive discounted pricing. Contact [email protected] for custom quotes.

The lead time for MPTM412Z is 15-25 days for production. Shipping to USA takes 5-15 days via sea freight, with shipping cost starting from $50 USD. Air freight is available for urgent orders. DDP and FOB terms are both available.

The M4 thread is approximately equivalent to #8 (approx 8-32). When substituting metric screws with inch screws, always verify the actual diameter and pitch compatibility.

The MPTM412Z uses a Pan Head head type. Pan Head head provides a specific head design optimized for its intended application. This head type is selected based on the specific application requirements for load distribution, aesthetics, and accessibility.

To choose the right screw: 1) Determine the required thread size based on the tapped hole or nut; 2) Select the appropriate length based on the material thickness; 3) Choose the head type based on clearance and aesthetics; 4) Select the drive type based on torque requirements; 5) Choose the material based on environmental conditions. For MPTM412Z (M4, 12 mm), ensure your application requires this specific size.

MPTM412Z uses Blue Zinc Plated Steel finish, while alternative variants in the same thread/length specification include MPTM412S (SUS304 Stainless Steel), MPTM412B (Black Zinc Plated Steel). The Blue Zinc Plated Steel of MPTM412Z is specifically selected because it offers moderate corrosion resistance with a distinctive blue iridescent appearance, commonly used in automotive assembly, machinery, and general industrial fastening. This distinction makes MPTM412Z the preferred choice when these properties align with your application requirements.
