M5 x 7 mm Pan Head Phillips Machine Screw Steel Black DIN 7985
Part No.
MPPM507B
Material
Black Zinc Plated Steel
Ship Date
2025-11-07
Head
Pan Head
Drive
Phillips
PH No.2
Head Diameter
9.64-10.00 mm
Head Height
3.65-3.95 mm
Thread
M5
Length
7 mm
Unit Price
USD$ 0.025 /pcs
Unit Weight
2.778 g
Other Stock Parts
All Stock Parts
2-56 x 3/16" Pan Head Torx Machine Screw SUS304 Stainless Steel
2-56 x 5/16" Pan Head Torx Machine Screw SUS304 Stainless Steel
M3 x 6 mm Flat Head 82° Torx Machine Screw SUS304 Stainless Steel
M2.5 x 12 mm Pan Head Torx Machine Screw Steel Blue Zinc Plated
M3 x 6 mm Pan Head Torx Machine Screw Steel Blue Zinc Plated ISO 14583
M3 x 6 mm Flat Head Undercut Slotted Machine Screw SUS304 Stainless Steel
M3 x 8 mm Pan Head Torx Machine Screw Steel Black ISO 14583
M3 x 10 mm Pan Head Torx Machine Screw Steel Black ISO 14583
M3 x 6 mm Flat Head 82° Torx Machine Screw Steel Black
M3 x 5 mm Flat Head 120° Phillips Machine Screw Steel Black
2-56 x 13/32" Standoff Screw SUS303 Stainless Steel Hex Male Female Spacers
M3 × 6mm Indented Hex Washer Serrattion Phillips Thread Forming Screws for Metal Steel Black
M2.5 x 6mm Socket Cup Point Set Screws Steel Black DIN916
M2 x 2.5mm Flat Head Torx Machine Screw SUS304 Stainless Steel
M3 x 8mm Thumb Screw Knurled Head (Head Diameter 8mm,Head Height 8mm) SUS304 Stainless Steel
M3 X 3mm 12.9 Grade Steel Black Flat Socket Screw
M4 x 10mm Socket Set Screw Cone Point SUS304 Stainless Steel DIN914 Nylon Patch
M3 x 4mm Torx Flat Head Machine Screw Carbon Steel Black Oxide
2-56 x 13/32" Standoff Screw with 7/32" Outer Thread Length SUS303 Stainless Steel Hex Male Female Spacers
M2 x 8 mm Self Sealing Screw Pan Torx Head SUS304 Stainless Steel Waterproof Screws
M3 x 10 mm Button Head Socket SEMS Screw with Internal Tooth Washer Steel Black Oxide
Item Information
M5 x 7 mm Pan Head Phillips Machine Screw Steel Black DIN 7985

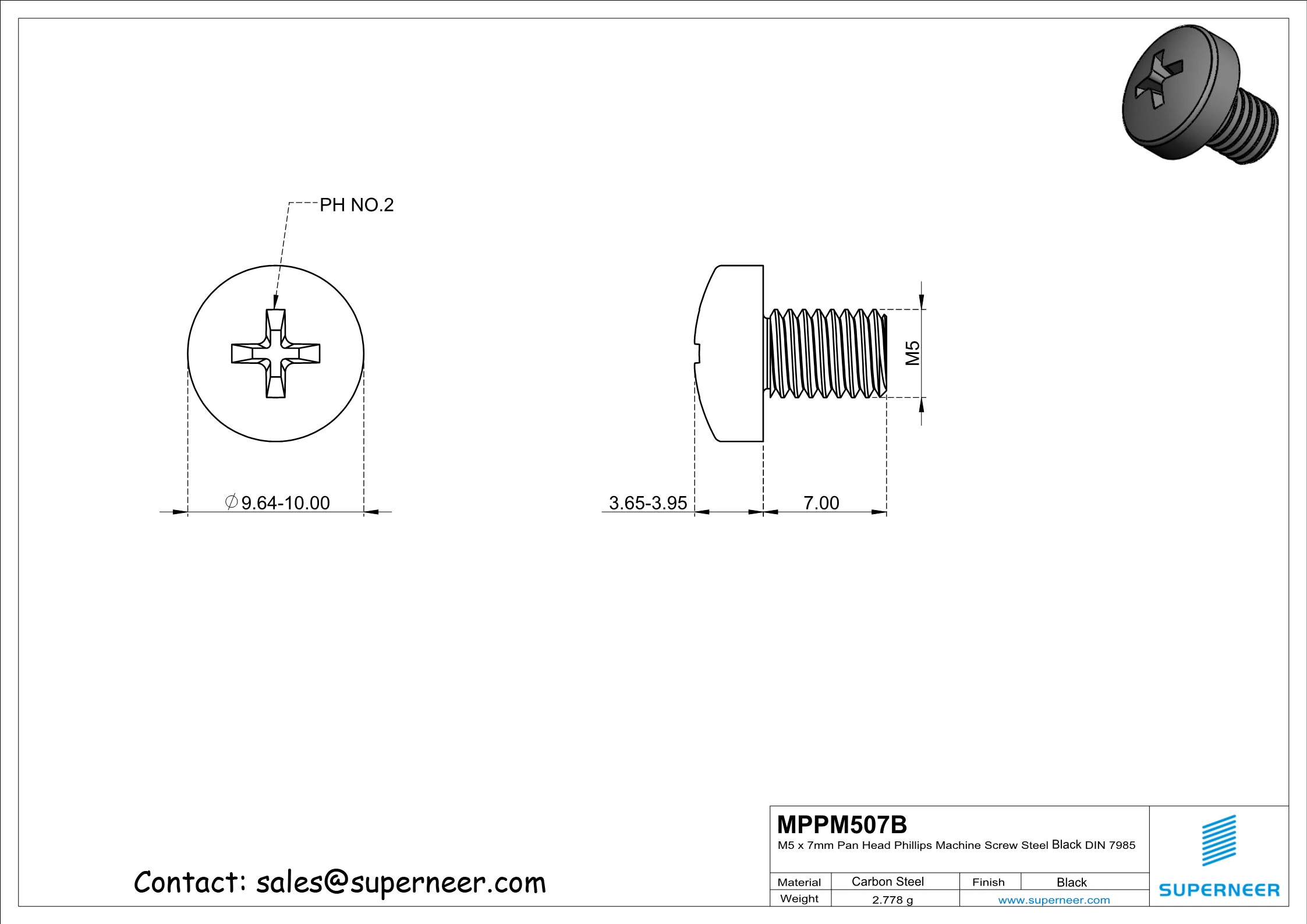

This part demension will be same as the drawing indicate below, length
tolerance will be ±0.5 .
It is Pan Head with Phillips drive, M5 Thread and 7 mm Length .
Material is best choosen Black Zinc Plated Steel, Finsh is Rohs
Black which has good function of anti-corrosion .
If you need this screw, don't hesitate, please add it to your cart and buy
it, we will assure the quality and manufacture it and ship it.
On website, you can choose use your shipping account which shippcost is 0,
or you can use our DHL/UPS account to ship which will have ship cost indicate.
Payment terms: Payment advance, On website, you can choose pay via paypal or pay via bank
transfer. when bank transfer ,
you can send your bank slip to us via order process or send it to our email:sales@superneer.com.
when payment made, We will soon make production and update process for you via email.
Superneer are doing screws for thirteen years, we supply thousands of screws
on our website.
Each order will be made shippment on time.
Payment & Trasportation 5-10 days
Payment Method: T/T & Paypal and other payment method
Shipment Method: Air Express , Air Freight, Sea Shippment
How to Order
1. Order online directly, made payment via Paypal or bank transfer.
2. Superneer arrange production according to drawing.
3. Parts ready, ship to customer.
if parts can't meet the drawing required demesion,payment will be returned to customer, we have the quality garantee!
or customer can send specific drawing to our email sales@superneer.com for production. [24h respond]
