M4 x 8 mm Pan Head Phillips Machine Screw Steel Black DIN 7985
Why Choose MPPM408B?
MPPM408B is a M4 Pan Head head Phillips drive screw with 8 mm length, featuring a Black Zinc Plated Steel finish. Compared to alternative finishes in the same specification such as MPPM408S (SUS304 Stainless Steel), MPPM408Z (Blue Zinc Plated Steel), the Black Zinc Plated Steel of MPPM408B offers a black decorative finish combined with good corrosion resistance, ideal for consumer electronics, automotive interiors, and applications where both appearance and rust prevention matter. The Pan Head head design ensures optimal load distribution across the mating surface, while the Phillips drive allows efficient torque transmission during installation. Each MPPM408B screw is manufactured to industry standards, RoHS compliant, and supplied with material test reports (MTR) for full quality traceability.
Payment Method: T/T & Paypal and other payment method
Shipment Method: Air Express , Air Freight, Sea Shippment
1. Order online directly, made payment via Paypal or bank transfer.
2. Superneer arrange production according to drawing,all demensions are within drawing specification.
3. Parts ready, ship to customer.
Frequently Asked Questions about MPPM408B
What is MPPM408B screw?
MPPM408B is a M4 Pan Head head Phillips drive screw made of Black Zinc Plated Steel, manufactured by Superneer Limited. It has a length of 8 mm and is commonly used in electronics, watches, precision instruments, and 3D printers.
What are the specifications of MPPM408B?

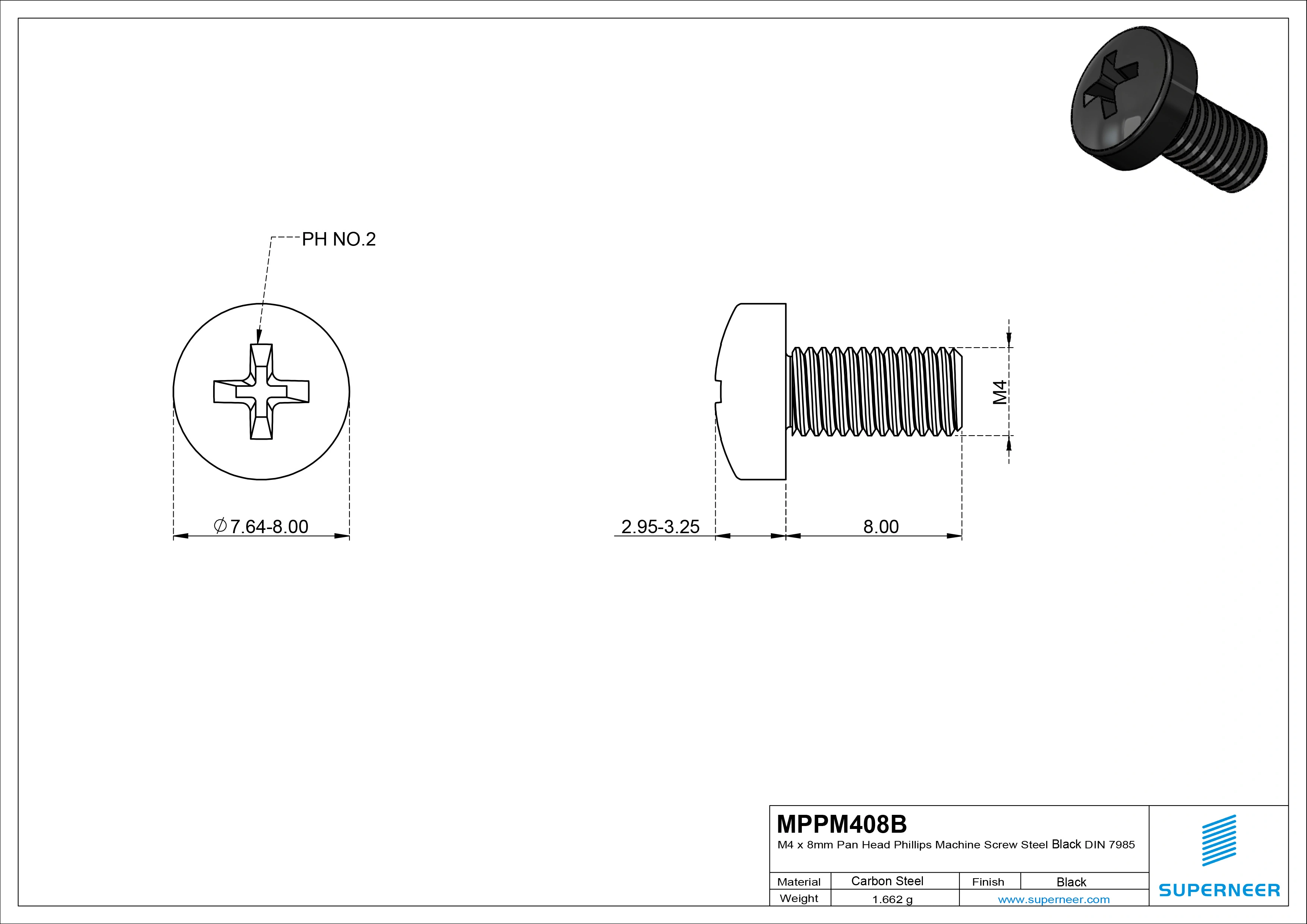

The MPPM408B screw features thread size M4, length of 8 mm, head type Pan Head (head diameter 7.64-8.00 mm), drive type Phillips (drive size PH No.2), and is made of Black Zinc Plated Steel.
What material is the MPPM408B screw made of?
The MPPM408B screw is made of Black Zinc Plated Steel. Superneer provides material test reports (MTR) and RoHS compliance certificates for all products. Black Zinc Plated Steel offers excellent corrosion resistance and mechanical strength.
What is the thread size of MPPM408B?
The MPPM408B screw has a M4 thread. This is a metric thread with M4 specification, commonly used in international applications following ISO standards.
What are MPPM408B screws used for?
MPPM408B Pan Head head Phillips drive screws are used in electronics assembly, PCB mounting, precision instruments, watches, 3D printers, optical devices, medical equipment, and consumer products where reliable fastening with Pan Head head aesthetics is required.
What is the MOQ and price for MPPM408B?
The minimum order quantity (MOQ) for MPPM408B is 10,000 pieces. The unit price is $0.016 USD for MOQ quantity. Larger quantities receive discounted pricing. Contact [email protected] for custom quotes.
What is the lead time and shipping for MPPM408B?
The lead time for MPPM408B is 15-25 days for production. Shipping to USA takes 5-15 days via sea freight, with shipping cost starting from $50 USD. Air freight is available for urgent orders. DDP and FOB terms are both available.
What is the inch equivalent of M4 thread?
The M4 thread is approximately equivalent to #8 (approx 8-32). When substituting metric screws with inch screws, always verify the actual diameter and pitch compatibility.
What head type does MPPM408B use and why?
The MPPM408B uses a Pan Head head type. Pan Head head provides a specific head design optimized for its intended application. This head type is selected based on the specific application requirements for load distribution, aesthetics, and accessibility.
How to choose the right screw size for my application?
To choose the right screw: 1) Determine the required thread size based on the tapped hole or nut; 2) Select the appropriate length based on the material thickness; 3) Choose the head type based on clearance and aesthetics; 4) Select the drive type based on torque requirements; 5) Choose the material based on environmental conditions. For MPPM408B (M4, 8 mm), ensure your application requires this specific size.
What is the difference between MPPM408B and similar parts?
MPPM408B uses Black Zinc Plated Steel finish, while alternative variants in the same thread/length specification include MPPM408S (SUS304 Stainless Steel), MPPM408Z (Blue Zinc Plated Steel). The Black Zinc Plated Steel of MPPM408B is specifically selected because it offers a black decorative finish combined with good corrosion resistance, ideal for consumer electronics, automotive interiors, and applications where both appearance and rust prevention matter. This distinction makes MPPM408B the preferred choice when these properties align with your application requirements.
