Home Machine Screws Pan Head Screw Phillips Pan Head Screw M4 x 14 mm Pan Head Phillips Machine Screw Steel Blue Zinc Plated DIN 7985

M4 x 14 mm Pan Head Phillips Machine Screw Steel Blue Zinc Plated DIN 7985

screw pic
screw pic
Part No. MPPM414Z rohs
Material Blue Zinc Plated Steel Ship Date 2026-08-17
Head Pan Head Drive Phillips   PH No.2
Head Diameter 7.64-8.00 mm Head Height 2.95-3.25 mm
Thread M4 Length 14 mm
Unit Price USD$ 0.020 /pcs Unit Weight 2.179 g
Quantity pcs
Amount USD$ Total Amount USD$
Amount USD$ Total Amount USD$

Related Parts
M4 x 5 mm Pan Head Phillips Machine Screw Steel Blue Zinc Plated DIN 7985
M4 x 6 mm Pan Head Phillips Machine Screw Steel Blue Zinc Plated DIN 7985
M4 x 7 mm Pan Head Phillips Machine Screw Steel Blue Zinc Plated DIN 7985
M4 x 8 mm Pan Head Phillips Machine Screw Steel Blue Zinc Plated DIN 7985
M4 x 9 mm Pan Head Phillips Machine Screw Steel Blue Zinc Plated DIN 7985
M4 x 10 mm Pan Head Phillips Machine Screw Steel Blue Zinc Plated DIN 7985
M4 x 12 mm Pan Head Phillips Machine Screw Steel Blue Zinc Plated DIN 7985
Item Information
M4 x 14 mm Pan Head Phillips Machine Screw Steel Blue Zinc Plated DIN 7985
This part demension will be same as the drawing indicate below, length tolerance will be ±0.5 .
It is Pan Head with Phillips drive, M4 Thread and 14 mm Length .
Material Blue Zinc Plated Steel, Finsh is Rohs Blue Zinc which has good function of anti-corrosion .
On website, you can choose use your shipping account which shippcost is 0, or you can use our DHL/UPS account to ship which will have ship cost indicate.
Payment terms: Payment advance, On website, you can choose pay via paypal or pay via bank transfer. when bank transfer , you can send your bank slip to us via order process or send it to our email:sales@superneer.com. when payment made, We will soon make production and update process for you via email.
Buy m4 l14 - phillips pan head screw blue zinc coating today,high quality product and best service will be provided by superneer.Each order will be made shippment on time.
Different Finish :
M4 x 14 mm
MPPM414S
SUS304 Stainless Steel
M4 x 14 mm
MPPM414B
Black Zinc Plated Steel

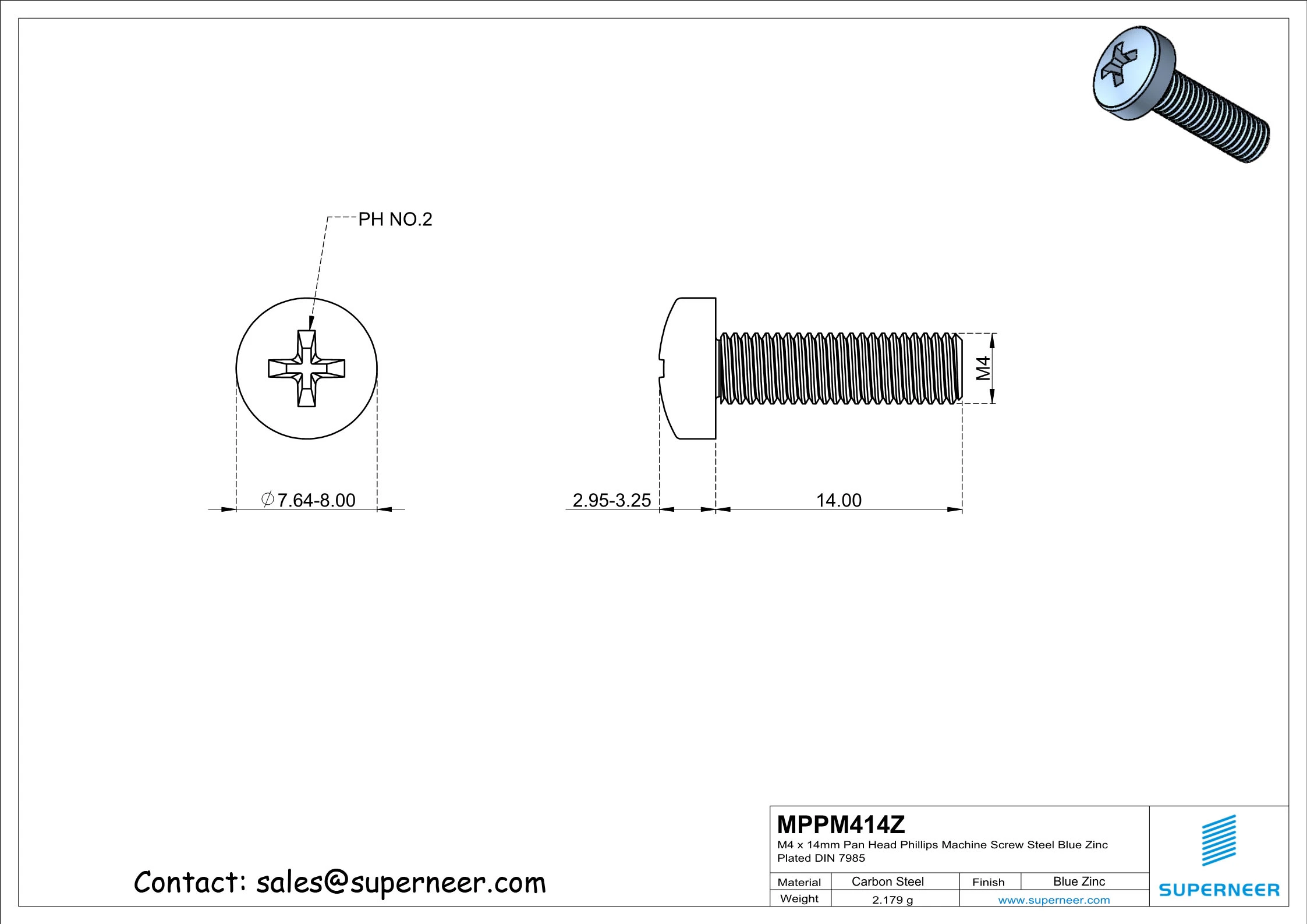

Item Drawing
M4 x 14 mm Pan Head Phillips Machine Screw Steel Blue Zinc Plated DIN 7985
M4 x 14 mm Pan Head Phillips Machine Screw Steel Blue Zinc Plated DIN 7985
M4 x 14 mm Pan Head Phillips Machine Screw Steel Blue Zinc Plated DIN 7985
M4 x 14 mm Pan Head Phillips Machine Screw Steel Blue Zinc Plated DIN 7985
M4 x 14 mm Pan Head Phillips Machine Screw Steel Blue Zinc Plated DIN 7985
M4 x 14 mm Pan Head Phillips Machine Screw Steel Blue Zinc Plated DIN 7985
M4 x 14 mm Pan Head Phillips Machine Screw Steel Blue Zinc Plated DIN 7985
