10-32 x 1/4" Pan Head Phillips Machine Screw Steel Black ANSI/ASME B18.6.3
Why Choose MPP1004B?
MPP1004B is a 10-32 Pan Head head Phillips drive screw with 1/4 inches length, featuring a Black Zinc Plated Steel finish. Compared to alternative finishes in the same specification such as MPP1004S (SUS304 Stainless Steel), MPP1004Z (Blue Zinc Plated Steel), the Black Zinc Plated Steel of MPP1004B offers a black decorative finish combined with good corrosion resistance, ideal for consumer electronics, automotive interiors, and applications where both appearance and rust prevention matter. The Pan Head head design ensures optimal load distribution across the mating surface, while the Phillips drive allows efficient torque transmission during installation. Each MPP1004B screw is manufactured to industry standards, RoHS compliant, and supplied with material test reports (MTR) for full quality traceability.
Payment Method: T/T & Paypal and other payment method
Shipment Method: Air Express , Air Freight, Sea Shippment
1. Order online directly, made payment via Paypal or bank transfer.
2. Superneer arrange production according to drawing,all demensions are within drawing specification.
3. Parts ready, ship to customer.
Frequently Asked Questions about MPP1004B
What is MPP1004B screw?
MPP1004B is a 10-32 Pan Head head Phillips drive screw made of Black Zinc Plated Steel, manufactured by Superneer Limited. It has a length of 1/4 inches and is commonly used in electronics, watches, precision instruments, and 3D printers.
What are the specifications of MPP1004B?

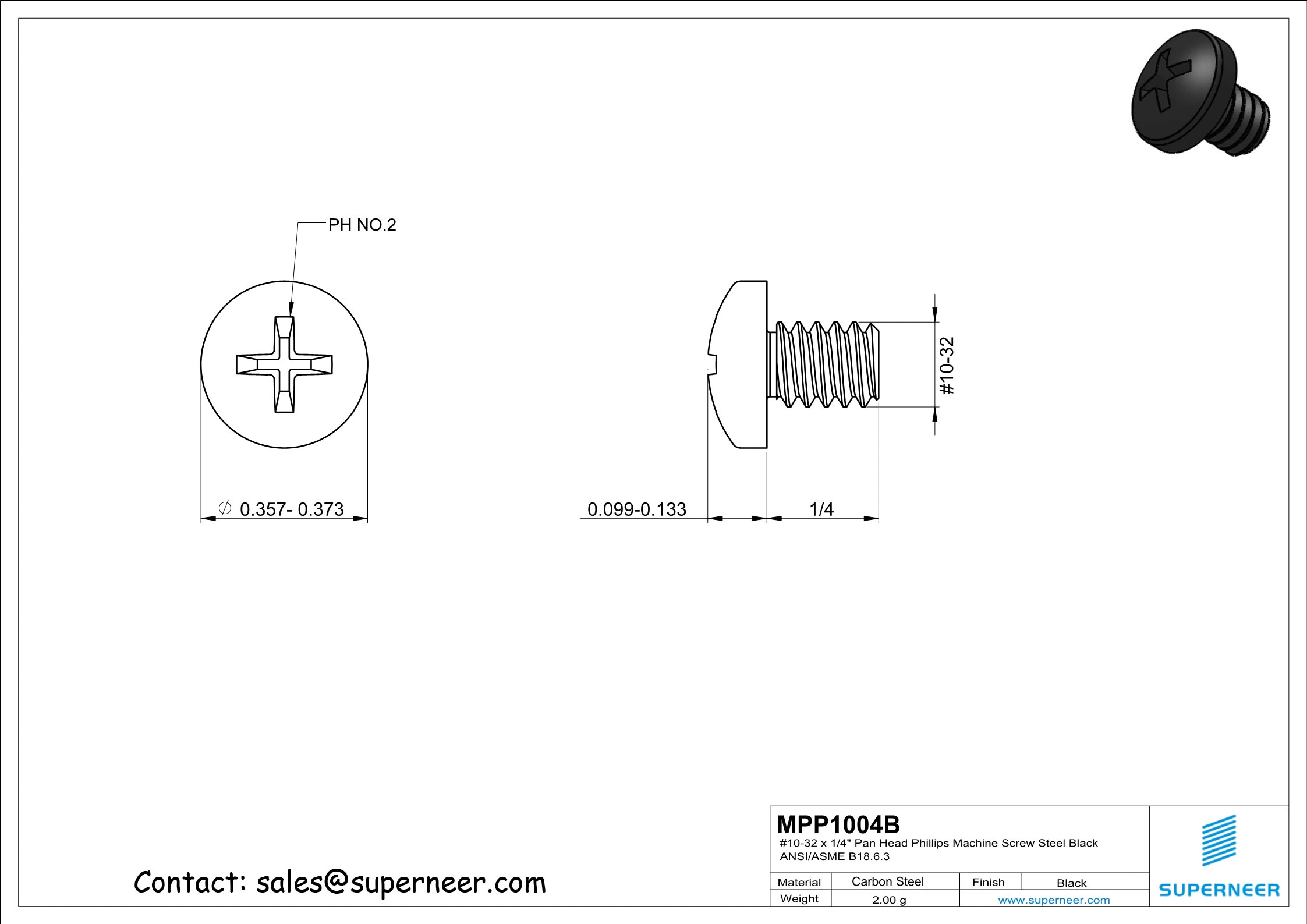

The MPP1004B screw features thread size 10-32, length of 1/4 inches, head type Pan Head (head diameter 0.357-0.373 inches), drive type Phillips (drive size PH No.2), and is made of Black Zinc Plated Steel.
What material is the MPP1004B screw made of?
The MPP1004B screw is made of Black Zinc Plated Steel. Superneer provides material test reports (MTR) and RoHS compliance certificates for all products. Black Zinc Plated Steel offers excellent corrosion resistance and mechanical strength.
What is the thread size of MPP1004B?
The MPP1004B screw has a 10-32 thread. This is a UNC (Unified National Coarse) thread with 10-32 specification, widely used in North American applications.
What are MPP1004B screws used for?
MPP1004B Pan Head head Phillips drive screws are used in electronics assembly, PCB mounting, precision instruments, watches, 3D printers, optical devices, medical equipment, and consumer products where reliable fastening with Pan Head head aesthetics is required.
What is the MOQ and price for MPP1004B?
The minimum order quantity (MOQ) for MPP1004B is 10,000 pieces. The unit price is $0.025 USD for MOQ quantity. Larger quantities receive discounted pricing. Contact [email protected] for custom quotes.
What is the lead time and shipping for MPP1004B?
The lead time for MPP1004B is 15-25 days for production. Shipping to USA takes 5-15 days via sea freight, with shipping cost starting from $50 USD. Air freight is available for urgent orders. DDP and FOB terms are both available.
What is the metric equivalent of 10-32 thread?
The 10-32 thread is approximately equivalent to M5 (approx). When substituting inch screws with metric screws, always verify the actual diameter and pitch compatibility.
What head type does MPP1004B use and why?
The MPP1004B uses a Pan Head head type. Pan Head head provides a specific head design optimized for its intended application. This head type is selected based on the specific application requirements for load distribution, aesthetics, and accessibility.
How to choose the right screw size for my application?
To choose the right screw: 1) Determine the required thread size based on the tapped hole or nut; 2) Select the appropriate length based on the material thickness; 3) Choose the head type based on clearance and aesthetics; 4) Select the drive type based on torque requirements; 5) Choose the material based on environmental conditions. For MPP1004B (10-32, 1/4 inches), ensure your application requires this specific size.
What is the difference between MPP1004B and similar parts?
MPP1004B uses Black Zinc Plated Steel finish, while alternative variants in the same thread/length specification include MPP1004S (SUS304 Stainless Steel), MPP1004Z (Blue Zinc Plated Steel). The Black Zinc Plated Steel of MPP1004B is specifically selected because it offers a black decorative finish combined with good corrosion resistance, ideal for consumer electronics, automotive interiors, and applications where both appearance and rust prevention matter. This distinction makes MPP1004B the preferred choice when these properties align with your application requirements.
