8-32 x 1/2" Pan Head Phillips and Slotted Combination Machine Screw SUS304 Stainless Steel Inox
Why Choose MPC0808S?

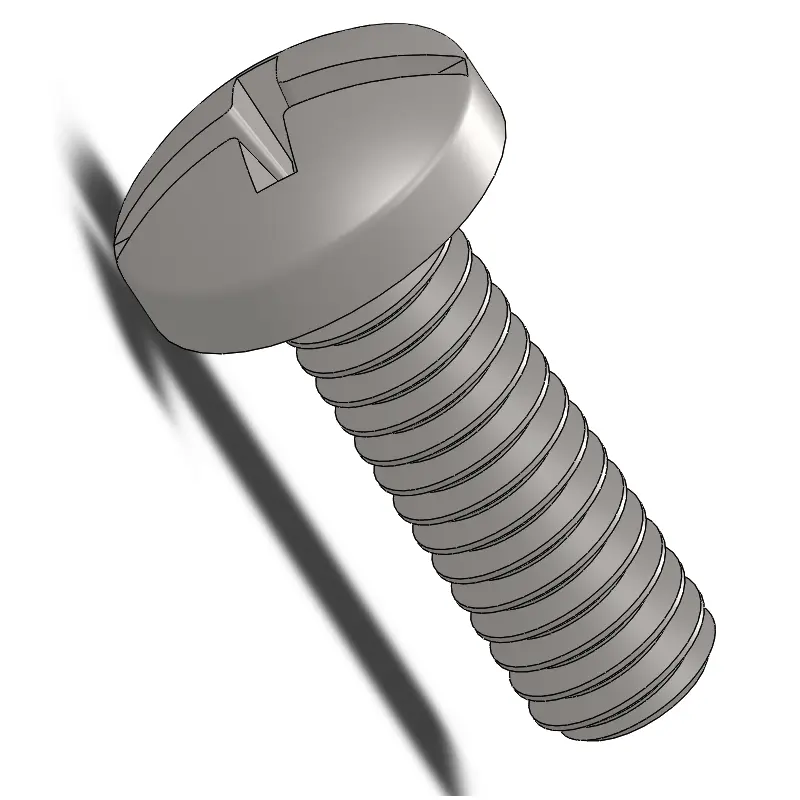

MPC0808S is a 8-32 Pan Head head Combination Phillips Slotted drive screw with 1/2 inches length, featuring a SUS304 Stainless Steel finish. Compared to alternative finishes in the same specification such as MPC0808B (Black Zinc Plated Steel), MPC0808Z (Carbon Steel), the SUS304 Stainless Steel of MPC0808S offers superior corrosion resistance for outdoor, marine, and humid environments, excellent hygiene properties for food and medical equipment, and good mechanical strength at low cost relative to exotic alloys. The Pan Head head design ensures optimal load distribution across the mating surface, while the Combination Phillips Slotted drive allows efficient torque transmission during installation. Each MPC0808S screw is manufactured to industry standards, RoHS compliant, and supplied with material test reports (MTR) for full quality traceability.
Payment Method: T/T & Paypal and other payment method
Shipment Method: Air Express , Air Freight, Sea Shippment
1. Order online directly, made payment via Paypal or bank transfer.
2. Superneer arrange production according to drawing,all demensions are within drawing specification.
3. Parts ready, ship to customer.
Frequently Asked Questions about MPC0808S
What is MPC0808S screw?
MPC0808S is a 8-32 Pan Head head Combination Phillips Slotted drive screw made of SUS304 Stainless Steel, manufactured by Superneer Limited. It has a length of 1/2 inches and is commonly used in electronics, watches, precision instruments, and 3D printers.
What are the specifications of MPC0808S?

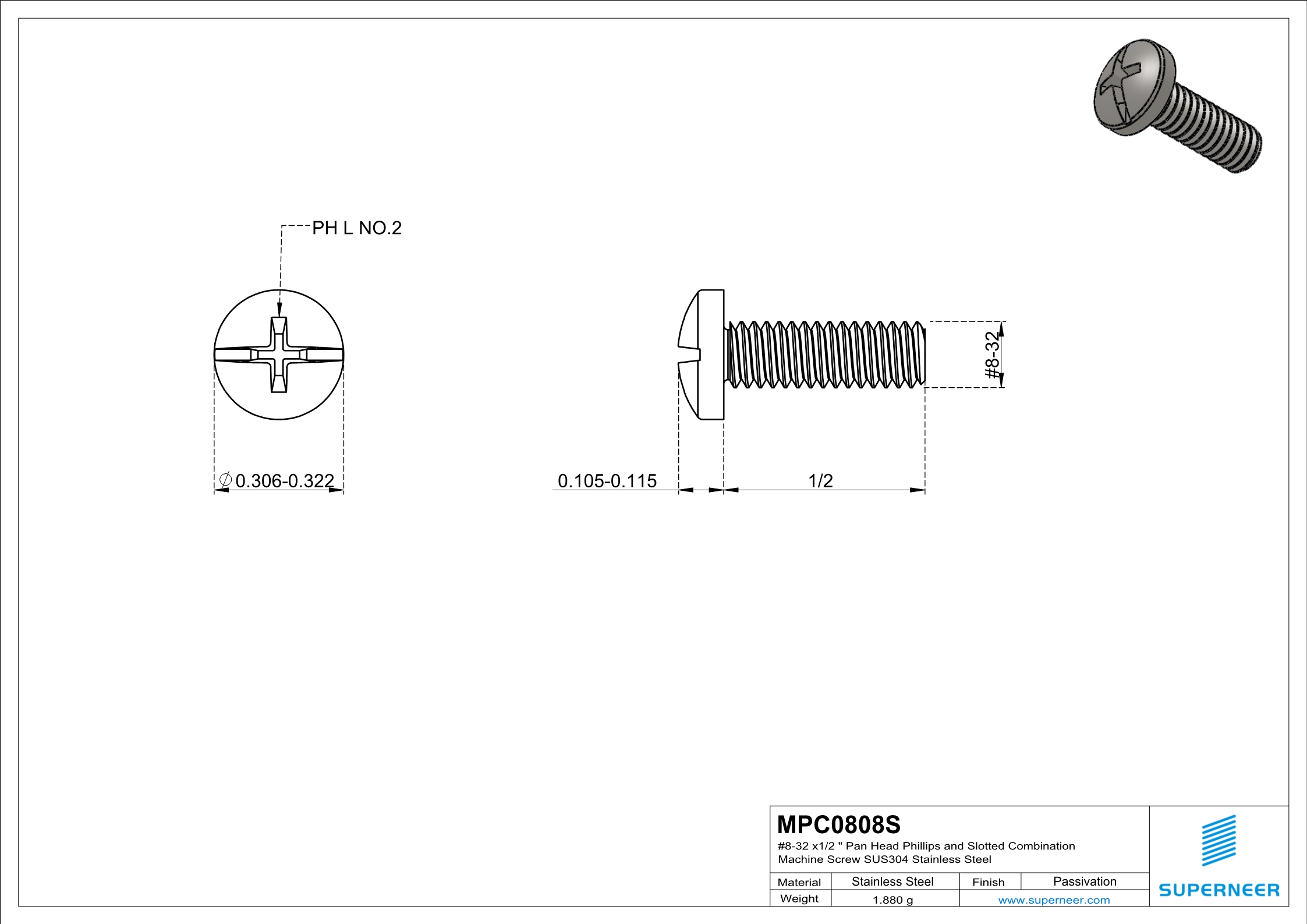

The MPC0808S screw features thread size 8-32, length of 1/2 inches, head type Pan Head (head diameter 0.306 - 0.322 ” inches), drive type Combination Phillips Slotted (drive size ), and is made of SUS304 Stainless Steel.
What material is the MPC0808S screw made of?
The MPC0808S screw is made of SUS304 Stainless Steel. Superneer provides material test reports (MTR) and RoHS compliance certificates for all products. SUS304 Stainless Steel offers excellent corrosion resistance and mechanical strength.
What is the thread size of MPC0808S?
The MPC0808S screw has a 8-32 thread. This is a UNC (Unified National Coarse) thread with 8-32 specification, widely used in North American applications.
What are MPC0808S screws used for?
MPC0808S Pan Head head Combination Phillips Slotted drive screws are used in electronics assembly, PCB mounting, precision instruments, watches, 3D printers, optical devices, medical equipment, and consumer products where reliable fastening with Pan Head head aesthetics is required.
What is the MOQ and price for MPC0808S?
The minimum order quantity (MOQ) for MPC0808S is 10,000 pieces. The unit price is $0.085 USD for MOQ quantity. Larger quantities receive discounted pricing. Contact [email protected] for custom quotes.
What is the lead time and shipping for MPC0808S?
The lead time for MPC0808S is 15-25 days for production. Shipping to USA takes 5-15 days via sea freight, with shipping cost starting from $50 USD. Air freight is available for urgent orders. DDP and FOB terms are both available.
What is the metric equivalent of 8-32 thread?
The 8-32 thread is approximately equivalent to M4 (approx). When substituting inch screws with metric screws, always verify the actual diameter and pitch compatibility.
What head type does MPC0808S use and why?
The MPC0808S uses a Pan Head head type. Pan Head head provides a specific head design optimized for its intended application. This head type is selected based on the specific application requirements for load distribution, aesthetics, and accessibility.
How to choose the right screw size for my application?
To choose the right screw: 1) Determine the required thread size based on the tapped hole or nut; 2) Select the appropriate length based on the material thickness; 3) Choose the head type based on clearance and aesthetics; 4) Select the drive type based on torque requirements; 5) Choose the material based on environmental conditions. For MPC0808S (8-32, 1/2 inches), ensure your application requires this specific size.
What is the difference between MPC0808S and similar parts?
MPC0808S uses SUS304 Stainless Steel finish, while alternative variants in the same thread/length specification include MPC0808B (Black Zinc Plated Steel), MPC0808Z (Carbon Steel). The SUS304 Stainless Steel of MPC0808S is specifically selected because it offers superior corrosion resistance for outdoor, marine, and humid environments, excellent hygiene properties for food and medical equipment, and good mechanical strength at low cost relative to exotic alloys. This distinction makes MPC0808S the preferred choice when these properties align with your application requirements.
