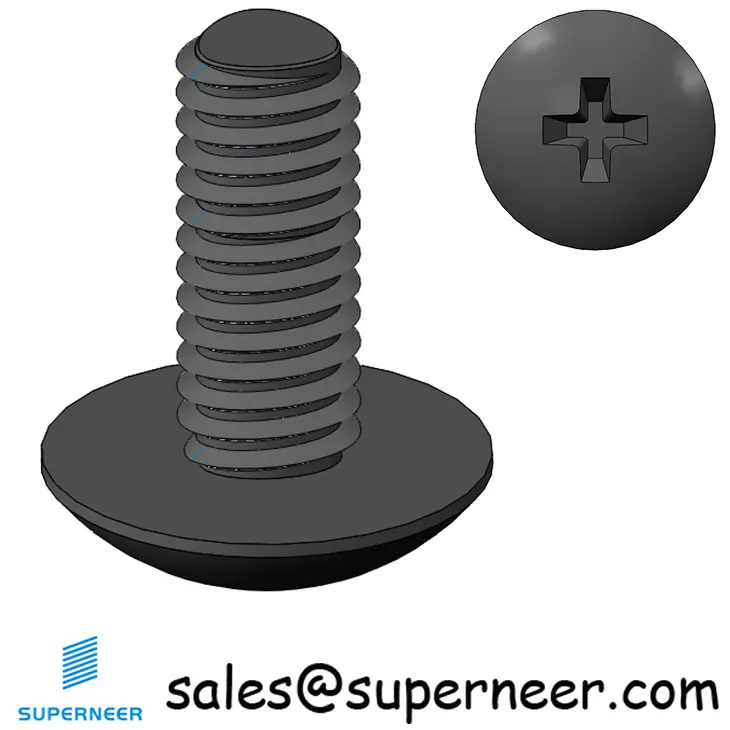

M6 × 12mm Truss Head Phillips Thread Forming Screws for Metal Steel Black
Why Choose TTPM612B?
TTPM612B is a M6 Truss Head head Phillips drive screw with 12 mm length, featuring a Black Zinc Plated Steel finish. Compared to alternative finishes in the same specification such as TTPM612S (SUS304 Stainless Steel), TTPM612Z (Blue Zinc Plated Steel), the Black Zinc Plated Steel of TTPM612B offers a black decorative finish combined with good corrosion resistance, ideal for consumer electronics, automotive interiors, and applications where both appearance and rust prevention matter. The Truss Head head design ensures optimal load distribution across the mating surface, while the Phillips drive allows efficient torque transmission during installation. Each TTPM612B screw is manufactured to industry standards, RoHS compliant, and supplied with material test reports (MTR) for full quality traceability.
Payment Method: T/T & Paypal and other payment method
Shipment Method: Air Express , Air Freight, Sea Shippment
1. Order online directly, made payment via Paypal or bank transfer.
2. Superneer arrange production according to drawing,all demensions are within drawing specification.
3. Parts ready, ship to customer.
Frequently Asked Questions about TTPM612B
What is TTPM612B screw?
TTPM612B is a M6 Truss Head head Phillips drive screw made of Black Zinc Plated Steel, manufactured by Superneer Limited. It has a length of 12 mm and is commonly used in electronics, watches, precision instruments, and 3D printers.
What are the specifications of TTPM612B?

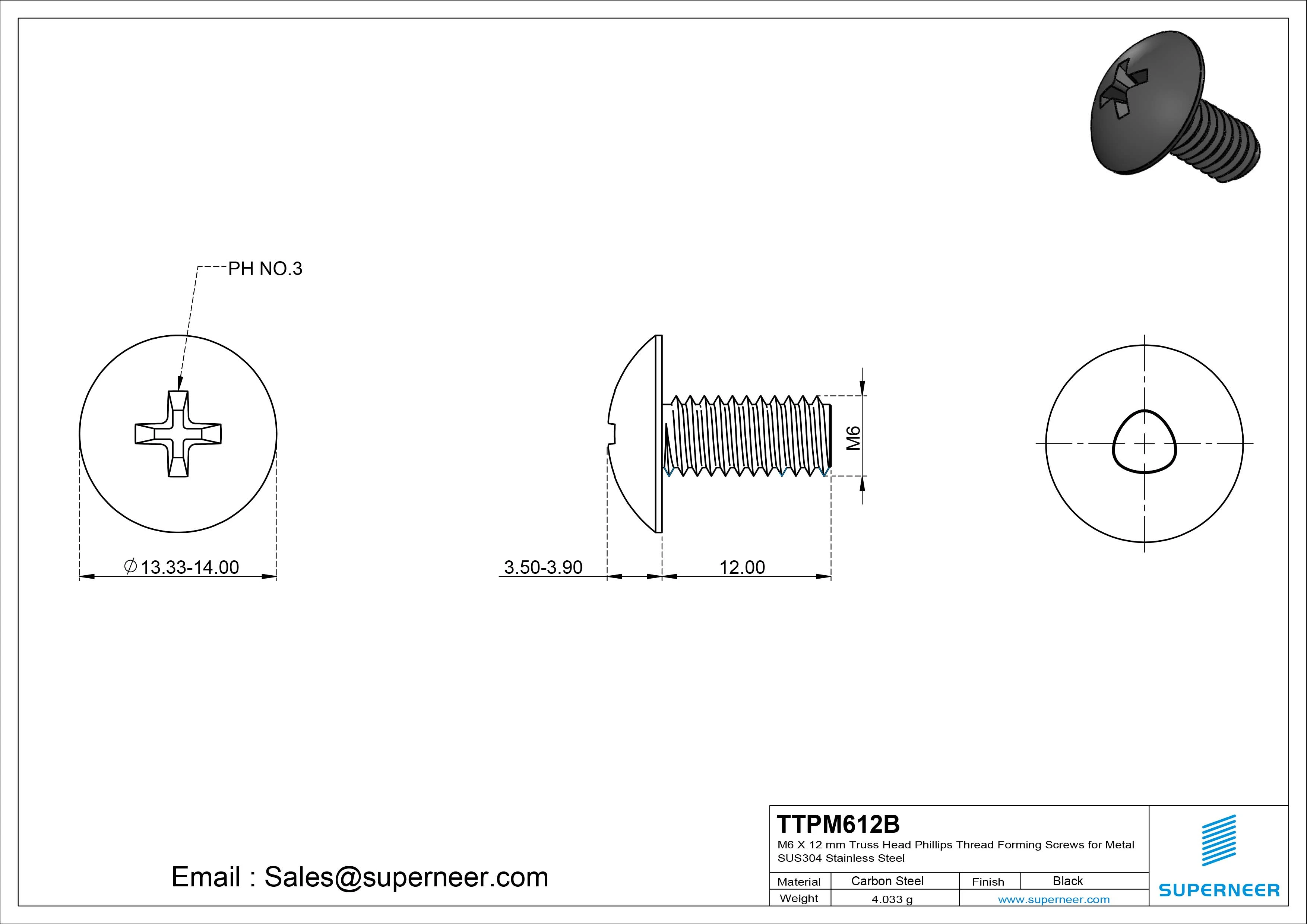

The TTPM612B screw features thread size M6, length of 12 mm, head type Truss Head (head diameter 13.33 - 14 mm), drive type Phillips (drive size PH No.3), and is made of Black Zinc Plated Steel.
What material is the TTPM612B screw made of?
The TTPM612B screw is made of Black Zinc Plated Steel. Superneer provides material test reports (MTR) and RoHS compliance certificates for all products. Black Zinc Plated Steel offers excellent corrosion resistance and mechanical strength.
What is the thread size of TTPM612B?
The TTPM612B screw has a M6 thread. This is a metric thread with M6 specification, commonly used in international applications following ISO standards.
What are TTPM612B screws used for?
TTPM612B Truss Head head Phillips drive screws are used in electronics assembly, PCB mounting, precision instruments, watches, 3D printers, optical devices, medical equipment, and consumer products where reliable fastening with Truss Head head aesthetics is required.
What is the MOQ and price for TTPM612B?
The minimum order quantity (MOQ) for TTPM612B is 10,000 pieces. The unit price is $0.052 USD for MOQ quantity. Larger quantities receive discounted pricing. Contact [email protected] for custom quotes.
What is the lead time and shipping for TTPM612B?
The lead time for TTPM612B is 15-25 days for production. Shipping to USA takes 5-15 days via sea freight, with shipping cost starting from $50 USD. Air freight is available for urgent orders. DDP and FOB terms are both available.
What is the inch equivalent of M6 thread?
The M6 thread is approximately equivalent to 1/4"-20. When substituting metric screws with inch screws, always verify the actual diameter and pitch compatibility.
What head type does TTPM612B use and why?
The TTPM612B uses a Truss Head head type. Truss Head head provides a specific head design optimized for its intended application. This head type is selected based on the specific application requirements for load distribution, aesthetics, and accessibility.
How to choose the right screw size for my application?
To choose the right screw: 1) Determine the required thread size based on the tapped hole or nut; 2) Select the appropriate length based on the material thickness; 3) Choose the head type based on clearance and aesthetics; 4) Select the drive type based on torque requirements; 5) Choose the material based on environmental conditions. For TTPM612B (M6, 12 mm), ensure your application requires this specific size.
What is the difference between TTPM612B and similar parts?
TTPM612B uses Black Zinc Plated Steel finish, while alternative variants in the same thread/length specification include TTPM612S (SUS304 Stainless Steel), TTPM612Z (Blue Zinc Plated Steel). The Black Zinc Plated Steel of TTPM612B is specifically selected because it offers a black decorative finish combined with good corrosion resistance, ideal for consumer electronics, automotive interiors, and applications where both appearance and rust prevention matter. This distinction makes TTPM612B the preferred choice when these properties align with your application requirements.
