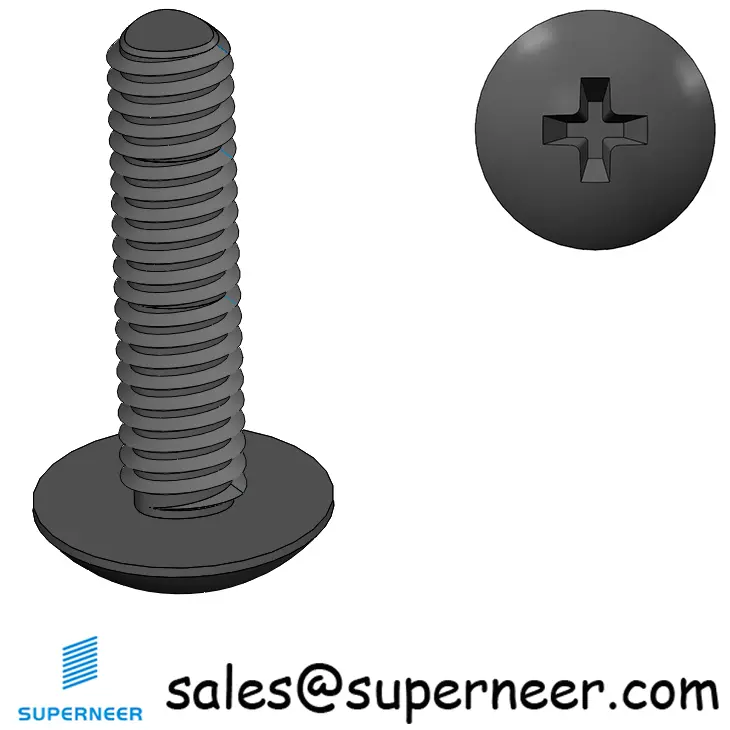

M2.5 × 10mm Truss Head Phillips Thread Forming Screws for Metal Steel Black
Why Choose TTPM2510B?
TTPM2510B is a M2.5 Truss Head head Phillips drive screw with 10 mm length, featuring a Black Zinc Plated Steel finish. The Black Zinc Plated Steel construction of TTPM2510B offers a black decorative finish combined with good corrosion resistance, ideal for consumer electronics, automotive interiors, and applications where both appearance and rust prevention matter. The Truss Head head design ensures optimal load distribution across the mating surface, while the Phillips drive allows efficient torque transmission during installation. Each TTPM2510B screw is manufactured to industry standards, RoHS compliant, and supplied with material test reports (MTR) for full quality traceability.
Payment Method: T/T & Paypal and other payment method
Shipment Method: Air Express , Air Freight, Sea Shippment
1. Order online directly, made payment via Paypal or bank transfer.
2. Superneer arrange production according to drawing,all demensions are within drawing specification.
3. Parts ready, ship to customer.
Frequently Asked Questions about TTPM2510B
What is TTPM2510B screw?
TTPM2510B is a M2.5 Truss Head head Phillips drive screw made of Black Zinc Plated Steel, manufactured by Superneer Limited. It has a length of 10 mm and is commonly used in electronics, watches, precision instruments, and 3D printers.
What are the specifications of TTPM2510B?

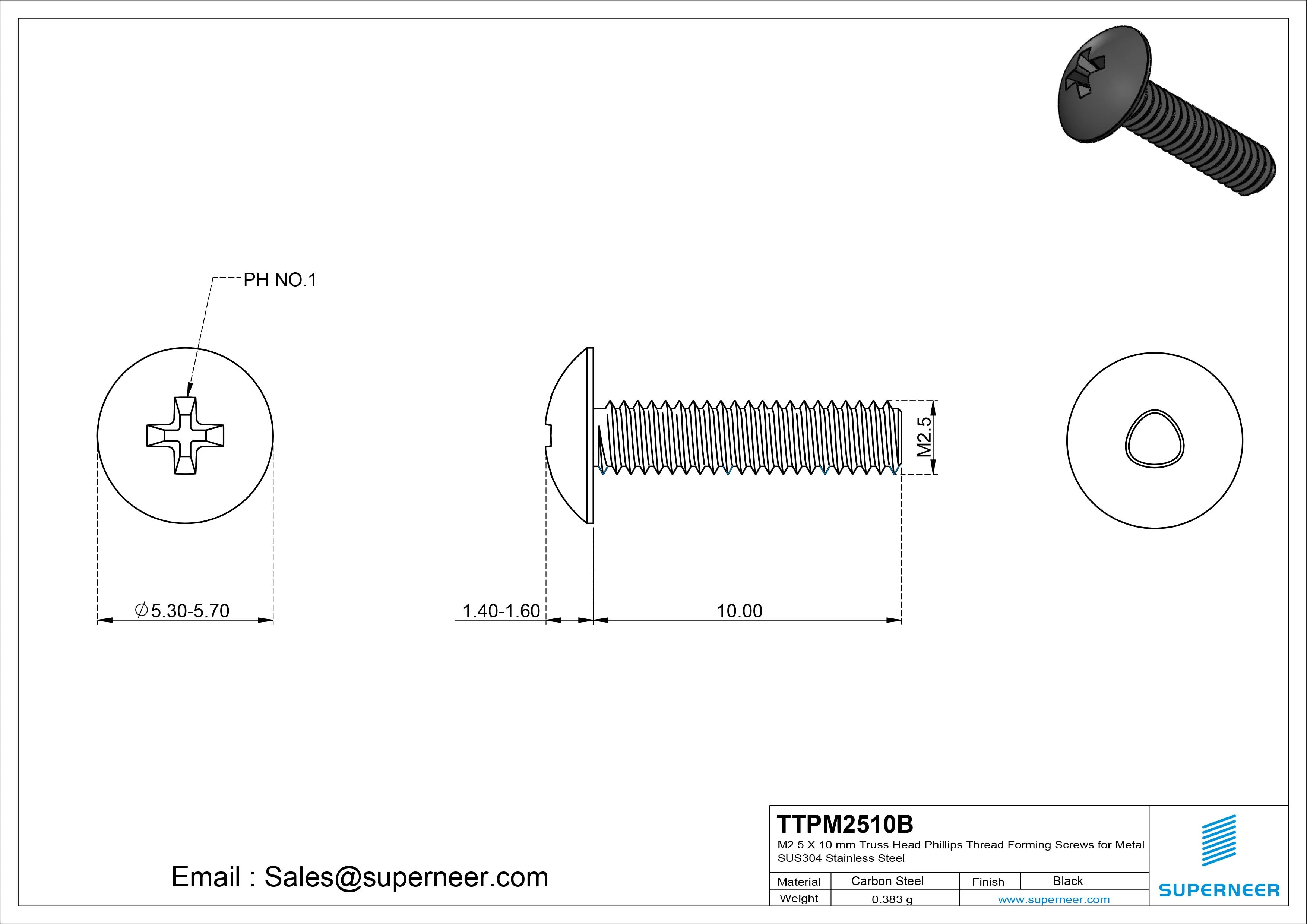

The TTPM2510B screw features thread size M2.5, length of 10 mm, head type Truss Head (head diameter 5.3-5.7 mm), drive type Phillips (drive size PH No.1), and is made of Black Zinc Plated Steel.
What material is the TTPM2510B screw made of?
The TTPM2510B screw is made of Black Zinc Plated Steel. Superneer provides material test reports (MTR) and RoHS compliance certificates for all products. Black Zinc Plated Steel offers excellent corrosion resistance and mechanical strength.
What is the thread size of TTPM2510B?
The TTPM2510B screw has a M2.5 thread. This is a metric thread with M2.5 specification, commonly used in international applications following ISO standards.
What are TTPM2510B screws used for?
TTPM2510B Truss Head head Phillips drive screws are used in electronics assembly, PCB mounting, precision instruments, watches, 3D printers, optical devices, medical equipment, and consumer products where reliable fastening with Truss Head head aesthetics is required.
What is the MOQ and price for TTPM2510B?
The minimum order quantity (MOQ) for TTPM2510B is 10,000 pieces. The unit price is $0.017 USD for MOQ quantity. Larger quantities receive discounted pricing. Contact [email protected] for custom quotes.
What is the lead time and shipping for TTPM2510B?
The lead time for TTPM2510B is 15-25 days for production. Shipping to USA takes 5-15 days via sea freight, with shipping cost starting from $50 USD. Air freight is available for urgent orders. DDP and FOB terms are both available.
What is the inch equivalent of M2.5 thread?
The M2.5 thread is approximately equivalent to #5 (approx). When substituting metric screws with inch screws, always verify the actual diameter and pitch compatibility.
What head type does TTPM2510B use and why?
The TTPM2510B uses a Truss Head head type. Truss Head head provides a specific head design optimized for its intended application. This head type is selected based on the specific application requirements for load distribution, aesthetics, and accessibility.
How to choose the right screw size for my application?
To choose the right screw: 1) Determine the required thread size based on the tapped hole or nut; 2) Select the appropriate length based on the material thickness; 3) Choose the head type based on clearance and aesthetics; 4) Select the drive type based on torque requirements; 5) Choose the material based on environmental conditions. For TTPM2510B (M2.5, 10 mm), ensure your application requires this specific size.
