M2.5 × 6mm Truss Head Phillips Thread Forming Screws for Metal SUS304 Stainless Steel Inox
Why Choose TTPM2506S?

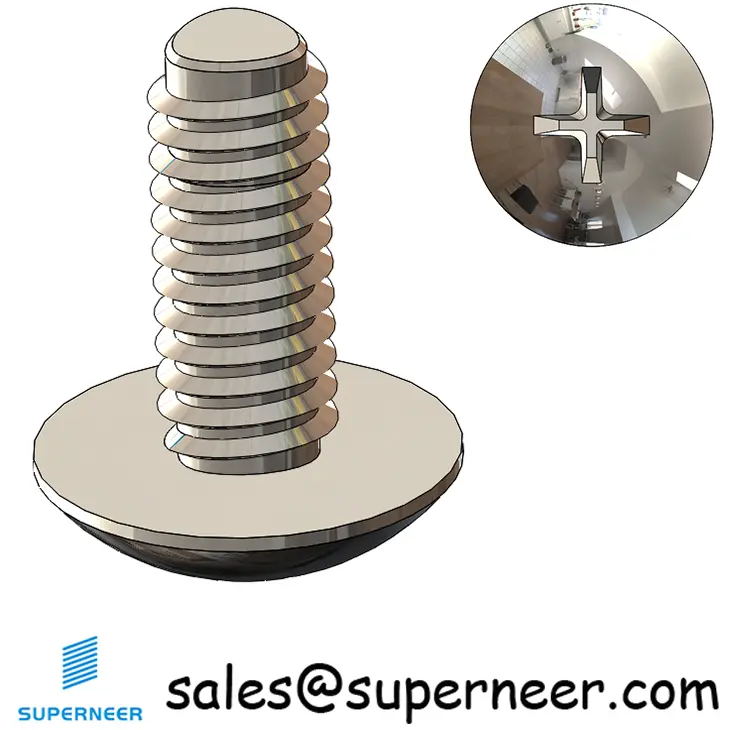

TTPM2506S is a M2.5 Truss Head head Phillips drive screw with 6 mm length, featuring a SUS304 Stainless Steel finish. Compared to alternative finishes in the same specification such as TTPM2506Z (Blue Zinc Plated Steel), TTPM2506B (Black Zinc Plated Steel), the SUS304 Stainless Steel of TTPM2506S offers superior corrosion resistance for outdoor, marine, and humid environments, excellent hygiene properties for food and medical equipment, and good mechanical strength at low cost relative to exotic alloys. The Truss Head head design ensures optimal load distribution across the mating surface, while the Phillips drive allows efficient torque transmission during installation. Each TTPM2506S screw is manufactured to industry standards, RoHS compliant, and supplied with material test reports (MTR) for full quality traceability.
Payment Method: T/T & Paypal and other payment method
Shipment Method: Air Express , Air Freight, Sea Shippment
1. Order online directly, made payment via Paypal or bank transfer.
2. Superneer arrange production according to drawing,all demensions are within drawing specification.
3. Parts ready, ship to customer.
Frequently Asked Questions about TTPM2506S
What is TTPM2506S screw?
TTPM2506S is a M2.5 Truss Head head Phillips drive screw made of SUS304 Stainless Steel, manufactured by Superneer Limited. It has a length of 6 mm and is commonly used in electronics, watches, precision instruments, and 3D printers.
What are the specifications of TTPM2506S?

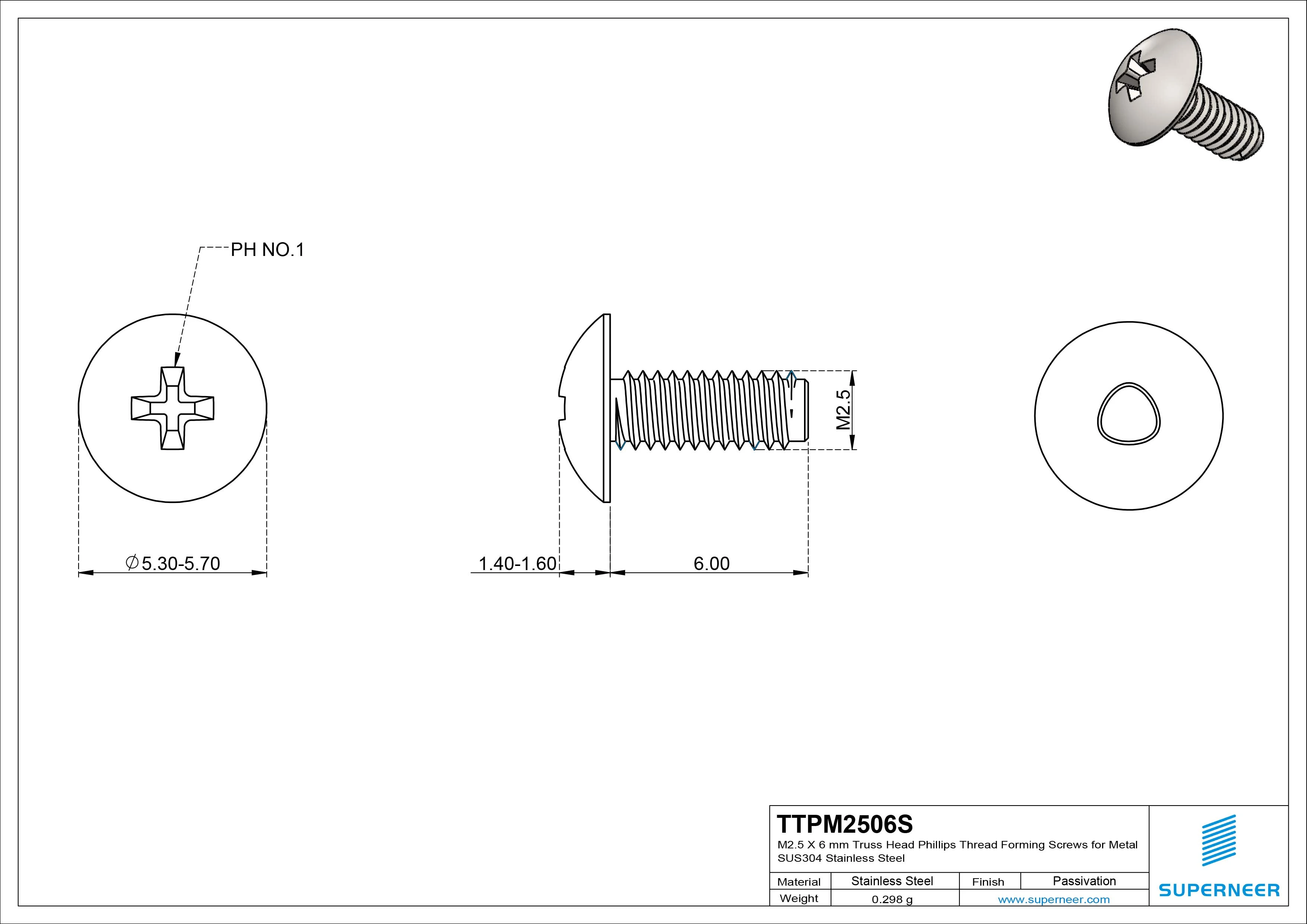

The TTPM2506S screw features thread size M2.5, length of 6 mm, head type Truss Head (head diameter 5.3-5.7 mm), drive type Phillips (drive size PH No.1), and is made of SUS304 Stainless Steel.
What material is the TTPM2506S screw made of?
The TTPM2506S screw is made of SUS304 Stainless Steel. Superneer provides material test reports (MTR) and RoHS compliance certificates for all products. SUS304 Stainless Steel offers excellent corrosion resistance and mechanical strength.
What is the thread size of TTPM2506S?
The TTPM2506S screw has a M2.5 thread. This is a metric thread with M2.5 specification, commonly used in international applications following ISO standards.
What are TTPM2506S screws used for?
TTPM2506S Truss Head head Phillips drive screws are used in electronics assembly, PCB mounting, precision instruments, watches, 3D printers, optical devices, medical equipment, and consumer products where reliable fastening with Truss Head head aesthetics is required.
What is the MOQ and price for TTPM2506S?
The minimum order quantity (MOQ) for TTPM2506S is 10,000 pieces. The unit price is $0.020 USD for MOQ quantity. Larger quantities receive discounted pricing. Contact [email protected] for custom quotes.
What is the lead time and shipping for TTPM2506S?
The lead time for TTPM2506S is 15-25 days for production. Shipping to USA takes 5-15 days via sea freight, with shipping cost starting from $50 USD. Air freight is available for urgent orders. DDP and FOB terms are both available.
What is the inch equivalent of M2.5 thread?
The M2.5 thread is approximately equivalent to #5 (approx). When substituting metric screws with inch screws, always verify the actual diameter and pitch compatibility.
What head type does TTPM2506S use and why?
The TTPM2506S uses a Truss Head head type. Truss Head head provides a specific head design optimized for its intended application. This head type is selected based on the specific application requirements for load distribution, aesthetics, and accessibility.
How to choose the right screw size for my application?
To choose the right screw: 1) Determine the required thread size based on the tapped hole or nut; 2) Select the appropriate length based on the material thickness; 3) Choose the head type based on clearance and aesthetics; 4) Select the drive type based on torque requirements; 5) Choose the material based on environmental conditions. For TTPM2506S (M2.5, 6 mm), ensure your application requires this specific size.
What is the difference between TTPM2506S and similar parts?
TTPM2506S uses SUS304 Stainless Steel finish, while alternative variants in the same thread/length specification include TTPM2506Z (Blue Zinc Plated Steel), TTPM2506B (Black Zinc Plated Steel). The SUS304 Stainless Steel of TTPM2506S is specifically selected because it offers superior corrosion resistance for outdoor, marine, and humid environments, excellent hygiene properties for food and medical equipment, and good mechanical strength at low cost relative to exotic alloys. This distinction makes TTPM2506S the preferred choice when these properties align with your application requirements.
