High Quality DIN7500 M6 × 14mm Pan Head Torx Thread Rolling Screws for Metal Steel Blue Zinc Plated
Why Choose TPTM614Z?
TPTM614Z is a M6 Pan Head head Torx drive screw with 14 mm length, featuring a Blue Zinc Plated Steel finish. Compared to alternative finishes in the same specification such as TPTM614S (SUS304 Stainless Steel), TPTM614B (Black Zinc Plated Steel), the Blue Zinc Plated Steel of TPTM614Z offers moderate corrosion resistance with a distinctive blue iridescent appearance, commonly used in automotive assembly, machinery, and general industrial fastening. The Pan Head head design ensures optimal load distribution across the mating surface, while the Torx drive allows efficient torque transmission during installation. Each TPTM614Z screw is manufactured to industry standards, RoHS compliant, and supplied with material test reports (MTR) for full quality traceability.
Payment Method: T/T & Paypal and other payment method
Shipment Method: Air Express , Air Freight, Sea Shippment
1. Order online directly, made payment via Paypal or bank transfer.
2. Superneer arrange production according to drawing,all demensions are within drawing specification.
3. Parts ready, ship to customer.
Frequently Asked Questions about TPTM614Z
What is TPTM614Z screw?
TPTM614Z is a M6 Pan Head head Torx drive screw made of Blue Zinc Plated Steel, manufactured by Superneer Limited. It has a length of 14 mm and is commonly used in electronics, watches, precision instruments, and 3D printers.
What are the specifications of TPTM614Z?

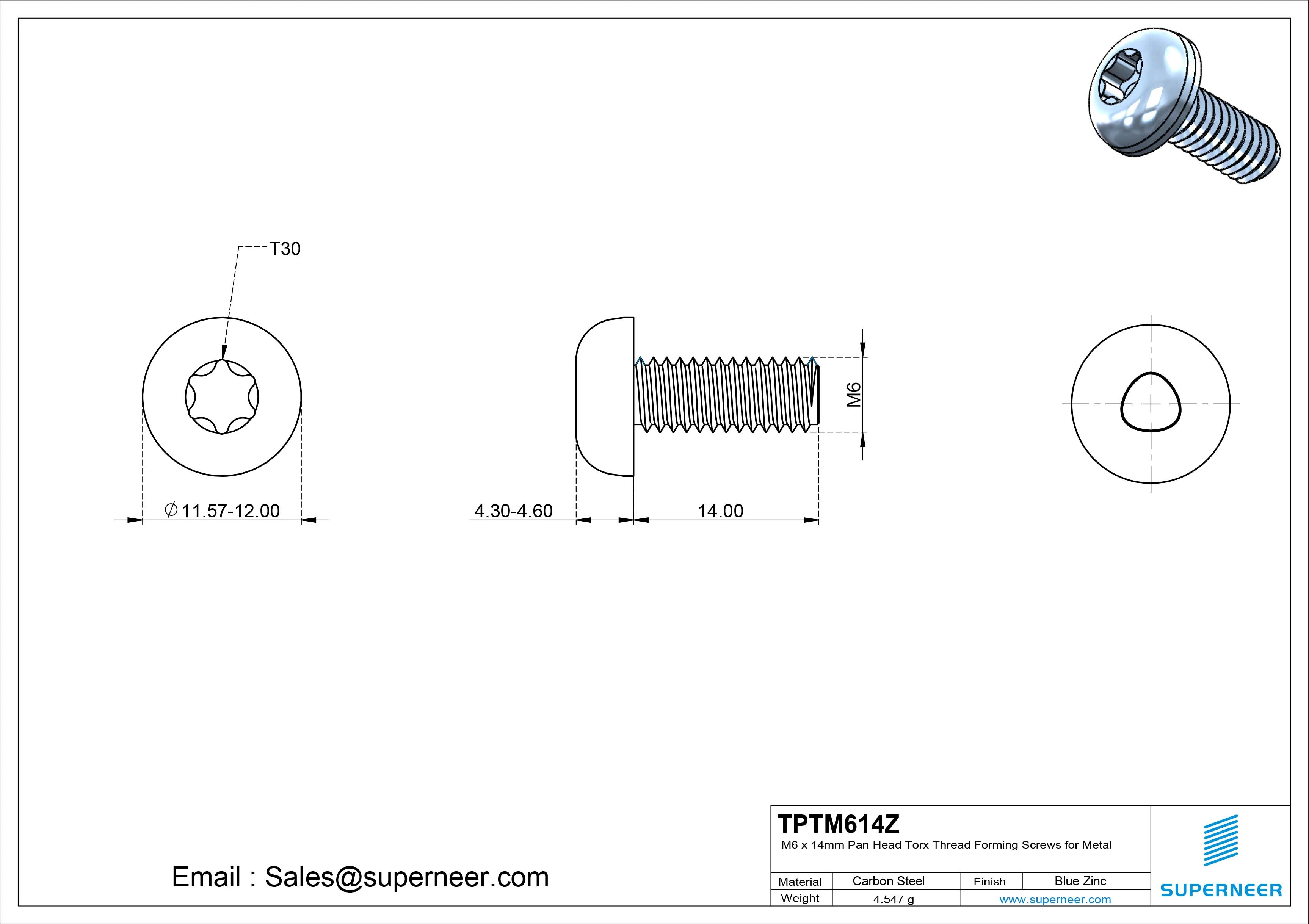

The TPTM614Z screw features thread size M6, length of 14 mm, head type Pan Head (head diameter 11.57-12 mm), drive type Torx (drive size T30), and is made of Blue Zinc Plated Steel.
What material is the TPTM614Z screw made of?
The TPTM614Z screw is made of Blue Zinc Plated Steel. Superneer provides material test reports (MTR) and RoHS compliance certificates for all products. Blue Zinc Plated Steel offers excellent corrosion resistance and mechanical strength.
What is the thread size of TPTM614Z?
The TPTM614Z screw has a M6 thread. This is a metric thread with M6 specification, commonly used in international applications following ISO standards.
What are TPTM614Z screws used for?
TPTM614Z Pan Head head Torx drive screws are used in electronics assembly, PCB mounting, precision instruments, watches, 3D printers, optical devices, medical equipment, and consumer products where reliable fastening with Pan Head head aesthetics is required.
What is the MOQ and price for TPTM614Z?
The minimum order quantity (MOQ) for TPTM614Z is 10,000 pieces. The unit price is $0.034 USD for MOQ quantity. Larger quantities receive discounted pricing. Contact [email protected] for custom quotes.
What is the lead time and shipping for TPTM614Z?
The lead time for TPTM614Z is 15-25 days for production. Shipping to USA takes 5-15 days via sea freight, with shipping cost starting from $50 USD. Air freight is available for urgent orders. DDP and FOB terms are both available.
What is the inch equivalent of M6 thread?
The M6 thread is approximately equivalent to 1/4"-20. When substituting metric screws with inch screws, always verify the actual diameter and pitch compatibility.
What head type does TPTM614Z use and why?
The TPTM614Z uses a Pan Head head type. Pan Head head provides a specific head design optimized for its intended application. This head type is selected based on the specific application requirements for load distribution, aesthetics, and accessibility.
How to choose the right screw size for my application?
To choose the right screw: 1) Determine the required thread size based on the tapped hole or nut; 2) Select the appropriate length based on the material thickness; 3) Choose the head type based on clearance and aesthetics; 4) Select the drive type based on torque requirements; 5) Choose the material based on environmental conditions. For TPTM614Z (M6, 14 mm), ensure your application requires this specific size.
What is the difference between TPTM614Z and similar parts?
TPTM614Z uses Blue Zinc Plated Steel finish, while alternative variants in the same thread/length specification include TPTM614S (SUS304 Stainless Steel), TPTM614B (Black Zinc Plated Steel). The Blue Zinc Plated Steel of TPTM614Z is specifically selected because it offers moderate corrosion resistance with a distinctive blue iridescent appearance, commonly used in automotive assembly, machinery, and general industrial fastening. This distinction makes TPTM614Z the preferred choice when these properties align with your application requirements.
