M5 × 12mm Pan Head Phillips Thread Forming Screws for Metal Steel Blue Zinc Plated

TPPM512Z is a M5 Pan Head head Phillips drive screw made of Blue Zinc Plated Steel, manufactured by Superneer Limited. It has a length of 12 mm and is commonly used in electronics, watches, precision instruments, and 3D printers.

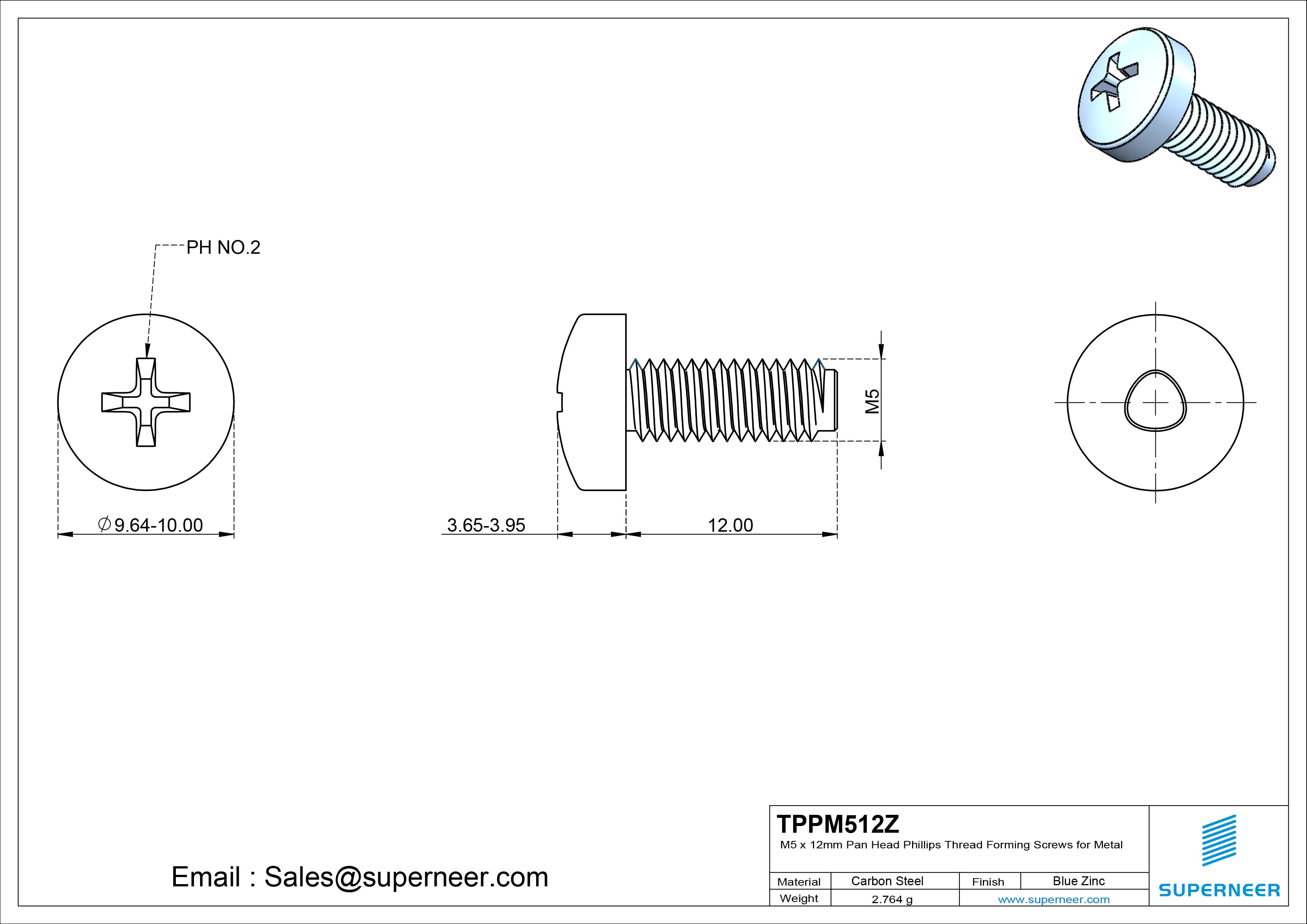

The TPPM512Z screw features thread size M5, length of 12 mm, head type Pan Head (head diameter 9.64-10.00 mm), drive type Phillips (drive size PH No.2), and is made of Blue Zinc Plated Steel.

The TPPM512Z screw is made of Blue Zinc Plated Steel. Superneer provides material test reports (MTR) and RoHS compliance certificates for all products. Blue Zinc Plated Steel offers excellent corrosion resistance and mechanical strength.

The TPPM512Z screw has a M5 thread. This is a metric thread with M5 specification, commonly used in international applications following ISO standards.

TPPM512Z Pan Head head Phillips drive screws are used in electronics assembly, PCB mounting, precision instruments, watches, 3D printers, optical devices, medical equipment, and consumer products where reliable fastening with Pan Head head aesthetics is required.

The minimum order quantity (MOQ) for TPPM512Z is 10,000 pieces. The unit price is $0.033 USD for MOQ quantity. Larger quantities receive discounted pricing. Contact [email protected] for custom quotes.

The lead time for TPPM512Z is 15-25 days for production. Shipping to USA takes 5-15 days via sea freight, with shipping cost starting from $50 USD. Air freight is available for urgent orders. DDP and FOB terms are both available.

The M5 thread is approximately equivalent to #10 (approx 10-32). When substituting metric screws with inch screws, always verify the actual diameter and pitch compatibility.

The TPPM512Z uses a Pan Head head type. Pan Head head provides a specific head design optimized for its intended application. This head type is selected based on the specific application requirements for load distribution, aesthetics, and accessibility.

To choose the right screw: 1) Determine the required thread size based on the tapped hole or nut; 2) Select the appropriate length based on the material thickness; 3) Choose the head type based on clearance and aesthetics; 4) Select the drive type based on torque requirements; 5) Choose the material based on environmental conditions. For TPPM512Z (M5, 12 mm), ensure your application requires this specific size.

TPPM512Z uses Blue Zinc Plated Steel finish, while alternative variants in the same thread/length specification include TPPM512S (SUS304 Stainless Steel), TPPM512B (Black Zinc Plated Steel). The Blue Zinc Plated Steel of TPPM512Z is specifically selected because it offers moderate corrosion resistance with a distinctive blue iridescent appearance, commonly used in automotive assembly, machinery, and general industrial fastening. This distinction makes TPPM512Z the preferred choice when these properties align with your application requirements.
