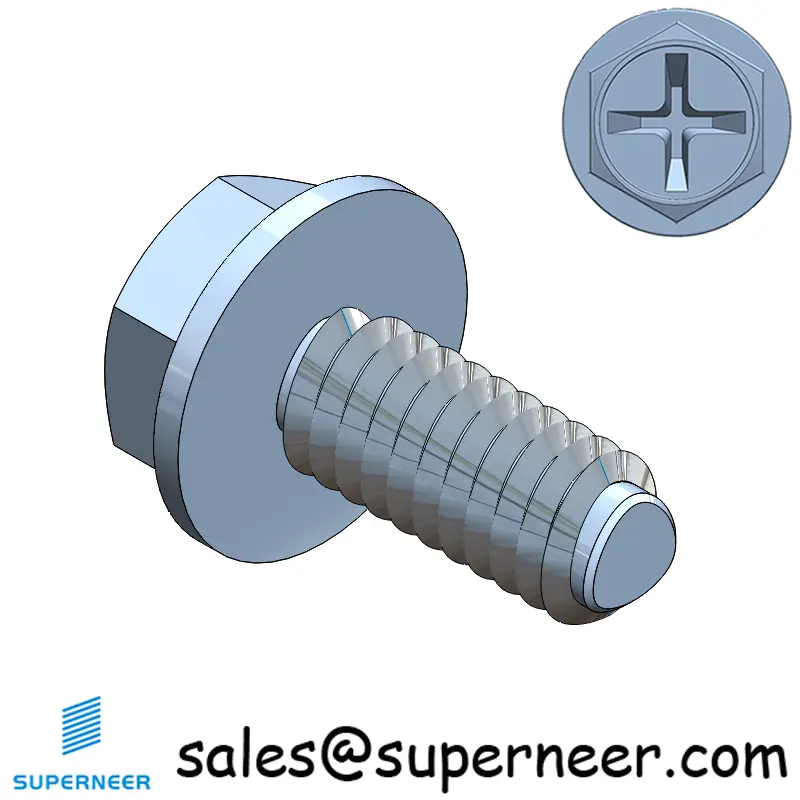

8-32 × 3/8 Hex Washer Phillips Thread Forming Screws for Metal Steel Blue Zinc Plated
Why Choose THP0806Z?
THP0806Z is a 8-32 Hex Washer Head head Phillips drive screw with 3/8 inches length, featuring a Blue Zinc Plated Steel finish. Compared to alternative finishes in the same specification such as THP0806S (SUS304 Stainless Steel), THP0806B (Black Zinc Plated Steel), the Blue Zinc Plated Steel of THP0806Z offers moderate corrosion resistance with a distinctive blue iridescent appearance, commonly used in automotive assembly, machinery, and general industrial fastening. The Hex Washer Head head design ensures optimal load distribution across the mating surface, while the Phillips drive allows efficient torque transmission during installation. Each THP0806Z screw is manufactured to industry standards, RoHS compliant, and supplied with material test reports (MTR) for full quality traceability.
Payment Method: T/T & Paypal and other payment method
Shipment Method: Air Express , Air Freight, Sea Shippment
1. Order online directly, made payment via Paypal or bank transfer.
2. Superneer arrange production according to drawing,all demensions are within drawing specification.
3. Parts ready, ship to customer.
Frequently Asked Questions about THP0806Z
What is THP0806Z screw?
THP0806Z is a 8-32 Hex Washer Head head Phillips drive screw made of Blue Zinc Plated Steel, manufactured by Superneer Limited. It has a length of 3/8 inches and is commonly used in electronics, watches, precision instruments, and 3D printers.
What are the specifications of THP0806Z?

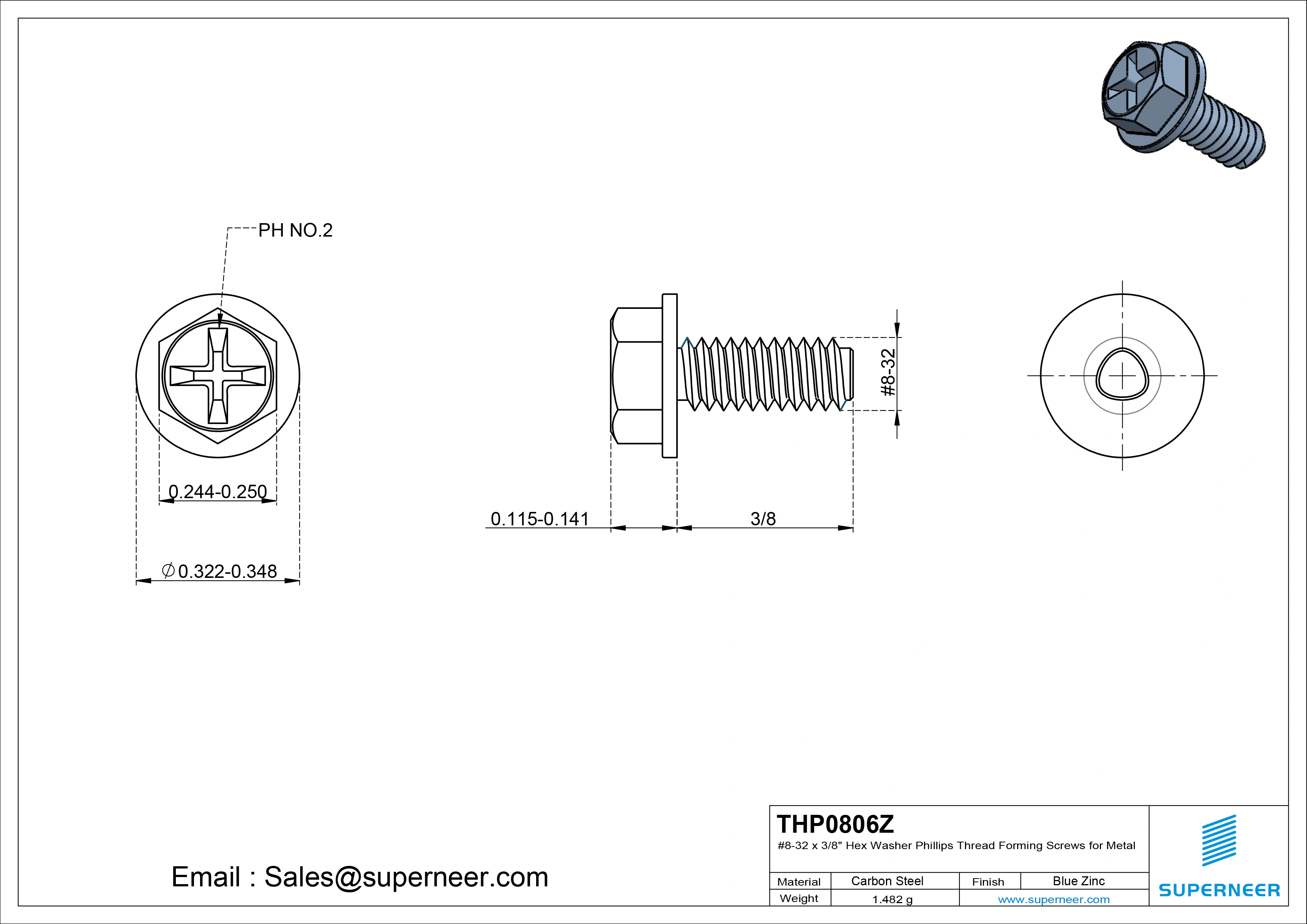

The THP0806Z screw features thread size 8-32, length of 3/8 inches, head type Hex Washer Head (head diameter G .348 / .322 WAF . inches), drive type Phillips (drive size PH No.2), and is made of Blue Zinc Plated Steel.
What material is the THP0806Z screw made of?
The THP0806Z screw is made of Blue Zinc Plated Steel. Superneer provides material test reports (MTR) and RoHS compliance certificates for all products. Blue Zinc Plated Steel offers excellent corrosion resistance and mechanical strength.
What is the thread size of THP0806Z?
The THP0806Z screw has a 8-32 thread. This is a UNC (Unified National Coarse) thread with 8-32 specification, widely used in North American applications.
What are THP0806Z screws used for?
THP0806Z Hex Washer Head head Phillips drive screws are used in electronics assembly, PCB mounting, precision instruments, watches, 3D printers, optical devices, medical equipment, and consumer products where reliable fastening with Hex Washer Head head aesthetics is required.
What is the MOQ and price for THP0806Z?
The minimum order quantity (MOQ) for THP0806Z is 10,000 pieces. The unit price is $0.027 USD for MOQ quantity. Larger quantities receive discounted pricing. Contact [email protected] for custom quotes.
What is the lead time and shipping for THP0806Z?
The lead time for THP0806Z is 15-25 days for production. Shipping to USA takes 5-15 days via sea freight, with shipping cost starting from $50 USD. Air freight is available for urgent orders. DDP and FOB terms are both available.
What is the metric equivalent of 8-32 thread?
The 8-32 thread is approximately equivalent to M4 (approx). When substituting inch screws with metric screws, always verify the actual diameter and pitch compatibility.
What head type does THP0806Z use and why?
The THP0806Z uses a Hex Washer Head head type. Hex Washer Head head provides a specific head design optimized for its intended application. This head type is selected based on the specific application requirements for load distribution, aesthetics, and accessibility.
How to choose the right screw size for my application?
To choose the right screw: 1) Determine the required thread size based on the tapped hole or nut; 2) Select the appropriate length based on the material thickness; 3) Choose the head type based on clearance and aesthetics; 4) Select the drive type based on torque requirements; 5) Choose the material based on environmental conditions. For THP0806Z (8-32, 3/8 inches), ensure your application requires this specific size.
What is the difference between THP0806Z and similar parts?
THP0806Z uses Blue Zinc Plated Steel finish, while alternative variants in the same thread/length specification include THP0806S (SUS304 Stainless Steel), THP0806B (Black Zinc Plated Steel). The Blue Zinc Plated Steel of THP0806Z is specifically selected because it offers moderate corrosion resistance with a distinctive blue iridescent appearance, commonly used in automotive assembly, machinery, and general industrial fastening. This distinction makes THP0806Z the preferred choice when these properties align with your application requirements.
