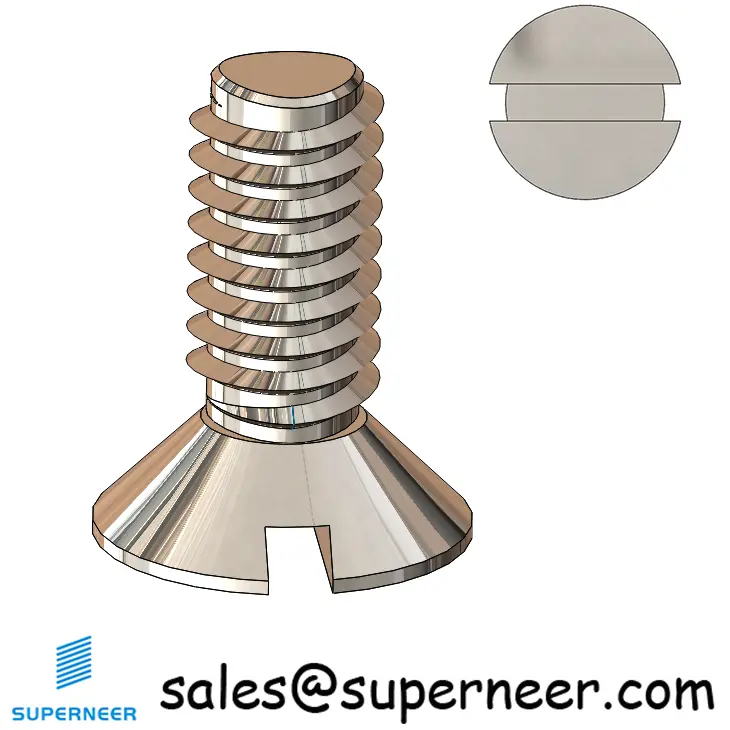

M2.5 × 6mm Flat Head Slot Thread Forming Screws for Metal SUS304 Stainless Steel Inox

TFLM2506S is a M2.5 Flat Head head Slot drive screw made of SUS304 Stainless Steel, manufactured by Superneer Limited. It has a length of 6 mm and is commonly used in electronics, watches, precision instruments, and 3D printers.

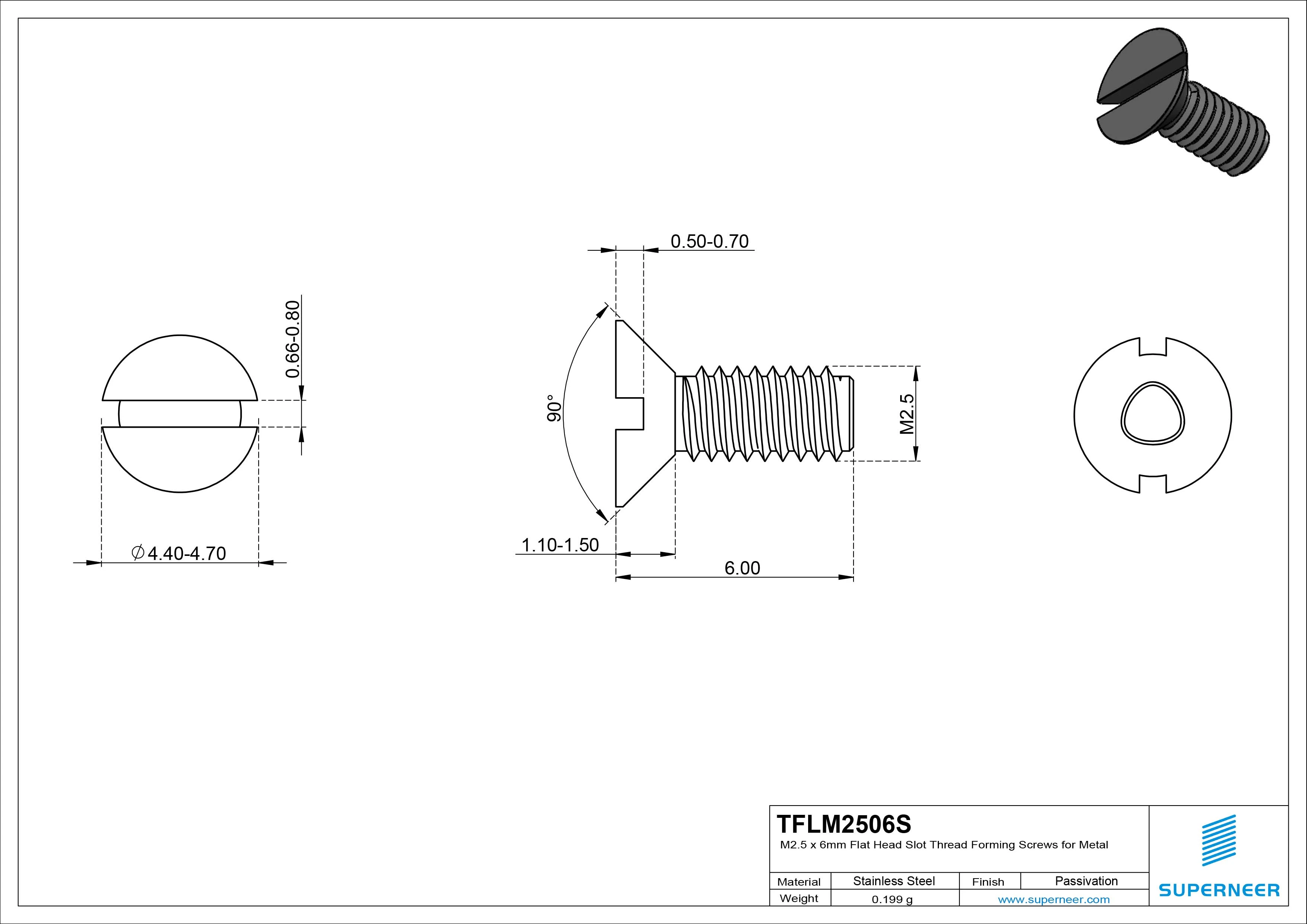

The TFLM2506S screw features thread size M2.5, length of 6 mm, head type Flat Head (head diameter 4.40-4.70 mm), drive type Slot (drive size N/A), and is made of SUS304 Stainless Steel.

The TFLM2506S screw is made of SUS304 Stainless Steel. Superneer provides material test reports (MTR) and RoHS compliance certificates for all products. SUS304 Stainless Steel offers excellent corrosion resistance and mechanical strength.

The TFLM2506S screw has a M2.5 thread. This is a metric thread with M2.5 specification, commonly used in international applications following ISO standards.

TFLM2506S Flat Head head Slot drive screws are used in electronics assembly, PCB mounting, precision instruments, watches, 3D printers, optical devices, medical equipment, and consumer products where reliable fastening with Flat Head head aesthetics is required.

The minimum order quantity (MOQ) for TFLM2506S is 10,000 pieces. The unit price is $0.019 USD for MOQ quantity. Larger quantities receive discounted pricing. Contact [email protected] for custom quotes.

The lead time for TFLM2506S is 15-25 days for production. Shipping to USA takes 5-15 days via sea freight, with shipping cost starting from $50 USD. Air freight is available for urgent orders. DDP and FOB terms are both available.

The M2.5 thread is approximately equivalent to #5 (approx). When substituting metric screws with inch screws, always verify the actual diameter and pitch compatibility.

The TFLM2506S uses a Flat Head head type. Flat Head head provides a specific head design optimized for its intended application. This head type is selected based on the specific application requirements for load distribution, aesthetics, and accessibility.

To choose the right screw: 1) Determine the required thread size based on the tapped hole or nut; 2) Select the appropriate length based on the material thickness; 3) Choose the head type based on clearance and aesthetics; 4) Select the drive type based on torque requirements; 5) Choose the material based on environmental conditions. For TFLM2506S (M2.5, 6 mm), ensure your application requires this specific size.

TFLM2506S uses SUS304 Stainless Steel finish, while alternative variants in the same thread/length specification include TFLM2506Z (Blue Zinc Plated Steel), TFLM2506B (Black Zinc Plated Steel). The SUS304 Stainless Steel of TFLM2506S is specifically selected because it offers superior corrosion resistance for outdoor, marine, and humid environments, excellent hygiene properties for food and medical equipment, and good mechanical strength at low cost relative to exotic alloys. This distinction makes TFLM2506S the preferred choice when these properties align with your application requirements.
