Home Machine Screws Pan Washer Head Screw Torx Washer Head Screws M3.5 x 14 mm Pan Washer Head Torx Machine Screws Steel Black

M3.5 x 14 mm Pan Washer Head Torx Machine Screws Steel Black

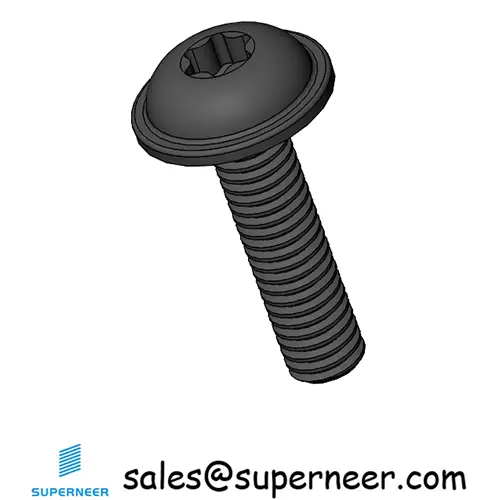

screw pic
screw pic
Part No. MWTM3514B rohs Rating:

Material Black Zinc Plated Steel
Ship Date 2026-11-04
Head Pan Washer Head
Drive Torx   T15
Head Diameter 8.42-9 mm
Head Height 2.35-2.6 mm
Thread M3.5
Length 14 mm
Unit Price USD$ 0.035 /pcs
Unit Weight 1.666 g
Quantity pcs
Amount USD$ Total Amount USD$
Amount USD$ Total Amount USD$

Related Parts
M3.5 x 5 mm Pan Washer Head Torx Machine Screws Steel Black M3.5 x 5 mm Pan Washer Head Torx Machine Screws Steel Black
M3.5 x 6 mm Pan Washer Head Torx Machine Screws Steel Black M3.5 x 6 mm Pan Washer Head Torx Machine Screws Steel Black
M3.5 x 8 mm Pan Washer Head Torx Machine Screws Steel Black M3.5 x 8 mm Pan Washer Head Torx Machine Screws Steel Black
M3.5 x 10 mm Pan Washer Head Torx Machine Screws Steel Black M3.5 x 10 mm Pan Washer Head Torx Machine Screws Steel Black
M3.5 x 12 mm Pan Washer Head Torx Machine Screws Steel Black M3.5 x 12 mm Pan Washer Head Torx Machine Screws Steel Black
M3.5 x 14 mm Pan Washer Head Torx Machine Screws Steel Black M3.5 x 14 mm Pan Washer Head Torx Machine Screws Steel Black
Item Information
M3.5 x 14 mm Pan Washer Head Torx Machine Screws Steel Black
This part demension will be same as the drawing indicate below, length tolerance will be ±0.5 .
It is Pan Washer Head with Torx drive, M3.5 Thread and 14 mm Length .
Material Black Zinc Plated Steel, Finsh is Rohs Black which has good function of anti-corrosion .
On website, you can choose use your shipping account which shippcost is 0, or you can use our DHL/UPS account to ship which will have ship cost indicate.
Payment terms: Payment advance, On website, you can choose pay via paypal or pay via bank transfer. when bank transfer , you can send your bank slip to us via order process or send it to our email:sales@superneer.com. when payment made, We will soon make production and update process for you via email.
Buy Black zinc plated steel pan washer head torx screw with m3.5 and 14 length manufactured by Superneer,this m3.5 x 14 mm pan washer head torx machine screws steel black features 8.42-9 head diameter and 2.35-2.6 head height.Suitable for fastening materials.Available in black finish today,high quality product and best service will be provided by superneer.Each order will be made shippment on time.
Different Finish :
M3.5 x 14 mm
M3.5 x 14 mm
MWTM3514S
SUS304 Stainless Steel
M3.5 x 14 mm
M3.5 x 14 mm
MWTM3514Z
Blue Zinc Plated Steel
M3.5 x 14 mm
M3.5 x 14 mm
MWTM3514B
Black Zinc Plated Steel

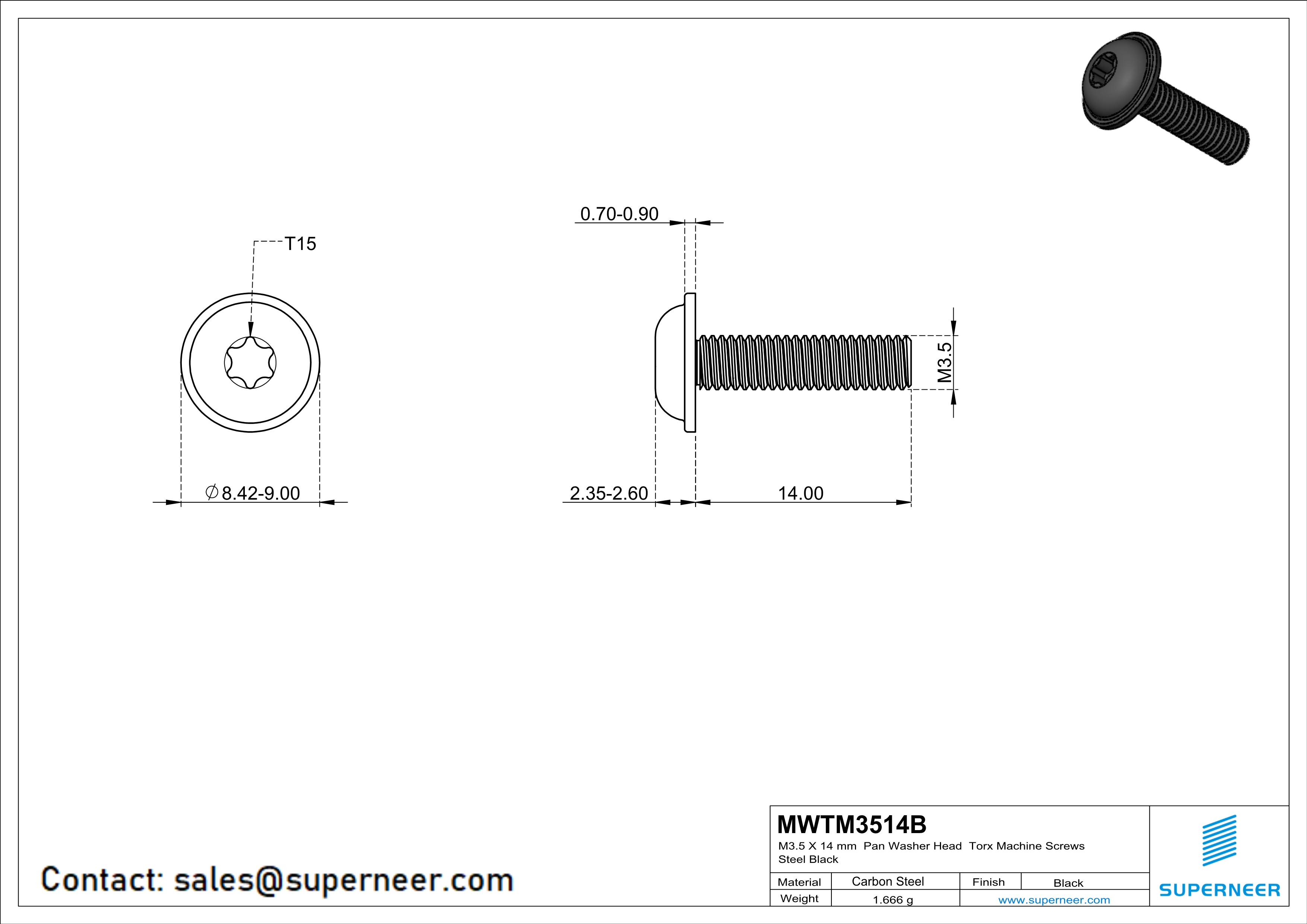

Item Drawing
M3.5 x 14 mm Pan Washer Head Torx Machine Screws Steel Black
