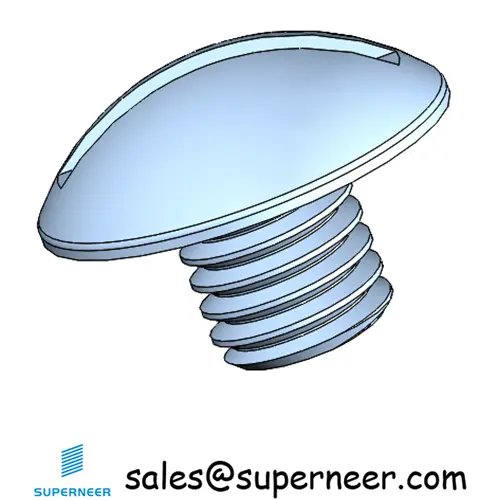

M5 x 5 mm Truss Head Slotted Machine Screw Steel Blue Zinc Plated JIS B 1111
Why Choose MTLM505Z?
MTLM505Z is a M5 Truss Head head Slot drive screw with 5 mm length, featuring a Blue Zinc Plated Steel finish. Compared to alternative finishes in the same specification such as MTLM505S (SUS304 Stainless Steel), MTLM505B (Black Zinc Plated Steel), the Blue Zinc Plated Steel of MTLM505Z offers moderate corrosion resistance with a distinctive blue iridescent appearance, commonly used in automotive assembly, machinery, and general industrial fastening. The Truss Head head design ensures optimal load distribution across the mating surface, while the Slot drive allows efficient torque transmission during installation. Each MTLM505Z screw is manufactured to industry standards, RoHS compliant, and supplied with material test reports (MTR) for full quality traceability.
Payment Method: T/T & Paypal and other payment method
Shipment Method: Air Express , Air Freight, Sea Shippment
1. Order online directly, made payment via Paypal or bank transfer.
2. Superneer arrange production according to drawing,all demensions are within drawing specification.
3. Parts ready, ship to customer.
Frequently Asked Questions about MTLM505Z
What is MTLM505Z screw?
MTLM505Z is a M5 Truss Head head Slot drive screw made of Blue Zinc Plated Steel, manufactured by Superneer Limited. It has a length of 5 mm and is commonly used in electronics, watches, precision instruments, and 3D printers.
What are the specifications of MTLM505Z?

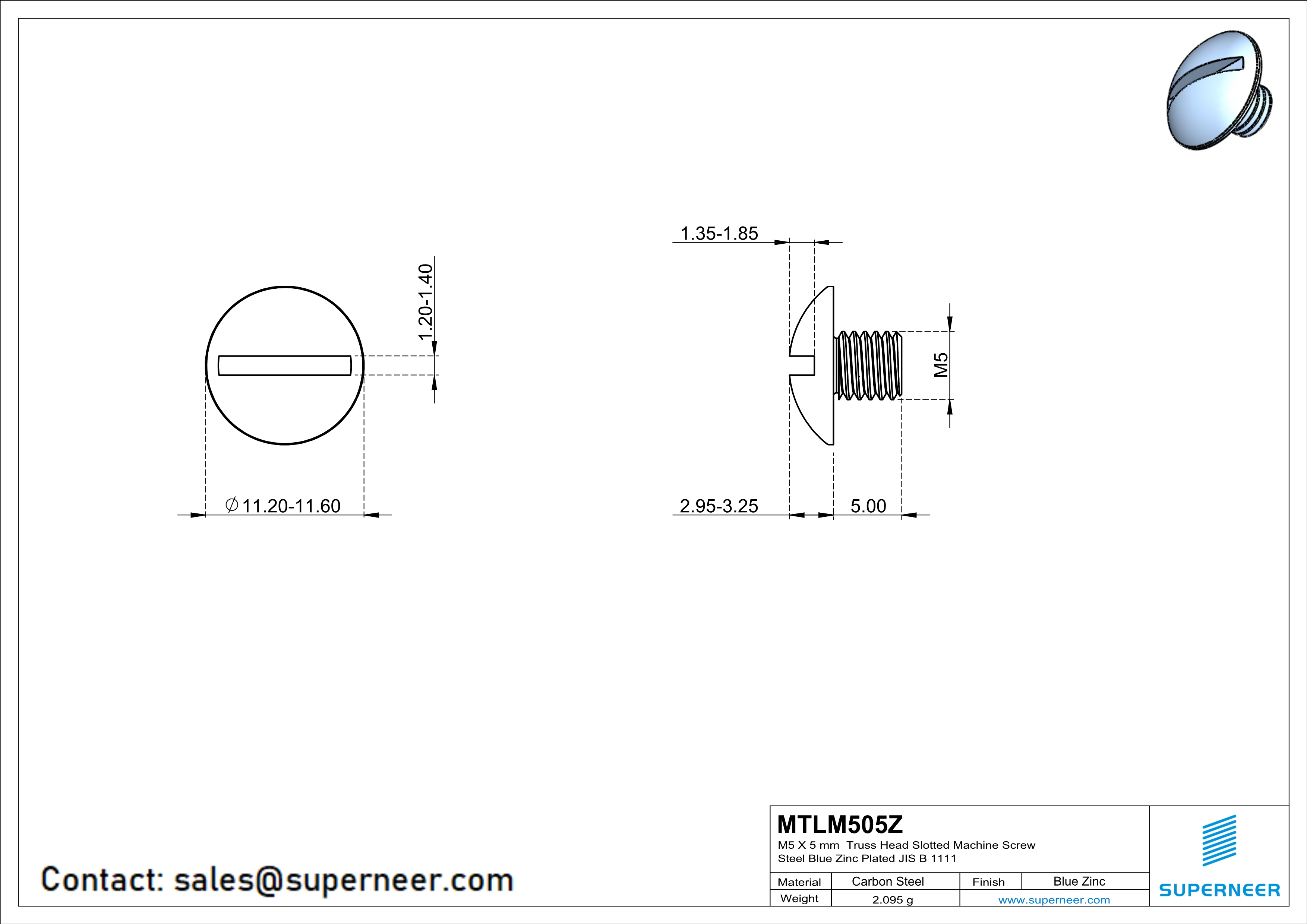

The MTLM505Z screw features thread size M5, length of 5 mm, head type Truss Head (head diameter 11.2-11.8 mm), drive type Slot (drive size 1.2-1.4mm), and is made of Blue Zinc Plated Steel.
What material is the MTLM505Z screw made of?
The MTLM505Z screw is made of Blue Zinc Plated Steel. Superneer provides material test reports (MTR) and RoHS compliance certificates for all products. Blue Zinc Plated Steel offers excellent corrosion resistance and mechanical strength.
What is the thread size of MTLM505Z?
The MTLM505Z screw has a M5 thread. This is a metric thread with M5 specification, commonly used in international applications following ISO standards.
What are MTLM505Z screws used for?
MTLM505Z Truss Head head Slot drive screws are used in electronics assembly, PCB mounting, precision instruments, watches, 3D printers, optical devices, medical equipment, and consumer products where reliable fastening with Truss Head head aesthetics is required.
What is the MOQ and price for MTLM505Z?
The minimum order quantity (MOQ) for MTLM505Z is 10,000 pieces. The unit price is $0.049 USD for MOQ quantity. Larger quantities receive discounted pricing. Contact [email protected] for custom quotes.
What is the lead time and shipping for MTLM505Z?
The lead time for MTLM505Z is 15-25 days for production. Shipping to USA takes 5-15 days via sea freight, with shipping cost starting from $50 USD. Air freight is available for urgent orders. DDP and FOB terms are both available.
What is the inch equivalent of M5 thread?
The M5 thread is approximately equivalent to #10 (approx 10-32). When substituting metric screws with inch screws, always verify the actual diameter and pitch compatibility.
What head type does MTLM505Z use and why?
The MTLM505Z uses a Truss Head head type. Truss Head head provides a specific head design optimized for its intended application. This head type is selected based on the specific application requirements for load distribution, aesthetics, and accessibility.
How to choose the right screw size for my application?
To choose the right screw: 1) Determine the required thread size based on the tapped hole or nut; 2) Select the appropriate length based on the material thickness; 3) Choose the head type based on clearance and aesthetics; 4) Select the drive type based on torque requirements; 5) Choose the material based on environmental conditions. For MTLM505Z (M5, 5 mm), ensure your application requires this specific size.
What is the difference between MTLM505Z and similar parts?
MTLM505Z uses Blue Zinc Plated Steel finish, while alternative variants in the same thread/length specification include MTLM505S (SUS304 Stainless Steel), MTLM505B (Black Zinc Plated Steel). The Blue Zinc Plated Steel of MTLM505Z is specifically selected because it offers moderate corrosion resistance with a distinctive blue iridescent appearance, commonly used in automotive assembly, machinery, and general industrial fastening. This distinction makes MTLM505Z the preferred choice when these properties align with your application requirements.
