M4 x 6 mm Truss Head Slotted Machine Screw SUS304 Stainless Steel JIS B 1111
Why Choose MTLM406S?

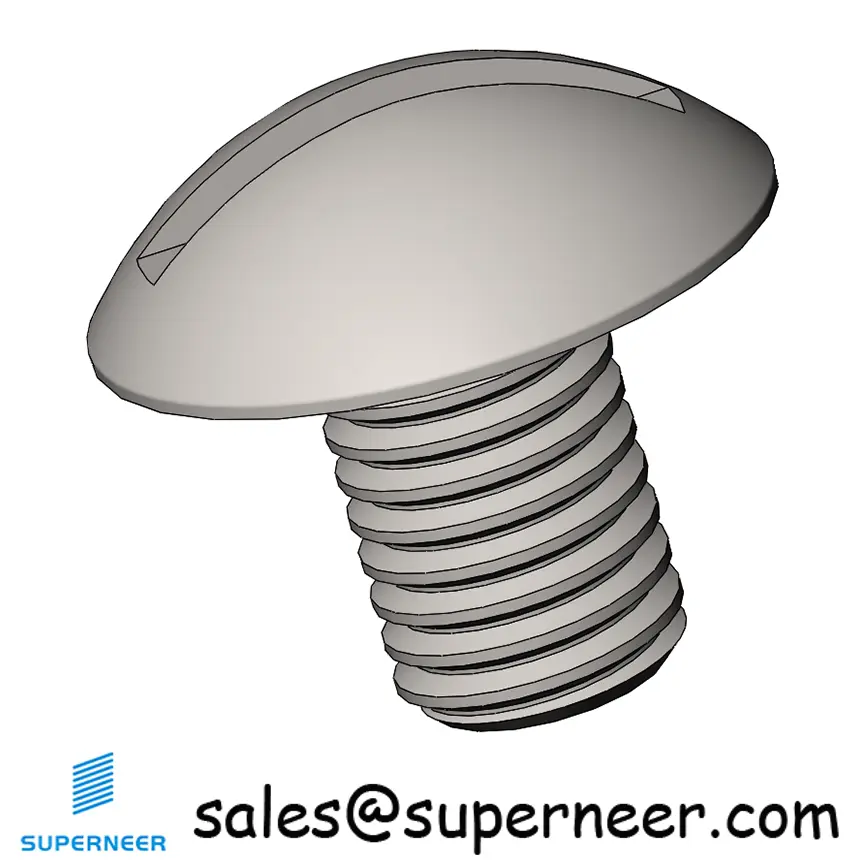

MTLM406S is a M4 Truss Head head Slot drive screw with 6 mm length, featuring a SUS304 Stainless Steel finish. Compared to alternative finishes in the same specification such as MTLM406Z (Blue Zinc Plated Steel), MTLM406B (Black Zinc Plated Steel), the SUS304 Stainless Steel of MTLM406S offers superior corrosion resistance for outdoor, marine, and humid environments, excellent hygiene properties for food and medical equipment, and good mechanical strength at low cost relative to exotic alloys. The Truss Head head design ensures optimal load distribution across the mating surface, while the Slot drive allows efficient torque transmission during installation. Each MTLM406S screw is manufactured to industry standards, RoHS compliant, and supplied with material test reports (MTR) for full quality traceability.
Payment Method: T/T & Paypal and other payment method
Shipment Method: Air Express , Air Freight, Sea Shippment
1. Order online directly, made payment via Paypal or bank transfer.
2. Superneer arrange production according to drawing,all demensions are within drawing specification.
3. Parts ready, ship to customer.
Frequently Asked Questions about MTLM406S
What is MTLM406S screw?
MTLM406S is a M4 Truss Head head Slot drive screw made of SUS304 Stainless Steel, manufactured by Superneer Limited. It has a length of 6 mm and is commonly used in electronics, watches, precision instruments, and 3D printers.
What are the specifications of MTLM406S?

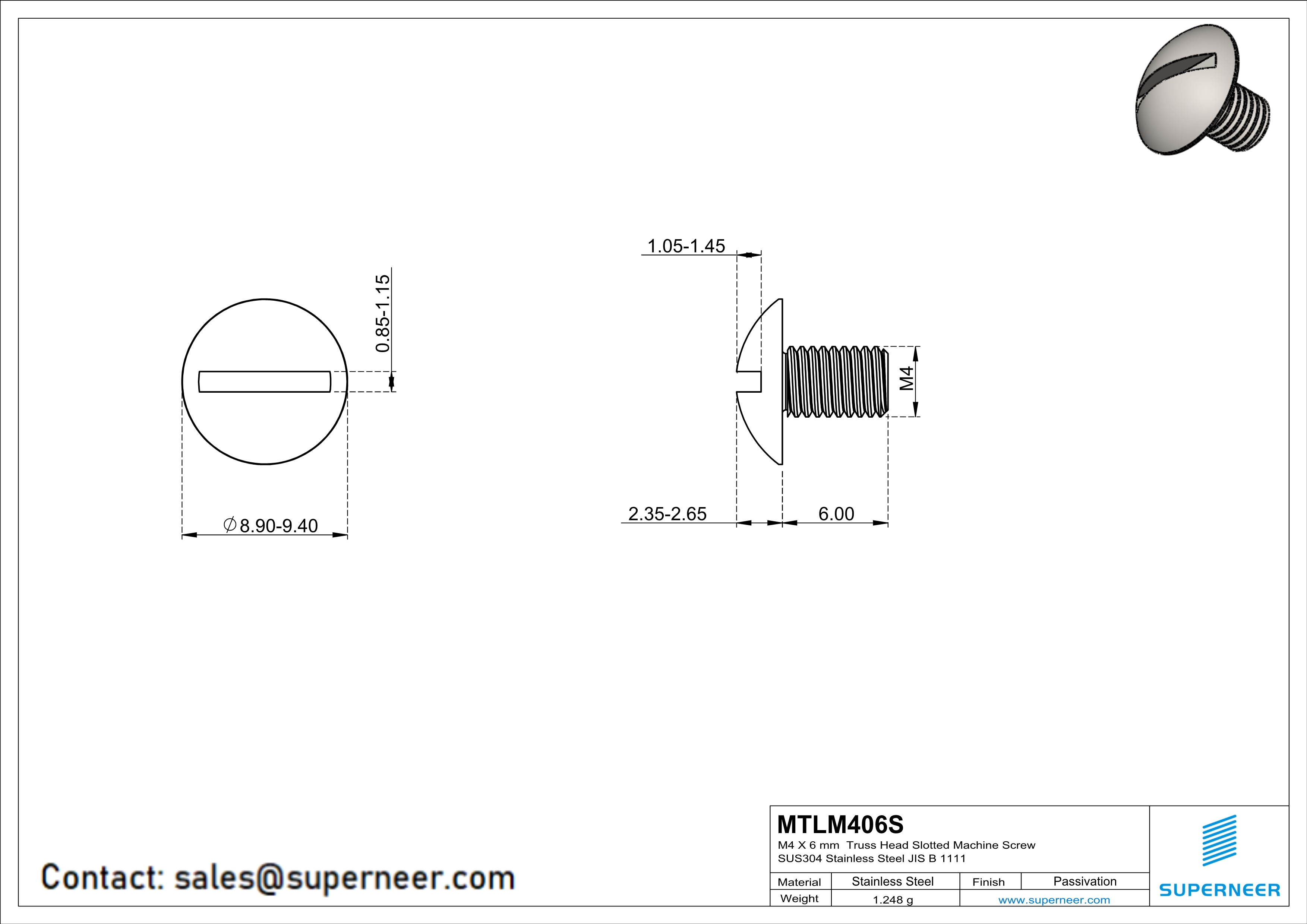

The MTLM406S screw features thread size M4, length of 6 mm, head type Truss Head (head diameter 8.9-9.4 mm), drive type Slot (drive size 0.85-1.15mm), and is made of SUS304 Stainless Steel.
What material is the MTLM406S screw made of?
The MTLM406S screw is made of SUS304 Stainless Steel. Superneer provides material test reports (MTR) and RoHS compliance certificates for all products. SUS304 Stainless Steel offers excellent corrosion resistance and mechanical strength.
What is the thread size of MTLM406S?
The MTLM406S screw has a M4 thread. This is a metric thread with M4 specification, commonly used in international applications following ISO standards.
What are MTLM406S screws used for?
MTLM406S Truss Head head Slot drive screws are used in electronics assembly, PCB mounting, precision instruments, watches, 3D printers, optical devices, medical equipment, and consumer products where reliable fastening with Truss Head head aesthetics is required.
What is the MOQ and price for MTLM406S?
The minimum order quantity (MOQ) for MTLM406S is 10,000 pieces. The unit price is $0.036 USD for MOQ quantity. Larger quantities receive discounted pricing. Contact [email protected] for custom quotes.
What is the lead time and shipping for MTLM406S?
The lead time for MTLM406S is 15-25 days for production. Shipping to USA takes 5-15 days via sea freight, with shipping cost starting from $50 USD. Air freight is available for urgent orders. DDP and FOB terms are both available.
What is the inch equivalent of M4 thread?
The M4 thread is approximately equivalent to #8 (approx 8-32). When substituting metric screws with inch screws, always verify the actual diameter and pitch compatibility.
What head type does MTLM406S use and why?
The MTLM406S uses a Truss Head head type. Truss Head head provides a specific head design optimized for its intended application. This head type is selected based on the specific application requirements for load distribution, aesthetics, and accessibility.
How to choose the right screw size for my application?
To choose the right screw: 1) Determine the required thread size based on the tapped hole or nut; 2) Select the appropriate length based on the material thickness; 3) Choose the head type based on clearance and aesthetics; 4) Select the drive type based on torque requirements; 5) Choose the material based on environmental conditions. For MTLM406S (M4, 6 mm), ensure your application requires this specific size.
What is the difference between MTLM406S and similar parts?
MTLM406S uses SUS304 Stainless Steel finish, while alternative variants in the same thread/length specification include MTLM406Z (Blue Zinc Plated Steel), MTLM406B (Black Zinc Plated Steel). The SUS304 Stainless Steel of MTLM406S is specifically selected because it offers superior corrosion resistance for outdoor, marine, and humid environments, excellent hygiene properties for food and medical equipment, and good mechanical strength at low cost relative to exotic alloys. This distinction makes MTLM406S the preferred choice when these properties align with your application requirements.
