M2.5 x 9 mm Truss Head Slotted Machine Screw SUS304 Stainless Steel JIS B 1111
Why Choose MTLM2509S?

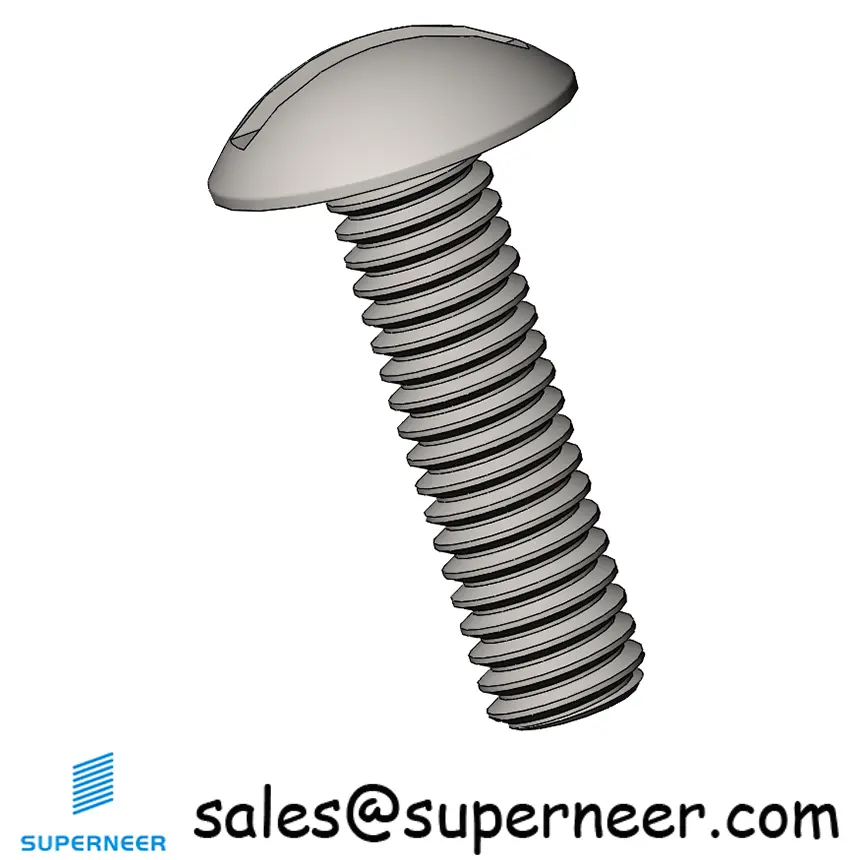

MTLM2509S is a M2.5 Truss Head head Slot drive screw with 9 mm length, featuring a SUS304 Stainless Steel finish. Compared to alternative finishes in the same specification such as MTLM2509Z (Blue Zinc Plated Steel), MTLM2509B (Black Zinc Plated Steel), the SUS304 Stainless Steel of MTLM2509S offers superior corrosion resistance for outdoor, marine, and humid environments, excellent hygiene properties for food and medical equipment, and good mechanical strength at low cost relative to exotic alloys. The Truss Head head design ensures optimal load distribution across the mating surface, while the Slot drive allows efficient torque transmission during installation. Each MTLM2509S screw is manufactured to industry standards, RoHS compliant, and supplied with material test reports (MTR) for full quality traceability.
Payment Method: T/T & Paypal and other payment method
Shipment Method: Air Express , Air Freight, Sea Shippment
1. Order online directly, made payment via Paypal or bank transfer.
2. Superneer arrange production according to drawing,all demensions are within drawing specification.
3. Parts ready, ship to customer.
Frequently Asked Questions about MTLM2509S
What is MTLM2509S screw?
MTLM2509S is a M2.5 Truss Head head Slot drive screw made of SUS304 Stainless Steel, manufactured by Superneer Limited. It has a length of 9 mm and is commonly used in electronics, watches, precision instruments, and 3D printers.
What are the specifications of MTLM2509S?

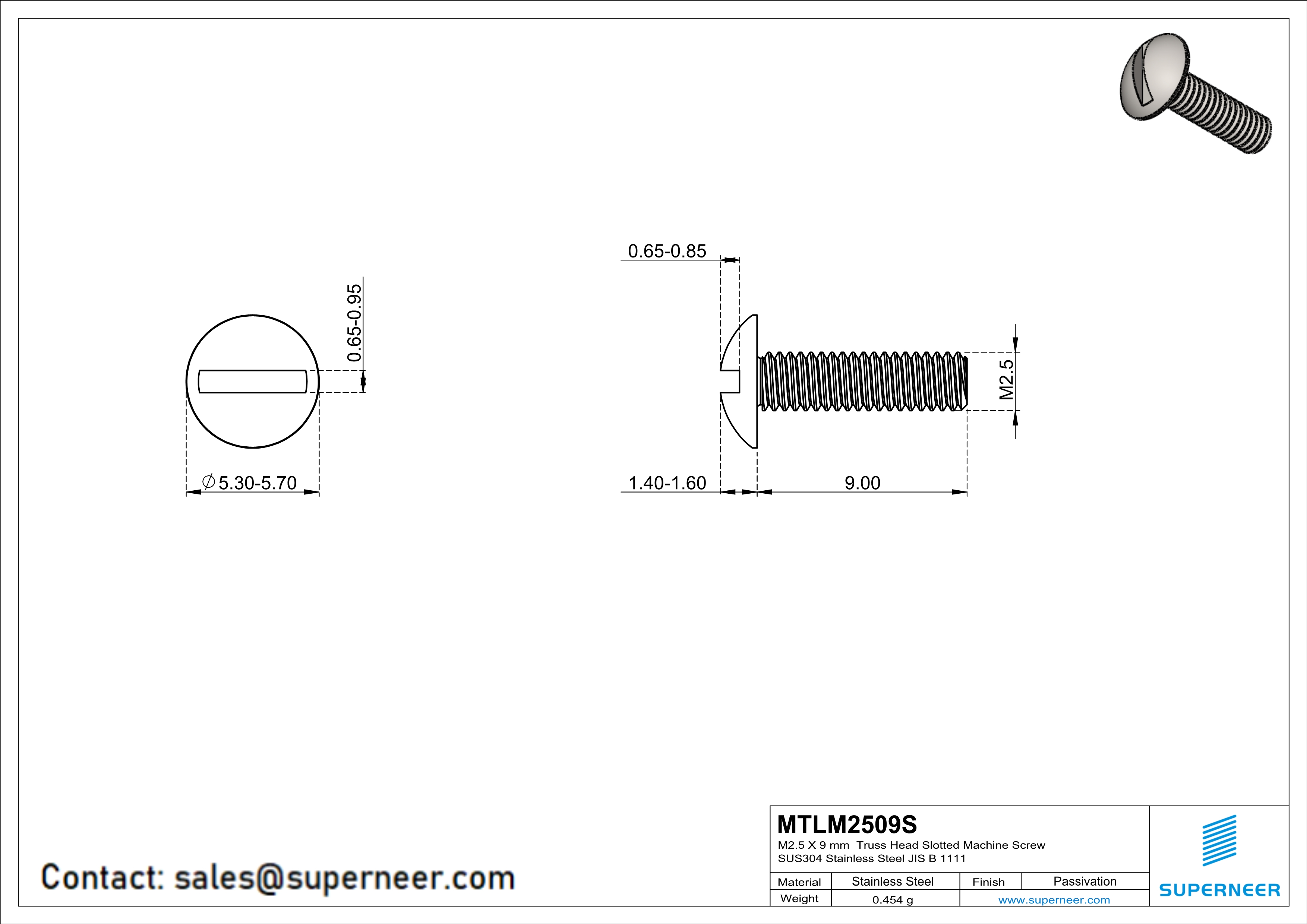

The MTLM2509S screw features thread size M2.5, length of 9 mm, head type Truss Head (head diameter 5.3-5.7 mm), drive type Slot (drive size 0.65-0.95mm), and is made of SUS304 Stainless Steel.
What material is the MTLM2509S screw made of?
The MTLM2509S screw is made of SUS304 Stainless Steel. Superneer provides material test reports (MTR) and RoHS compliance certificates for all products. SUS304 Stainless Steel offers excellent corrosion resistance and mechanical strength.
What is the thread size of MTLM2509S?
The MTLM2509S screw has a M2.5 thread. This is a metric thread with M2.5 specification, commonly used in international applications following ISO standards.
What are MTLM2509S screws used for?
MTLM2509S Truss Head head Slot drive screws are used in electronics assembly, PCB mounting, precision instruments, watches, 3D printers, optical devices, medical equipment, and consumer products where reliable fastening with Truss Head head aesthetics is required.
What is the MOQ and price for MTLM2509S?
The minimum order quantity (MOQ) for MTLM2509S is 10,000 pieces. The unit price is $0.023 USD for MOQ quantity. Larger quantities receive discounted pricing. Contact [email protected] for custom quotes.
What is the lead time and shipping for MTLM2509S?
The lead time for MTLM2509S is 15-25 days for production. Shipping to USA takes 5-15 days via sea freight, with shipping cost starting from $50 USD. Air freight is available for urgent orders. DDP and FOB terms are both available.
What is the inch equivalent of M2.5 thread?
The M2.5 thread is approximately equivalent to #5 (approx). When substituting metric screws with inch screws, always verify the actual diameter and pitch compatibility.
What head type does MTLM2509S use and why?
The MTLM2509S uses a Truss Head head type. Truss Head head provides a specific head design optimized for its intended application. This head type is selected based on the specific application requirements for load distribution, aesthetics, and accessibility.
How to choose the right screw size for my application?
To choose the right screw: 1) Determine the required thread size based on the tapped hole or nut; 2) Select the appropriate length based on the material thickness; 3) Choose the head type based on clearance and aesthetics; 4) Select the drive type based on torque requirements; 5) Choose the material based on environmental conditions. For MTLM2509S (M2.5, 9 mm), ensure your application requires this specific size.
What is the difference between MTLM2509S and similar parts?
MTLM2509S uses SUS304 Stainless Steel finish, while alternative variants in the same thread/length specification include MTLM2509Z (Blue Zinc Plated Steel), MTLM2509B (Black Zinc Plated Steel). The SUS304 Stainless Steel of MTLM2509S is specifically selected because it offers superior corrosion resistance for outdoor, marine, and humid environments, excellent hygiene properties for food and medical equipment, and good mechanical strength at low cost relative to exotic alloys. This distinction makes MTLM2509S the preferred choice when these properties align with your application requirements.
