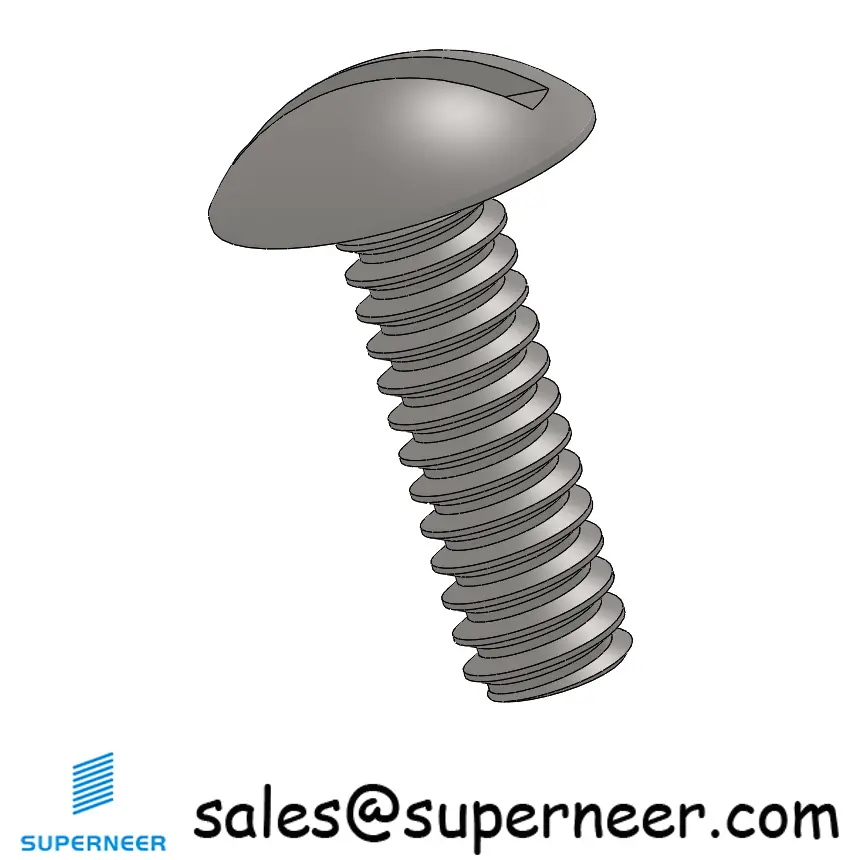

6-32 x 7/16" Truss Head Slotted Machine Screw SUS304 Stainless Steel Inox
Why Choose MTL0607S?
MTL0607S is a 6-32 Truss Head head Slot drive screw with 7/16 inches length, featuring a SUS304 Stainless Steel finish. Compared to alternative finishes in the same specification such as MTL0607Z (Blue Zinc Plated Steel), MTL0607B (Black Zinc Plated Steel), the SUS304 Stainless Steel of MTL0607S offers superior corrosion resistance for outdoor, marine, and humid environments, excellent hygiene properties for food and medical equipment, and good mechanical strength at low cost relative to exotic alloys. The Truss Head head design ensures optimal load distribution across the mating surface, while the Slot drive allows efficient torque transmission during installation. Each MTL0607S screw is manufactured to industry standards, RoHS compliant, and supplied with material test reports (MTR) for full quality traceability.
Payment Method: T/T & Paypal and other payment method
Shipment Method: Air Express , Air Freight, Sea Shippment
1. Order online directly, made payment via Paypal or bank transfer.
2. Superneer arrange production according to drawing,all demensions are within drawing specification.
3. Parts ready, ship to customer.
Frequently Asked Questions about MTL0607S
What is MTL0607S screw?
MTL0607S is a 6-32 Truss Head head Slot drive screw made of SUS304 Stainless Steel, manufactured by Superneer Limited. It has a length of 7/16 inches and is commonly used in electronics, watches, precision instruments, and 3D printers.
What are the specifications of MTL0607S?

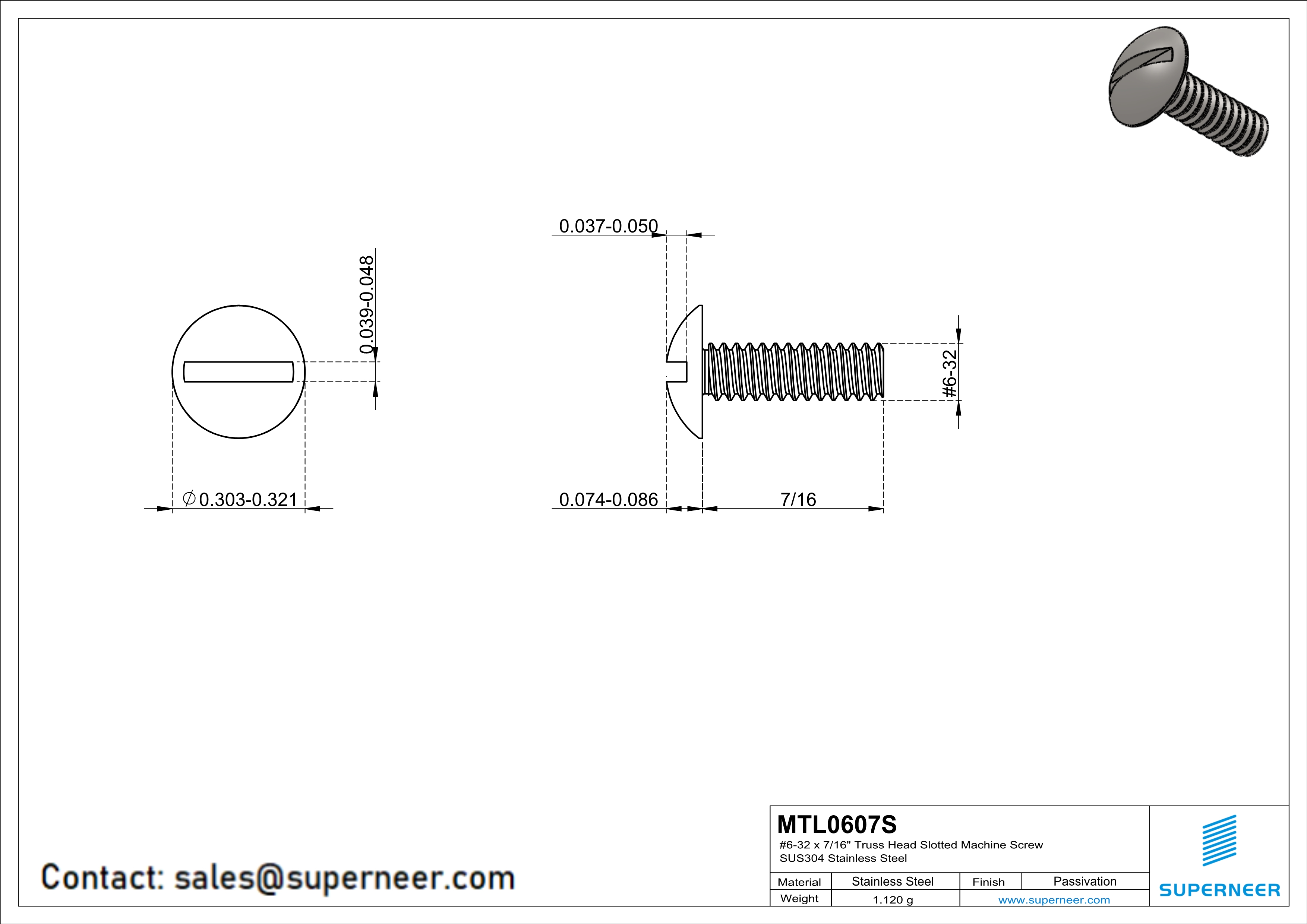

The MTL0607S screw features thread size 6-32, length of 7/16 inches, head type Truss Head (head diameter 0.303-0.321 inches), drive type Slot (drive size 0.039-0.048" width), and is made of SUS304 Stainless Steel.
What material is the MTL0607S screw made of?
The MTL0607S screw is made of SUS304 Stainless Steel. Superneer provides material test reports (MTR) and RoHS compliance certificates for all products. SUS304 Stainless Steel offers excellent corrosion resistance and mechanical strength.
What is the thread size of MTL0607S?
The MTL0607S screw has a 6-32 thread. This is a UNC (Unified National Coarse) thread with 6-32 specification, widely used in North American applications.
What are MTL0607S screws used for?
MTL0607S Truss Head head Slot drive screws are used in electronics assembly, PCB mounting, precision instruments, watches, 3D printers, optical devices, medical equipment, and consumer products where reliable fastening with Truss Head head aesthetics is required.
What is the MOQ and price for MTL0607S?
The minimum order quantity (MOQ) for MTL0607S is 10,000 pieces. The unit price is $0.035 USD for MOQ quantity. Larger quantities receive discounted pricing. Contact [email protected] for custom quotes.
What is the lead time and shipping for MTL0607S?
The lead time for MTL0607S is 15-25 days for production. Shipping to USA takes 5-15 days via sea freight, with shipping cost starting from $50 USD. Air freight is available for urgent orders. DDP and FOB terms are both available.
What is the metric equivalent of 6-32 thread?
The 6-32 thread is approximately equivalent to M3.5 (approx). When substituting inch screws with metric screws, always verify the actual diameter and pitch compatibility.
What head type does MTL0607S use and why?
The MTL0607S uses a Truss Head head type. Truss Head head provides a specific head design optimized for its intended application. This head type is selected based on the specific application requirements for load distribution, aesthetics, and accessibility.
How to choose the right screw size for my application?
To choose the right screw: 1) Determine the required thread size based on the tapped hole or nut; 2) Select the appropriate length based on the material thickness; 3) Choose the head type based on clearance and aesthetics; 4) Select the drive type based on torque requirements; 5) Choose the material based on environmental conditions. For MTL0607S (6-32, 7/16 inches), ensure your application requires this specific size.
What is the difference between MTL0607S and similar parts?
MTL0607S uses SUS304 Stainless Steel finish, while alternative variants in the same thread/length specification include MTL0607Z (Blue Zinc Plated Steel), MTL0607B (Black Zinc Plated Steel). The SUS304 Stainless Steel of MTL0607S is specifically selected because it offers superior corrosion resistance for outdoor, marine, and humid environments, excellent hygiene properties for food and medical equipment, and good mechanical strength at low cost relative to exotic alloys. This distinction makes MTL0607S the preferred choice when these properties align with your application requirements.
