M5 x 10 mm Round Head Phillips Machine Screw Steel Blue Zinc Plated
Why Choose MRPM510Z?

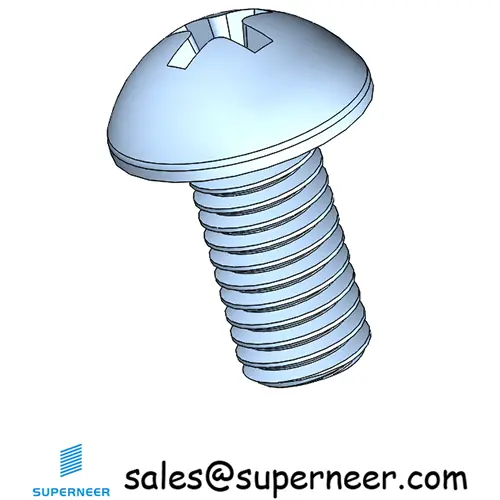

MRPM510Z is a M5 Round Head head Phillips drive screw with 10 mm length, featuring a Blue Zinc Plated Steel finish. Compared to alternative finishes in the same specification such as MRPM510S (SUS304 Stainless Steel), MRPM510B (Black Zinc Plated Steel), the Blue Zinc Plated Steel of MRPM510Z offers moderate corrosion resistance with a distinctive blue iridescent appearance, commonly used in automotive assembly, machinery, and general industrial fastening. The Round Head head design ensures optimal load distribution across the mating surface, while the Phillips drive allows efficient torque transmission during installation. Each MRPM510Z screw is manufactured to industry standards, RoHS compliant, and supplied with material test reports (MTR) for full quality traceability.
Payment Method: T/T & Paypal and other payment method
Shipment Method: Air Express , Air Freight, Sea Shippment
1. Order online directly, made payment via Paypal or bank transfer.
2. Superneer arrange production according to drawing,all demensions are within drawing specification.
3. Parts ready, ship to customer.
Frequently Asked Questions about MRPM510Z
What is MRPM510Z screw?
MRPM510Z is a M5 Round Head head Phillips drive screw made of Blue Zinc Plated Steel, manufactured by Superneer Limited. It has a length of 10 mm and is commonly used in electronics, watches, precision instruments, and 3D printers.
What are the specifications of MRPM510Z?

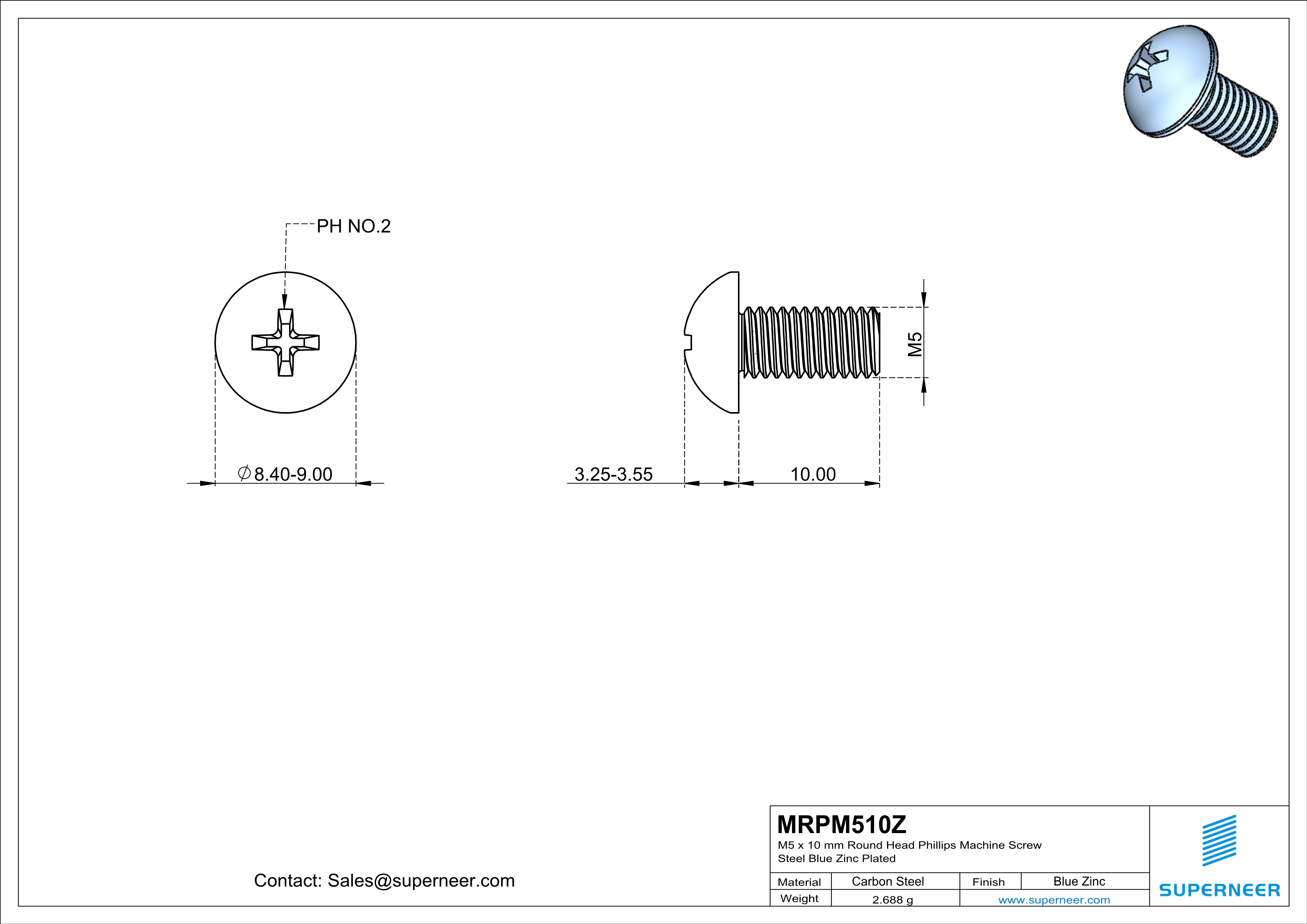

The MRPM510Z screw features thread size M5, length of 10 mm, head type Round Head (head diameter 8.4-9mm mm), drive type Phillips (drive size PH No.2), and is made of Blue Zinc Plated Steel.
What material is the MRPM510Z screw made of?
The MRPM510Z screw is made of Blue Zinc Plated Steel. Superneer provides material test reports (MTR) and RoHS compliance certificates for all products. Blue Zinc Plated Steel offers excellent corrosion resistance and mechanical strength.
What is the thread size of MRPM510Z?
The MRPM510Z screw has a M5 thread. This is a metric thread with M5 specification, commonly used in international applications following ISO standards.
What are MRPM510Z screws used for?
MRPM510Z Round Head head Phillips drive screws are used in electronics assembly, PCB mounting, precision instruments, watches, 3D printers, optical devices, medical equipment, and consumer products where reliable fastening with Round Head head aesthetics is required.
What is the MOQ and price for MRPM510Z?
The minimum order quantity (MOQ) for MRPM510Z is 10,000 pieces. The unit price is $0.050 USD for MOQ quantity. Larger quantities receive discounted pricing. Contact [email protected] for custom quotes.
What is the lead time and shipping for MRPM510Z?
The lead time for MRPM510Z is 15-25 days for production. Shipping to USA takes 5-15 days via sea freight, with shipping cost starting from $50 USD. Air freight is available for urgent orders. DDP and FOB terms are both available.
What is the inch equivalent of M5 thread?
The M5 thread is approximately equivalent to #10 (approx 10-32). When substituting metric screws with inch screws, always verify the actual diameter and pitch compatibility.
What head type does MRPM510Z use and why?
The MRPM510Z uses a Round Head head type. Round Head head provides a specific head design optimized for its intended application. This head type is selected based on the specific application requirements for load distribution, aesthetics, and accessibility.
How to choose the right screw size for my application?
To choose the right screw: 1) Determine the required thread size based on the tapped hole or nut; 2) Select the appropriate length based on the material thickness; 3) Choose the head type based on clearance and aesthetics; 4) Select the drive type based on torque requirements; 5) Choose the material based on environmental conditions. For MRPM510Z (M5, 10 mm), ensure your application requires this specific size.
What is the difference between MRPM510Z and similar parts?
MRPM510Z uses Blue Zinc Plated Steel finish, while alternative variants in the same thread/length specification include MRPM510S (SUS304 Stainless Steel), MRPM510B (Black Zinc Plated Steel). The Blue Zinc Plated Steel of MRPM510Z is specifically selected because it offers moderate corrosion resistance with a distinctive blue iridescent appearance, commonly used in automotive assembly, machinery, and general industrial fastening. This distinction makes MRPM510Z the preferred choice when these properties align with your application requirements.
