M6 x 16 mm Pan Head Pozi Machine Screw Steel Blue Zinc Plated ISO 7045
Why Choose MPSM616Z?
MPSM616Z is a M6 Pan Head head Pozi drive screw with 16 mm length, featuring a Blue Zinc Plated Steel finish. Compared to alternative finishes in the same specification such as MPSM616S (SUS304 Stainless Steel), MPSM616B (Black Zinc Plated Steel), the Blue Zinc Plated Steel of MPSM616Z offers moderate corrosion resistance with a distinctive blue iridescent appearance, commonly used in automotive assembly, machinery, and general industrial fastening. The Pan Head head design ensures optimal load distribution across the mating surface, while the Pozi drive allows efficient torque transmission during installation. Each MPSM616Z screw is manufactured to industry standards, RoHS compliant, and supplied with material test reports (MTR) for full quality traceability.
Payment Method: T/T & Paypal and other payment method
Shipment Method: Air Express , Air Freight, Sea Shippment
1. Order online directly, made payment via Paypal or bank transfer.
2. Superneer arrange production according to drawing,all demensions are within drawing specification.
3. Parts ready, ship to customer.
Frequently Asked Questions about MPSM616Z
What is MPSM616Z screw?
MPSM616Z is a M6 Pan Head head Pozi drive screw made of Blue Zinc Plated Steel, manufactured by Superneer Limited. It has a length of 16 mm and is commonly used in electronics, watches, precision instruments, and 3D printers.
What are the specifications of MPSM616Z?

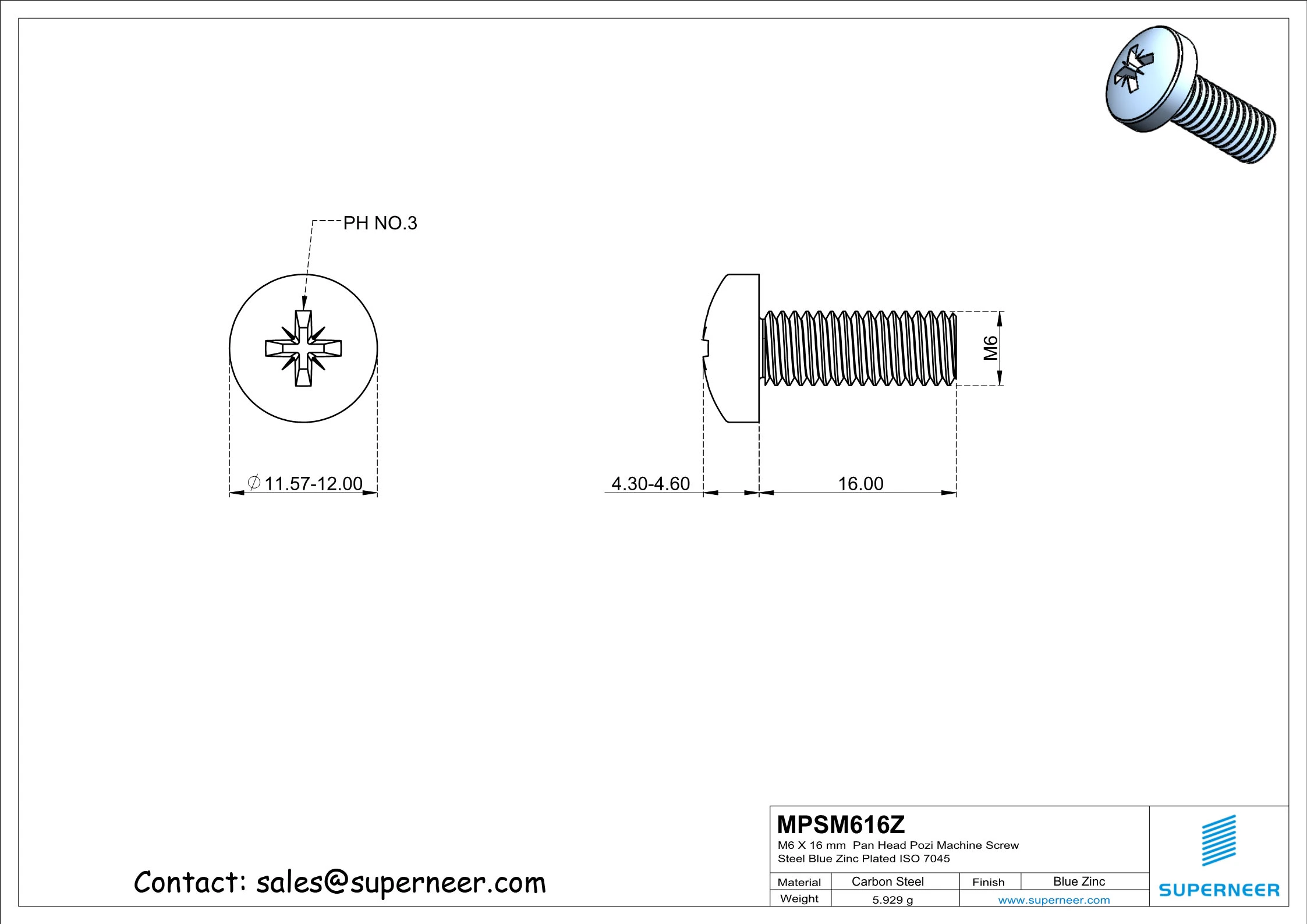

The MPSM616Z screw features thread size M6, length of 16 mm, head type Pan Head (head diameter 11.57-12 mm), drive type Pozi (drive size Pozi PH No.3), and is made of Blue Zinc Plated Steel.
What material is the MPSM616Z screw made of?
The MPSM616Z screw is made of Blue Zinc Plated Steel. Superneer provides material test reports (MTR) and RoHS compliance certificates for all products. Blue Zinc Plated Steel offers excellent corrosion resistance and mechanical strength.
What is the thread size of MPSM616Z?
The MPSM616Z screw has a M6 thread. This is a metric thread with M6 specification, commonly used in international applications following ISO standards.
What are MPSM616Z screws used for?
MPSM616Z Pan Head head Pozi drive screws are used in electronics assembly, PCB mounting, precision instruments, watches, 3D printers, optical devices, medical equipment, and consumer products where reliable fastening with Pan Head head aesthetics is required.
What is the MOQ and price for MPSM616Z?
The minimum order quantity (MOQ) for MPSM616Z is 10,000 pieces. The unit price is $0.056 USD for MOQ quantity. Larger quantities receive discounted pricing. Contact [email protected] for custom quotes.
What is the lead time and shipping for MPSM616Z?
The lead time for MPSM616Z is 15-25 days for production. Shipping to USA takes 5-15 days via sea freight, with shipping cost starting from $50 USD. Air freight is available for urgent orders. DDP and FOB terms are both available.
What is the inch equivalent of M6 thread?
The M6 thread is approximately equivalent to 1/4"-20. When substituting metric screws with inch screws, always verify the actual diameter and pitch compatibility.
What head type does MPSM616Z use and why?
The MPSM616Z uses a Pan Head head type. Pan Head head provides a specific head design optimized for its intended application. This head type is selected based on the specific application requirements for load distribution, aesthetics, and accessibility.
How to choose the right screw size for my application?
To choose the right screw: 1) Determine the required thread size based on the tapped hole or nut; 2) Select the appropriate length based on the material thickness; 3) Choose the head type based on clearance and aesthetics; 4) Select the drive type based on torque requirements; 5) Choose the material based on environmental conditions. For MPSM616Z (M6, 16 mm), ensure your application requires this specific size.
What is the difference between MPSM616Z and similar parts?
MPSM616Z uses Blue Zinc Plated Steel finish, while alternative variants in the same thread/length specification include MPSM616S (SUS304 Stainless Steel), MPSM616B (Black Zinc Plated Steel). The Blue Zinc Plated Steel of MPSM616Z is specifically selected because it offers moderate corrosion resistance with a distinctive blue iridescent appearance, commonly used in automotive assembly, machinery, and general industrial fastening. This distinction makes MPSM616Z the preferred choice when these properties align with your application requirements.
