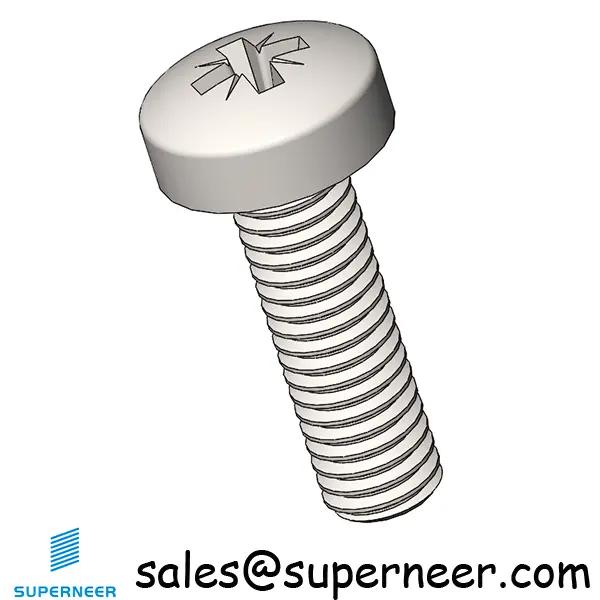

M3 x 10 mm Pan Head Pozi Machine Screw SUS304 Stainless Steel ISO 7045

Screw
Screw
Part No. MPSM310S rohs Rating:

material SUS304 Stainless Steel
Ship Date 2026-11-19
Head Pan Head
drive Pozi   Pozi PH No.1
Head Diameter 5.3-5.6 mm
Head Height 2.26-2.4 mm
Thread M3
Length 10 mm
Unit Price USD$ 0.026 /pcs
Unit Weight 0.898 g
Quantity pcs
Amount USD$ Total Amount USD$
Amount USD$ Total Amount USD$

Related Parts
M3 x 4 mm Pan Head Pozi Machine Screw SUS304 Stainless Steel ISO 7045 M3 x 4 mm Pan Head Pozi Machine Screw SUS304 Stainless Steel ISO 7045
M3 x 5 mm Pan Head Pozi Machine Screw SUS304 Stainless Steel ISO 7045 M3 x 5 mm Pan Head Pozi Machine Screw SUS304 Stainless Steel ISO 7045
M3 x 6 mm Pan Head Pozi Machine Screw SUS304 Stainless Steel ISO 7045 M3 x 6 mm Pan Head Pozi Machine Screw SUS304 Stainless Steel ISO 7045
M3 x 8 mm Pan Head Pozi Machine Screw SUS304 Stainless Steel ISO 7045 M3 x 8 mm Pan Head Pozi Machine Screw SUS304 Stainless Steel ISO 7045
M3 x 10 mm Pan Head Pozi Machine Screw SUS304 Stainless Steel ISO 7045 M3 x 10 mm Pan Head Pozi Machine Screw SUS304 Stainless Steel ISO 7045
M3 x 12 mm Pan Head Pozi Machine Screw SUS304 Stainless Steel ISO 7045 M3 x 12 mm Pan Head Pozi Machine Screw SUS304 Stainless Steel ISO 7045
M3 x 14 mm Pan Head Pozi Machine Screw SUS304 Stainless Steel ISO 7045 M3 x 14 mm Pan Head Pozi Machine Screw SUS304 Stainless Steel ISO 7045
Item Information

Why Choose MPSM310S?

MPSM310S is a M3 Pan Head head Pozi drive screw with 10 mm length, featuring a SUS304 Stainless Steel finish. Compared to alternative finishes in the same specification such as MPSM310Z (Blue Zinc Plated Steel), MPSM310B (Black Zinc Plated Steel), the SUS304 Stainless Steel of MPSM310S offers superior corrosion resistance for outdoor, marine, and humid environments, excellent hygiene properties for food and medical equipment, and good mechanical strength at low cost relative to exotic alloys. The Pan Head head design ensures optimal load distribution across the mating surface, while the Pozi drive allows efficient torque transmission during installation. Each MPSM310S screw is manufactured to industry standards, RoHS compliant, and supplied with material test reports (MTR) for full quality traceability.

M3 x 10 mm Pan Head Pozi Machine Screw SUS304 Stainless Steel ISO 7045
MPSM310S This part demension will be same as the drawing indicate below, length tolerance will be ±0.5 .
It is Pan Head with Pozi drive, M3 Thread and 10 mm Length .
material SUS304 Stainless Steel, Finsh is Rohs Chromate which has good function of anti-corrosion .
On website, you can choose use your shipping account which shippcost is 0, or you can use our DHL/UPS account to ship which will have ship cost indicate.
Payment terms: Payment advance, On website, you can choose pay via paypal or pay via bank transfer. when bank transfer , you can send your bank slip to us via order process or send it to our email:[email protected]. when payment made, We will soon make production and update process for you via email.
BUY Pan Pozi Screw - High Quality Wholesale and Custom Screw today,high quality product and best service will be provided by superneer.Each order will be made shippment on time.
Different Finish :
M3 x 10 mm
M3 x 10 mm
MPSM310S
SUS304 Stainless Steel
M3 x 10 mm
M3 x 10 mm
MPSM310Z
Blue Zinc Plated Steel
M3 x 10 mm
M3 x 10 mm
MPSM310B
Black Zinc Plated Steel
Item Drawing
M3 x 10 mm Pan Head Pozi Machine Screw SUS304 Stainless Steel ISO 7045
Other Parts
2-56 x 3/16 screw 2-56 x 3/16" Pan Head Torx Machine Screw SUS304 Stainless Steel
2-56 x 5/16 screw 2-56 x 5/16" Pan Head Torx Machine Screw SUS304 Stainless Steel
2-56 x 3/4 screw 2-56 x 3/4" Pan Head Torx T7 Machine Screw SUS304 Stainless Steel
M3 x 6 screw M3 x 6 mm Flat Head 82° Torx Machine Screw SUS304 Stainless Steel
2-56 x 7/16 screw 2-56 x 7/16" Flat Head 82° Torx T7 Machine Screw SUS304 Stainless Steel
M2.5 x 12 screw M2.5 x 12 mm Pan Head Torx Machine Screw Steel Blue Zinc Plated
M3 x 6 screw M3 x 6 mm Pan Head Torx Machine Screw Steel Blue Zinc Plated ISO 14583
undercut screw M3 x 6 mm Flat Head Undercut Slotted Machine Screw SUS304 Stainless Steel
M3 x 8 pan torx screw M3 x 8 mm Pan Head Torx Machine Screw Steel Black ISO 14583
M3 x 10 pan torx screw M3 x 10 mm Pan Head Torx Machine Screw Steel Black ISO 14583
M3 x 6 screw M3 x 6 mm Flat Head 82° Torx Machine Screw Steel Black
M3 x 5 mm flat screw M3 x 5 mm Flat Head 120° Phillips Machine Screw Steel Black
2-56 x 13/32 screw 2-56 x 13/32" Standoff Screw SUS303 Stainless Steel Hex Male Female Spacers
M3 × 6mm screw M3 × 6mm Indented Hex Washer Serrattion Phillips Thread Forming Screws for Metal Steel Black
M2.5 x 6mm screw M2.5 x 6mm Socket Cup Point Set Screws Steel Black DIN916
M2 x 2.5mm screw M2 x 2.5mm Flat Head Torx Machine Screw SUS304 Stainless Steel
M3 x 8mm screw M3 x 8mm Thumb Screw Knurled Head (Head Diameter 8mm,Head Height 8mm) SUS304 Stainless Steel
M3 X 3mm screw M3 X 3mm 12.9 Grade Steel Black Flat Socket Screw
M4 x 10mm screw M4 x 10mm Socket Set Screw Cone Point SUS304 Stainless Steel DIN914 Nylon Patch
M3 x 4mm screw M3 x 4mm Torx Flat Head Machine Screw Carbon Steel Black Oxide
standoff 2-56 x 13/32" Standoff Screw with 7/32" Outer Thread Length SUS303 Stainless Steel Hex Male Female Spacers
self sealing screw M2 x 8 mm Self Sealing Screw Pan Torx Head SUS304 Stainless Steel Waterproof Screws
SEMS Screw M3 x 10 mm Button Head Socket SEMS Screw with Internal Tooth Washer Steel Black Oxide
Payment & Trasportation 5-10 days

Payment Method: T/T & Paypal and other payment method

Shipment Method: Air Express , Air Freight, Sea Shippment

How to Order

1. Order online directly, made payment via Paypal or bank transfer.

2. Superneer arrange production according to drawing,all demensions are within drawing specification.

3. Parts ready, ship to customer.

Frequently Asked Questions about MPSM310S

What is MPSM310S screw?

MPSM310S is a M3 Pan Head head Pozi drive screw made of SUS304 Stainless Steel, manufactured by Superneer Limited. It has a length of 10 mm and is commonly used in electronics, watches, precision instruments, and 3D printers.

What are the specifications of MPSM310S?

The MPSM310S screw features thread size M3, length of 10 mm, head type Pan Head (head diameter 5.3-5.6 mm), drive type Pozi (drive size Pozi PH No.1), and is made of SUS304 Stainless Steel.

What material is the MPSM310S screw made of?

The MPSM310S screw is made of SUS304 Stainless Steel. Superneer provides material test reports (MTR) and RoHS compliance certificates for all products. SUS304 Stainless Steel offers excellent corrosion resistance and mechanical strength.

What is the thread size of MPSM310S?

The MPSM310S screw has a M3 thread. This is a metric thread with M3 specification, commonly used in international applications following ISO standards.

What are MPSM310S screws used for?

MPSM310S Pan Head head Pozi drive screws are used in electronics assembly, PCB mounting, precision instruments, watches, 3D printers, optical devices, medical equipment, and consumer products where reliable fastening with Pan Head head aesthetics is required.

What is the MOQ and price for MPSM310S?

The minimum order quantity (MOQ) for MPSM310S is 10,000 pieces. The unit price is $0.026 USD for MOQ quantity. Larger quantities receive discounted pricing. Contact [email protected] for custom quotes.

What is the lead time and shipping for MPSM310S?

The lead time for MPSM310S is 15-25 days for production. Shipping to USA takes 5-15 days via sea freight, with shipping cost starting from $50 USD. Air freight is available for urgent orders. DDP and FOB terms are both available.

What is the inch equivalent of M3 thread?

The M3 thread is approximately equivalent to #6 (approx 6-32). When substituting metric screws with inch screws, always verify the actual diameter and pitch compatibility.

What head type does MPSM310S use and why?

The MPSM310S uses a Pan Head head type. Pan Head head provides a specific head design optimized for its intended application. This head type is selected based on the specific application requirements for load distribution, aesthetics, and accessibility.

How to choose the right screw size for my application?

To choose the right screw: 1) Determine the required thread size based on the tapped hole or nut; 2) Select the appropriate length based on the material thickness; 3) Choose the head type based on clearance and aesthetics; 4) Select the drive type based on torque requirements; 5) Choose the material based on environmental conditions. For MPSM310S (M3, 10 mm), ensure your application requires this specific size.

What is the difference between MPSM310S and similar parts?

MPSM310S uses SUS304 Stainless Steel finish, while alternative variants in the same thread/length specification include MPSM310Z (Blue Zinc Plated Steel), MPSM310B (Black Zinc Plated Steel). The SUS304 Stainless Steel of MPSM310S is specifically selected because it offers superior corrosion resistance for outdoor, marine, and humid environments, excellent hygiene properties for food and medical equipment, and good mechanical strength at low cost relative to exotic alloys. This distinction makes MPSM310S the preferred choice when these properties align with your application requirements.
