Home Machine Screws Pan Head Screw Pozi Pan Head Screw M2.5 x 8 mm Pan Head Pozi Machine Screw Steel Black ISO 7045

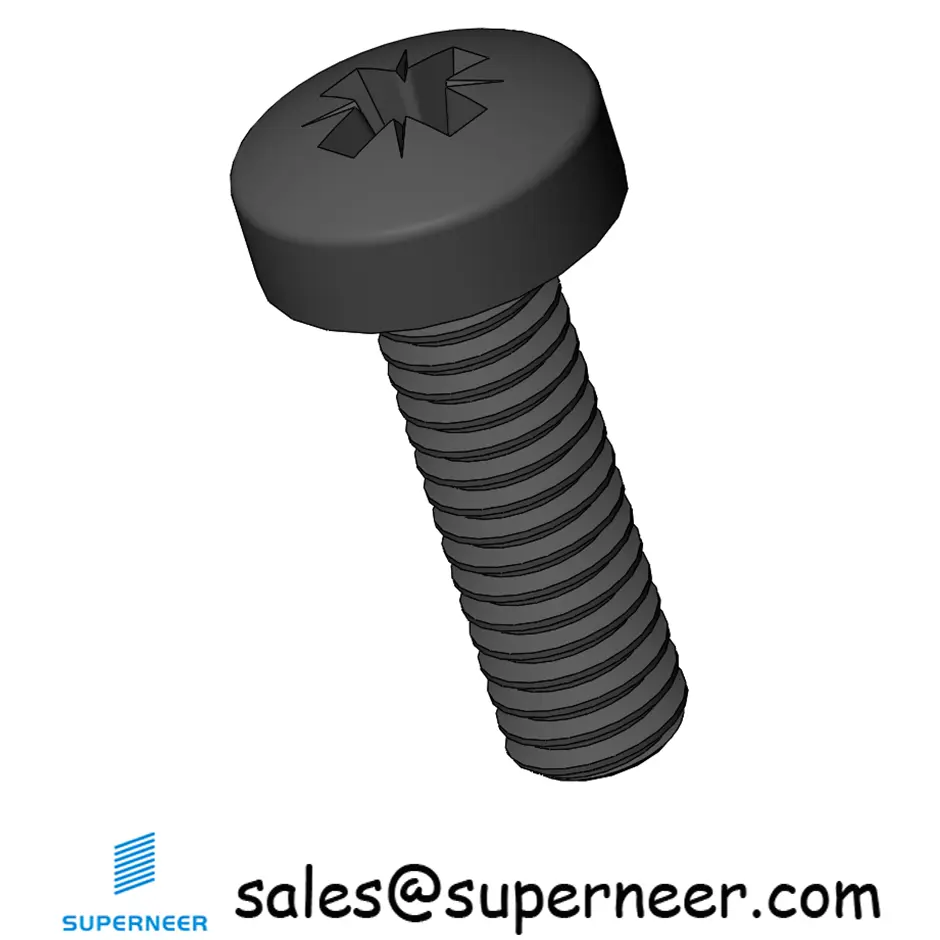

M2.5 x 8 mm Pan Head Pozi Machine Screw Steel Black ISO 7045

screw pic
screw pic
Part No. MPSM2508B rohs Rating:

Material Black Zinc Plated Steel
Ship Date 2026-11-05
Head Pan Head
Drive Pozi   Pozi PH No.1
Head Diameter 4.7-5 mm
Head Height 1.96-2.1 mm
Thread M2.5
Length 8 mm
Unit Price USD$ 0.016 /pcs
Unit Weight 0.505 g
Quantity pcs
Amount USD$ Total Amount USD$
Amount USD$ Total Amount USD$

Related Parts
M2.5 x 5 mm Pan Head Pozi Machine Screw Steel Black ISO 7045 M2.5 x 5 mm Pan Head Pozi Machine Screw Steel Black ISO 7045
M2.5 x 6 mm Pan Head Pozi Machine Screw Steel Black ISO 7045 M2.5 x 6 mm Pan Head Pozi Machine Screw Steel Black ISO 7045
M2.5 x 8 mm Pan Head Pozi Machine Screw Steel Black ISO 7045 M2.5 x 8 mm Pan Head Pozi Machine Screw Steel Black ISO 7045
M2.5 x 10 mm Pan Head Pozi Machine Screw Steel Black ISO 7045 M2.5 x 10 mm Pan Head Pozi Machine Screw Steel Black ISO 7045
M2.5 x 12 mm Pan Head Pozi Machine Screw Steel Black ISO 7045 M2.5 x 12 mm Pan Head Pozi Machine Screw Steel Black ISO 7045
Item Information
M2.5 x 8 mm Pan Head Pozi Machine Screw Steel Black ISO 7045
This part demension will be same as the drawing indicate below, length tolerance will be ±0.5 .
It is Pan Head with Pozi drive, M2.5 Thread and 8 mm Length .
Material Black Zinc Plated Steel, Finsh is Rohs Black which has good function of anti-corrosion .
On website, you can choose use your shipping account which shippcost is 0, or you can use our DHL/UPS account to ship which will have ship cost indicate.
Payment terms: Payment advance, On website, you can choose pay via paypal or pay via bank transfer. when bank transfer , you can send your bank slip to us via order process or send it to our email:sales@superneer.com. when payment made, We will soon make production and update process for you via email.
Buy Black zinc plated steel pan head pozi screw with m2.5 and 8 length manufactured by Superneer,this m2.5 x 8 mm pan head pozi machine screw steel black iso 7045 features 4.7-5 head diameter and 1.96-2.1 head height.Suitable for fastening materials.Available in black finish today,high quality product and best service will be provided by superneer.Each order will be made shippment on time.
Different Finish :
M2.5 x 8 mm
M2.5 x 8 mm
MPSM2508S
SUS304 Stainless Steel
M2.5 x 8 mm
M2.5 x 8 mm
MPSM2508Z
Blue Zinc Plated Steel
M2.5 x 8 mm
M2.5 x 8 mm
MPSM2508B
Black Zinc Plated Steel

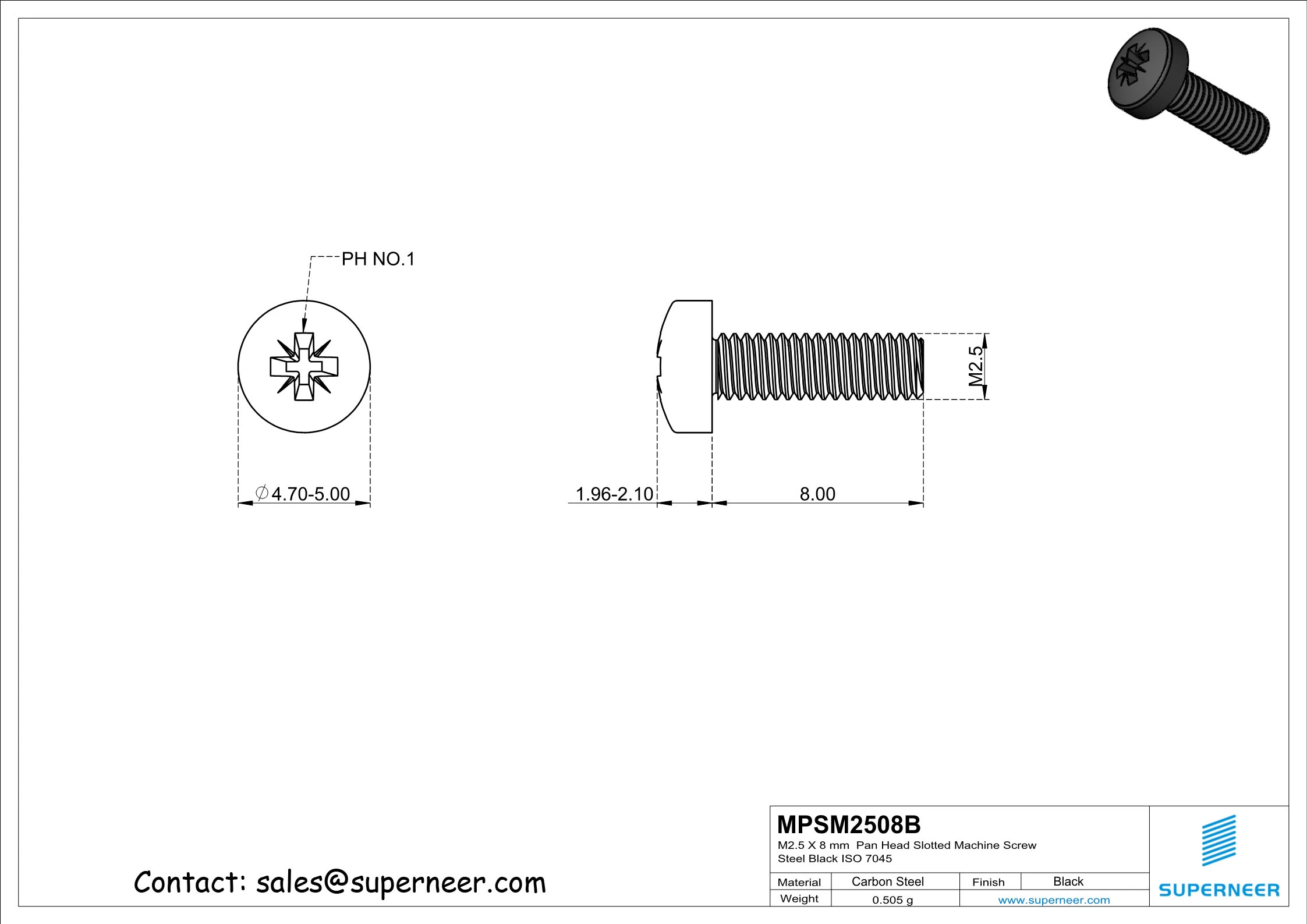

Item Drawing
M2.5 x 8 mm Pan Head Pozi Machine Screw Steel Black ISO 7045
Other Parts
2-56 x 3/16 screw 2-56 x 3/16" Pan Head Torx Machine Screw SUS304 Stainless Steel
2-56 x 5/16 screw 2-56 x 5/16" Pan Head Torx Machine Screw SUS304 Stainless Steel
2-56 x 3/4 screw 2-56 x 3/4" Pan Head Torx T7 Machine Screw SUS304 Stainless Steel
M3 x 6 screw M3 x 6 mm Flat Head 82° Torx Machine Screw SUS304 Stainless Steel
2-56 x 7/16 screw 2-56 x 7/16" Flat Head 82° Torx T7 Machine Screw SUS304 Stainless Steel
M2.5 x 12 screw M2.5 x 12 mm Pan Head Torx Machine Screw Steel Blue Zinc Plated
M3 x 6 screw M3 x 6 mm Pan Head Torx Machine Screw Steel Blue Zinc Plated ISO 14583
undercut screw M3 x 6 mm Flat Head Undercut Slotted Machine Screw SUS304 Stainless Steel
M3 x 8 pan torx screw M3 x 8 mm Pan Head Torx Machine Screw Steel Black ISO 14583
M3 x 10 pan torx screw M3 x 10 mm Pan Head Torx Machine Screw Steel Black ISO 14583
M3 x 6 screw M3 x 6 mm Flat Head 82° Torx Machine Screw Steel Black
M3 x 5 mm flat screw M3 x 5 mm Flat Head 120° Phillips Machine Screw Steel Black
2-56 x 13/32 screw 2-56 x 13/32" Standoff Screw SUS303 Stainless Steel Hex Male Female Spacers
M3 × 6mm screw M3 × 6mm Indented Hex Washer Serrattion Phillips Thread Forming Screws for Metal Steel Black
M2.5 x 6mm screw M2.5 x 6mm Socket Cup Point Set Screws Steel Black DIN916
M2 x 2.5mm screw M2 x 2.5mm Flat Head Torx Machine Screw SUS304 Stainless Steel
M3 x 8mm screw M3 x 8mm Thumb Screw Knurled Head (Head Diameter 8mm,Head Height 8mm) SUS304 Stainless Steel
M3 X 3mm screw M3 X 3mm 12.9 Grade Steel Black Flat Socket Screw
M4 x 10mm screw M4 x 10mm Socket Set Screw Cone Point SUS304 Stainless Steel DIN914 Nylon Patch
M3 x 4mm screw M3 x 4mm Torx Flat Head Machine Screw Carbon Steel Black Oxide
standoff 2-56 x 13/32" Standoff Screw with 7/32" Outer Thread Length SUS303 Stainless Steel Hex Male Female Spacers
self sealing screw M2 x 8 mm Self Sealing Screw Pan Torx Head SUS304 Stainless Steel Waterproof Screws
SEMS Screw M3 x 10 mm Button Head Socket SEMS Screw with Internal Tooth Washer Steel Black Oxide
Payment & Trasportation 5-10 days

Payment Method: T/T & Paypal and other payment method

Shipment Method: Air Express , Air Freight, Sea Shippment

How to Order

1. Order online directly, made payment via Paypal or bank transfer.

2. Superneer arrange production according to drawing,all demensions are within drawing specification.

3. Parts ready, ship to customer.

Frequently Asked Questions about MPSM2508B

What is MPSM2508B screw?

MPSM2508B is a M2.5 Pan Head head Pozi drive screw made of Black Zinc Plated Steel, manufactured by Superneer Limited. It has a length of 8 mm and is commonly used in electronics, watches, precision instruments, and 3D printers.

What are the specifications of MPSM2508B?

The MPSM2508B screw features thread size M2.5, length of 8 mm, head type Pan Head (head diameter 4.7-5 mm), drive type Pozi (drive size Pozi PH No.1), and is made of Black Zinc Plated Steel.

What material is the MPSM2508B screw made of?

The MPSM2508B screw is made of Black Zinc Plated Steel. Superneer provides material test reports (MTR) and RoHS compliance certificates for all products. Black Zinc Plated Steel offers excellent corrosion resistance and mechanical strength.

What is the thread size of MPSM2508B?

The MPSM2508B screw has a M2.5 thread. This is a metric thread with M2.5 specification, commonly used in international applications following ISO standards.

What are MPSM2508B screws used for?

MPSM2508B Pan Head head Pozi drive screws are used in electronics assembly, PCB mounting, precision instruments, watches, 3D printers, optical devices, medical equipment, and consumer products where reliable fastening with Pan Head head aesthetics is required.

What is the MOQ and price for MPSM2508B?

The minimum order quantity (MOQ) for MPSM2508B is 10,000 pieces. The unit price is $0.016 USD for MOQ quantity. Larger quantities receive discounted pricing. Contact sales@superneer.com for custom quotes.

What is the lead time and shipping for MPSM2508B?

The lead time for MPSM2508B is 15-25 days for production. Shipping to USA takes 5-15 days via sea freight, with shipping cost starting from $50 USD. Air freight is available for urgent orders. DDP and FOB terms are both available.

What is the inch equivalent of M2.5 thread?

The M2.5 thread is approximately equivalent to #5 (approx). When substituting metric screws with inch screws, always verify the actual diameter and pitch compatibility.

What head type does MPSM2508B use and why?

The MPSM2508B uses a Pan Head head type. Pan Head head provides a specific head design optimized for its intended application. This head type is selected based on the specific application requirements for load distribution, aesthetics, and accessibility.

How to choose the right screw size for my application?

To choose the right screw: 1) Determine the required thread size based on the tapped hole or nut; 2) Select the appropriate length based on the material thickness; 3) Choose the head type based on clearance and aesthetics; 4) Select the drive type based on torque requirements; 5) Choose the material based on environmental conditions. For MPSM2508B (M2.5, 8 mm), ensure your application requires this specific size.
