M6 x 8 mm Pan Head Slotted Machine Screw SUS304 Stainless Steel DIN 85
Why Choose MPLM608S?
MPLM608S is a M6 Pan Head head Slot drive screw with 8 mm length, featuring a SUS304 Stainless Steel finish. Compared to alternative finishes in the same specification such as MPLM608Z (Blue Zinc Plated Steel), MPLM608B (Black Zinc Plated Steel), the SUS304 Stainless Steel of MPLM608S offers superior corrosion resistance for outdoor, marine, and humid environments, excellent hygiene properties for food and medical equipment, and good mechanical strength at low cost relative to exotic alloys. The Pan Head head design ensures optimal load distribution across the mating surface, while the Slot drive allows efficient torque transmission during installation. Each MPLM608S screw is manufactured to industry standards, RoHS compliant, and supplied with material test reports (MTR) for full quality traceability.
Payment Method: T/T & Paypal and other payment method
Shipment Method: Air Express , Air Freight, Sea Shippment
1. Order online directly, made payment via Paypal or bank transfer.
2. Superneer arrange production according to drawing,all demensions are within drawing specification.
3. Parts ready, ship to customer.
Frequently Asked Questions about MPLM608S
What is MPLM608S screw?
MPLM608S is a M6 Pan Head head Slot drive screw made of SUS304 Stainless Steel, manufactured by Superneer Limited. It has a length of 8 mm and is commonly used in electronics, watches, precision instruments, and 3D printers.
What are the specifications of MPLM608S?

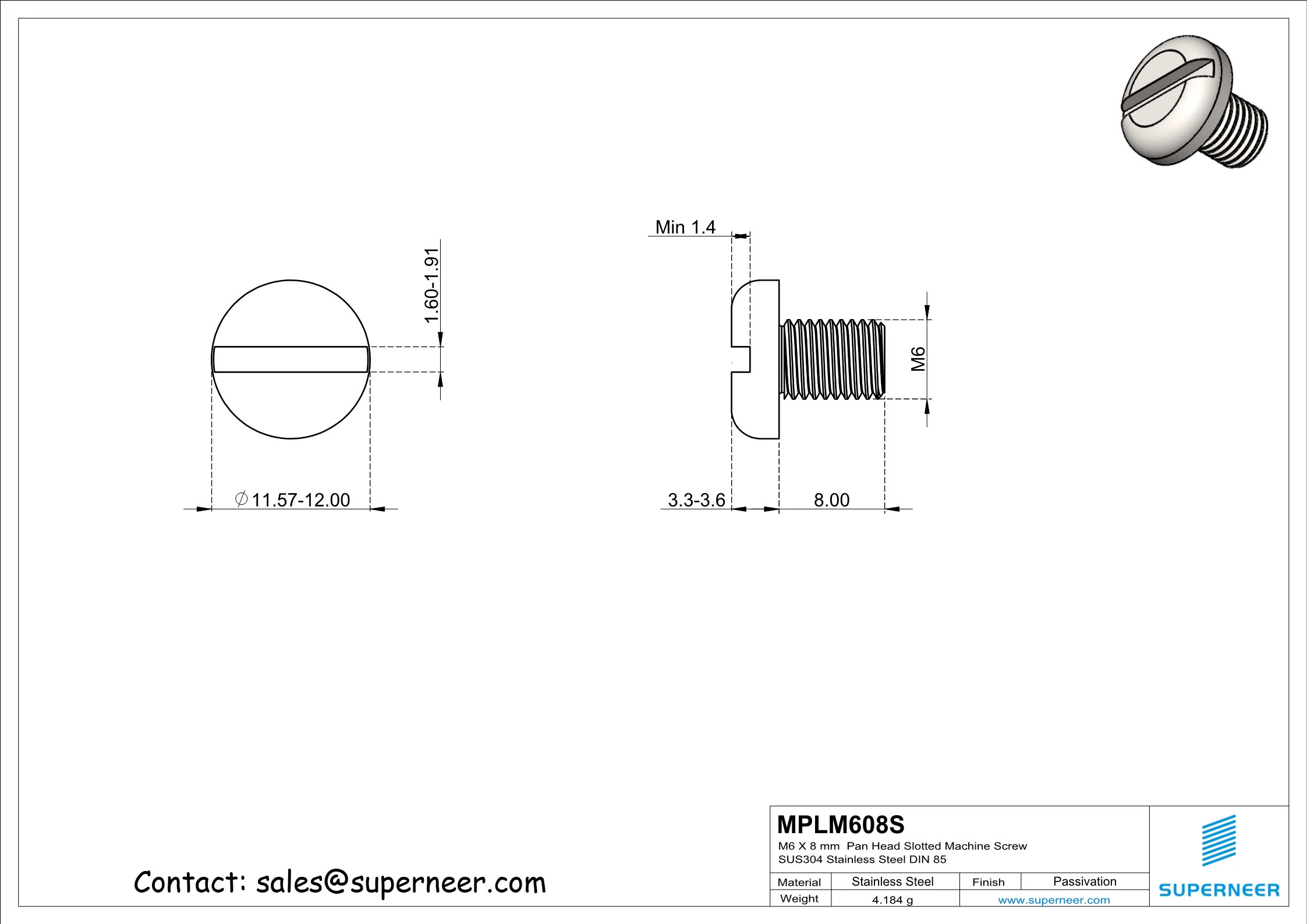

The MPLM608S screw features thread size M6, length of 8 mm, head type Pan Head (head diameter 12 - 11.57 mm), drive type Slot (drive size 1.91 - 1.66mm), and is made of SUS304 Stainless Steel.
What material is the MPLM608S screw made of?
The MPLM608S screw is made of SUS304 Stainless Steel. Superneer provides material test reports (MTR) and RoHS compliance certificates for all products. SUS304 Stainless Steel offers excellent corrosion resistance and mechanical strength.
What is the thread size of MPLM608S?
The MPLM608S screw has a M6 thread. This is a metric thread with M6 specification, commonly used in international applications following ISO standards.
What are MPLM608S screws used for?
MPLM608S Pan Head head Slot drive screws are used in electronics assembly, PCB mounting, precision instruments, watches, 3D printers, optical devices, medical equipment, and consumer products where reliable fastening with Pan Head head aesthetics is required.
What is the MOQ and price for MPLM608S?
The minimum order quantity (MOQ) for MPLM608S is 10,000 pieces. The unit price is $0.115 USD for MOQ quantity. Larger quantities receive discounted pricing. Contact [email protected] for custom quotes.
What is the lead time and shipping for MPLM608S?
The lead time for MPLM608S is 15-25 days for production. Shipping to USA takes 5-15 days via sea freight, with shipping cost starting from $50 USD. Air freight is available for urgent orders. DDP and FOB terms are both available.
What is the inch equivalent of M6 thread?
The M6 thread is approximately equivalent to 1/4"-20. When substituting metric screws with inch screws, always verify the actual diameter and pitch compatibility.
What head type does MPLM608S use and why?
The MPLM608S uses a Pan Head head type. Pan Head head provides a specific head design optimized for its intended application. This head type is selected based on the specific application requirements for load distribution, aesthetics, and accessibility.
How to choose the right screw size for my application?
To choose the right screw: 1) Determine the required thread size based on the tapped hole or nut; 2) Select the appropriate length based on the material thickness; 3) Choose the head type based on clearance and aesthetics; 4) Select the drive type based on torque requirements; 5) Choose the material based on environmental conditions. For MPLM608S (M6, 8 mm), ensure your application requires this specific size.
What is the difference between MPLM608S and similar parts?
MPLM608S uses SUS304 Stainless Steel finish, while alternative variants in the same thread/length specification include MPLM608Z (Blue Zinc Plated Steel), MPLM608B (Black Zinc Plated Steel). The SUS304 Stainless Steel of MPLM608S is specifically selected because it offers superior corrosion resistance for outdoor, marine, and humid environments, excellent hygiene properties for food and medical equipment, and good mechanical strength at low cost relative to exotic alloys. This distinction makes MPLM608S the preferred choice when these properties align with your application requirements.
