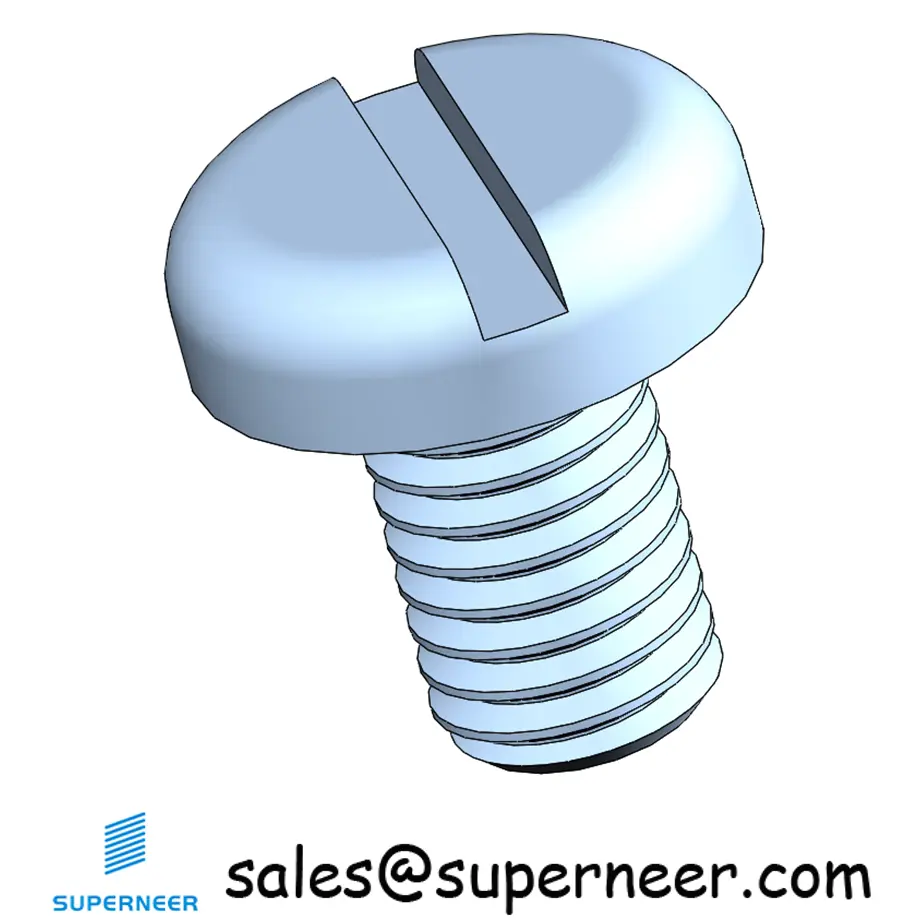

M5 x 8 mm Pan Head Slotted Machine Screw Steel Blue Zinc Plated DIN 85
Why Choose MPLM508Z?
MPLM508Z is a M5 Pan Head head Slot drive screw with 8 mm length, featuring a Blue Zinc Plated Steel finish. Compared to alternative finishes in the same specification such as MPLM508S (SUS304 Stainless Steel), MPLM508B (Black Zinc Plated Steel), the Blue Zinc Plated Steel of MPLM508Z offers moderate corrosion resistance with a distinctive blue iridescent appearance, commonly used in automotive assembly, machinery, and general industrial fastening. The Pan Head head design ensures optimal load distribution across the mating surface, while the Slot drive allows efficient torque transmission during installation. Each MPLM508Z screw is manufactured to industry standards, RoHS compliant, and supplied with material test reports (MTR) for full quality traceability.
Payment Method: T/T & Paypal and other payment method
Shipment Method: Air Express , Air Freight, Sea Shippment
1. Order online directly, made payment via Paypal or bank transfer.
2. Superneer arrange production according to drawing,all demensions are within drawing specification.
3. Parts ready, ship to customer.
Frequently Asked Questions about MPLM508Z
What is MPLM508Z screw?
MPLM508Z is a M5 Pan Head head Slot drive screw made of Blue Zinc Plated Steel, manufactured by Superneer Limited. It has a length of 8 mm and is commonly used in electronics, watches, precision instruments, and 3D printers.
What are the specifications of MPLM508Z?

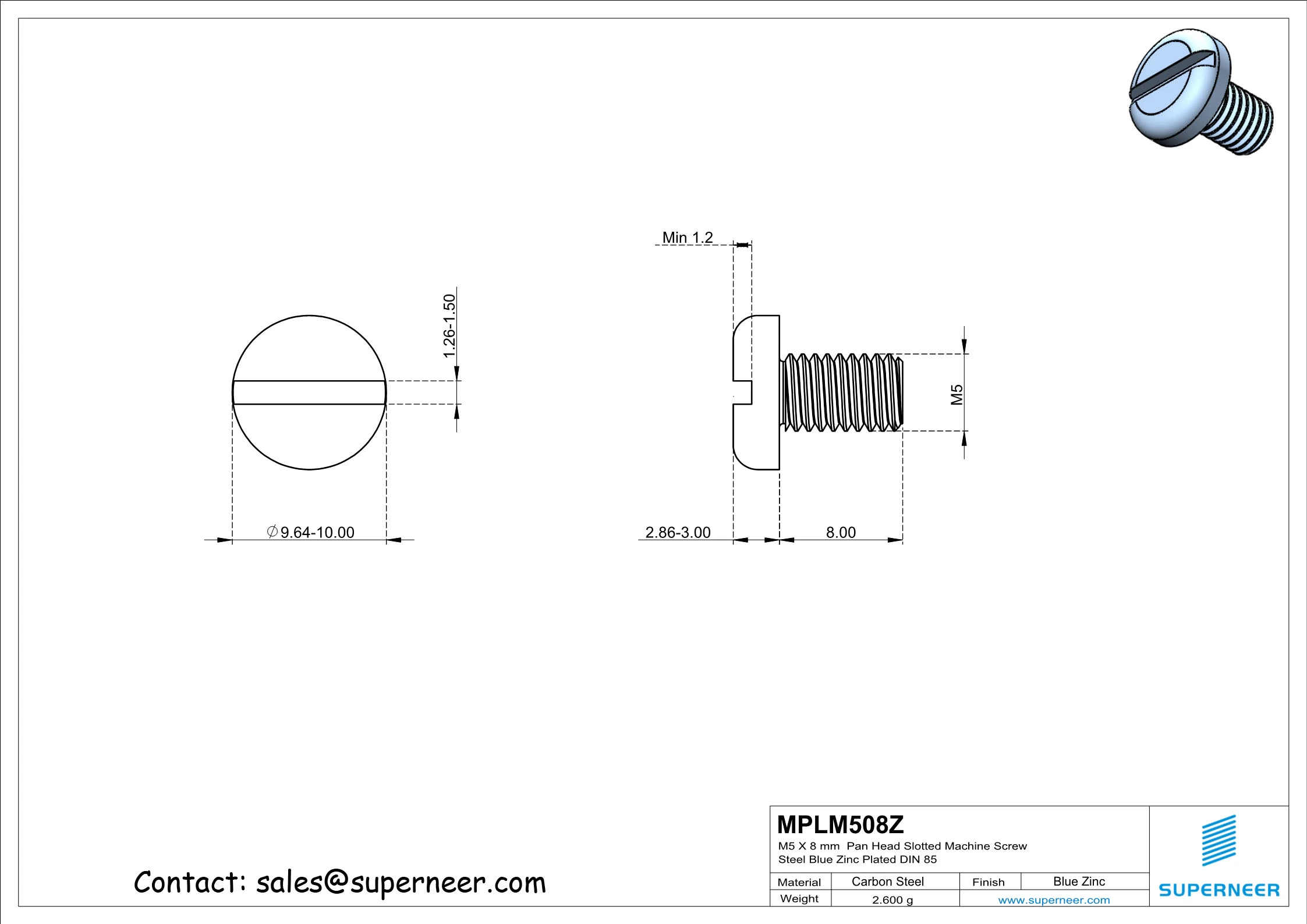

The MPLM508Z screw features thread size M5, length of 8 mm, head type Pan Head (head diameter 9.64 - 10 mm), drive type Slot (drive size 1.26 - 1.51mm), and is made of Blue Zinc Plated Steel.
What material is the MPLM508Z screw made of?
The MPLM508Z screw is made of Blue Zinc Plated Steel. Superneer provides material test reports (MTR) and RoHS compliance certificates for all products. Blue Zinc Plated Steel offers excellent corrosion resistance and mechanical strength.
What is the thread size of MPLM508Z?
The MPLM508Z screw has a M5 thread. This is a metric thread with M5 specification, commonly used in international applications following ISO standards.
What are MPLM508Z screws used for?
MPLM508Z Pan Head head Slot drive screws are used in electronics assembly, PCB mounting, precision instruments, watches, 3D printers, optical devices, medical equipment, and consumer products where reliable fastening with Pan Head head aesthetics is required.
What is the MOQ and price for MPLM508Z?
The minimum order quantity (MOQ) for MPLM508Z is 10,000 pieces. The unit price is $0.042 USD for MOQ quantity. Larger quantities receive discounted pricing. Contact [email protected] for custom quotes.
What is the lead time and shipping for MPLM508Z?
The lead time for MPLM508Z is 15-25 days for production. Shipping to USA takes 5-15 days via sea freight, with shipping cost starting from $50 USD. Air freight is available for urgent orders. DDP and FOB terms are both available.
What is the inch equivalent of M5 thread?
The M5 thread is approximately equivalent to #10 (approx 10-32). When substituting metric screws with inch screws, always verify the actual diameter and pitch compatibility.
What head type does MPLM508Z use and why?
The MPLM508Z uses a Pan Head head type. Pan Head head provides a specific head design optimized for its intended application. This head type is selected based on the specific application requirements for load distribution, aesthetics, and accessibility.
How to choose the right screw size for my application?
To choose the right screw: 1) Determine the required thread size based on the tapped hole or nut; 2) Select the appropriate length based on the material thickness; 3) Choose the head type based on clearance and aesthetics; 4) Select the drive type based on torque requirements; 5) Choose the material based on environmental conditions. For MPLM508Z (M5, 8 mm), ensure your application requires this specific size.
What is the difference between MPLM508Z and similar parts?
MPLM508Z uses Blue Zinc Plated Steel finish, while alternative variants in the same thread/length specification include MPLM508S (SUS304 Stainless Steel), MPLM508B (Black Zinc Plated Steel). The Blue Zinc Plated Steel of MPLM508Z is specifically selected because it offers moderate corrosion resistance with a distinctive blue iridescent appearance, commonly used in automotive assembly, machinery, and general industrial fastening. This distinction makes MPLM508Z the preferred choice when these properties align with your application requirements.
