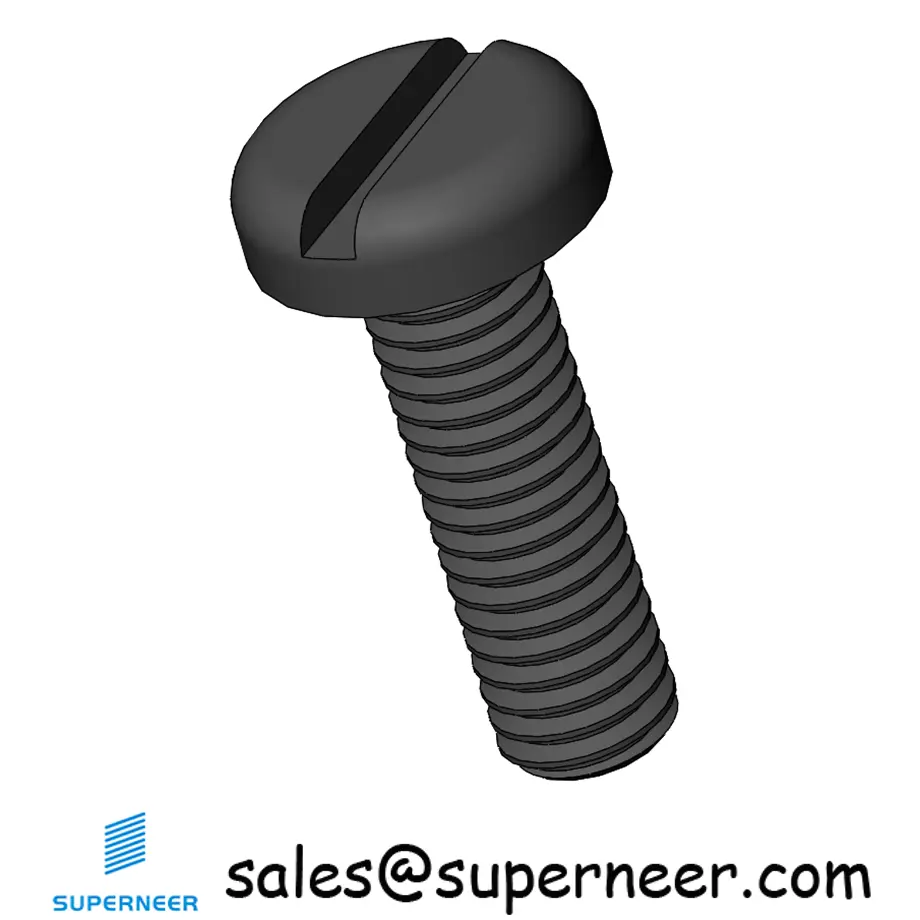

M3 x 10 mm Pan Head Slotted Machine Screw Steel Black DIN 85
Why Choose MPLM310B?
MPLM310B is a M3 Pan Head head Slot drive screw with 10 mm length, featuring a Black Zinc Plated Steel finish. Compared to alternative finishes in the same specification such as MPLM310S (SUS304 Stainless Steel), MPLM310Z (Blue Zinc Plated Steel), the Black Zinc Plated Steel of MPLM310B offers a black decorative finish combined with good corrosion resistance, ideal for consumer electronics, automotive interiors, and applications where both appearance and rust prevention matter. The Pan Head head design ensures optimal load distribution across the mating surface, while the Slot drive allows efficient torque transmission during installation. Each MPLM310B screw is manufactured to industry standards, RoHS compliant, and supplied with material test reports (MTR) for full quality traceability.
Payment Method: T/T & Paypal and other payment method
Shipment Method: Air Express , Air Freight, Sea Shippment
1. Order online directly, made payment via Paypal or bank transfer.
2. Superneer arrange production according to drawing,all demensions are within drawing specification.
3. Parts ready, ship to customer.
Frequently Asked Questions about MPLM310B
What is MPLM310B screw?
MPLM310B is a M3 Pan Head head Slot drive screw made of Black Zinc Plated Steel, manufactured by Superneer Limited. It has a length of 10 mm and is commonly used in electronics, watches, precision instruments, and 3D printers.
What are the specifications of MPLM310B?

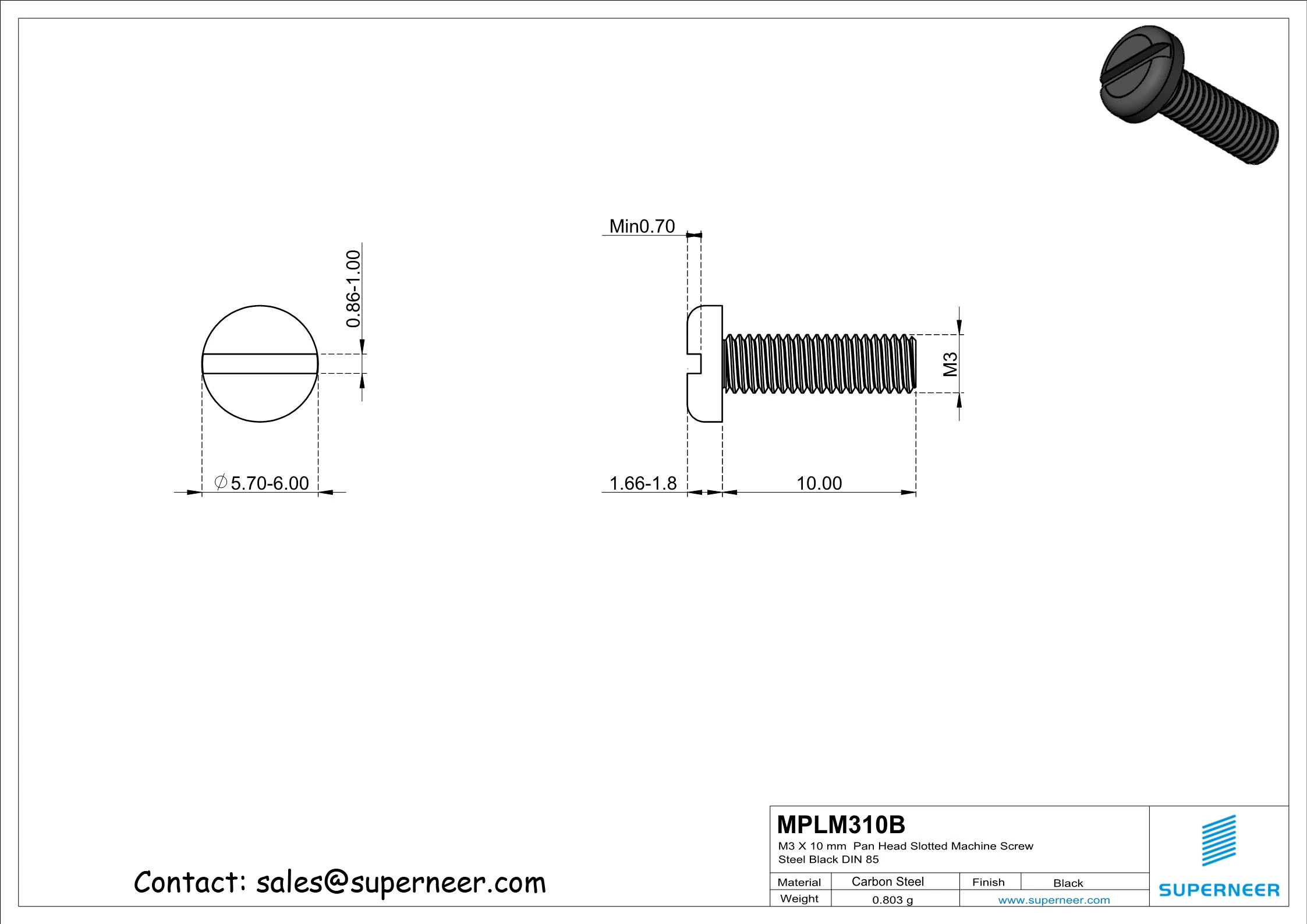

The MPLM310B screw features thread size M3, length of 10 mm, head type Pan Head (head diameter 5.70-6.00 mm), drive type Slot (drive size 0.86 - 1 mm), and is made of Black Zinc Plated Steel.
What material is the MPLM310B screw made of?
The MPLM310B screw is made of Black Zinc Plated Steel. Superneer provides material test reports (MTR) and RoHS compliance certificates for all products. Black Zinc Plated Steel offers excellent corrosion resistance and mechanical strength.
What is the thread size of MPLM310B?
The MPLM310B screw has a M3 thread. This is a metric thread with M3 specification, commonly used in international applications following ISO standards.
What are MPLM310B screws used for?
MPLM310B Pan Head head Slot drive screws are used in electronics assembly, PCB mounting, precision instruments, watches, 3D printers, optical devices, medical equipment, and consumer products where reliable fastening with Pan Head head aesthetics is required.
What is the MOQ and price for MPLM310B?
The minimum order quantity (MOQ) for MPLM310B is 10,000 pieces. The unit price is $0.017 USD for MOQ quantity. Larger quantities receive discounted pricing. Contact [email protected] for custom quotes.
What is the lead time and shipping for MPLM310B?
The lead time for MPLM310B is 15-25 days for production. Shipping to USA takes 5-15 days via sea freight, with shipping cost starting from $50 USD. Air freight is available for urgent orders. DDP and FOB terms are both available.
What is the inch equivalent of M3 thread?
The M3 thread is approximately equivalent to #6 (approx 6-32). When substituting metric screws with inch screws, always verify the actual diameter and pitch compatibility.
What head type does MPLM310B use and why?
The MPLM310B uses a Pan Head head type. Pan Head head provides a specific head design optimized for its intended application. This head type is selected based on the specific application requirements for load distribution, aesthetics, and accessibility.
How to choose the right screw size for my application?
To choose the right screw: 1) Determine the required thread size based on the tapped hole or nut; 2) Select the appropriate length based on the material thickness; 3) Choose the head type based on clearance and aesthetics; 4) Select the drive type based on torque requirements; 5) Choose the material based on environmental conditions. For MPLM310B (M3, 10 mm), ensure your application requires this specific size.
What is the difference between MPLM310B and similar parts?
MPLM310B uses Black Zinc Plated Steel finish, while alternative variants in the same thread/length specification include MPLM310S (SUS304 Stainless Steel), MPLM310Z (Blue Zinc Plated Steel). The Black Zinc Plated Steel of MPLM310B is specifically selected because it offers a black decorative finish combined with good corrosion resistance, ideal for consumer electronics, automotive interiors, and applications where both appearance and rust prevention matter. This distinction makes MPLM310B the preferred choice when these properties align with your application requirements.
