Home Machine Screws Pan Head Machine Screw Slotted Pan Head Screw 3-48 x 7/16" Pan Head Slotted Machine Screw Steel Black

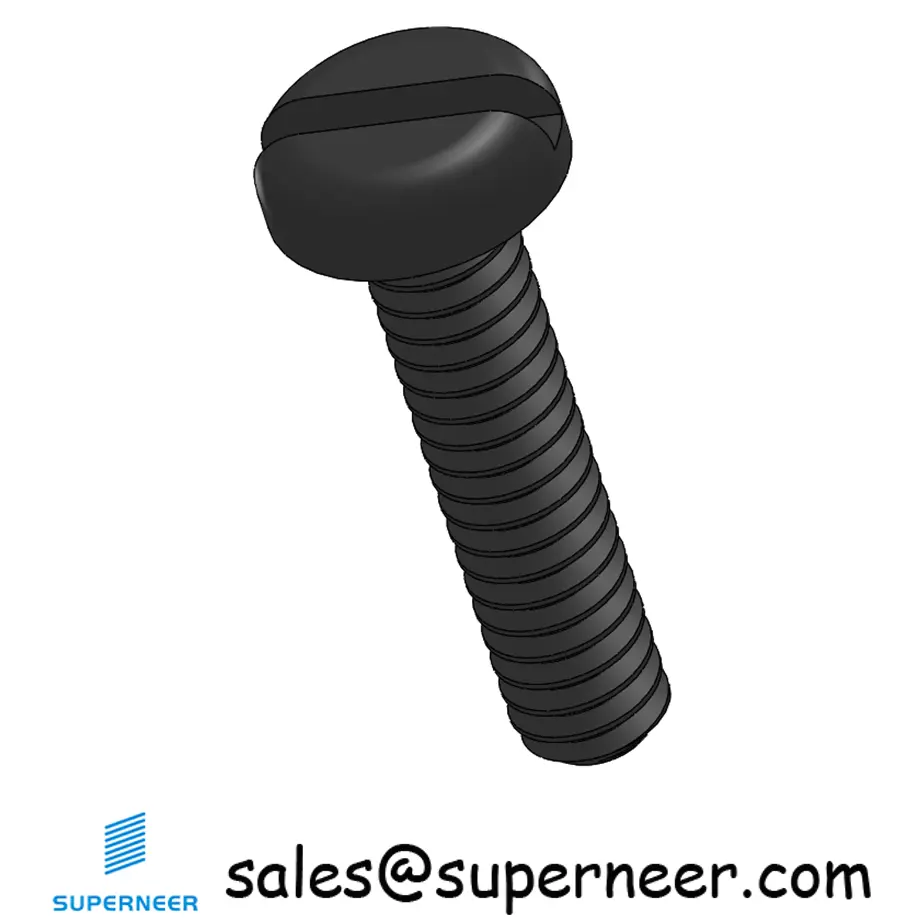

3-48 x 7/16" Pan Head Slotted Machine Screw Steel Black

Screw
Screw
Part No. MPL0307B rohs Rating:

material Black Zinc Plated Steel
Ship Date 2026-12-08
Head Pan Head
drive Slot   0.027 -0.035 width
Head Diameter 0.180-0.193" inch
Head Height 0.051 - 0.060" inch
Thread 3-48
Length 7/16 inch
Unit Price USD$ 0.024 /pcs
Unit Weight 0.510 g
Quantity pcs
Amount USD$ Total Amount USD$
Amount USD$ Total Amount USD$

Item Information

Why Choose MPL0307B?

MPL0307B is a 3-48 Pan Head head Slot drive screw with 7/16 inches length, featuring a Black Zinc Plated Steel finish. Compared to alternative finishes in the same specification such as MPL0307S (SUS304 Stainless Steel), MPL0307Z (Blue Zinc Plated Steel), the Black Zinc Plated Steel of MPL0307B offers a black decorative finish combined with good corrosion resistance, ideal for consumer electronics, automotive interiors, and applications where both appearance and rust prevention matter. The Pan Head head design ensures optimal load distribution across the mating surface, while the Slot drive allows efficient torque transmission during installation. Each MPL0307B screw is manufactured to industry standards, RoHS compliant, and supplied with material test reports (MTR) for full quality traceability.

3-48 x 7/16" Pan Head Slotted Machine Screw Steel Black
MPL0307B This part demension will be same as the drawing indicate below, length tolerance will be ±0.5 .
It is Pan Head with Slot drive, 3-48 Thread and 7/16 inch Length .
material Black Zinc Plated Steel, Finsh is Rohs Black which has good function of anti-corrosion .
On website, you can choose use your shipping account which shippcost is 0, or you can use our DHL/UPS account to ship which will have ship cost indicate.
Payment terms: Payment advance, On website, you can choose pay via paypal or pay via bank transfer. when bank transfer , you can send your bank slip to us via order process or send it to our email:[email protected]. when payment made, We will soon make production and update process for you via email.
BUY MPL0307B - 3-48 x 7/16 Pan Head Slotted Machine Screw - Black Zinc Steel for Electronics Assembly | Superneer today,high quality product and best service will be provided by superneer.Each order will be made shippment on time.
Different Finish :
3-48 x 7/16 inch
3-48 x 7/16 inch
MPL0307S
SUS304 Stainless Steel
3-48 x 7/16 inch
3-48 x 7/16 inch
MPL0307Z
Blue Zinc Plated Steel
3-48 x 7/16 inch
3-48 x 7/16 inch
MPL0307B
Black Zinc Plated Steel

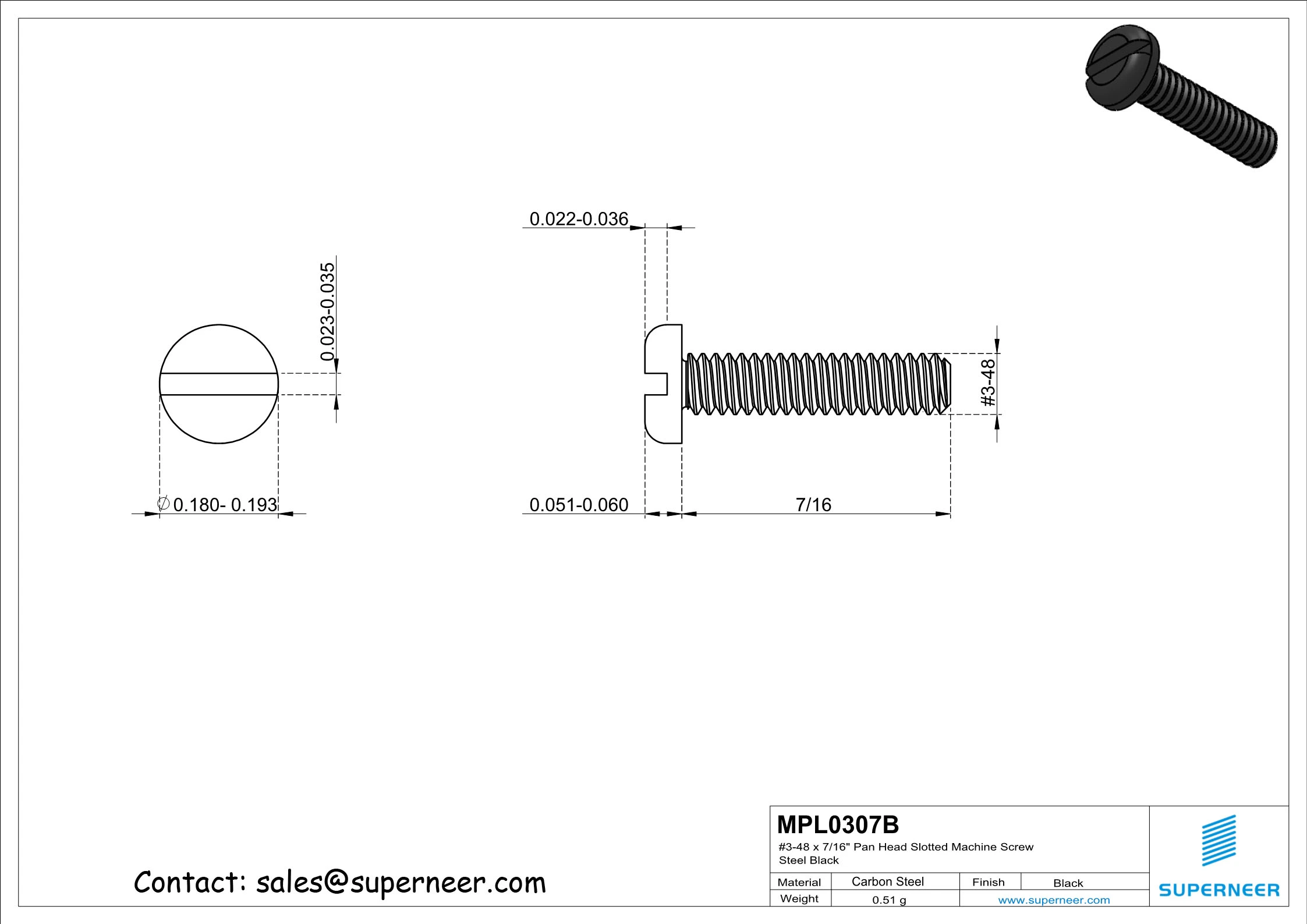

Item Drawing
3-48 x 7/16" Pan Head Slotted Machine Screw Steel Black
Stock Part
Payment & Trasportation 5-10 days

Payment Method: T/T & Paypal and other payment method

Shipment Method: Air Express , Air Freight, Sea Shippment

How to Order

1. Order online directly, made payment via Paypal or bank transfer.

2. Superneer arrange production according to drawing,all demensions are within drawing specification.

3. Parts ready, ship to customer.

Frequently Asked Questions about MPL0307B

What is MPL0307B screw?

MPL0307B is a 3-48 Pan Head head Slot drive screw made of Black Zinc Plated Steel, manufactured by Superneer Limited. It has a length of 7/16 inches and is commonly used in electronics, watches, precision instruments, and 3D printers.

What are the specifications of MPL0307B?

The MPL0307B screw features thread size 3-48, length of 7/16 inches, head type Pan Head (head diameter 0.180-0.193 inches), drive type Slot (drive size 0.027 -0.035 width), and is made of Black Zinc Plated Steel.

What material is the MPL0307B screw made of?

The MPL0307B screw is made of Black Zinc Plated Steel. Superneer provides material test reports (MTR) and RoHS compliance certificates for all products. Black Zinc Plated Steel offers excellent corrosion resistance and mechanical strength.

What is the thread size of MPL0307B?

The MPL0307B screw has a 3-48 thread. This is a UNC (Unified National Coarse) thread with 3-48 specification, widely used in North American applications.

What are MPL0307B screws used for?

MPL0307B Pan Head head Slot drive screws are used in electronics assembly, PCB mounting, precision instruments, watches, 3D printers, optical devices, medical equipment, and consumer products where reliable fastening with Pan Head head aesthetics is required.

What is the MOQ and price for MPL0307B?

The minimum order quantity (MOQ) for MPL0307B is 10,000 pieces. The unit price is $0.024 USD for MOQ quantity. Larger quantities receive discounted pricing. Contact [email protected] for custom quotes.

What is the lead time and shipping for MPL0307B?

The lead time for MPL0307B is 15-25 days for production. Shipping to USA takes 5-15 days via sea freight, with shipping cost starting from $50 USD. Air freight is available for urgent orders. DDP and FOB terms are both available.

What is the metric equivalent of 3-48 thread?

The 3-48 thread is approximately equivalent to M2.5 (approx). When substituting inch screws with metric screws, always verify the actual diameter and pitch compatibility.

What head type does MPL0307B use and why?

The MPL0307B uses a Pan Head head type. Pan Head head provides a specific head design optimized for its intended application. This head type is selected based on the specific application requirements for load distribution, aesthetics, and accessibility.

How to choose the right screw size for my application?

To choose the right screw: 1) Determine the required thread size based on the tapped hole or nut; 2) Select the appropriate length based on the material thickness; 3) Choose the head type based on clearance and aesthetics; 4) Select the drive type based on torque requirements; 5) Choose the material based on environmental conditions. For MPL0307B (3-48, 7/16 inches), ensure your application requires this specific size.

What is the difference between MPL0307B and similar parts?

MPL0307B uses Black Zinc Plated Steel finish, while alternative variants in the same thread/length specification include MPL0307S (SUS304 Stainless Steel), MPL0307Z (Blue Zinc Plated Steel). The Black Zinc Plated Steel of MPL0307B is specifically selected because it offers a black decorative finish combined with good corrosion resistance, ideal for consumer electronics, automotive interiors, and applications where both appearance and rust prevention matter. This distinction makes MPL0307B the preferred choice when these properties align with your application requirements.
