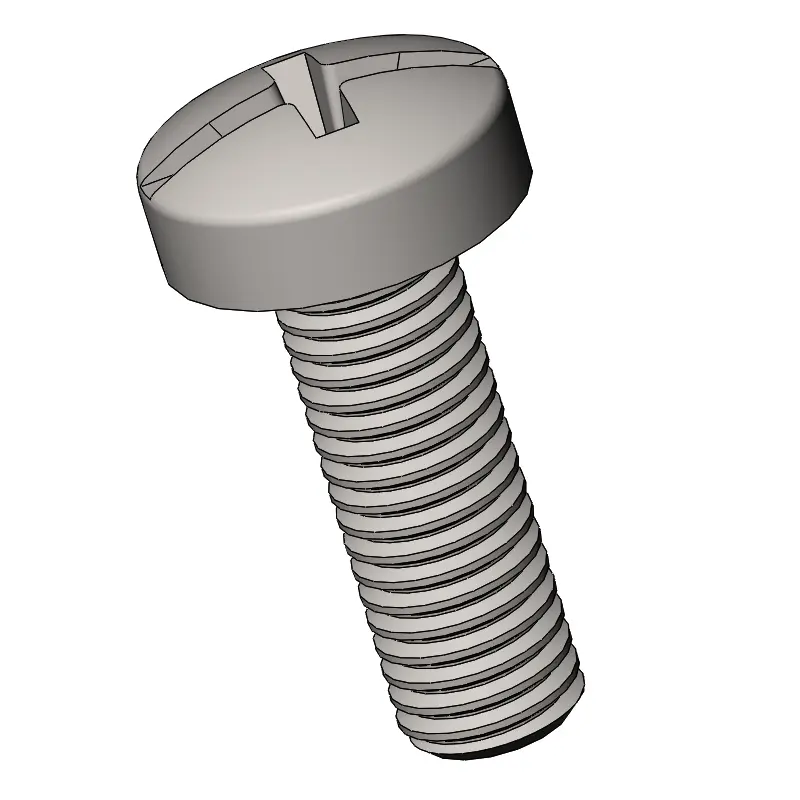

M4 x 12 mm Pan Head Combination Phillips/Slotted Machine Screw SUS304 Stainless Steel DIN 7985
Why Choose MPCM412S?
MPCM412S is a M4 Pan Head head Combination Phillips-Slotted drive screw with 12 mm length, featuring a SUS304 Stainless Steel finish. Compared to alternative finishes in the same specification such as MPCM412B (Black Zinc Plated Steel), MPCM412Z (Carbon Steel), the SUS304 Stainless Steel of MPCM412S offers superior corrosion resistance for outdoor, marine, and humid environments, excellent hygiene properties for food and medical equipment, and good mechanical strength at low cost relative to exotic alloys. The Pan Head head design ensures optimal load distribution across the mating surface, while the Combination Phillips-Slotted drive allows efficient torque transmission during installation. Each MPCM412S screw is manufactured to industry standards, RoHS compliant, and supplied with material test reports (MTR) for full quality traceability.
Payment Method: T/T & Paypal and other payment method
Shipment Method: Air Express , Air Freight, Sea Shippment
1. Order online directly, made payment via Paypal or bank transfer.
2. Superneer arrange production according to drawing,all demensions are within drawing specification.
3. Parts ready, ship to customer.
Frequently Asked Questions about MPCM412S
What is MPCM412S screw?
MPCM412S is a M4 Pan Head head Combination Phillips-Slotted drive screw made of SUS304 Stainless Steel, manufactured by Superneer Limited. It has a length of 12 mm and is commonly used in electronics, watches, precision instruments, and 3D printers.
What are the specifications of MPCM412S?

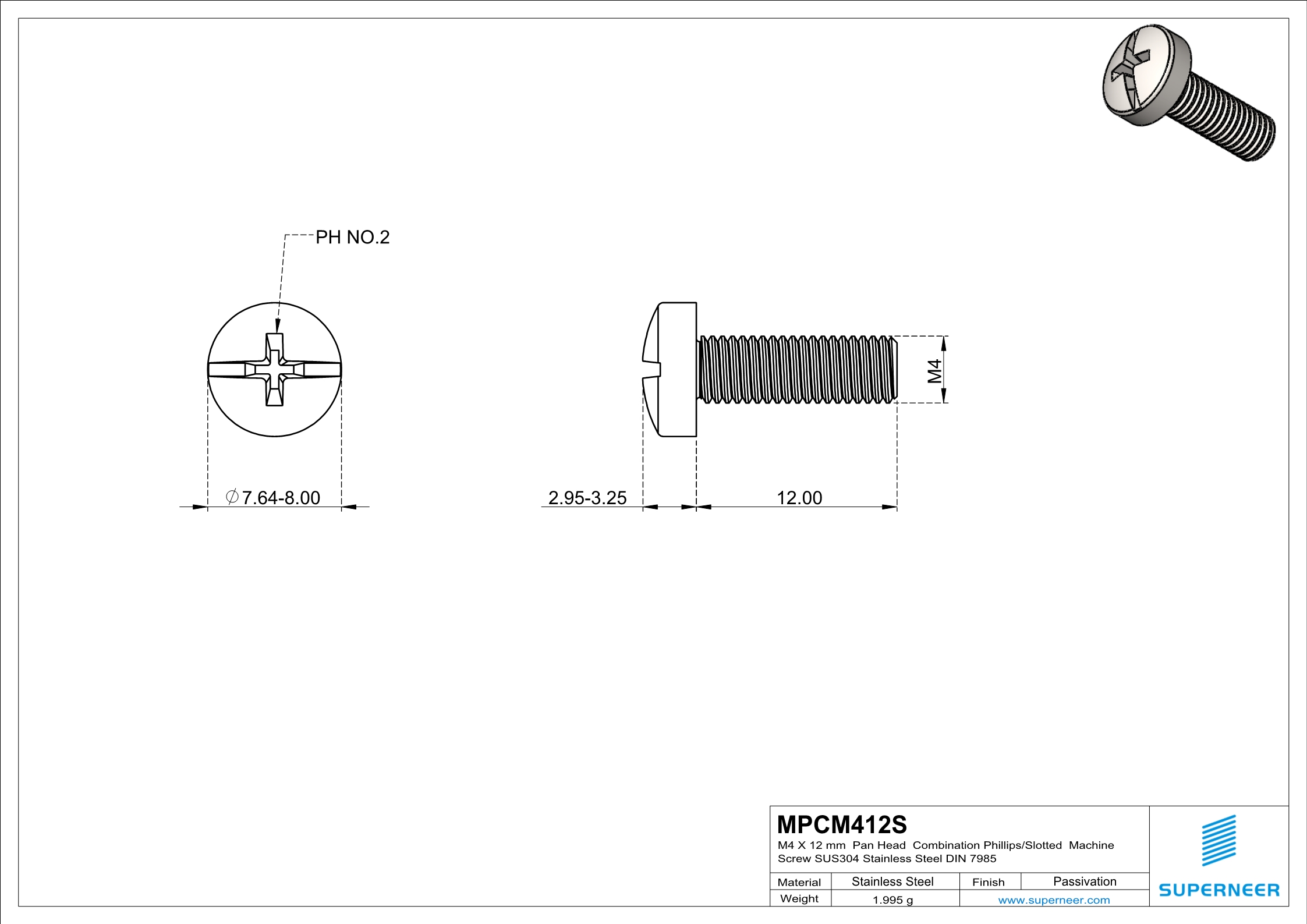

The MPCM412S screw features thread size M4, length of 12 mm, head type Pan Head (head diameter 7.64-8.00 mm), drive type Combination Phillips-Slotted (drive size ), and is made of SUS304 Stainless Steel.
What material is the MPCM412S screw made of?
The MPCM412S screw is made of SUS304 Stainless Steel. Superneer provides material test reports (MTR) and RoHS compliance certificates for all products. SUS304 Stainless Steel offers excellent corrosion resistance and mechanical strength.
What is the thread size of MPCM412S?
The MPCM412S screw has a M4 thread. This is a metric thread with M4 specification, commonly used in international applications following ISO standards.
What are MPCM412S screws used for?
MPCM412S Pan Head head Combination Phillips-Slotted drive screws are used in electronics assembly, PCB mounting, precision instruments, watches, 3D printers, optical devices, medical equipment, and consumer products where reliable fastening with Pan Head head aesthetics is required.
What is the MOQ and price for MPCM412S?
The minimum order quantity (MOQ) for MPCM412S is 10,000 pieces. The unit price is $0.071 USD for MOQ quantity. Larger quantities receive discounted pricing. Contact [email protected] for custom quotes.
What is the lead time and shipping for MPCM412S?
The lead time for MPCM412S is 15-25 days for production. Shipping to USA takes 5-15 days via sea freight, with shipping cost starting from $50 USD. Air freight is available for urgent orders. DDP and FOB terms are both available.
What is the inch equivalent of M4 thread?
The M4 thread is approximately equivalent to #8 (approx 8-32). When substituting metric screws with inch screws, always verify the actual diameter and pitch compatibility.
What head type does MPCM412S use and why?
The MPCM412S uses a Pan Head head type. Pan Head head provides a specific head design optimized for its intended application. This head type is selected based on the specific application requirements for load distribution, aesthetics, and accessibility.
How to choose the right screw size for my application?
To choose the right screw: 1) Determine the required thread size based on the tapped hole or nut; 2) Select the appropriate length based on the material thickness; 3) Choose the head type based on clearance and aesthetics; 4) Select the drive type based on torque requirements; 5) Choose the material based on environmental conditions. For MPCM412S (M4, 12 mm), ensure your application requires this specific size.
What is the difference between MPCM412S and similar parts?
MPCM412S uses SUS304 Stainless Steel finish, while alternative variants in the same thread/length specification include MPCM412B (Black Zinc Plated Steel), MPCM412Z (Carbon Steel). The SUS304 Stainless Steel of MPCM412S is specifically selected because it offers superior corrosion resistance for outdoor, marine, and humid environments, excellent hygiene properties for food and medical equipment, and good mechanical strength at low cost relative to exotic alloys. This distinction makes MPCM412S the preferred choice when these properties align with your application requirements.
