Home Machine Screws Pan Head Screw Pan Head Combination Phillips Slotted Screws M1.6 x 8mm Pan Head Combination Phillips/Slotted Machine Screw Steel Blue Zinc Plated DIN 7985

M1.6 x 8mm Pan Head Combination Phillips/Slotted Machine Screw Steel Blue Zinc Plated DIN 7985

screw pic
screw pic
Part No. MPCM1608Z rohs
Material Blue Zinc Plated Steel Ship Date 2026-08-20
Head Pan Head Drive Slot Phillips   PH No.0
Head Diameter 2.9 - 3.2 mm Head Height 1.18 - 1.42 mm
Thread M1.6 Length 8 mm
Unit Price USD$ 0.020 /pcs Unit Weight g
Quantity pcs
Amount USD$ Total Amount USD$
Amount USD$ Total Amount USD$

Related Parts
M1.6 x 4mm Pan Head Combination Phillips/Slotted Machine Screw Steel Blue Zinc Plated DIN 7985
M1.6 x 5mm Pan Head Combination Phillips/Slotted Machine Screw Steel Blue Zinc Plated DIN 7985
M1.6 x 6mm Pan Head Combination Phillips/Slotted Machine Screw Steel Blue Zinc Plated DIN 7985
M1.6 x 10mm Pan Head Combination Phillips/Slotted Machine Screw Steel Blue Zinc Plated DIN 7985
Item Information
M1.6 x 8mm Pan Head Combination Phillips/Slotted Machine Screw Steel Blue Zinc Plated DIN 7985
This part demension will be same as the drawing indicate below, length tolerance will be ±0.5 .
It is Pan Head with Slot Phillips drive, M1.6 Thread and 8 mm Length .
Material Carbon Steel, Finsh is Rohs Blue Zinc Plated which has good function of anti-corrosion .
On website, you can choose use your shipping account which shippcost is 0, or you can use our DHL/UPS account to ship which will have ship cost indicate.
Payment terms: Payment advance, On website, you can choose pay via paypal or pay via bank transfer. when bank transfer , you can send your bank slip to us via order process or send it to our email:sales@superneer.com. when payment made, We will soon make production and update process for you via email.
Buy M1.6 x 8mm Pan Head Combination Phillips/Slotted Machine Screw Steel Blue Zinc Plated DIN 7985 today,high quality product and best service will be provided by superneer.Each order will be made shippment on time.

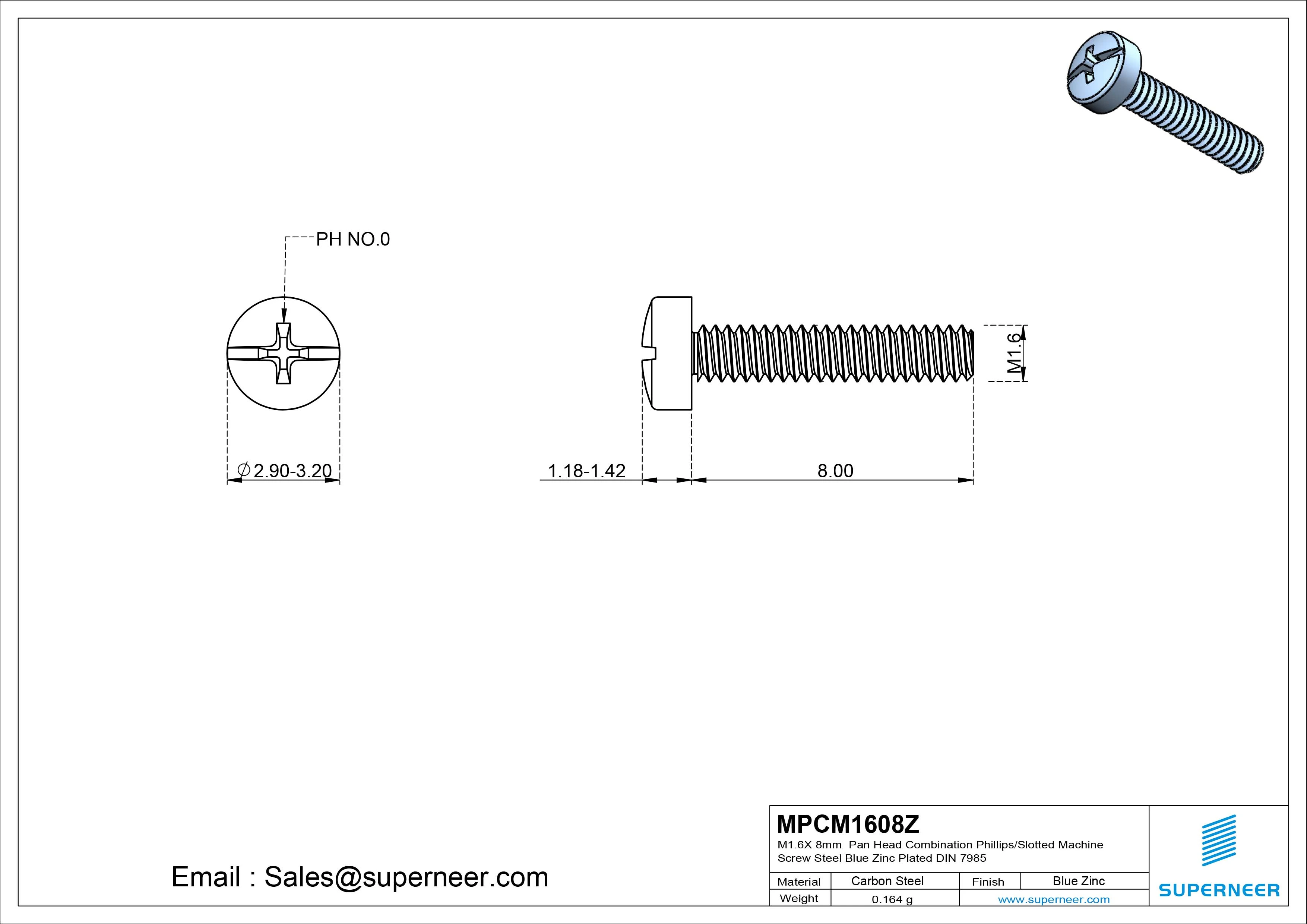

Item Drawing
M1.6 x 8mm Pan Head Combination Phillips/Slotted Machine Screw Steel Blue Zinc Plated DIN 7985
