Home Machine Screws Pan Head Screw Pan Head Combination Phillips Slotted Screws #10-32 x 7/16" Pan Head Phillips and Slotted Combination Machine Screw Steel Black

#10-32 x 7/16" Pan Head Phillips and Slotted Combination Machine Screw Steel Black

screw pic
screw pic
Part No. MPC1007B rohs
Material Black Zinc Plated Steel Ship Date 2026-08-27
Head Pan Head Drive Slot Phillips   PH L No.2
Head Diameter 0.357 - 0.373 inch Head Height 0.122 - 0.133 inch
Thread 10-32 Length 7/16 inch
Unit Price USD$ 0.041 /pcs Unit Weight 2.463 g
Quantity pcs
Amount USD$ Total Amount USD$
Amount USD$ Total Amount USD$

Related Parts
#10-32 x 1/4" Pan Head Phillips and Slotted Combination Machine Screw Steel Black
#10-32 x 5/16" Pan Head Phillips and Slotted Combination Machine Screw Steel Black
#10-32 x 3/8" Pan Head Phillips and Slotted Combination Machine Screw Steel Black
#10-32 x 1/2" Pan Head Phillips and Slotted Combination Machine Screw Steel Black
Item Information
#10-32 x 7/16" Pan Head Phillips and Slotted Combination Machine Screw Steel Black
This part demension will be same as the drawing indicate below, length tolerance will be ±0.5 .
It is Pan Head with Slot Phillips drive, 10-32 Thread and 7/16 inch Length .
Material Carbon Steel, Finsh is Rohs Black Zinc Plated which has good function of anti-corrosion .
On website, you can choose use your shipping account which shippcost is 0, or you can use our DHL/UPS account to ship which will have ship cost indicate.
Payment terms: Payment advance, On website, you can choose pay via paypal or pay via bank transfer. when bank transfer , you can send your bank slip to us via order process or send it to our email:sales@superneer.com. when payment made, We will soon make production and update process for you via email.
Buy #10-32 x 7/16 Pan Head Phillips and Slotted Combination Machine Screw Steel Black today,high quality product and best service will be provided by superneer.Each order will be made shippment on time.
Different Finish :
10-32 x 7/16 inch
MPC1007S
SUS304 Stainless Steel
10-32 x 7/16 inch
MPC1007Z
Carbon Steel

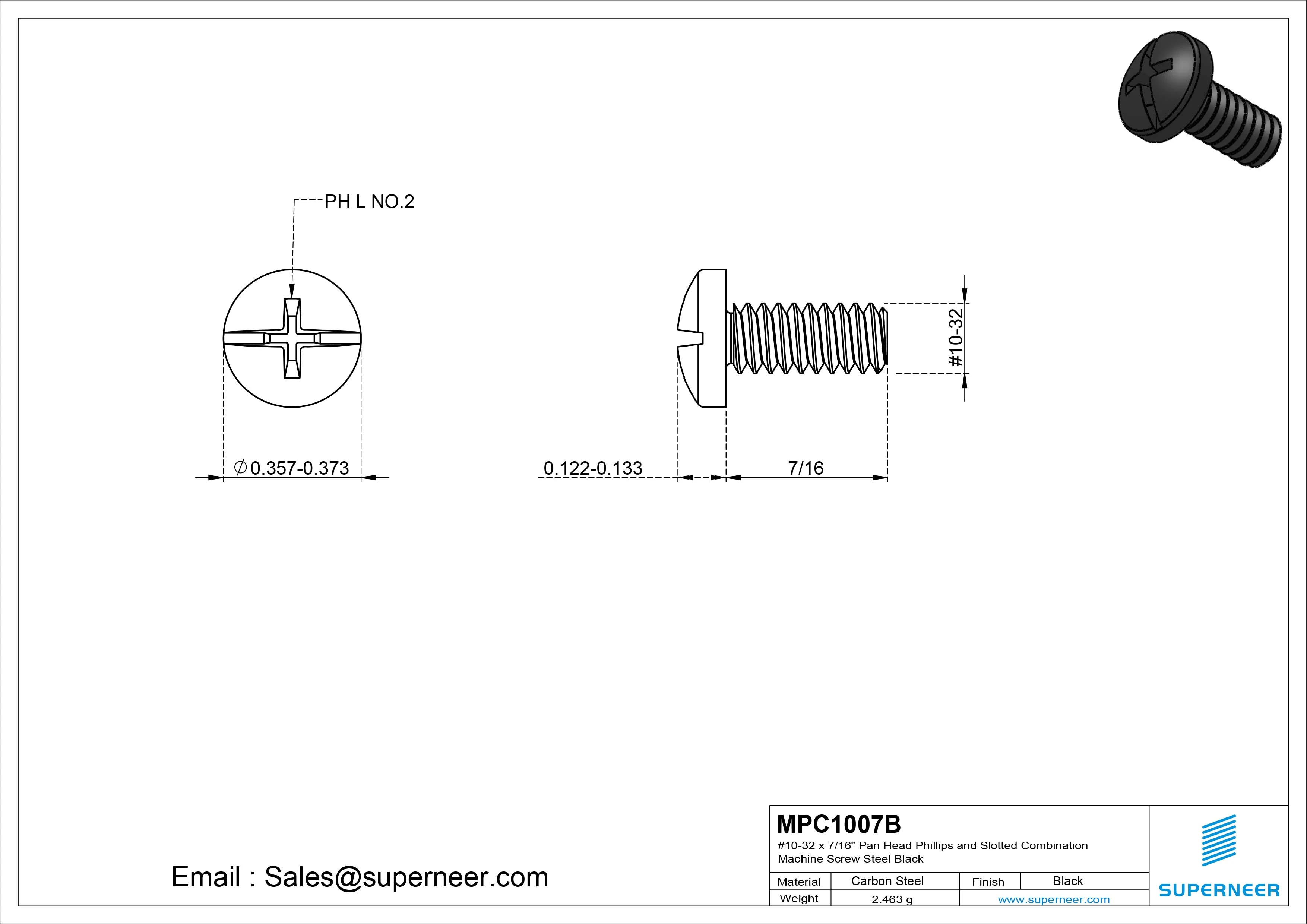

Item Drawing
#10-32 x 7/16" Pan Head Phillips and Slotted Combination Machine Screw Steel Black
