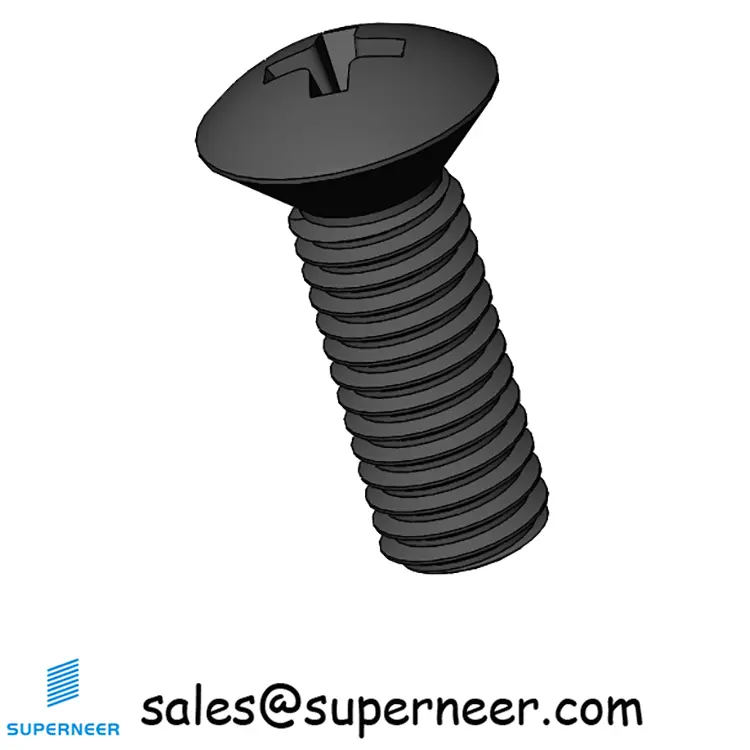

M5 x 14 mm Oval Head Phillips Machine Screw Steel Black DIN 966
Why Choose MOPM514B?
MOPM514B is a M5 Oval Head head Phillips drive screw with 14 mm length, featuring a Black Zinc Plated Steel finish. Compared to alternative finishes in the same specification such as MOPM514S (SUS304 Stainless Steel), MOPM514Z (Blue Zinc Plated Steel), the Black Zinc Plated Steel of MOPM514B offers a black decorative finish combined with good corrosion resistance, ideal for consumer electronics, automotive interiors, and applications where both appearance and rust prevention matter. The Oval Head head design ensures optimal load distribution across the mating surface, while the Phillips drive allows efficient torque transmission during installation. Each MOPM514B screw is manufactured to industry standards, RoHS compliant, and supplied with material test reports (MTR) for full quality traceability.
Payment Method: T/T & Paypal and other payment method
Shipment Method: Air Express , Air Freight, Sea Shippment
1. Order online directly, made payment via Paypal or bank transfer.
2. Superneer arrange production according to drawing,all demensions are within drawing specification.
3. Parts ready, ship to customer.
Frequently Asked Questions about MOPM514B
What is MOPM514B screw?
MOPM514B is a M5 Oval Head head Phillips drive screw made of Black Zinc Plated Steel, manufactured by Superneer Limited. It has a length of 14 mm and is commonly used in electronics, watches, precision instruments, and 3D printers.
What are the specifications of MOPM514B?

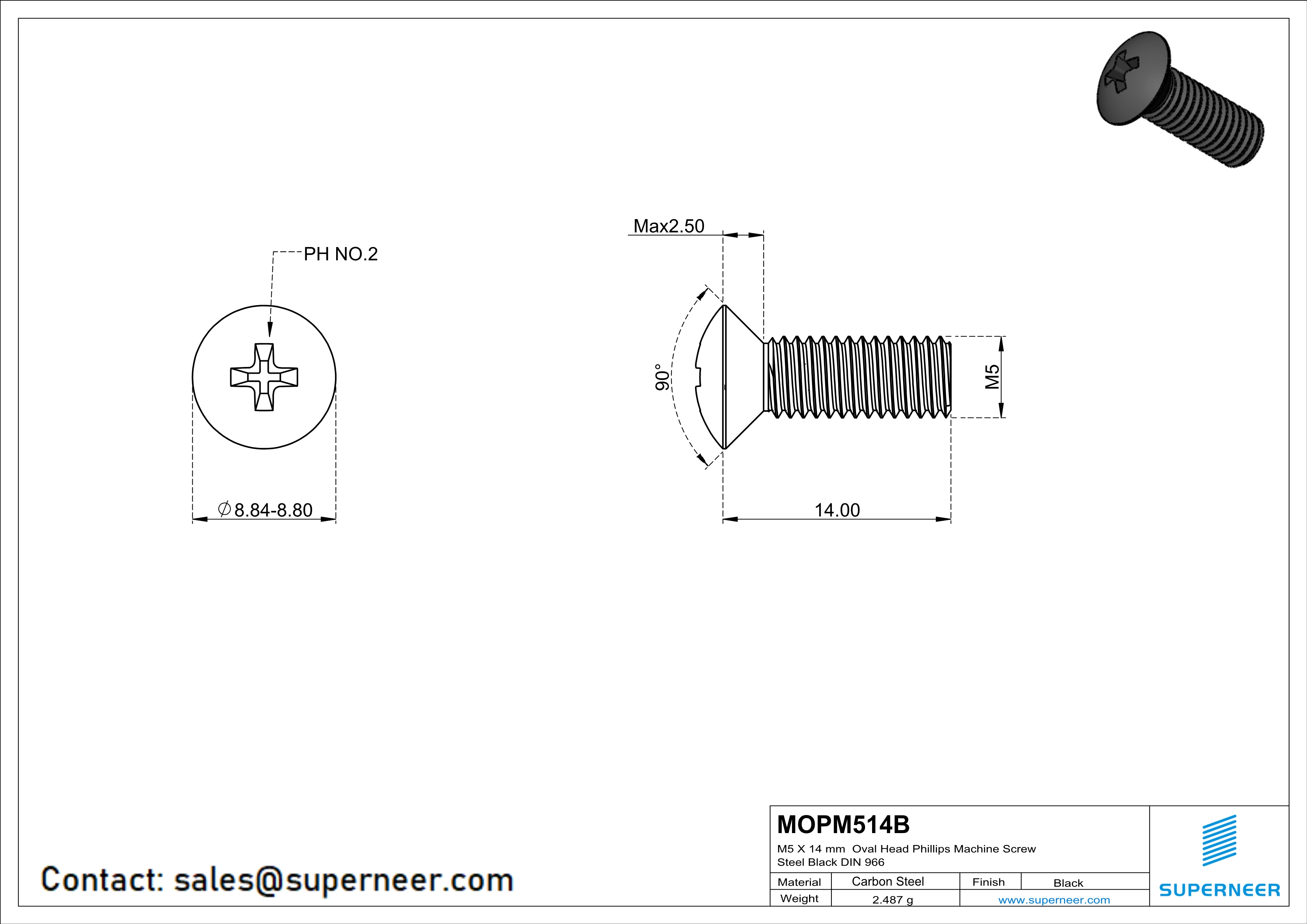

The MOPM514B screw features thread size M5, length of 14 mm, head type Oval Head (head diameter 8.84-9.2 mm), drive type Phillips (drive size PH No.2), and is made of Black Zinc Plated Steel.
What material is the MOPM514B screw made of?
The MOPM514B screw is made of Black Zinc Plated Steel. Superneer provides material test reports (MTR) and RoHS compliance certificates for all products. Black Zinc Plated Steel offers excellent corrosion resistance and mechanical strength.
What is the thread size of MOPM514B?
The MOPM514B screw has a M5 thread. This is a metric thread with M5 specification, commonly used in international applications following ISO standards.
What are MOPM514B screws used for?
MOPM514B Oval Head head Phillips drive screws are used in electronics assembly, PCB mounting, precision instruments, watches, 3D printers, optical devices, medical equipment, and consumer products where reliable fastening with Oval Head head aesthetics is required.
What is the MOQ and price for MOPM514B?
The minimum order quantity (MOQ) for MOPM514B is 10,000 pieces. The unit price is $0.059 USD for MOQ quantity. Larger quantities receive discounted pricing. Contact [email protected] for custom quotes.
What is the lead time and shipping for MOPM514B?
The lead time for MOPM514B is 15-25 days for production. Shipping to USA takes 5-15 days via sea freight, with shipping cost starting from $50 USD. Air freight is available for urgent orders. DDP and FOB terms are both available.
What is the inch equivalent of M5 thread?
The M5 thread is approximately equivalent to #10 (approx 10-32). When substituting metric screws with inch screws, always verify the actual diameter and pitch compatibility.
What head type does MOPM514B use and why?
The MOPM514B uses a Oval Head head type. Oval Head head provides a specific head design optimized for its intended application. This head type is selected based on the specific application requirements for load distribution, aesthetics, and accessibility.
How to choose the right screw size for my application?
To choose the right screw: 1) Determine the required thread size based on the tapped hole or nut; 2) Select the appropriate length based on the material thickness; 3) Choose the head type based on clearance and aesthetics; 4) Select the drive type based on torque requirements; 5) Choose the material based on environmental conditions. For MOPM514B (M5, 14 mm), ensure your application requires this specific size.
What is the difference between MOPM514B and similar parts?
MOPM514B uses Black Zinc Plated Steel finish, while alternative variants in the same thread/length specification include MOPM514S (SUS304 Stainless Steel), MOPM514Z (Blue Zinc Plated Steel). The Black Zinc Plated Steel of MOPM514B is specifically selected because it offers a black decorative finish combined with good corrosion resistance, ideal for consumer electronics, automotive interiors, and applications where both appearance and rust prevention matter. This distinction makes MOPM514B the preferred choice when these properties align with your application requirements.
