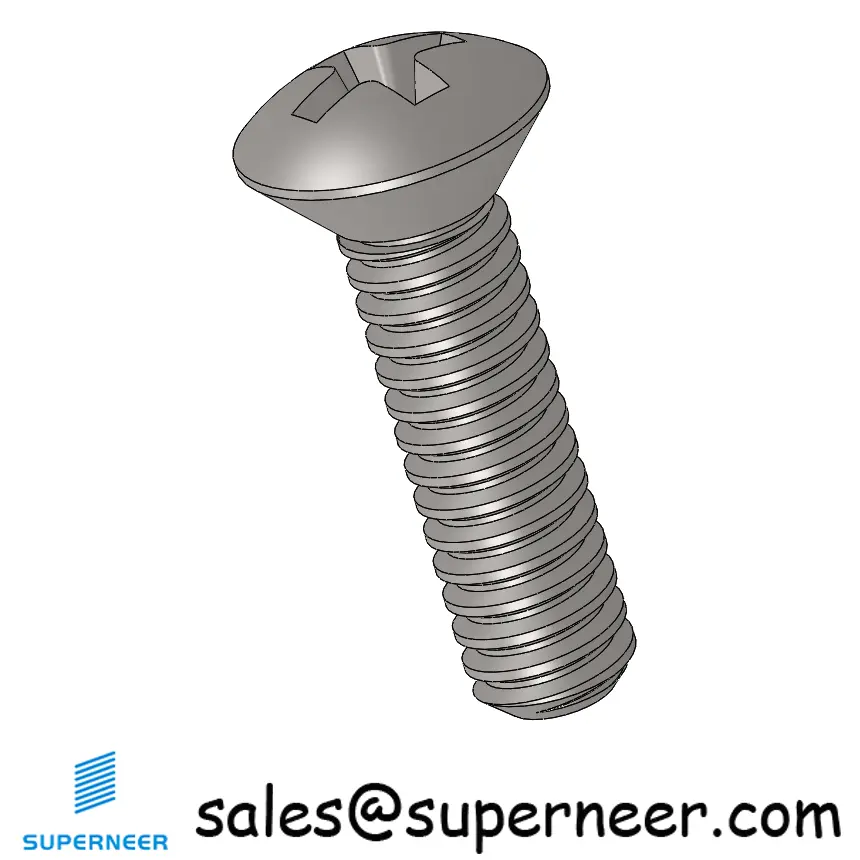

3-48 x 3/8" Oval Head Phillips Machine Screw SUS304 Stainless Steel Inox
Why Choose MOP0306S?
MOP0306S is a 3-48 Oval Head head Phillips drive screw with 3/8 inches length, featuring a SUS304 Stainless Steel finish. Compared to alternative finishes in the same specification such as MOP0306Z (Blue Zinc Plated Steel), MOP0306B (Black Zinc Plated Steel), the SUS304 Stainless Steel of MOP0306S offers superior corrosion resistance for outdoor, marine, and humid environments, excellent hygiene properties for food and medical equipment, and good mechanical strength at low cost relative to exotic alloys. The Oval Head head design ensures optimal load distribution across the mating surface, while the Phillips drive allows efficient torque transmission during installation. Each MOP0306S screw is manufactured to industry standards, RoHS compliant, and supplied with material test reports (MTR) for full quality traceability.
Payment Method: T/T & Paypal and other payment method
Shipment Method: Air Express , Air Freight, Sea Shippment
1. Order online directly, made payment via Paypal or bank transfer.
2. Superneer arrange production according to drawing,all demensions are within drawing specification.
3. Parts ready, ship to customer.
Frequently Asked Questions about MOP0306S
What is MOP0306S screw?
MOP0306S is a 3-48 Oval Head head Phillips drive screw made of SUS304 Stainless Steel, manufactured by Superneer Limited. It has a length of 3/8 inches and is commonly used in electronics, watches, precision instruments, and 3D printers.
What are the specifications of MOP0306S?

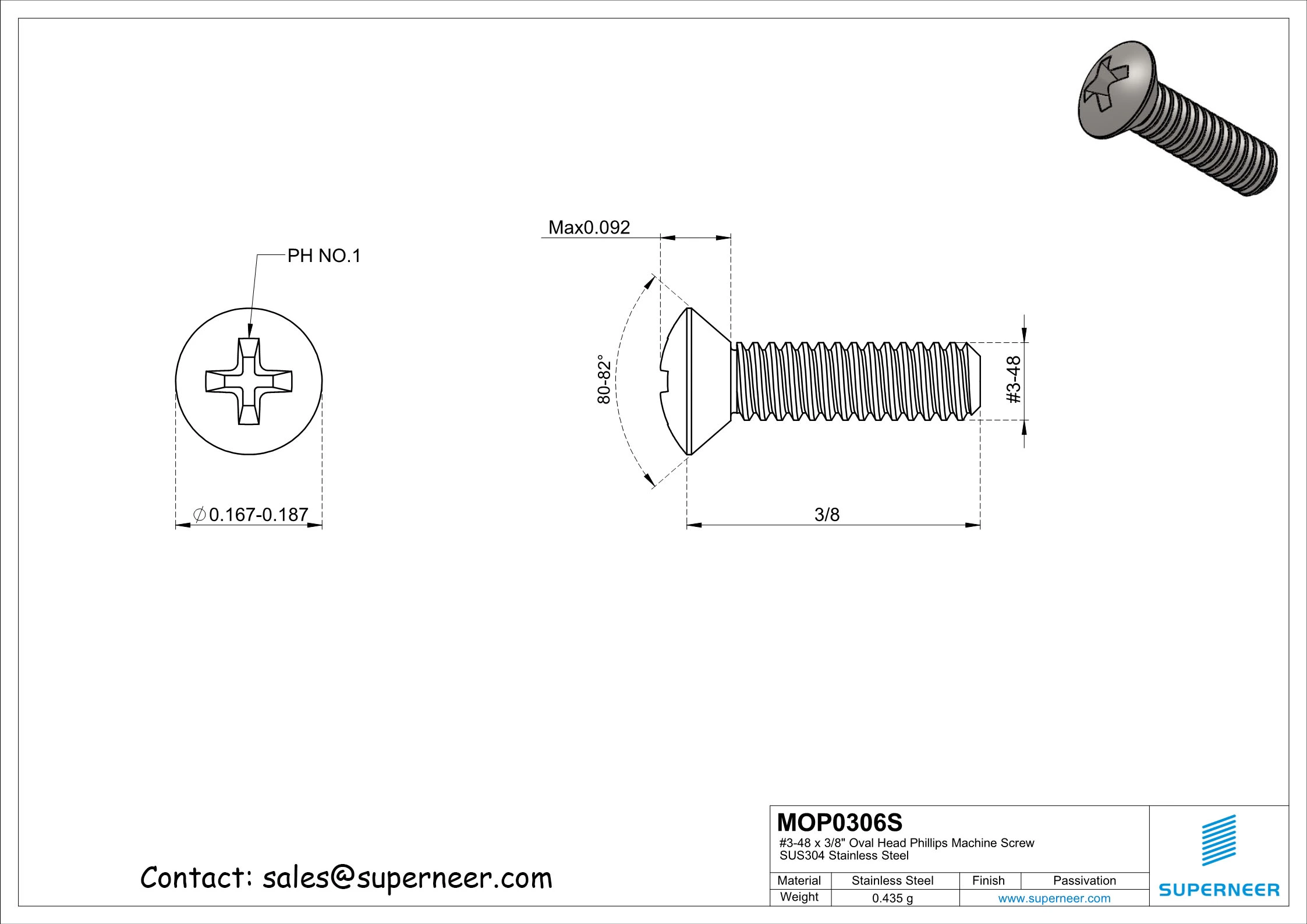

The MOP0306S screw features thread size 3-48, length of 3/8 inches, head type Oval Head (head diameter 0.167-0.187 inches), drive type Phillips (drive size PH No.1), and is made of SUS304 Stainless Steel.
What material is the MOP0306S screw made of?
The MOP0306S screw is made of SUS304 Stainless Steel. Superneer provides material test reports (MTR) and RoHS compliance certificates for all products. SUS304 Stainless Steel offers excellent corrosion resistance and mechanical strength.
What is the thread size of MOP0306S?
The MOP0306S screw has a 3-48 thread. This is a UNC (Unified National Coarse) thread with 3-48 specification, widely used in North American applications.
What are MOP0306S screws used for?
MOP0306S Oval Head head Phillips drive screws are used in electronics assembly, PCB mounting, precision instruments, watches, 3D printers, optical devices, medical equipment, and consumer products where reliable fastening with Oval Head head aesthetics is required.
What is the MOQ and price for MOP0306S?
The minimum order quantity (MOQ) for MOP0306S is 10,000 pieces. The unit price is $0.022 USD for MOQ quantity. Larger quantities receive discounted pricing. Contact [email protected] for custom quotes.
What is the lead time and shipping for MOP0306S?
The lead time for MOP0306S is 15-25 days for production. Shipping to USA takes 5-15 days via sea freight, with shipping cost starting from $50 USD. Air freight is available for urgent orders. DDP and FOB terms are both available.
What is the metric equivalent of 3-48 thread?
The 3-48 thread is approximately equivalent to M2.5 (approx). When substituting inch screws with metric screws, always verify the actual diameter and pitch compatibility.
What head type does MOP0306S use and why?
The MOP0306S uses a Oval Head head type. Oval Head head provides a specific head design optimized for its intended application. This head type is selected based on the specific application requirements for load distribution, aesthetics, and accessibility.
How to choose the right screw size for my application?
To choose the right screw: 1) Determine the required thread size based on the tapped hole or nut; 2) Select the appropriate length based on the material thickness; 3) Choose the head type based on clearance and aesthetics; 4) Select the drive type based on torque requirements; 5) Choose the material based on environmental conditions. For MOP0306S (3-48, 3/8 inches), ensure your application requires this specific size.
What is the difference between MOP0306S and similar parts?
MOP0306S uses SUS304 Stainless Steel finish, while alternative variants in the same thread/length specification include MOP0306Z (Blue Zinc Plated Steel), MOP0306B (Black Zinc Plated Steel). The SUS304 Stainless Steel of MOP0306S is specifically selected because it offers superior corrosion resistance for outdoor, marine, and humid environments, excellent hygiene properties for food and medical equipment, and good mechanical strength at low cost relative to exotic alloys. This distinction makes MOP0306S the preferred choice when these properties align with your application requirements.
