Home Machine Screws Oval Head Screws Slot M3.5 x 6 mm Oval Head Slotted Machine Screw Steel Black DIN 964

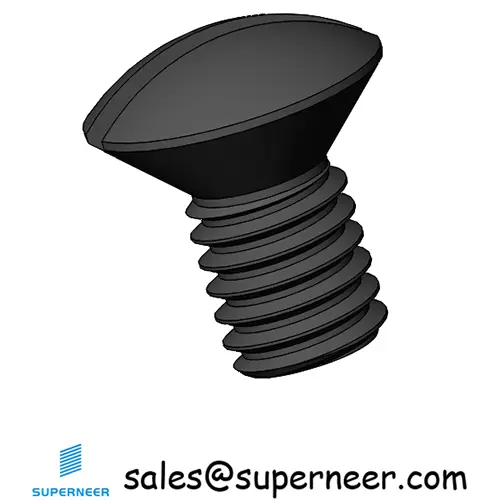

M3.5 x 6 mm Oval Head Slotted Machine Screw Steel Black DIN 964

Screw
Screw
Part No. MOLM3506B rohs Rating:

material Black Zinc Plated Steel
Ship Date 2026-11-18
Head Oval Head
drive Slot   Slot
Head Diameter 6.14-6.5 mm
Head Height max 1.93 mm
Thread M3.5
Length 6 mm
Unit Price USD$ 0.022 /pcs
Unit Weight 0.649 g
Quantity pcs
Amount USD$ Total Amount USD$
Amount USD$ Total Amount USD$

Related Parts
M3.5 x 4 mm Oval Head Slotted Machine Screw Steel Black DIN 964 M3.5 x 4 mm Oval Head Slotted Machine Screw Steel Black DIN 964
M3.5 x 5 mm Oval Head Slotted Machine Screw Steel Black DIN 964 M3.5 x 5 mm Oval Head Slotted Machine Screw Steel Black DIN 964
M3.5 x 6 mm Oval Head Slotted Machine Screw Steel Black DIN 964 M3.5 x 6 mm Oval Head Slotted Machine Screw Steel Black DIN 964
M3.5 x 7 mm Oval Head Slotted Machine Screw Steel Black DIN 964 M3.5 x 7 mm Oval Head Slotted Machine Screw Steel Black DIN 964
M3.5 x 8 mm Oval Head Slotted Machine Screw Steel Black DIN 964 M3.5 x 8 mm Oval Head Slotted Machine Screw Steel Black DIN 964
M3.5 x 9 mm Oval Head Slotted Machine Screw Steel Black DIN 964 M3.5 x 9 mm Oval Head Slotted Machine Screw Steel Black DIN 964
M3.5 x 10 mm Oval Head Slotted Machine Screw Steel Black DIN 964 M3.5 x 10 mm Oval Head Slotted Machine Screw Steel Black DIN 964
M3.5 x 12 mm Oval Head Slotted Machine Screw Steel Black DIN 964 M3.5 x 12 mm Oval Head Slotted Machine Screw Steel Black DIN 964
Item Information

Why Choose MOLM3506B?

MOLM3506B is a M3.5 Oval Head head Slot drive screw with 6 mm length, featuring a Black Zinc Plated Steel finish. Compared to alternative finishes in the same specification such as MOLM3506S (SUS304 Stainless Steel), MOLM3506Z (Blue Zinc Plated Steel), the Black Zinc Plated Steel of MOLM3506B offers a black decorative finish combined with good corrosion resistance, ideal for consumer electronics, automotive interiors, and applications where both appearance and rust prevention matter. The Oval Head head design ensures optimal load distribution across the mating surface, while the Slot drive allows efficient torque transmission during installation. Each MOLM3506B screw is manufactured to industry standards, RoHS compliant, and supplied with material test reports (MTR) for full quality traceability.

M3.5 x 6 mm Oval Head Slotted Machine Screw Steel Black DIN 964

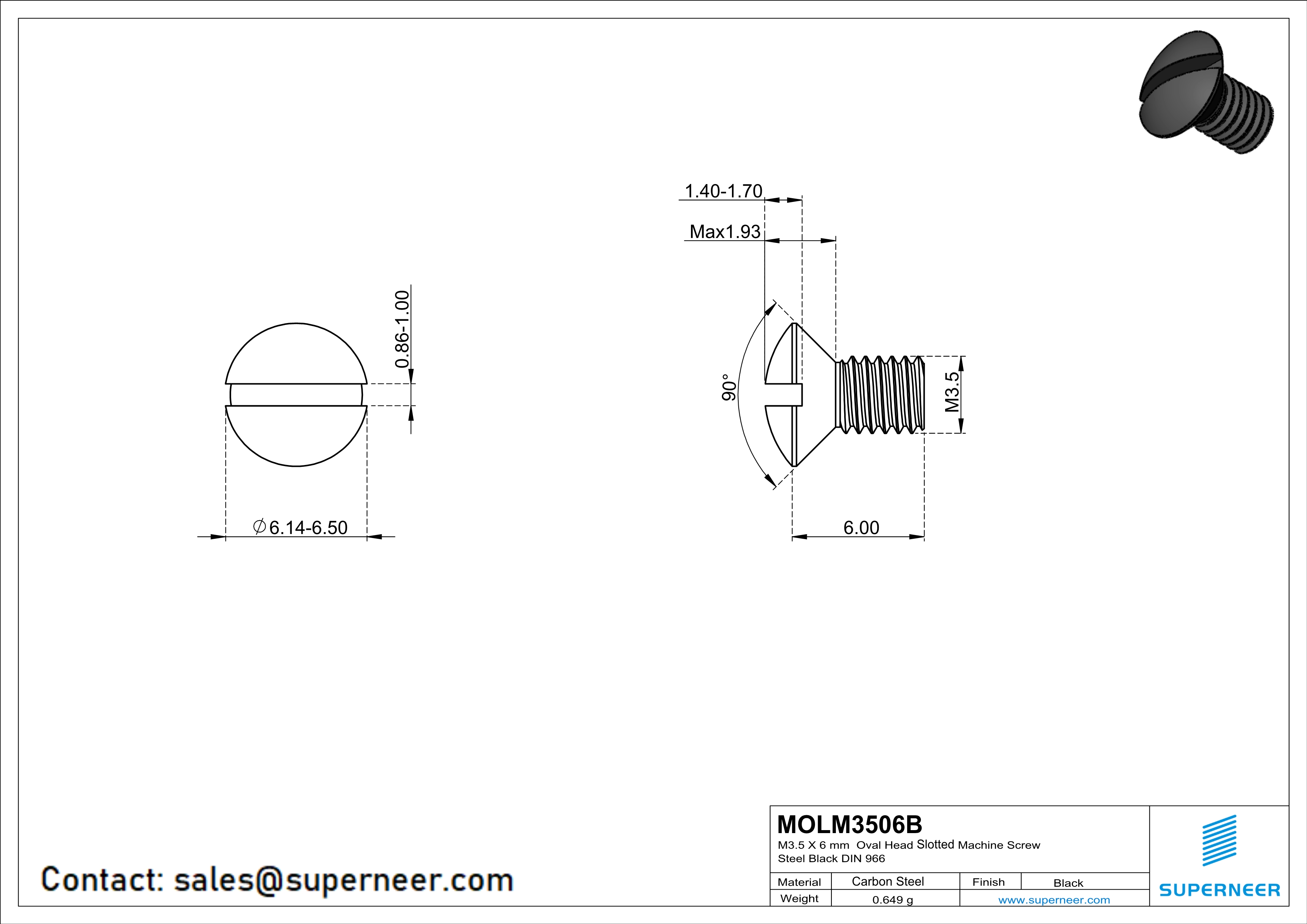

MOLM3506B This part demension will be same as the drawing indicate below, length tolerance will be ±0.5 .
It is Oval Head with Slot drive, M3.5 Thread and 6 mm Length .
material Black Zinc Plated Steel, Finsh is Rohs Black which has good function of anti-corrosion .
On website, you can choose use your shipping account which shippcost is 0, or you can use our DHL/UPS account to ship which will have ship cost indicate.
Payment terms: Payment advance, On website, you can choose pay via paypal or pay via bank transfer. when bank transfer , you can send your bank slip to us via order process or send it to our email:[email protected]. when payment made, We will soon make production and update process for you via email.
BUY MOLM3506B - M3.5 x 6 mm Oval Head Slotted Machine Screw - Black Zinc Steel for Precision Assembly | Superneer today,high quality product and best service will be provided by superneer.Each order will be made shippment on time.
Different Finish :
M3.5 x 6 mm
M3.5 x 6 mm
MOLM3506S
SUS304 Stainless Steel
M3.5 x 6 mm
M3.5 x 6 mm
MOLM3506Z
Blue Zinc Plated Steel
M3.5 x 6 mm
M3.5 x 6 mm
MOLM3506B
Black Zinc Plated Steel

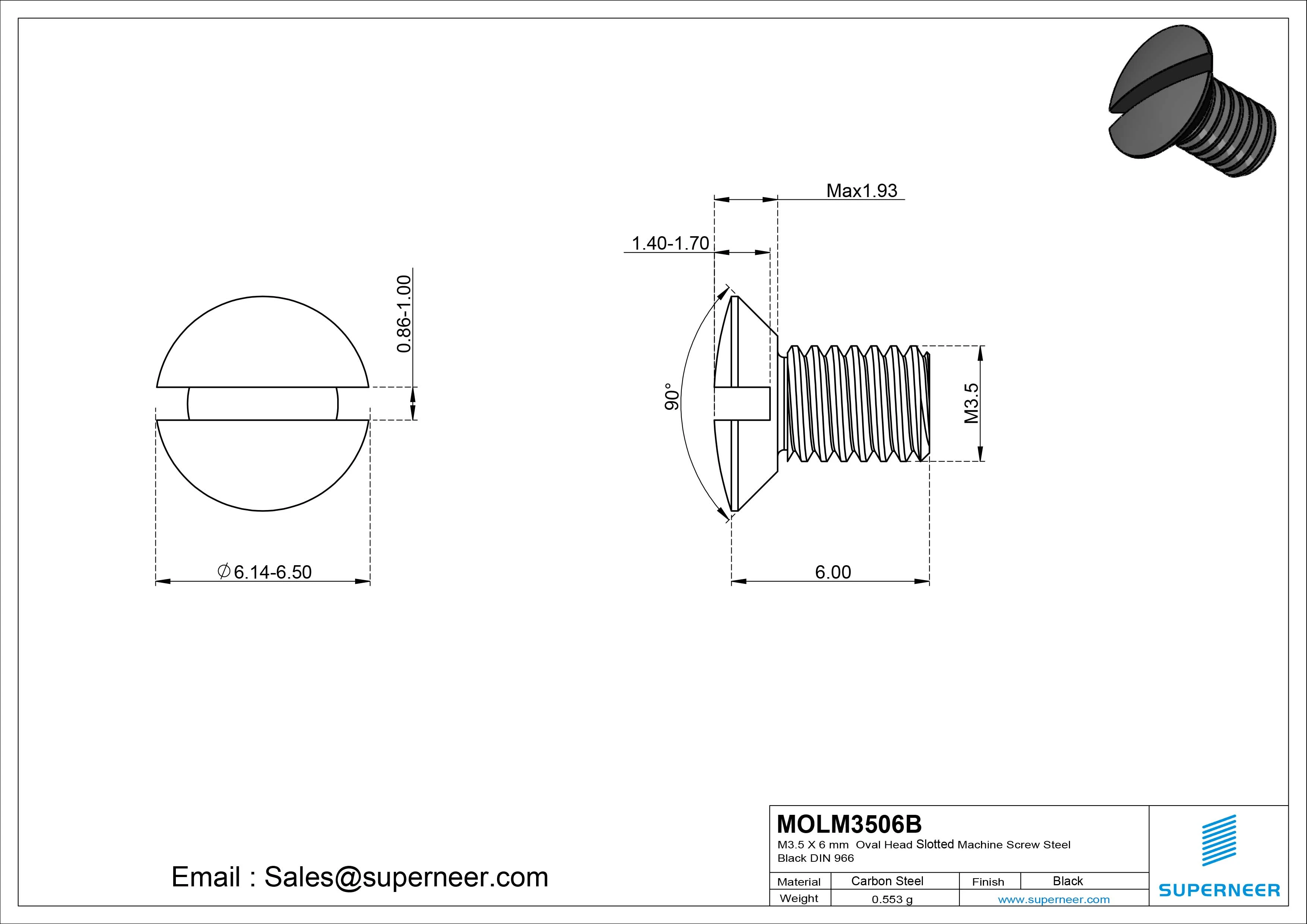

Item Drawing
M3.5 x 6 mm Oval Head Slotted Machine Screw Steel Black DIN 964
Other Parts
2-56 x 3/16 screw 2-56 x 3/16" Pan Head Torx Machine Screw SUS304 Stainless Steel
2-56 x 5/16 screw 2-56 x 5/16" Pan Head Torx Machine Screw SUS304 Stainless Steel
2-56 x 3/4 screw 2-56 x 3/4" Pan Head Torx T7 Machine Screw SUS304 Stainless Steel
M3 x 6 screw M3 x 6 mm Flat Head 82° Torx Machine Screw SUS304 Stainless Steel
2-56 x 7/16 screw 2-56 x 7/16" Flat Head 82° Torx T7 Machine Screw SUS304 Stainless Steel
M2.5 x 12 screw M2.5 x 12 mm Pan Head Torx Machine Screw Steel Blue Zinc Plated
M3 x 6 screw M3 x 6 mm Pan Head Torx Machine Screw Steel Blue Zinc Plated ISO 14583
undercut screw M3 x 6 mm Flat Head Undercut Slotted Machine Screw SUS304 Stainless Steel
M3 x 8 pan torx screw M3 x 8 mm Pan Head Torx Machine Screw Steel Black ISO 14583
M3 x 10 pan torx screw M3 x 10 mm Pan Head Torx Machine Screw Steel Black ISO 14583
M3 x 6 screw M3 x 6 mm Flat Head 82° Torx Machine Screw Steel Black
M3 x 5 mm flat screw M3 x 5 mm Flat Head 120° Phillips Machine Screw Steel Black
2-56 x 13/32 screw 2-56 x 13/32" Standoff Screw SUS303 Stainless Steel Hex Male Female Spacers
M3 × 6mm screw M3 × 6mm Indented Hex Washer Serrattion Phillips Thread Forming Screws for Metal Steel Black
M2.5 x 6mm screw M2.5 x 6mm Socket Cup Point Set Screws Steel Black DIN916
M2 x 2.5mm screw M2 x 2.5mm Flat Head Torx Machine Screw SUS304 Stainless Steel
M3 x 8mm screw M3 x 8mm Thumb Screw Knurled Head (Head Diameter 8mm,Head Height 8mm) SUS304 Stainless Steel
M3 X 3mm screw M3 X 3mm 12.9 Grade Steel Black Flat Socket Screw
M4 x 10mm screw M4 x 10mm Socket Set Screw Cone Point SUS304 Stainless Steel DIN914 Nylon Patch
M3 x 4mm screw M3 x 4mm Torx Flat Head Machine Screw Carbon Steel Black Oxide
standoff 2-56 x 13/32" Standoff Screw with 7/32" Outer Thread Length SUS303 Stainless Steel Hex Male Female Spacers
self sealing screw M2 x 8 mm Self Sealing Screw Pan Torx Head SUS304 Stainless Steel Waterproof Screws
SEMS Screw M3 x 10 mm Button Head Socket SEMS Screw with Internal Tooth Washer Steel Black Oxide
Payment & Trasportation 5-10 days

Payment Method: T/T & Paypal and other payment method

Shipment Method: Air Express , Air Freight, Sea Shippment

How to Order

1. Order online directly, made payment via Paypal or bank transfer.

2. Superneer arrange production according to drawing,all demensions are within drawing specification.

3. Parts ready, ship to customer.

Frequently Asked Questions about MOLM3506B

What is MOLM3506B screw?

MOLM3506B is a M3.5 Oval Head head Slot drive screw made of Black Zinc Plated Steel, manufactured by Superneer Limited. It has a length of 6 mm and is commonly used in electronics, watches, precision instruments, and 3D printers.

What are the specifications of MOLM3506B?

The MOLM3506B screw features thread size M3.5, length of 6 mm, head type Oval Head (head diameter 6.14-6.5 mm), drive type Slot (drive size Slot), and is made of Black Zinc Plated Steel.

What material is the MOLM3506B screw made of?

The MOLM3506B screw is made of Black Zinc Plated Steel. Superneer provides material test reports (MTR) and RoHS compliance certificates for all products. Black Zinc Plated Steel offers excellent corrosion resistance and mechanical strength.

What is the thread size of MOLM3506B?

The MOLM3506B screw has a M3.5 thread. This is a metric thread with M3.5 specification, commonly used in international applications following ISO standards.

What are MOLM3506B screws used for?

MOLM3506B Oval Head head Slot drive screws are used in electronics assembly, PCB mounting, precision instruments, watches, 3D printers, optical devices, medical equipment, and consumer products where reliable fastening with Oval Head head aesthetics is required.

What is the MOQ and price for MOLM3506B?

The minimum order quantity (MOQ) for MOLM3506B is 10,000 pieces. The unit price is $0.022 USD for MOQ quantity. Larger quantities receive discounted pricing. Contact [email protected] for custom quotes.

What is the lead time and shipping for MOLM3506B?

The lead time for MOLM3506B is 15-25 days for production. Shipping to USA takes 5-15 days via sea freight, with shipping cost starting from $50 USD. Air freight is available for urgent orders. DDP and FOB terms are both available.

What is the inch equivalent of M3.5 thread?

The M3.5 thread is approximately equivalent to #8 (approx 8-32). When substituting metric screws with inch screws, always verify the actual diameter and pitch compatibility.

What head type does MOLM3506B use and why?

The MOLM3506B uses a Oval Head head type. Oval Head head provides a specific head design optimized for its intended application. This head type is selected based on the specific application requirements for load distribution, aesthetics, and accessibility.

How to choose the right screw size for my application?

To choose the right screw: 1) Determine the required thread size based on the tapped hole or nut; 2) Select the appropriate length based on the material thickness; 3) Choose the head type based on clearance and aesthetics; 4) Select the drive type based on torque requirements; 5) Choose the material based on environmental conditions. For MOLM3506B (M3.5, 6 mm), ensure your application requires this specific size.

What is the difference between MOLM3506B and similar parts?

MOLM3506B uses Black Zinc Plated Steel finish, while alternative variants in the same thread/length specification include MOLM3506S (SUS304 Stainless Steel), MOLM3506Z (Blue Zinc Plated Steel). The Black Zinc Plated Steel of MOLM3506B is specifically selected because it offers a black decorative finish combined with good corrosion resistance, ideal for consumer electronics, automotive interiors, and applications where both appearance and rust prevention matter. This distinction makes MOLM3506B the preferred choice when these properties align with your application requirements.
