Home Machine Screws Oval Head Screws Slot 10-32 x 3/8" Oval Head Slotted Machine Screw Steel Black

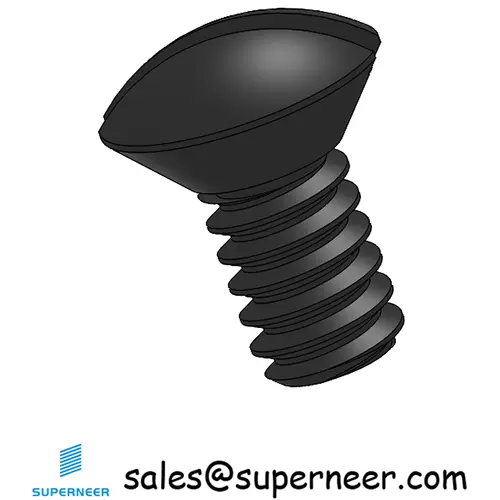

10-32 x 3/8" Oval Head Slotted Machine Screw Steel Black

Screw
Screw
Part No. MOL1006B rohs Rating:

material Black Zinc Plated Steel
Ship Date 2026-11-17
Head Oval Head
drive Slot   Slot
Head Diameter 0.333-0.362" inch
Head Height 0.176" Ref inch
Thread 10-32
Length 3/8 inch
Unit Price USD$ 0.065 /pcs
Unit Weight 1.940 g
Quantity pcs
Amount USD$ Total Amount USD$
Amount USD$ Total Amount USD$

Related Parts
10-32 x 1/4" Oval Head Slotted Machine Screw Steel Black 10-32 x 1/4" Oval Head Slotted Machine Screw Steel Black
10-32 x 5/16" Oval Head Slotted Machine Screw Steel Black 10-32 x 5/16" Oval Head Slotted Machine Screw Steel Black
10-32 x 3/8" Oval Head Slotted Machine Screw Steel Black 10-32 x 3/8" Oval Head Slotted Machine Screw Steel Black
10-32 x 7/16" Oval Head Slotted Machine Screw Steel Black 10-32 x 7/16" Oval Head Slotted Machine Screw Steel Black
10-32 x 1/2" Oval Head Slotted Machine Screw Steel Black 10-32 x 1/2" Oval Head Slotted Machine Screw Steel Black
Item Information

Why Choose MOL1006B?

MOL1006B is a 10-32 Oval Head head Slot drive screw with 3/8 inches length, featuring a Black Zinc Plated Steel finish. Compared to alternative finishes in the same specification such as MOL1006S (SUS304 Stainless Steel), MOL1006Z (Blue Zinc Plated Steel), the Black Zinc Plated Steel of MOL1006B offers a black decorative finish combined with good corrosion resistance, ideal for consumer electronics, automotive interiors, and applications where both appearance and rust prevention matter. The Oval Head head design ensures optimal load distribution across the mating surface, while the Slot drive allows efficient torque transmission during installation. Each MOL1006B screw is manufactured to industry standards, RoHS compliant, and supplied with material test reports (MTR) for full quality traceability.

10-32 x 3/8" Oval Head Slotted Machine Screw Steel Black
MOL1006B This part demension will be same as the drawing indicate below, length tolerance will be ±0.5 .
It is Oval Head with Slot drive, 10-32 Thread and 3/8 inch Length .
material Black Zinc Plated Steel, Finsh is Rohs Black which has good function of anti-corrosion .
On website, you can choose use your shipping account which shippcost is 0, or you can use our DHL/UPS account to ship which will have ship cost indicate.
Payment terms: Payment advance, On website, you can choose pay via paypal or pay via bank transfer. when bank transfer , you can send your bank slip to us via order process or send it to our email:[email protected]. when payment made, We will soon make production and update process for you via email.
BUY MOL1006B - 10-32 x 3/8 Oval Head Slotted Machine Screw - Black Zinc Steel for Precision Assembly | Superneer today,high quality product and best service will be provided by superneer.Each order will be made shippment on time.
Different Finish :
10-32 x 3/8 inch
10-32 x 3/8 inch
MOL1006S
SUS304 Stainless Steel
10-32 x 3/8 inch
10-32 x 3/8 inch
MOL1006Z
Blue Zinc Plated Steel
10-32 x 3/8 inch
10-32 x 3/8 inch
MOL1006B
Black Zinc Plated Steel

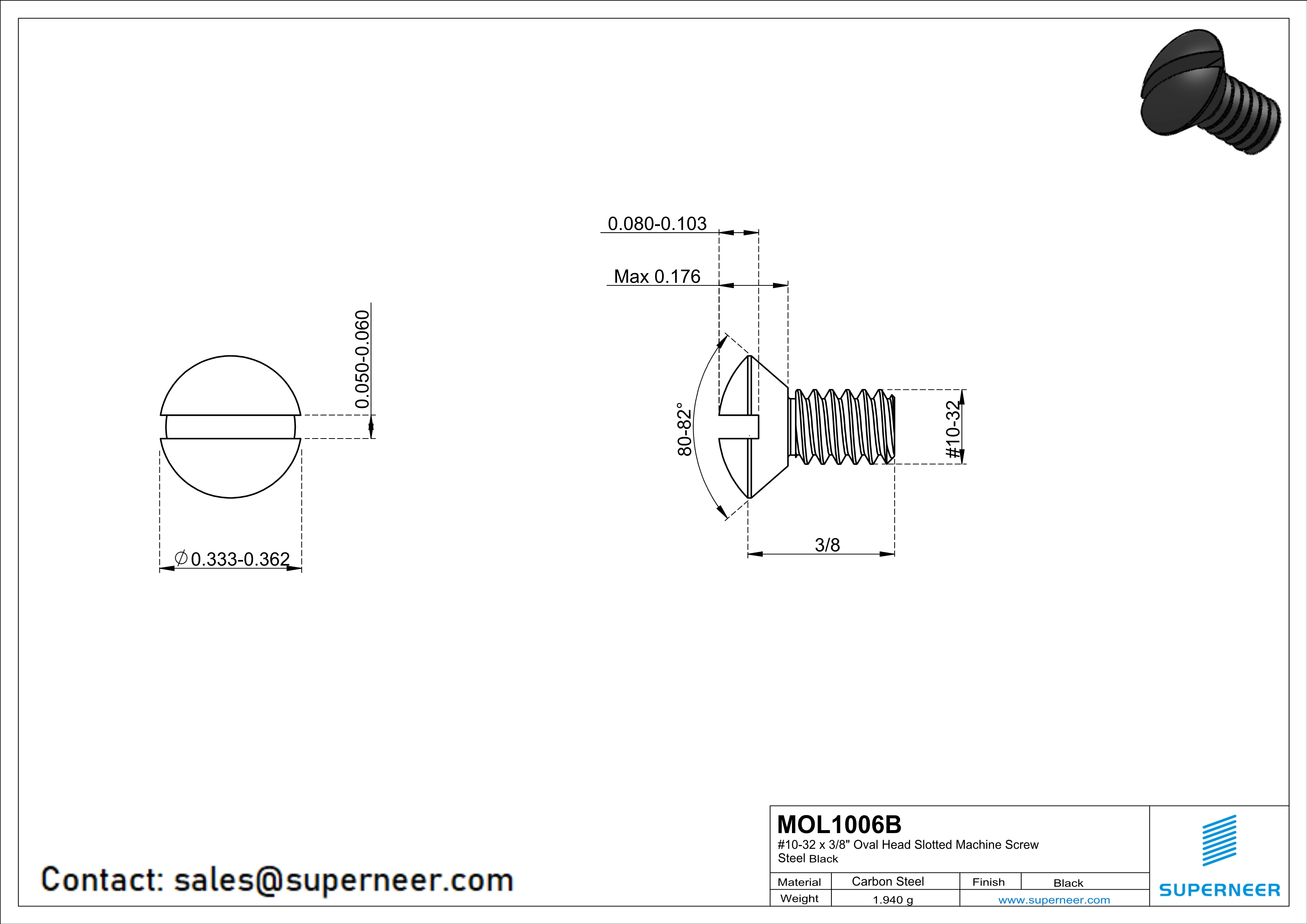

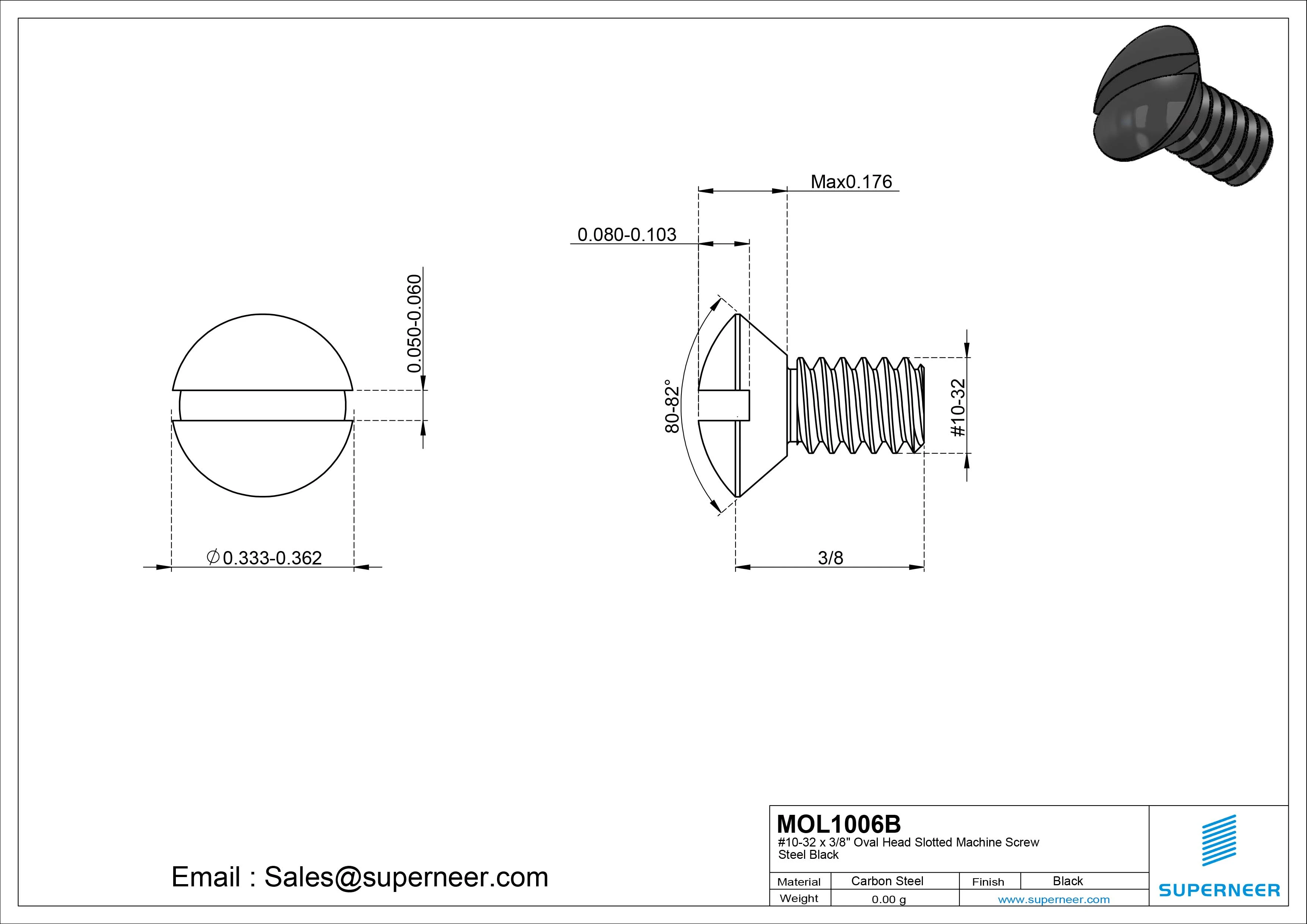

Item Drawing
10-32 x 3/8" Oval Head Slotted Machine Screw Steel Black
Other Parts
2-56 x 3/16 screw 2-56 x 3/16" Pan Head Torx Machine Screw SUS304 Stainless Steel
2-56 x 5/16 screw 2-56 x 5/16" Pan Head Torx Machine Screw SUS304 Stainless Steel
2-56 x 3/4 screw 2-56 x 3/4" Pan Head Torx T7 Machine Screw SUS304 Stainless Steel
M3 x 6 screw M3 x 6 mm Flat Head 82° Torx Machine Screw SUS304 Stainless Steel
2-56 x 7/16 screw 2-56 x 7/16" Flat Head 82° Torx T7 Machine Screw SUS304 Stainless Steel
M2.5 x 12 screw M2.5 x 12 mm Pan Head Torx Machine Screw Steel Blue Zinc Plated
M3 x 6 screw M3 x 6 mm Pan Head Torx Machine Screw Steel Blue Zinc Plated ISO 14583
undercut screw M3 x 6 mm Flat Head Undercut Slotted Machine Screw SUS304 Stainless Steel
M3 x 8 pan torx screw M3 x 8 mm Pan Head Torx Machine Screw Steel Black ISO 14583
M3 x 10 pan torx screw M3 x 10 mm Pan Head Torx Machine Screw Steel Black ISO 14583
M3 x 6 screw M3 x 6 mm Flat Head 82° Torx Machine Screw Steel Black
M3 x 5 mm flat screw M3 x 5 mm Flat Head 120° Phillips Machine Screw Steel Black
2-56 x 13/32 screw 2-56 x 13/32" Standoff Screw SUS303 Stainless Steel Hex Male Female Spacers
M3 × 6mm screw M3 × 6mm Indented Hex Washer Serrattion Phillips Thread Forming Screws for Metal Steel Black
M2.5 x 6mm screw M2.5 x 6mm Socket Cup Point Set Screws Steel Black DIN916
M2 x 2.5mm screw M2 x 2.5mm Flat Head Torx Machine Screw SUS304 Stainless Steel
M3 x 8mm screw M3 x 8mm Thumb Screw Knurled Head (Head Diameter 8mm,Head Height 8mm) SUS304 Stainless Steel
M3 X 3mm screw M3 X 3mm 12.9 Grade Steel Black Flat Socket Screw
M4 x 10mm screw M4 x 10mm Socket Set Screw Cone Point SUS304 Stainless Steel DIN914 Nylon Patch
M3 x 4mm screw M3 x 4mm Torx Flat Head Machine Screw Carbon Steel Black Oxide
standoff 2-56 x 13/32" Standoff Screw with 7/32" Outer Thread Length SUS303 Stainless Steel Hex Male Female Spacers
self sealing screw M2 x 8 mm Self Sealing Screw Pan Torx Head SUS304 Stainless Steel Waterproof Screws
SEMS Screw M3 x 10 mm Button Head Socket SEMS Screw with Internal Tooth Washer Steel Black Oxide
Payment & Trasportation 5-10 days

Payment Method: T/T & Paypal and other payment method

Shipment Method: Air Express , Air Freight, Sea Shippment

How to Order

1. Order online directly, made payment via Paypal or bank transfer.

2. Superneer arrange production according to drawing,all demensions are within drawing specification.

3. Parts ready, ship to customer.

Frequently Asked Questions about MOL1006B

What is MOL1006B screw?

MOL1006B is a 10-32 Oval Head head Slot drive screw made of Black Zinc Plated Steel, manufactured by Superneer Limited. It has a length of 3/8 inches and is commonly used in electronics, watches, precision instruments, and 3D printers.

What are the specifications of MOL1006B?

The MOL1006B screw features thread size 10-32, length of 3/8 inches, head type Oval Head (head diameter 0.333-0.362 inches), drive type Slot (drive size Slot), and is made of Black Zinc Plated Steel.

What material is the MOL1006B screw made of?

The MOL1006B screw is made of Black Zinc Plated Steel. Superneer provides material test reports (MTR) and RoHS compliance certificates for all products. Black Zinc Plated Steel offers excellent corrosion resistance and mechanical strength.

What is the thread size of MOL1006B?

The MOL1006B screw has a 10-32 thread. This is a UNC (Unified National Coarse) thread with 10-32 specification, widely used in North American applications.

What are MOL1006B screws used for?

MOL1006B Oval Head head Slot drive screws are used in electronics assembly, PCB mounting, precision instruments, watches, 3D printers, optical devices, medical equipment, and consumer products where reliable fastening with Oval Head head aesthetics is required.

What is the MOQ and price for MOL1006B?

The minimum order quantity (MOQ) for MOL1006B is 10,000 pieces. The unit price is $0.065 USD for MOQ quantity. Larger quantities receive discounted pricing. Contact [email protected] for custom quotes.

What is the lead time and shipping for MOL1006B?

The lead time for MOL1006B is 15-25 days for production. Shipping to USA takes 5-15 days via sea freight, with shipping cost starting from $50 USD. Air freight is available for urgent orders. DDP and FOB terms are both available.

What is the metric equivalent of 10-32 thread?

The 10-32 thread is approximately equivalent to M5 (approx). When substituting inch screws with metric screws, always verify the actual diameter and pitch compatibility.

What head type does MOL1006B use and why?

The MOL1006B uses a Oval Head head type. Oval Head head provides a specific head design optimized for its intended application. This head type is selected based on the specific application requirements for load distribution, aesthetics, and accessibility.

How to choose the right screw size for my application?

To choose the right screw: 1) Determine the required thread size based on the tapped hole or nut; 2) Select the appropriate length based on the material thickness; 3) Choose the head type based on clearance and aesthetics; 4) Select the drive type based on torque requirements; 5) Choose the material based on environmental conditions. For MOL1006B (10-32, 3/8 inches), ensure your application requires this specific size.

What is the difference between MOL1006B and similar parts?

MOL1006B uses Black Zinc Plated Steel finish, while alternative variants in the same thread/length specification include MOL1006S (SUS304 Stainless Steel), MOL1006Z (Blue Zinc Plated Steel). The Black Zinc Plated Steel of MOL1006B is specifically selected because it offers a black decorative finish combined with good corrosion resistance, ideal for consumer electronics, automotive interiors, and applications where both appearance and rust prevention matter. This distinction makes MOL1006B the preferred choice when these properties align with your application requirements.
