8-32 x 1/2" Indented Hex Washer Serrated Head Phillips Slot Machine Screw SUS304 Stainless Steel Inox

Screw
Screw
Part No. MHCS0808S rohs Rating:

material SUS304 Stainless Steel
Ship Date 2026-12-12
Head Serration Hex Wahser Head
drive Phillips Slot   PH No.2
Head Diameter 0.322-0.348" inch
Head Height 0.096-0.11" inch
Thread 8-32
Length 1/2 inch
Unit Price USD$ 0.089 /pcs
Unit Weight 1.842 g
Quantity pcs
Amount USD$ Total Amount USD$
Amount USD$ Total Amount USD$

Item Information

Why Choose MHCS0808S?

MHCS0808S is a 8-32 Serration Hex Wahser Head head Phillips Slot drive screw with 1/2 inches length, featuring a SUS304 Stainless Steel finish. Compared to alternative finishes in the same specification such as MHCS0808Z (Blue Zinc Plated Steel), MHCS0808B (Black Zinc Plated Steel), the SUS304 Stainless Steel of MHCS0808S offers superior corrosion resistance for outdoor, marine, and humid environments, excellent hygiene properties for food and medical equipment, and good mechanical strength at low cost relative to exotic alloys. The Serration Hex Wahser Head head design ensures optimal load distribution across the mating surface, while the Phillips Slot drive allows efficient torque transmission during installation. Each MHCS0808S screw is manufactured to industry standards, RoHS compliant, and supplied with material test reports (MTR) for full quality traceability.

8-32 x 1/2" Indented Hex Washer Serrated Head Phillips Slot Machine Screw SUS304 Stainless Steel Inox
MHCS0808S This part demension will be same as the drawing indicate below, length tolerance will be ±0.5 .
It is Serration Hex Wahser Head with Phillips Slot drive, 8-32 Thread and 1/2 inch Length .
material SUS304 Stainless Steel, Finsh is Rohs Chromate which has good function of anti-corrosion .
On website, you can choose use your shipping account which shippcost is 0, or you can use our DHL/UPS account to ship which will have ship cost indicate.
Payment terms: Payment advance, On website, you can choose pay via paypal or pay via bank transfer. when bank transfer , you can send your bank slip to us via order process or send it to our email:[email protected]. when payment made, We will soon make production and update process for you via email.
BUY MHCS0808S - 8-32 x 1/2 Indented Hex Washer Serrated Head Phillips Slot Machine Screw Inox - 304 Stainless Steel for Precision Assembly | Superneer today,high quality product and best service will be provided by superneer.Each order will be made shippment on time.
Different Finish :
8-32 x 1/2 inch
8-32 x 1/2 inch
MHCS0808S
SUS304 Stainless Steel
8-32 x 1/2 inch
8-32 x 1/2 inch
MHCS0808Z
Blue Zinc Plated Steel
8-32 x 1/2 inch
8-32 x 1/2 inch
MHCS0808B
Black Zinc Plated Steel

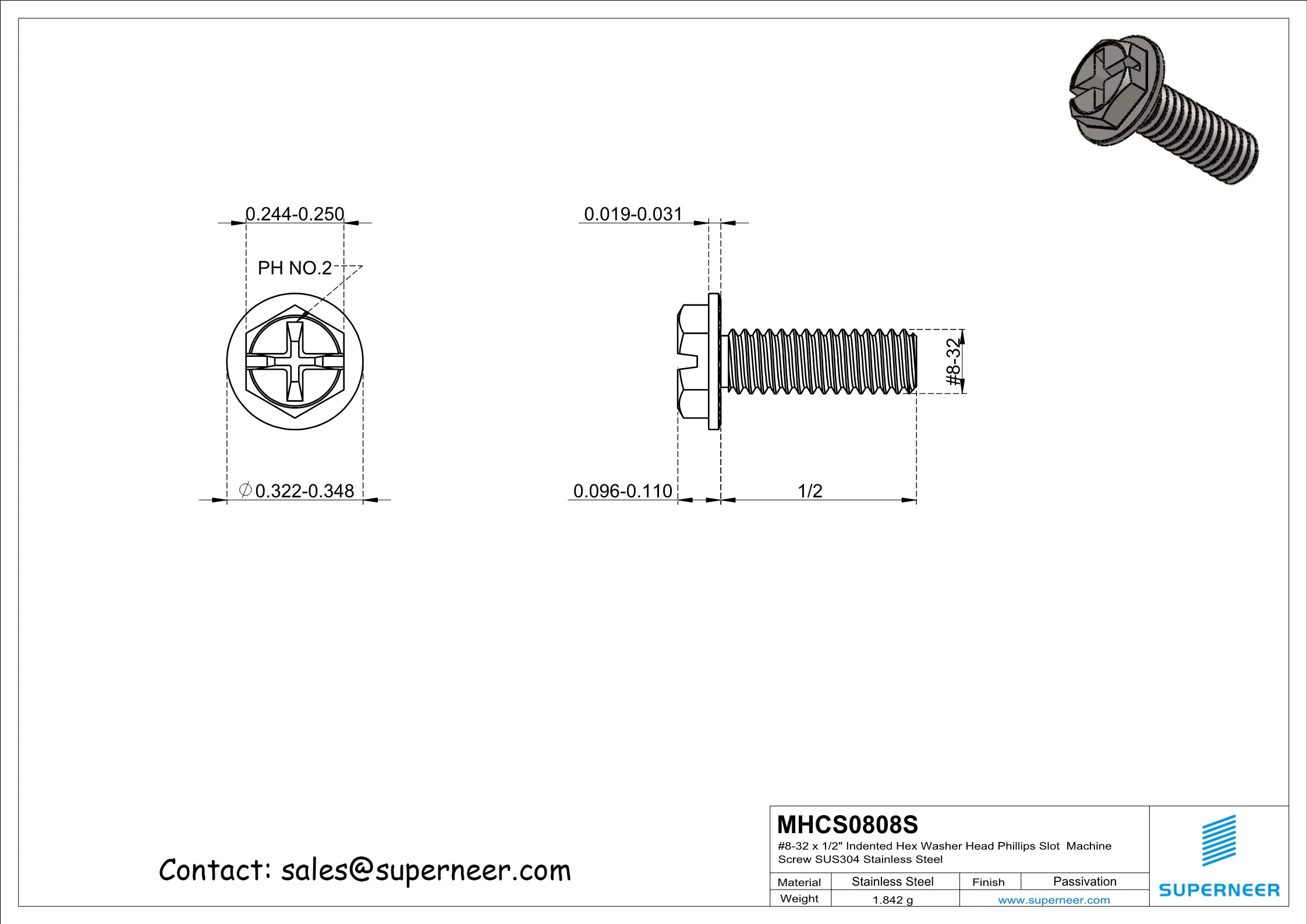

Item Drawing
8-32 x 1/2" Indented Hex Washer Serrated Head Phillips Slot Machine Screw SUS304 Stainless Steel Inox
Stock Part
Payment & Trasportation 5-10 days

Payment Method: T/T & Paypal and other payment method

Shipment Method: Air Express , Air Freight, Sea Shippment

How to Order

1. Order online directly, made payment via Paypal or bank transfer.

2. Superneer arrange production according to drawing,all demensions are within drawing specification.

3. Parts ready, ship to customer.

Frequently Asked Questions about MHCS0808S

What is MHCS0808S screw?

MHCS0808S is a 8-32 Serration Hex Wahser Head head Phillips Slot drive screw made of SUS304 Stainless Steel, manufactured by Superneer Limited. It has a length of 1/2 inches and is commonly used in electronics, watches, precision instruments, and 3D printers.

What are the specifications of MHCS0808S?

The MHCS0808S screw features thread size 8-32, length of 1/2 inches, head type Serration Hex Wahser Head (head diameter 0.322-0.348 inches), drive type Phillips Slot (drive size PH No.2), and is made of SUS304 Stainless Steel.

What material is the MHCS0808S screw made of?

The MHCS0808S screw is made of SUS304 Stainless Steel. Superneer provides material test reports (MTR) and RoHS compliance certificates for all products. SUS304 Stainless Steel offers excellent corrosion resistance and mechanical strength.

What is the thread size of MHCS0808S?

The MHCS0808S screw has a 8-32 thread. This is a UNC (Unified National Coarse) thread with 8-32 specification, widely used in North American applications.

What are MHCS0808S screws used for?

MHCS0808S Serration Hex Wahser Head head Phillips Slot drive screws are used in electronics assembly, PCB mounting, precision instruments, watches, 3D printers, optical devices, medical equipment, and consumer products where reliable fastening with Serration Hex Wahser Head head aesthetics is required.

What is the MOQ and price for MHCS0808S?

The minimum order quantity (MOQ) for MHCS0808S is 10,000 pieces. The unit price is $0.089 USD for MOQ quantity. Larger quantities receive discounted pricing. Contact [email protected] for custom quotes.

What is the lead time and shipping for MHCS0808S?

The lead time for MHCS0808S is 15-25 days for production. Shipping to USA takes 5-15 days via sea freight, with shipping cost starting from $50 USD. Air freight is available for urgent orders. DDP and FOB terms are both available.

What is the metric equivalent of 8-32 thread?

The 8-32 thread is approximately equivalent to M4 (approx). When substituting inch screws with metric screws, always verify the actual diameter and pitch compatibility.

What head type does MHCS0808S use and why?

The MHCS0808S uses a Serration Hex Wahser Head head type. Serration Hex Wahser Head head provides a specific head design optimized for its intended application. This head type is selected based on the specific application requirements for load distribution, aesthetics, and accessibility.

How to choose the right screw size for my application?

To choose the right screw: 1) Determine the required thread size based on the tapped hole or nut; 2) Select the appropriate length based on the material thickness; 3) Choose the head type based on clearance and aesthetics; 4) Select the drive type based on torque requirements; 5) Choose the material based on environmental conditions. For MHCS0808S (8-32, 1/2 inches), ensure your application requires this specific size.

What is the difference between MHCS0808S and similar parts?

MHCS0808S uses SUS304 Stainless Steel finish, while alternative variants in the same thread/length specification include MHCS0808Z (Blue Zinc Plated Steel), MHCS0808B (Black Zinc Plated Steel). The SUS304 Stainless Steel of MHCS0808S is specifically selected because it offers superior corrosion resistance for outdoor, marine, and humid environments, excellent hygiene properties for food and medical equipment, and good mechanical strength at low cost relative to exotic alloys. This distinction makes MHCS0808S the preferred choice when these properties align with your application requirements.
