M3 x 16mm Phillips Flat Head Machine Screw Carbon Steel Nickel Plated

MFPM316N is a M3 Flat Head head Phillips drive screw made of Nickel Plated Steel, manufactured by Superneer Limited. It has a length of 16 mm and is commonly used in electronics, watches, precision instruments, and 3D printers.

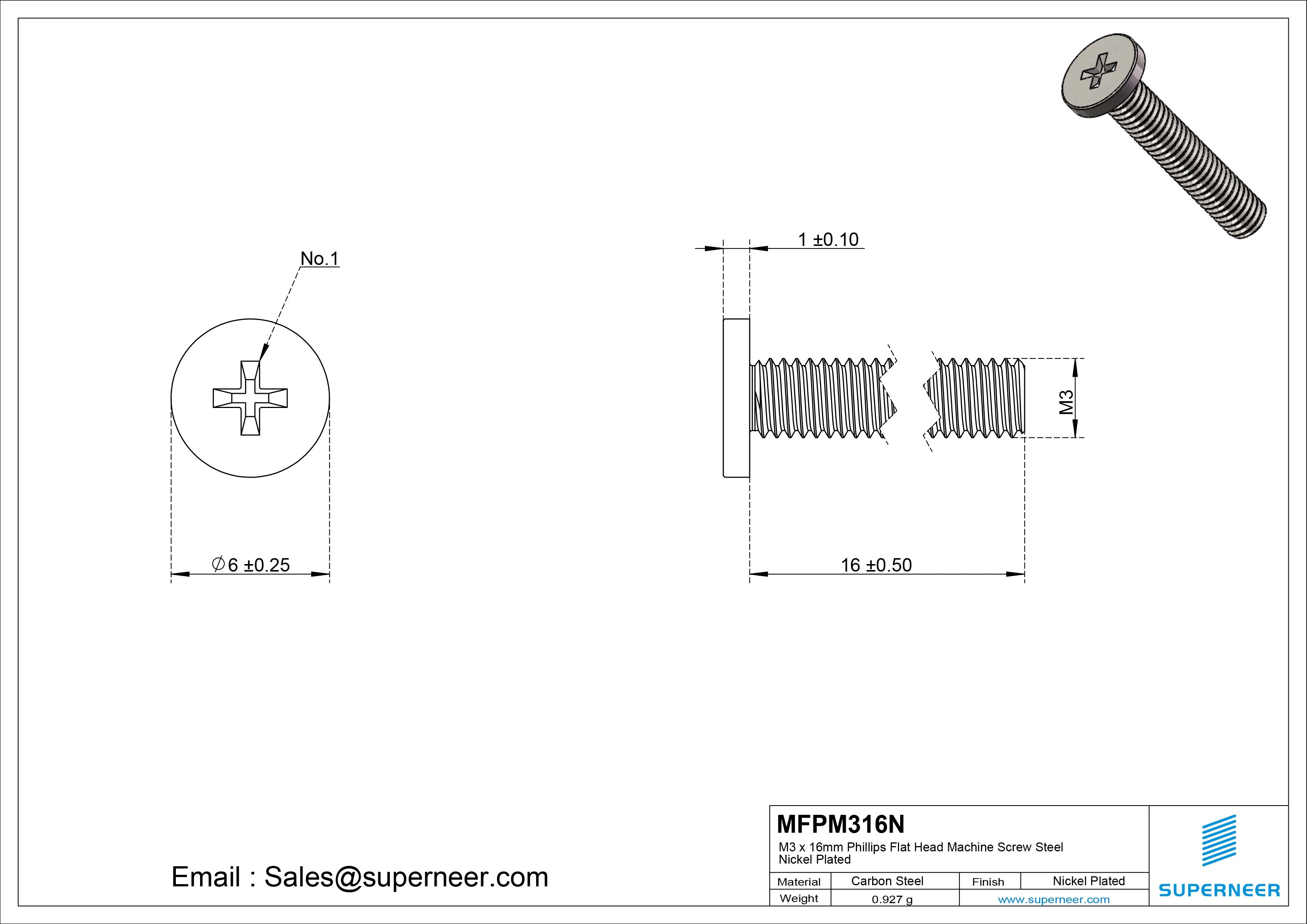

The MFPM316N screw features thread size M3, length of 16 mm, head type Flat Head (head diameter 6±0.25 mm), drive type Phillips (drive size Ph No.2), and is made of Nickel Plated Steel.

The MFPM316N screw is made of Nickel Plated Steel. Superneer provides material test reports (MTR) and RoHS compliance certificates for all products. Nickel Plated Steel offers excellent corrosion resistance and mechanical strength.

The MFPM316N screw has a M3 thread. This is a metric thread with M3 specification, commonly used in international applications following ISO standards.

MFPM316N Flat Head head Phillips drive screws are used in electronics assembly, PCB mounting, precision instruments, watches, 3D printers, optical devices, medical equipment, and consumer products where reliable fastening with Flat Head head aesthetics is required.

The minimum order quantity (MOQ) for MFPM316N is 10,000 pieces. The unit price is $0.017 USD for MOQ quantity. Larger quantities receive discounted pricing. Contact [email protected] for custom quotes.

The lead time for MFPM316N is 15-25 days for production. Shipping to USA takes 5-15 days via sea freight, with shipping cost starting from $50 USD. Air freight is available for urgent orders. DDP and FOB terms are both available.

The M3 thread is approximately equivalent to #6 (approx 6-32). When substituting metric screws with inch screws, always verify the actual diameter and pitch compatibility.

The MFPM316N uses a Flat Head head type. Flat Head head provides a specific head design optimized for its intended application. This head type is selected based on the specific application requirements for load distribution, aesthetics, and accessibility.

To choose the right screw: 1) Determine the required thread size based on the tapped hole or nut; 2) Select the appropriate length based on the material thickness; 3) Choose the head type based on clearance and aesthetics; 4) Select the drive type based on torque requirements; 5) Choose the material based on environmental conditions. For MFPM316N (M3, 16 mm), ensure your application requires this specific size.

MFPM316N uses Nickel Plated Steel finish, while alternative variants in the same thread/length specification include MFPM316S (SUS304 Stainless Steel), MFPM316BX (Black Oxide Steel). The Nickel Plated Steel of MFPM316N is specifically selected because it offers high tensile strength for mechanical and structural applications where corrosion resistance is not the primary concern, often used in machinery, automotive chassis, and load-bearing assemblies. This distinction makes MFPM316N the preferred choice when these properties align with your application requirements.
