Home Machine Screws Flat Head Screw Phillips Flat Head Screw M1.4 x 3mm Phillips Flat Head Machine Screw Carbon Steel Nickel Plated

M1.4 x 3mm Phillips Flat Head Machine Screw Carbon Steel Nickel Plated

Screw
Screw
Part No. MFPM1403N rohs Rating:

material Nickel Plated Steel
Ship Date 2026-11-23
Head Flat Head
drive phillips   Ph No.1
Head Diameter 2.3±0.25 mm
Head Height 0.5±0.1 mm
Thread M1.4
Length 3 mm
Unit Price USD$ 0.019 /pcs
Unit Weight 0.044 g
Quantity pcs
Amount USD$ Total Amount USD$
Amount USD$ Total Amount USD$

Related Parts
M1.4 x 2mm Phillips Flat Head Machine Screw Carbon Steel Nickel Plated M1.4 x 2mm Phillips Flat Head Machine Screw Carbon Steel Nickel Plated
M1.4 x 3mm Phillips Flat Head Machine Screw Carbon Steel Nickel Plated M1.4 x 3mm Phillips Flat Head Machine Screw Carbon Steel Nickel Plated
M1.4 x 4mm Phillips Flat Head Machine Screw Carbon Steel Nickel Plated M1.4 x 4mm Phillips Flat Head Machine Screw Carbon Steel Nickel Plated
M1.4 x 5mm Phillips Flat Head Machine Screw Carbon Steel Nickel Plated M1.4 x 5mm Phillips Flat Head Machine Screw Carbon Steel Nickel Plated
M1.4 x 6mm Phillips Flat Head Machine Screw Carbon Steel Nickel Plated M1.4 x 6mm Phillips Flat Head Machine Screw Carbon Steel Nickel Plated
M1.4 x 8mm Phillips Flat Head Machine Screw Carbon Steel Nickel Plated M1.4 x 8mm Phillips Flat Head Machine Screw Carbon Steel Nickel Plated
M1.4 x 10mm Phillips Flat Head Machine Screw Carbon Steel Nickel Plated M1.4 x 10mm Phillips Flat Head Machine Screw Carbon Steel Nickel Plated
M1.4 x 12mm Phillips Flat Head Machine Screw Carbon Steel Nickel Plated M1.4 x 12mm Phillips Flat Head Machine Screw Carbon Steel Nickel Plated
Item Information

Why Choose MFPM1403N?

MFPM1403N is a M1.4 Flat Head head Phillips drive screw with 3 mm length, featuring a Nickel Plated Steel finish. Compared to alternative finishes in the same specification such as MFPM1403S (SUS304 Stainless Steel), MFPM1403BX (Black Oxide Steel), the Nickel Plated Steel of MFPM1403N offers high tensile strength for mechanical and structural applications where corrosion resistance is not the primary concern, often used in machinery, automotive chassis, and load-bearing assemblies. The Flat Head head design ensures optimal load distribution across the mating surface, while the Phillips drive allows efficient torque transmission during installation. Each MFPM1403N screw is manufactured to industry standards, RoHS compliant, and supplied with material test reports (MTR) for full quality traceability.

M1.4 x 3mm Phillips Flat Head Machine Screw Carbon Steel Nickel Plated
MFPM1403N This part demension will be same as the drawing indicate below, length tolerance will be ±0.5 .
It is Flat Head with Phillips drive, M1.4 Thread and 3 mm Length .
material Nickel Plated Steel, Finsh is Rohs Nickel Plated which has good function of anti-corrosion .
On website, you can choose use your shipping account which shippcost is 0, or you can use our DHL/UPS account to ship which will have ship cost indicate.
Payment terms: Payment advance, On website, you can choose pay via paypal or pay via bank transfer. when bank transfer , you can send your bank slip to us via order process or send it to our email:[email protected]. when payment made, We will soon make production and update process for you via email.
BUY MFPM1403N - M1.4 x 3mm Phillips Flat Head Machine Screw Nickel - Nickel Steel for Consumer Electronics | Superneer today,high quality product and best service will be provided by superneer.Each order will be made shippment on time.
Different Finish :
M1.4 x 3 mm
M1.4 x 3 mm
MFPM1403S
SUS304 Stainless Steel
M1.4 x 3 mm
M1.4 x 3 mm
MFPM1403N
Nickel Plated Steel
M1.4 x 3 mm
M1.4 x 3 mm
MFPM1403BX
Black Oxide Steel

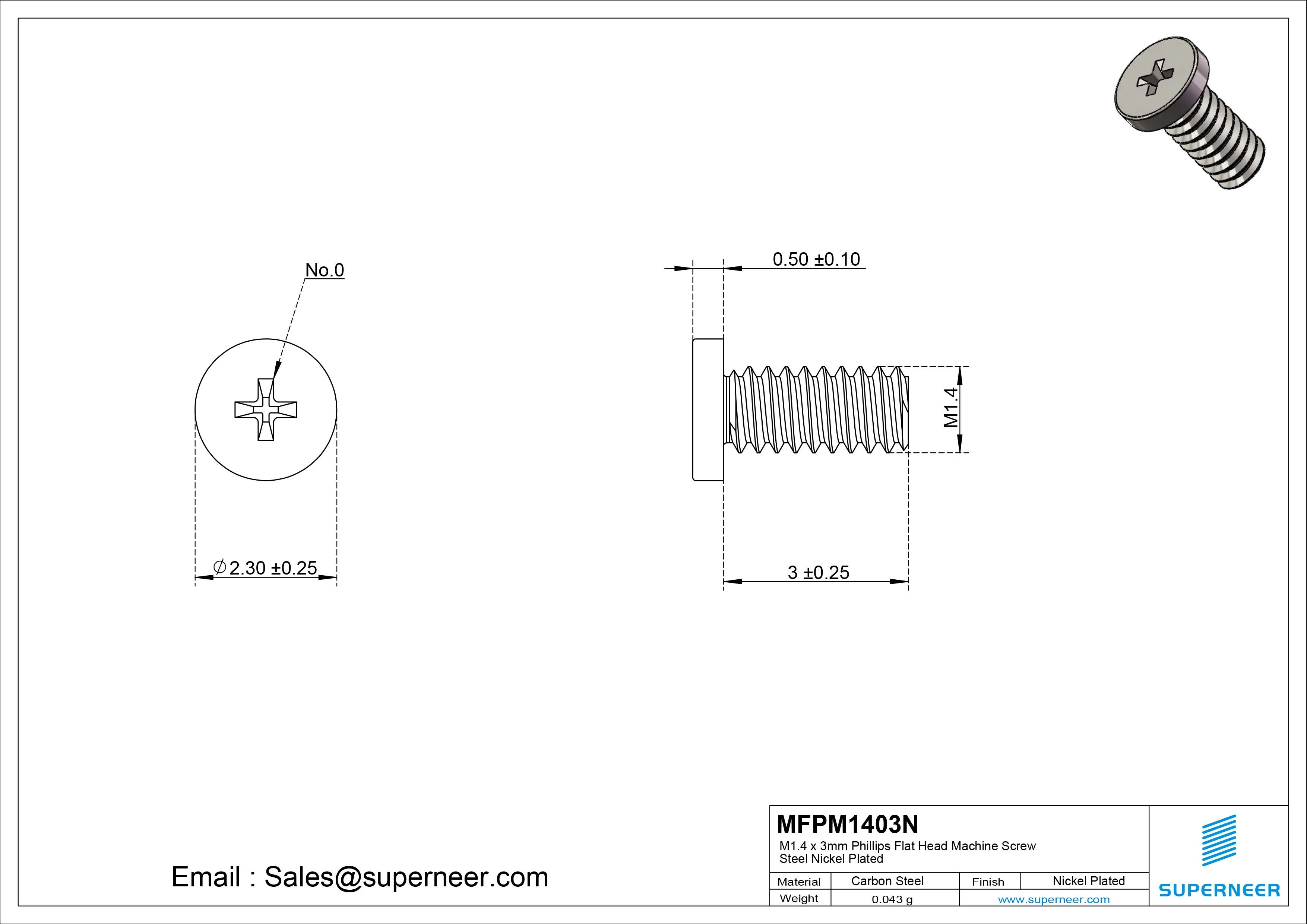

Item Drawing
M1.4 x 3mm Phillips Flat Head Machine Screw Carbon Steel Nickel Plated
Other Parts
2-56 x 3/16 screw 2-56 x 3/16" Pan Head Torx Machine Screw SUS304 Stainless Steel
2-56 x 5/16 screw 2-56 x 5/16" Pan Head Torx Machine Screw SUS304 Stainless Steel
2-56 x 3/4 screw 2-56 x 3/4" Pan Head Torx T7 Machine Screw SUS304 Stainless Steel
M3 x 6 screw M3 x 6 mm Flat Head 82° Torx Machine Screw SUS304 Stainless Steel
2-56 x 7/16 screw 2-56 x 7/16" Flat Head 82° Torx T7 Machine Screw SUS304 Stainless Steel
M2.5 x 12 screw M2.5 x 12 mm Pan Head Torx Machine Screw Steel Blue Zinc Plated
M3 x 6 screw M3 x 6 mm Pan Head Torx Machine Screw Steel Blue Zinc Plated ISO 14583
undercut screw M3 x 6 mm Flat Head Undercut Slotted Machine Screw SUS304 Stainless Steel
M3 x 8 pan torx screw M3 x 8 mm Pan Head Torx Machine Screw Steel Black ISO 14583
M3 x 10 pan torx screw M3 x 10 mm Pan Head Torx Machine Screw Steel Black ISO 14583
M3 x 6 screw M3 x 6 mm Flat Head 82° Torx Machine Screw Steel Black
M3 x 5 mm flat screw M3 x 5 mm Flat Head 120° Phillips Machine Screw Steel Black
2-56 x 13/32 screw 2-56 x 13/32" Standoff Screw SUS303 Stainless Steel Hex Male Female Spacers
M3 × 6mm screw M3 × 6mm Indented Hex Washer Serrattion Phillips Thread Forming Screws for Metal Steel Black
M2.5 x 6mm screw M2.5 x 6mm Socket Cup Point Set Screws Steel Black DIN916
M2 x 2.5mm screw M2 x 2.5mm Flat Head Torx Machine Screw SUS304 Stainless Steel
M3 x 8mm screw M3 x 8mm Thumb Screw Knurled Head (Head Diameter 8mm,Head Height 8mm) SUS304 Stainless Steel
M3 X 3mm screw M3 X 3mm 12.9 Grade Steel Black Flat Socket Screw
M4 x 10mm screw M4 x 10mm Socket Set Screw Cone Point SUS304 Stainless Steel DIN914 Nylon Patch
M3 x 4mm screw M3 x 4mm Torx Flat Head Machine Screw Carbon Steel Black Oxide
standoff 2-56 x 13/32" Standoff Screw with 7/32" Outer Thread Length SUS303 Stainless Steel Hex Male Female Spacers
self sealing screw M2 x 8 mm Self Sealing Screw Pan Torx Head SUS304 Stainless Steel Waterproof Screws
SEMS Screw M3 x 10 mm Button Head Socket SEMS Screw with Internal Tooth Washer Steel Black Oxide
Payment & Trasportation 5-10 days

Payment Method: T/T & Paypal and other payment method

Shipment Method: Air Express , Air Freight, Sea Shippment

How to Order

1. Order online directly, made payment via Paypal or bank transfer.

2. Superneer arrange production according to drawing,all demensions are within drawing specification.

3. Parts ready, ship to customer.

Frequently Asked Questions about MFPM1403N

What is MFPM1403N screw?

MFPM1403N is a M1.4 Flat Head head Phillips drive screw made of Nickel Plated Steel, manufactured by Superneer Limited. It has a length of 3 mm and is commonly used in electronics, watches, precision instruments, and 3D printers.

What are the specifications of MFPM1403N?

The MFPM1403N screw features thread size M1.4, length of 3 mm, head type Flat Head (head diameter 2.3±0.25 mm), drive type Phillips (drive size Ph No.1), and is made of Nickel Plated Steel.

What material is the MFPM1403N screw made of?

The MFPM1403N screw is made of Nickel Plated Steel. Superneer provides material test reports (MTR) and RoHS compliance certificates for all products. Nickel Plated Steel offers excellent corrosion resistance and mechanical strength.

What is the thread size of MFPM1403N?

The MFPM1403N screw has a M1.4 thread. This is a metric thread with M1.4 specification, commonly used in international applications following ISO standards.

What are MFPM1403N screws used for?

MFPM1403N Flat Head head Phillips drive screws are used in electronics assembly, PCB mounting, precision instruments, watches, 3D printers, optical devices, medical equipment, and consumer products where reliable fastening with Flat Head head aesthetics is required.

What is the MOQ and price for MFPM1403N?

The minimum order quantity (MOQ) for MFPM1403N is 10,000 pieces. The unit price is $0.019 USD for MOQ quantity. Larger quantities receive discounted pricing. Contact [email protected] for custom quotes.

What is the lead time and shipping for MFPM1403N?

The lead time for MFPM1403N is 15-25 days for production. Shipping to USA takes 5-15 days via sea freight, with shipping cost starting from $50 USD. Air freight is available for urgent orders. DDP and FOB terms are both available.

What is the inch equivalent of M1.4 thread?

The M1.4 thread is approximately equivalent to #1. When substituting metric screws with inch screws, always verify the actual diameter and pitch compatibility.

What head type does MFPM1403N use and why?

The MFPM1403N uses a Flat Head head type. Flat Head head provides a specific head design optimized for its intended application. This head type is selected based on the specific application requirements for load distribution, aesthetics, and accessibility.

How to choose the right screw size for my application?

To choose the right screw: 1) Determine the required thread size based on the tapped hole or nut; 2) Select the appropriate length based on the material thickness; 3) Choose the head type based on clearance and aesthetics; 4) Select the drive type based on torque requirements; 5) Choose the material based on environmental conditions. For MFPM1403N (M1.4, 3 mm), ensure your application requires this specific size.

What is the difference between MFPM1403N and similar parts?

MFPM1403N uses Nickel Plated Steel finish, while alternative variants in the same thread/length specification include MFPM1403S (SUS304 Stainless Steel), MFPM1403BX (Black Oxide Steel). The Nickel Plated Steel of MFPM1403N is specifically selected because it offers high tensile strength for mechanical and structural applications where corrosion resistance is not the primary concern, often used in machinery, automotive chassis, and load-bearing assemblies. This distinction makes MFPM1403N the preferred choice when these properties align with your application requirements.
