M5 x 8 mm Flat Head 90° Phillips Machine Screw Steel Black DIN 965
Why Choose MF9PM508B?
MF9PM508B is a M5 Flat 90 head Phillips drive screw with 8 mm length, featuring a Black Zinc Plated Steel finish. Compared to alternative finishes in the same specification such as MF9PM508S (SUS304 Stainless Steel), MF9PM508Z (Blue Zinc Plated Steel), MF9PM508BX (Black Oxide Steel), the Black Zinc Plated Steel of MF9PM508B offers a black decorative finish combined with good corrosion resistance, ideal for consumer electronics, automotive interiors, and applications where both appearance and rust prevention matter. The Flat 90 head design ensures optimal load distribution across the mating surface, while the Phillips drive allows efficient torque transmission during installation. Each MF9PM508B screw is manufactured to industry standards, RoHS compliant, and supplied with material test reports (MTR) for full quality traceability.
Payment Method: T/T & Paypal and other payment method
Shipment Method: Air Express , Air Freight, Sea Shippment
1. Order online directly, made payment via Paypal or bank transfer.
2. Superneer arrange production according to drawing,all demensions are within drawing specification.
3. Parts ready, ship to customer.
Frequently Asked Questions about MF9PM508B
What is MF9PM508B screw?
MF9PM508B is a M5 Flat 90 head Phillips drive screw made of Black Zinc Plated Steel, manufactured by Superneer Limited. It has a length of 8 mm and is commonly used in electronics, watches, precision instruments, and 3D printers.
What are the specifications of MF9PM508B?

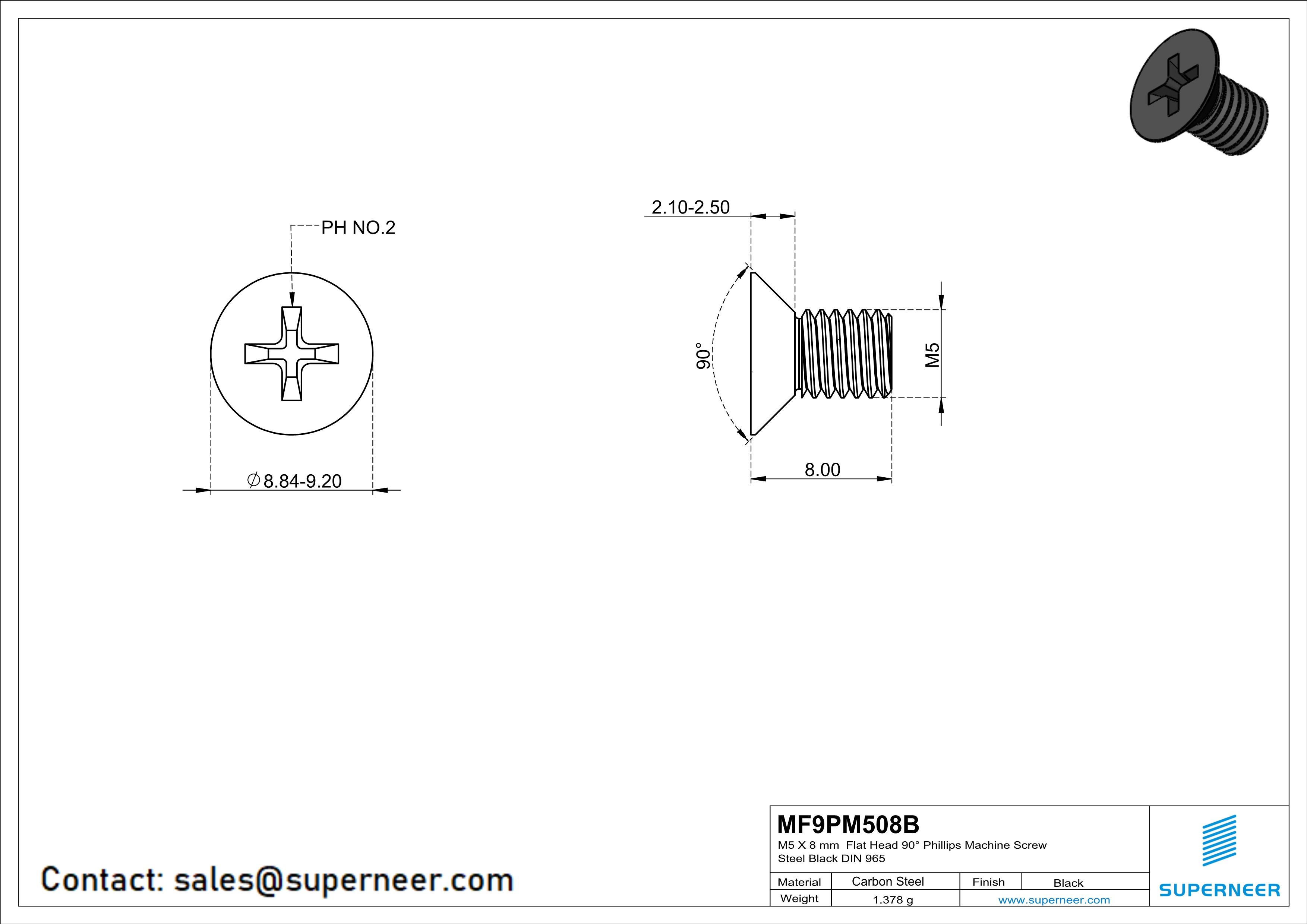

The MF9PM508B screw features thread size M5, length of 8 mm, head type Flat 90 (head diameter 8.84-9.2 mm), drive type Phillips (drive size PH No.2), and is made of Black Zinc Plated Steel.
What material is the MF9PM508B screw made of?
The MF9PM508B screw is made of Black Zinc Plated Steel. Superneer provides material test reports (MTR) and RoHS compliance certificates for all products. Black Zinc Plated Steel offers excellent corrosion resistance and mechanical strength.
What is the thread size of MF9PM508B?
The MF9PM508B screw has a M5 thread. This is a metric thread with M5 specification, commonly used in international applications following ISO standards.
What are MF9PM508B screws used for?
MF9PM508B Flat 90 head Phillips drive screws are used in electronics assembly, PCB mounting, precision instruments, watches, 3D printers, optical devices, medical equipment, and consumer products where reliable fastening with Flat 90 head aesthetics is required.
What is the MOQ and price for MF9PM508B?
The minimum order quantity (MOQ) for MF9PM508B is 10,000 pieces. The unit price is $0.027 USD for MOQ quantity. Larger quantities receive discounted pricing. Contact [email protected] for custom quotes.
What is the lead time and shipping for MF9PM508B?
The lead time for MF9PM508B is 15-25 days for production. Shipping to USA takes 5-15 days via sea freight, with shipping cost starting from $50 USD. Air freight is available for urgent orders. DDP and FOB terms are both available.
What is the inch equivalent of M5 thread?
The M5 thread is approximately equivalent to #10 (approx 10-32). When substituting metric screws with inch screws, always verify the actual diameter and pitch compatibility.
What head type does MF9PM508B use and why?
The MF9PM508B uses a Flat 90 head type. Flat 90 head provides a specific head design optimized for its intended application. This head type is selected based on the specific application requirements for load distribution, aesthetics, and accessibility.
How to choose the right screw size for my application?
To choose the right screw: 1) Determine the required thread size based on the tapped hole or nut; 2) Select the appropriate length based on the material thickness; 3) Choose the head type based on clearance and aesthetics; 4) Select the drive type based on torque requirements; 5) Choose the material based on environmental conditions. For MF9PM508B (M5, 8 mm), ensure your application requires this specific size.
What is the difference between MF9PM508B and similar parts?
MF9PM508B uses Black Zinc Plated Steel finish, while alternative variants in the same thread/length specification include MF9PM508S (SUS304 Stainless Steel), MF9PM508Z (Blue Zinc Plated Steel), MF9PM508BX (Black Oxide Steel). The Black Zinc Plated Steel of MF9PM508B is specifically selected because it offers a black decorative finish combined with good corrosion resistance, ideal for consumer electronics, automotive interiors, and applications where both appearance and rust prevention matter. This distinction makes MF9PM508B the preferred choice when these properties align with your application requirements.
