M2 x 5 mm Flat Head 90° Phillips Machine Screw Steel Blue Zinc Plated DIN 965
Why Choose MF9PM205Z?
MF9PM205Z is a M2 Flat 90 head Phillips drive screw with 5 mm length, featuring a Blue Zinc Plated Steel finish. Compared to alternative finishes in the same specification such as MF9PM205S (SUS304 Stainless Steel), MF9PM205B (Black Zinc Plated Steel), MF9PM205BX (Black Oxide Steel), the Blue Zinc Plated Steel of MF9PM205Z offers moderate corrosion resistance with a distinctive blue iridescent appearance, commonly used in automotive assembly, machinery, and general industrial fastening. The Flat 90 head design ensures optimal load distribution across the mating surface, while the Phillips drive allows efficient torque transmission during installation. Each MF9PM205Z screw is manufactured to industry standards, RoHS compliant, and supplied with material test reports (MTR) for full quality traceability.
Payment Method: T/T & Paypal and other payment method
Shipment Method: Air Express , Air Freight, Sea Shippment
1. Order online directly, made payment via Paypal or bank transfer.
2. Superneer arrange production according to drawing,all demensions are within drawing specification.
3. Parts ready, ship to customer.
Frequently Asked Questions about MF9PM205Z
What is MF9PM205Z screw?
MF9PM205Z is a M2 Flat 90 head Phillips drive screw made of Blue Zinc Plated Steel, manufactured by Superneer Limited. It has a length of 5 mm and is commonly used in electronics, watches, precision instruments, and 3D printers.
What are the specifications of MF9PM205Z?

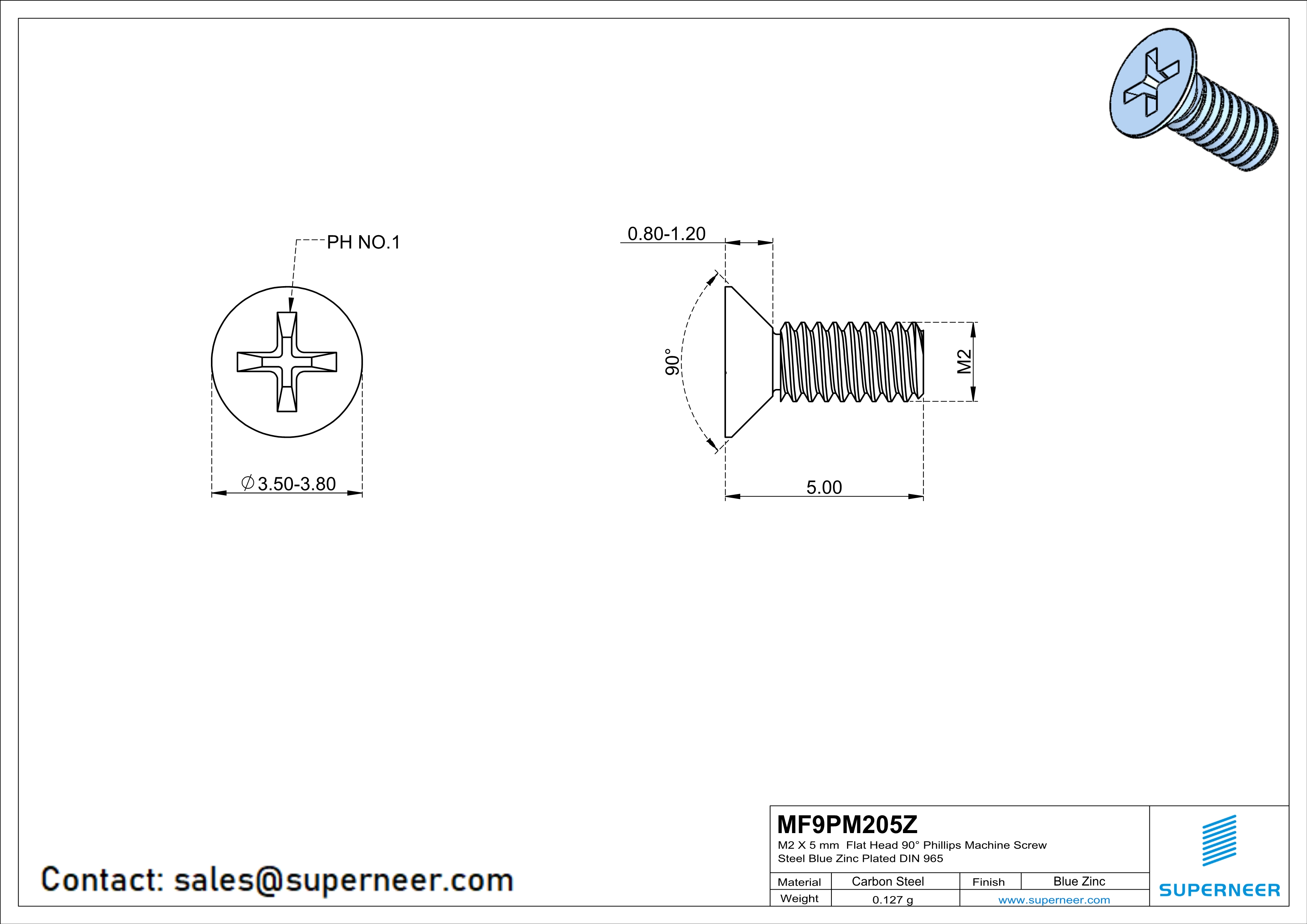

The MF9PM205Z screw features thread size M2, length of 5 mm, head type Flat 90 (head diameter 3.50-3.80 mm), drive type Phillips (drive size PH No.1), and is made of Blue Zinc Plated Steel.
What material is the MF9PM205Z screw made of?
The MF9PM205Z screw is made of Blue Zinc Plated Steel. Superneer provides material test reports (MTR) and RoHS compliance certificates for all products. Blue Zinc Plated Steel offers excellent corrosion resistance and mechanical strength.
What is the thread size of MF9PM205Z?
The MF9PM205Z screw has a M2 thread. This is a metric thread with M2 specification, commonly used in international applications following ISO standards.
What are MF9PM205Z screws used for?
MF9PM205Z Flat 90 head Phillips drive screws are used in electronics assembly, PCB mounting, precision instruments, watches, 3D printers, optical devices, medical equipment, and consumer products where reliable fastening with Flat 90 head aesthetics is required.
What is the MOQ and price for MF9PM205Z?
The minimum order quantity (MOQ) for MF9PM205Z is 10,000 pieces. The unit price is $0.013 USD for MOQ quantity. Larger quantities receive discounted pricing. Contact [email protected] for custom quotes.
What is the lead time and shipping for MF9PM205Z?
The lead time for MF9PM205Z is 15-25 days for production. Shipping to USA takes 5-15 days via sea freight, with shipping cost starting from $50 USD. Air freight is available for urgent orders. DDP and FOB terms are both available.
What is the inch equivalent of M2 thread?
The M2 thread is approximately equivalent to #3 (approx 2-56). When substituting metric screws with inch screws, always verify the actual diameter and pitch compatibility.
What head type does MF9PM205Z use and why?
The MF9PM205Z uses a Flat 90 head type. Flat 90 head provides a specific head design optimized for its intended application. This head type is selected based on the specific application requirements for load distribution, aesthetics, and accessibility.
How to choose the right screw size for my application?
To choose the right screw: 1) Determine the required thread size based on the tapped hole or nut; 2) Select the appropriate length based on the material thickness; 3) Choose the head type based on clearance and aesthetics; 4) Select the drive type based on torque requirements; 5) Choose the material based on environmental conditions. For MF9PM205Z (M2, 5 mm), ensure your application requires this specific size.
What is the difference between MF9PM205Z and similar parts?
MF9PM205Z uses Blue Zinc Plated Steel finish, while alternative variants in the same thread/length specification include MF9PM205S (SUS304 Stainless Steel), MF9PM205B (Black Zinc Plated Steel), MF9PM205BX (Black Oxide Steel). The Blue Zinc Plated Steel of MF9PM205Z is specifically selected because it offers moderate corrosion resistance with a distinctive blue iridescent appearance, commonly used in automotive assembly, machinery, and general industrial fastening. This distinction makes MF9PM205Z the preferred choice when these properties align with your application requirements.
