Home Machine Screws Flat Head Screw Phillips Flat Head Screw Flat 90 M1.6 x 6 mm Flat Head 90° Phillips Machine Screw Steel Black Oxide DIN 965

M1.6 x 6 mm Flat Head 90° Phillips Machine Screw Steel Black Oxide DIN 965

screw pic
screw pic
Part No.     MF9PM1606BX rohs Rating:

Material Black Oxide Steel
Ship Date 2026-10-14
Head Flat Head 90
Drive Phillips   PH No.0
Head Diameter 2.75 - 3 mm
Head Height max 0.96 mm
Thread M1.6
Length 6 mm
Unit Price USD$ 0.016 /pcs
Unit Weight 0.083 g
Quantity pcs
Amount USD$ Total Amount USD$
Amount USD$ Total Amount USD$

Related Parts
M1.6 x 5 mm Flat Head 90° Phillips Machine Screw Steel Black Oxide DIN 965
M1.6 x 6 mm Flat Head 90° Phillips Machine Screw Steel Black Oxide DIN 965
M1.6 x 7 mm Flat Head 90° Phillips Machine Screw Steel Black Oxide DIN 965
M1.6 x 8 mm Flat Head 90° Phillips Machine Screw Steel Black Oxide DIN 965
M1.6 x 9 mm Flat Head 90° Phillips Machine Screw Steel Black Oxide DIN 965
Item Information
M1.6 x 6 mm Flat Head 90° Phillips Machine Screw Steel Black Oxide DIN 965
This part demension will be same as the drawing indicate below, length tolerance will be ±0.5 .
It is Flat Head 90 with Phillips drive, M1.6 Thread and 6 mm Length .
Material Black Oxide Steel, Finsh is Rohs Black Oxide which has good function of anti-corrosion .
On website, you can choose use your shipping account which shippcost is 0, or you can use our DHL/UPS account to ship which will have ship cost indicate.
Payment terms: Payment advance, On website, you can choose pay via paypal or pay via bank transfer. when bank transfer , you can send your bank slip to us via order process or send it to our email:sales@superneer.com. when payment made, We will soon make production and update process for you via email.
Buy M1.6 x 6 mm Flat Head 90° Phillips Machine Screw Steel Black Oxide DIN 965 today,high quality product and best service will be provided by superneer.Each order will be made shippment on time.
Different Finish :
M1.6 x 6 mm
MF9PM1606S
SUS304 Stainless Steel
M1.6 x 6 mm
MF9PM1606Z
Blue Zinc Plated Steel
M1.6 x 6 mm
MF9PM1606B
Black Zinc Plated Steel
M1.6 x 6 mm
MF9PM1606BX
Black Oxide Steel

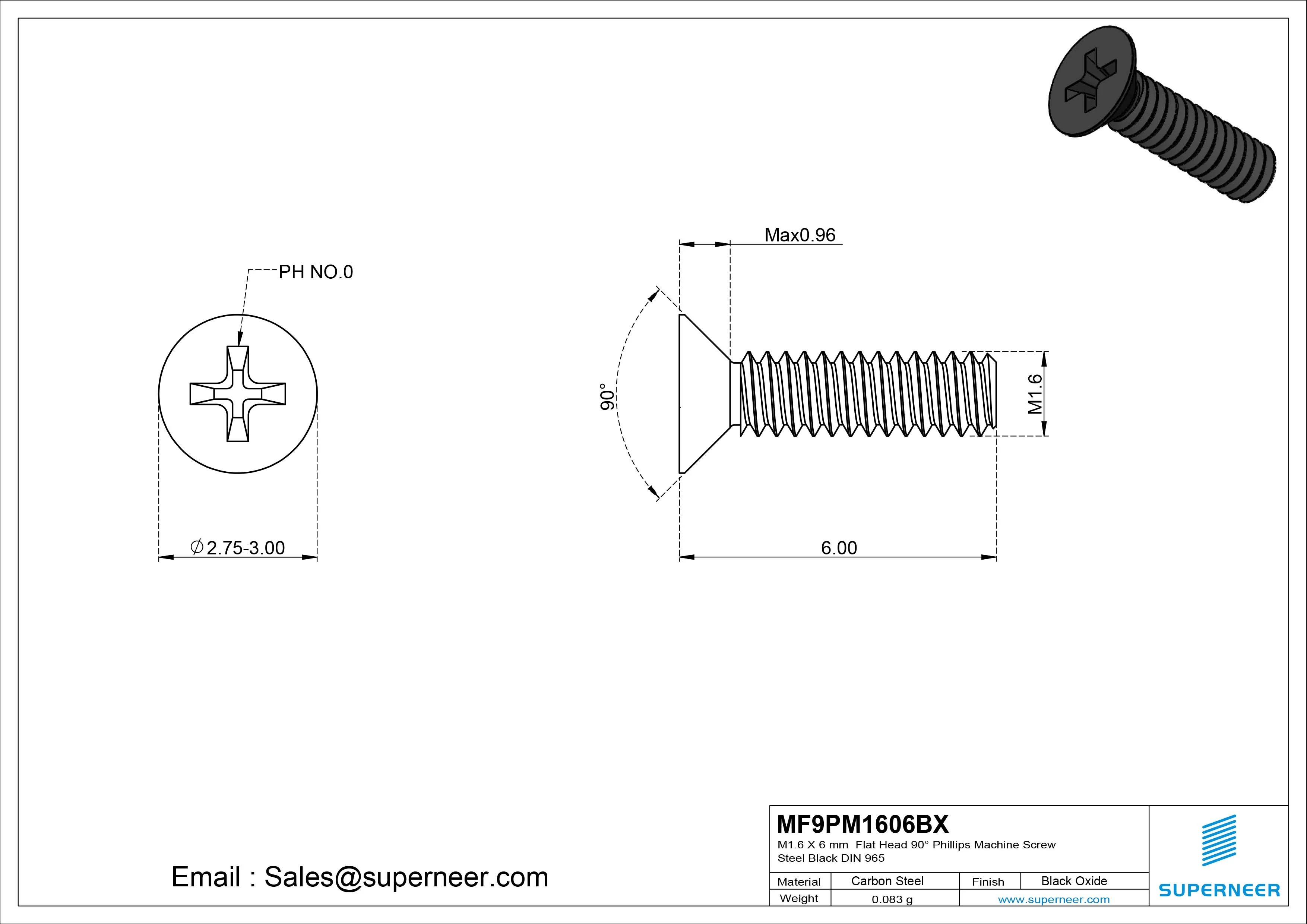

Item Drawing
M1.6 x 6 mm Flat Head 90° Phillips Machine Screw Steel Black Oxide DIN 965
