8-32 x 3/8" Flat Head 90° Phillips Machine Screw Steel Blue Zinc Plated ANSI/ASME B18.6.3
Why Choose MF9P0806Z?
MF9P0806Z is a 8-32 Flat 90 head Phillips drive screw with 3/8 inches length, featuring a Blue Zinc Plated Steel finish. Compared to alternative finishes in the same specification such as MF9P0806S (SUS304 Stainless Steel), MF9P0806B (Black Zinc Plated Steel), MF9P0806BX (Black Oxide Steel), the Blue Zinc Plated Steel of MF9P0806Z offers moderate corrosion resistance with a distinctive blue iridescent appearance, commonly used in automotive assembly, machinery, and general industrial fastening. The Flat 90 head design ensures optimal load distribution across the mating surface, while the Phillips drive allows efficient torque transmission during installation. Each MF9P0806Z screw is manufactured to industry standards, RoHS compliant, and supplied with material test reports (MTR) for full quality traceability.
Payment Method: T/T & Paypal and other payment method
Shipment Method: Air Express , Air Freight, Sea Shippment
1. Order online directly, made payment via Paypal or bank transfer.
2. Superneer arrange production according to drawing,all demensions are within drawing specification.
3. Parts ready, ship to customer.
Frequently Asked Questions about MF9P0806Z
What is MF9P0806Z screw?
MF9P0806Z is a 8-32 Flat 90 head Phillips drive screw made of Blue Zinc Plated Steel, manufactured by Superneer Limited. It has a length of 3/8 inches and is commonly used in electronics, watches, precision instruments, and 3D printers.
What are the specifications of MF9P0806Z?

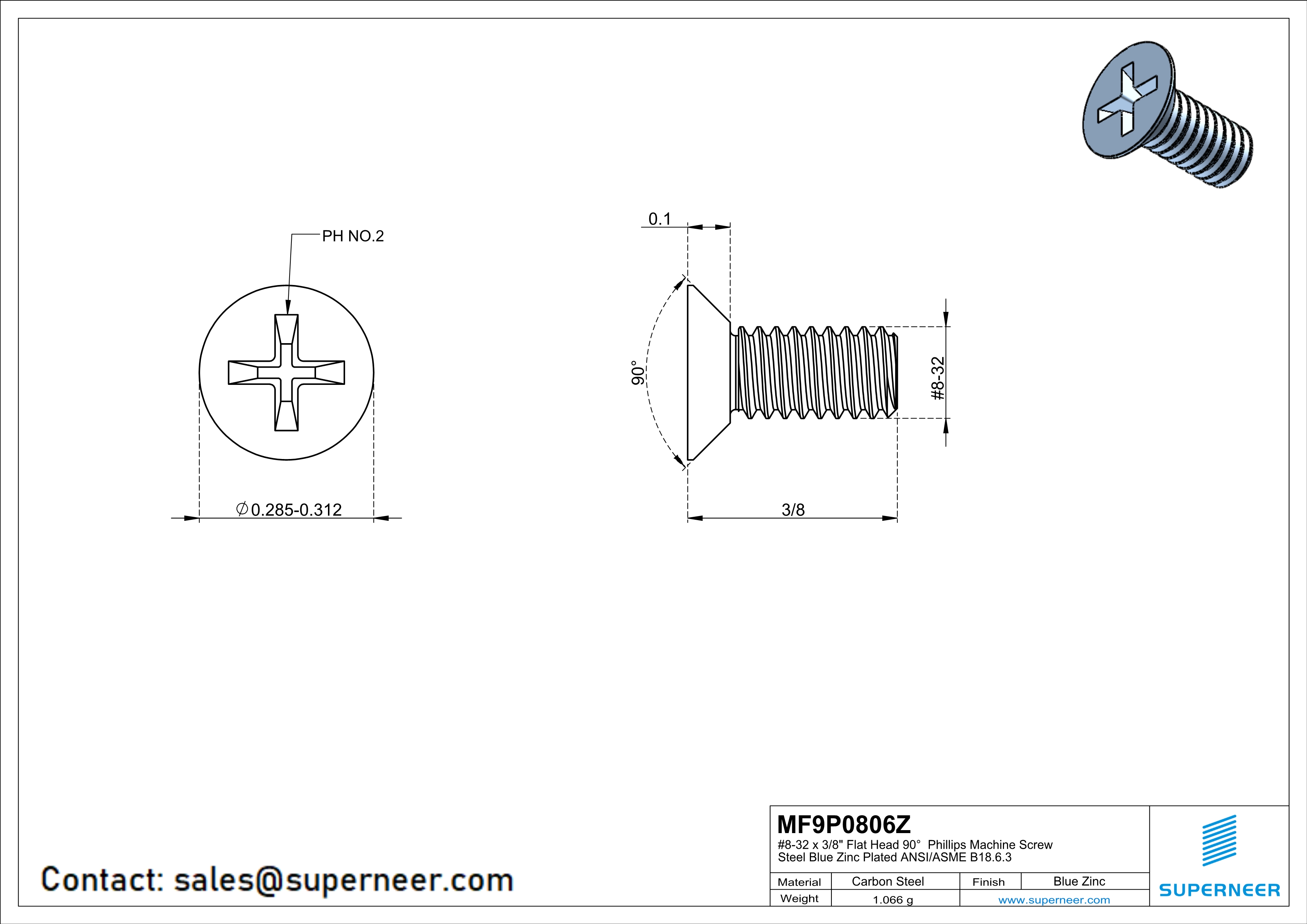

The MF9P0806Z screw features thread size 8-32, length of 3/8 inches, head type Flat 90 (head diameter 0.285-0.312 inches), drive type Phillips (drive size PH No.2), and is made of Blue Zinc Plated Steel.
What material is the MF9P0806Z screw made of?
The MF9P0806Z screw is made of Blue Zinc Plated Steel. Superneer provides material test reports (MTR) and RoHS compliance certificates for all products. Blue Zinc Plated Steel offers excellent corrosion resistance and mechanical strength.
What is the thread size of MF9P0806Z?
The MF9P0806Z screw has a 8-32 thread. This is a UNC (Unified National Coarse) thread with 8-32 specification, widely used in North American applications.
What are MF9P0806Z screws used for?
MF9P0806Z Flat 90 head Phillips drive screws are used in electronics assembly, PCB mounting, precision instruments, watches, 3D printers, optical devices, medical equipment, and consumer products where reliable fastening with Flat 90 head aesthetics is required.
What is the MOQ and price for MF9P0806Z?
The minimum order quantity (MOQ) for MF9P0806Z is 10,000 pieces. The unit price is $0.018 USD for MOQ quantity. Larger quantities receive discounted pricing. Contact [email protected] for custom quotes.
What is the lead time and shipping for MF9P0806Z?
The lead time for MF9P0806Z is 15-25 days for production. Shipping to USA takes 5-15 days via sea freight, with shipping cost starting from $50 USD. Air freight is available for urgent orders. DDP and FOB terms are both available.
What is the metric equivalent of 8-32 thread?
The 8-32 thread is approximately equivalent to M4 (approx). When substituting inch screws with metric screws, always verify the actual diameter and pitch compatibility.
What head type does MF9P0806Z use and why?
The MF9P0806Z uses a Flat 90 head type. Flat 90 head provides a specific head design optimized for its intended application. This head type is selected based on the specific application requirements for load distribution, aesthetics, and accessibility.
How to choose the right screw size for my application?
To choose the right screw: 1) Determine the required thread size based on the tapped hole or nut; 2) Select the appropriate length based on the material thickness; 3) Choose the head type based on clearance and aesthetics; 4) Select the drive type based on torque requirements; 5) Choose the material based on environmental conditions. For MF9P0806Z (8-32, 3/8 inches), ensure your application requires this specific size.
What is the difference between MF9P0806Z and similar parts?
MF9P0806Z uses Blue Zinc Plated Steel finish, while alternative variants in the same thread/length specification include MF9P0806S (SUS304 Stainless Steel), MF9P0806B (Black Zinc Plated Steel), MF9P0806BX (Black Oxide Steel). The Blue Zinc Plated Steel of MF9P0806Z is specifically selected because it offers moderate corrosion resistance with a distinctive blue iridescent appearance, commonly used in automotive assembly, machinery, and general industrial fastening. This distinction makes MF9P0806Z the preferred choice when these properties align with your application requirements.
