0-80 x 1/2" Flat Head 90° Phillips Machine Screw Steel Black ANSI/ASME B18.6.3

Part No. MF9P0008B
Material Black Zinc Plated Steel
Head Flat 90 Drive : Phillips
Thread 0-80
Length 1/2 inch
Ship Date 2025-10-15
MOQ 10K Price USD$ 0.020 MOQ 50K Price USD$ 0.0170

Quantity qty > 10000 and Multiple of 1000

Send Enquiry

Ship To
Shipmethod
Total Cost

Head Diameter: 0.096-0.112" inch Drive Size: PH No.0 Weight: 0.1220 g Rohs: Compliance Head Height: 0.035 ref inch Gauge: Compliance

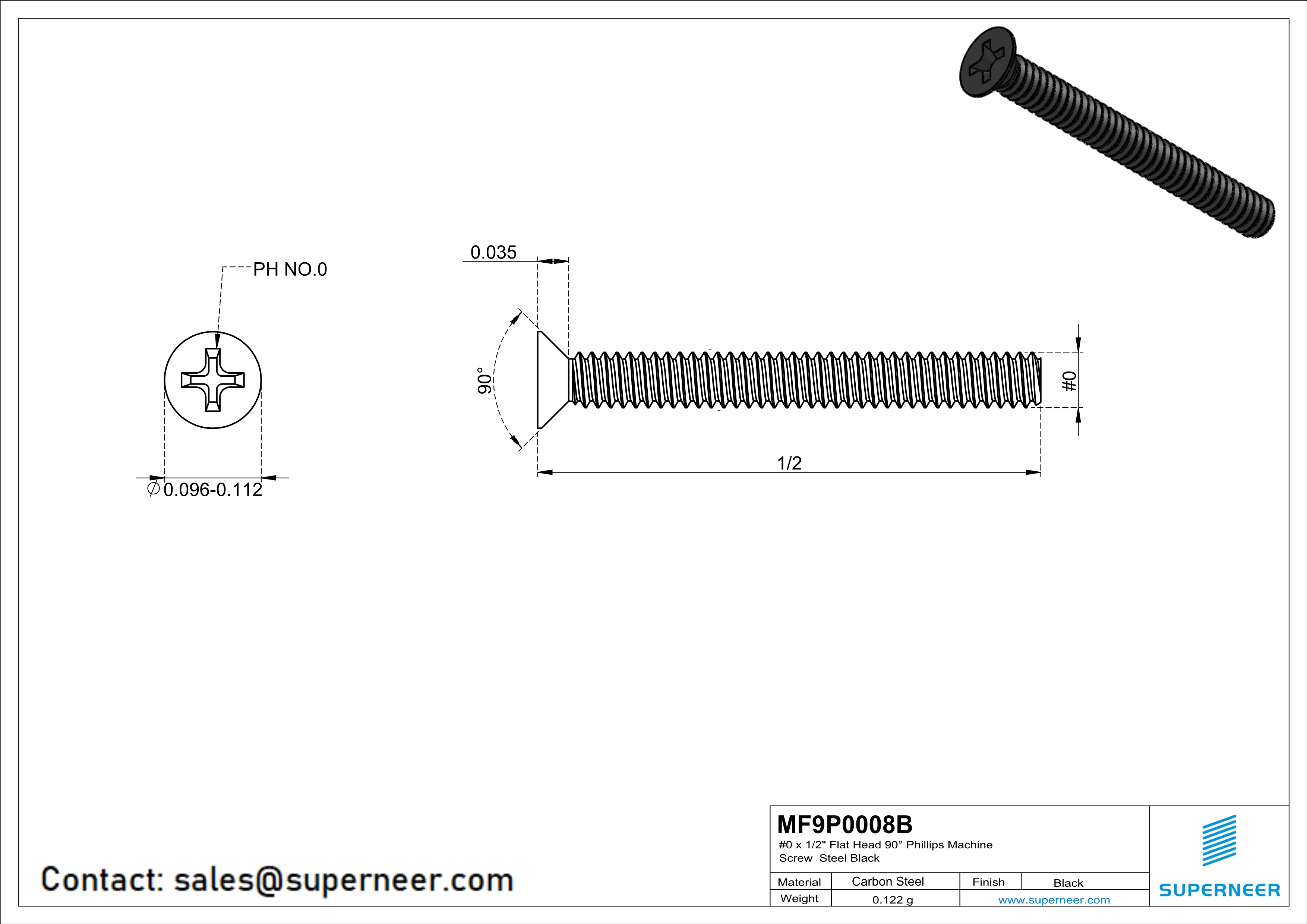

Item Drawing

0-80 x 1/2" Flat Head 90° Phillips Machine Screw Steel Black ANSI/ASME B18.6.3

This part demension will be same as the drawing indicate below, length tolerance will be ±0.5 .

It is Flat 90 with Phillips drive, 0-80 Thread and 1/2 inch Length .

Material is best choosen Black Zinc Plated Steel, Finsh is Rohs Black which has good function of anti-corrosion .

If you need this screw, don't hesitate, please add it to your cart and buy it, we will assure the quality and manufacture it and ship it.

On website, you can choose use your shipping account which shippcost is 0, or you can use our DHL/UPS account to ship which will have ship cost indicate.

Payment terms: Payment advance, On website, you can choose pay via paypal or pay via bank transfer. when bank transfer , you can send your bank slip to us via order process or send it to our email:sales@superneer.com. when payment made, We will soon make production and update process for you via email.

Superneer are doing screws for thirteen years, we supply thousands of screws on our website. Each order will be made shippment on time.
