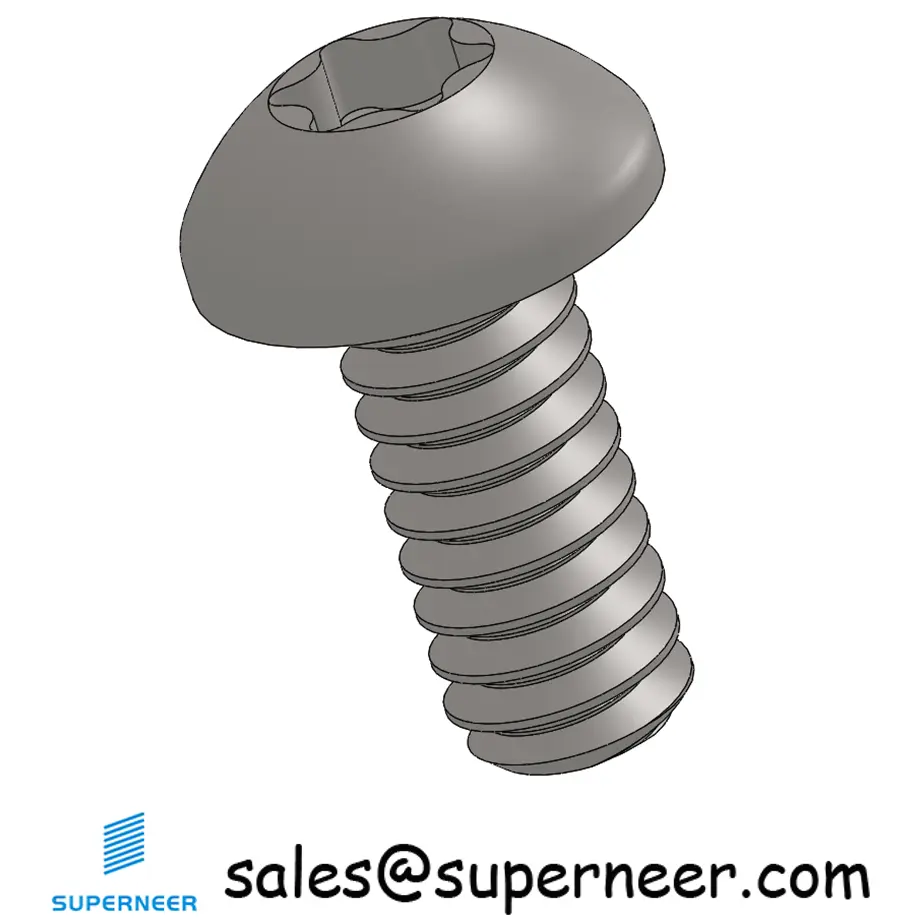

10-32 x 7/16“ Button Head Torx Machine Screw SUS304 Stainless Steel

Screw
Screw
Part No. MBT1007S rohs Rating:

material SUS304 Stainless Steel
Ship Date 2026-11-23
Head Button Head
drive Torx   T25
Head Diameter 0.347-0.361 inch
Head Height 0.091-0.101 inch
Thread 10-32
Length 7/16 inch
Unit Price USD$ 0.077 /pcs
Unit Weight 2.405 g
Quantity pcs
Amount USD$ Total Amount USD$
Amount USD$ Total Amount USD$

Related Parts
10-32 x 5/16" Button Head Torx Machine Screw SUS304 Stainless Steel 10-32 x 5/16" Button Head Torx Machine Screw SUS304 Stainless Steel
10-32 x 3/8" Button Head Torx Machine Screw SUS304 Stainless Steel 10-32 x 3/8" Button Head Torx Machine Screw SUS304 Stainless Steel
10-32 x 7/16“ Button Head Torx Machine Screw SUS304 Stainless Steel 10-32 x 7/16“ Button Head Torx Machine Screw SUS304 Stainless Steel
10-32 x 1/2" Button Head Torx Machine Screw SUS304 Stainless Steel 10-32 x 1/2" Button Head Torx Machine Screw SUS304 Stainless Steel
Item Information

Why Choose MBT1007S?

MBT1007S is a 10-32 Button Head head Torx drive screw with 7/16 inches length, featuring a SUS304 Stainless Steel finish. Compared to alternative finishes in the same specification such as MBT1007Z (Blue Zinc Plated Steel), MBT1007B (Black Zinc Plated Steel), the SUS304 Stainless Steel of MBT1007S offers superior corrosion resistance for outdoor, marine, and humid environments, excellent hygiene properties for food and medical equipment, and good mechanical strength at low cost relative to exotic alloys. The Button Head head design ensures optimal load distribution across the mating surface, while the Torx drive allows efficient torque transmission during installation. Each MBT1007S screw is manufactured to industry standards, RoHS compliant, and supplied with material test reports (MTR) for full quality traceability.

10-32 x 7/16“ Button Head Torx Machine Screw SUS304 Stainless Steel

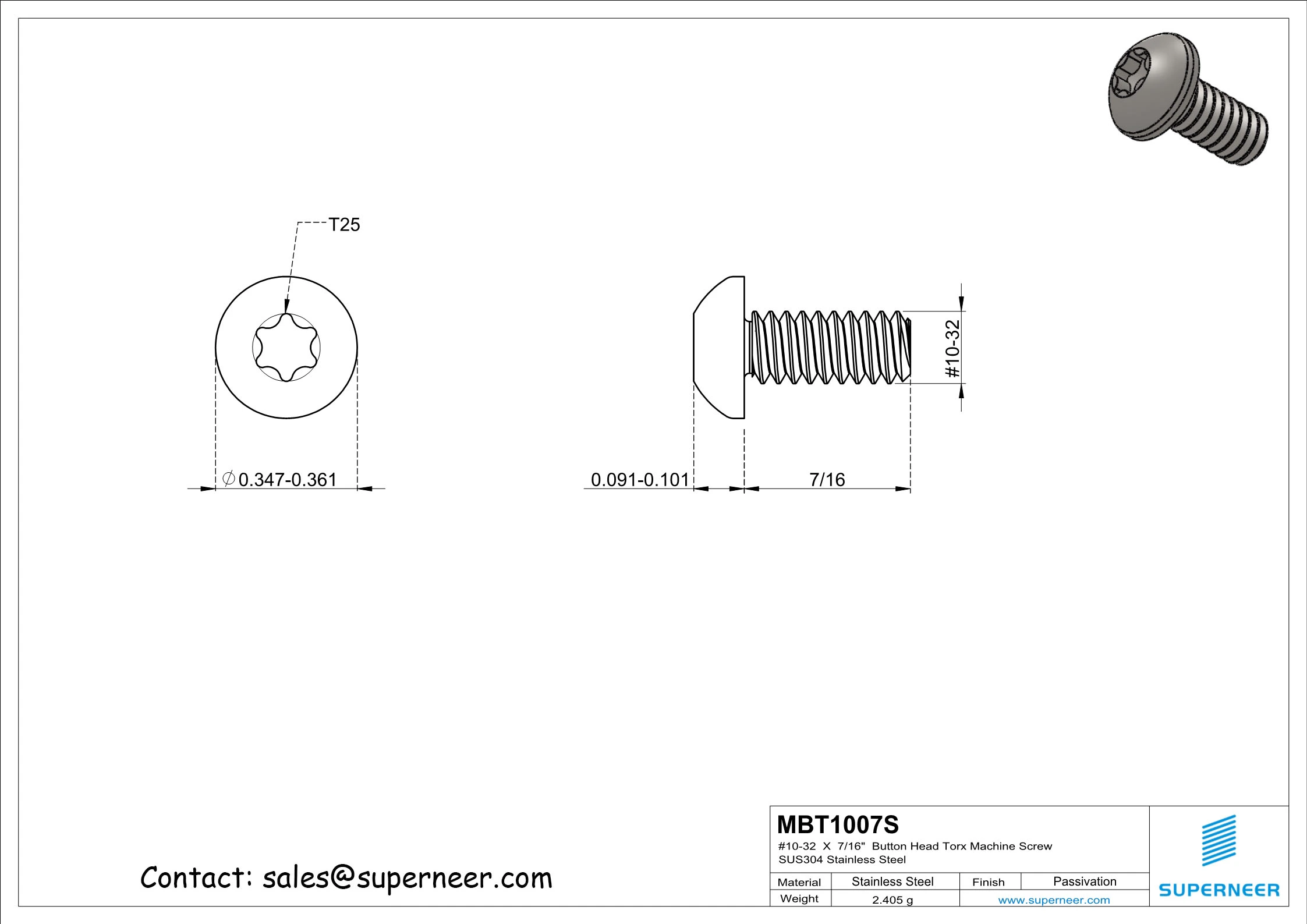

MBT1007S This part demension will be same as the drawing indicate below, length tolerance will be ±0.5 .
It is Button Head with Torx drive, 10-32 Thread and 7/16 inch Length .
material SUS304 Stainless Steel, Finsh is Rohs Chromate which has good function of anti-corrosion .
On website, you can choose use your shipping account which shippcost is 0, or you can use our DHL/UPS account to ship which will have ship cost indicate.
Payment terms: Payment advance, On website, you can choose pay via paypal or pay via bank transfer. when bank transfer , you can send your bank slip to us via order process or send it to our email:[email protected]. when payment made, We will soon make production and update process for you via email.
BUY MBT1007S - 10-32 x 7/16 Button Head Torx Machine Screw - 304 Stainless Steel for Precision Assembly | Superneer today,high quality product and best service will be provided by superneer.Each order will be made shippment on time.
Different Finish :
10-32 x 7/16 inch
10-32 x 7/16 inch
MBT1007S
SUS304 Stainless Steel
10-32 x 7/16 inch
10-32 x 7/16 inch
MBT1007Z
Blue Zinc Plated Steel
10-32 x 7/16 inch
10-32 x 7/16 inch
MBT1007B
Black Zinc Plated Steel
10-32 x 7/16“ Button Head Torx Machine Screw SUS304 Stainless Steel
Other Parts
2-56 x 3/16 screw 2-56 x 3/16" Pan Head Torx Machine Screw SUS304 Stainless Steel
2-56 x 5/16 screw 2-56 x 5/16" Pan Head Torx Machine Screw SUS304 Stainless Steel
2-56 x 3/4 screw 2-56 x 3/4" Pan Head Torx T7 Machine Screw SUS304 Stainless Steel
M3 x 6 screw M3 x 6 mm Flat Head 82° Torx Machine Screw SUS304 Stainless Steel
2-56 x 7/16 screw 2-56 x 7/16" Flat Head 82° Torx T7 Machine Screw SUS304 Stainless Steel
M2.5 x 12 screw M2.5 x 12 mm Pan Head Torx Machine Screw Steel Blue Zinc Plated
M3 x 6 screw M3 x 6 mm Pan Head Torx Machine Screw Steel Blue Zinc Plated ISO 14583
undercut screw M3 x 6 mm Flat Head Undercut Slotted Machine Screw SUS304 Stainless Steel
M3 x 8 pan torx screw M3 x 8 mm Pan Head Torx Machine Screw Steel Black ISO 14583
M3 x 10 pan torx screw M3 x 10 mm Pan Head Torx Machine Screw Steel Black ISO 14583
M3 x 6 screw M3 x 6 mm Flat Head 82° Torx Machine Screw Steel Black
M3 x 5 mm flat screw M3 x 5 mm Flat Head 120° Phillips Machine Screw Steel Black
2-56 x 13/32 screw 2-56 x 13/32" Standoff Screw SUS303 Stainless Steel Hex Male Female Spacers
M3 × 6mm screw M3 × 6mm Indented Hex Washer Serrattion Phillips Thread Forming Screws for Metal Steel Black
M2.5 x 6mm screw M2.5 x 6mm Socket Cup Point Set Screws Steel Black DIN916
M2 x 2.5mm screw M2 x 2.5mm Flat Head Torx Machine Screw SUS304 Stainless Steel
M3 x 8mm screw M3 x 8mm Thumb Screw Knurled Head (Head Diameter 8mm,Head Height 8mm) SUS304 Stainless Steel
M3 X 3mm screw M3 X 3mm 12.9 Grade Steel Black Flat Socket Screw
M4 x 10mm screw M4 x 10mm Socket Set Screw Cone Point SUS304 Stainless Steel DIN914 Nylon Patch
M3 x 4mm screw M3 x 4mm Torx Flat Head Machine Screw Carbon Steel Black Oxide
standoff 2-56 x 13/32" Standoff Screw with 7/32" Outer Thread Length SUS303 Stainless Steel Hex Male Female Spacers
self sealing screw M2 x 8 mm Self Sealing Screw Pan Torx Head SUS304 Stainless Steel Waterproof Screws
SEMS Screw M3 x 10 mm Button Head Socket SEMS Screw with Internal Tooth Washer Steel Black Oxide
Payment & Trasportation 5-10 days

Payment Method: T/T & Paypal and other payment method

Shipment Method: Air Express , Air Freight, Sea Shippment

How to Order

1. Order online directly, made payment via Paypal or bank transfer.

2. Superneer arrange production according to drawing,all demensions are within drawing specification.

3. Parts ready, ship to customer.

Frequently Asked Questions about MBT1007S

What is MBT1007S screw?

MBT1007S is a 10-32 Button Head head Torx drive screw made of SUS304 Stainless Steel, manufactured by Superneer Limited. It has a length of 7/16 inches and is commonly used in electronics, watches, precision instruments, and 3D printers.

What are the specifications of MBT1007S?

The MBT1007S screw features thread size 10-32, length of 7/16 inches, head type Button Head (head diameter 0.347-0.361 inches), drive type Torx (drive size T25), and is made of SUS304 Stainless Steel.

What material is the MBT1007S screw made of?

The MBT1007S screw is made of SUS304 Stainless Steel. Superneer provides material test reports (MTR) and RoHS compliance certificates for all products. SUS304 Stainless Steel offers excellent corrosion resistance and mechanical strength.

What is the thread size of MBT1007S?

The MBT1007S screw has a 10-32 thread. This is a UNC (Unified National Coarse) thread with 10-32 specification, widely used in North American applications.

What are MBT1007S screws used for?

MBT1007S Button Head head Torx drive screws are used in electronics assembly, PCB mounting, precision instruments, watches, 3D printers, optical devices, medical equipment, and consumer products where reliable fastening with Button Head head aesthetics is required.

What is the MOQ and price for MBT1007S?

The minimum order quantity (MOQ) for MBT1007S is 10,000 pieces. The unit price is $0.077 USD for MOQ quantity. Larger quantities receive discounted pricing. Contact [email protected] for custom quotes.

What is the lead time and shipping for MBT1007S?

The lead time for MBT1007S is 15-25 days for production. Shipping to USA takes 5-15 days via sea freight, with shipping cost starting from $50 USD. Air freight is available for urgent orders. DDP and FOB terms are both available.

What is the metric equivalent of 10-32 thread?

The 10-32 thread is approximately equivalent to M5 (approx). When substituting inch screws with metric screws, always verify the actual diameter and pitch compatibility.

What head type does MBT1007S use and why?

The MBT1007S uses a Button Head head type. Button Head head provides a specific head design optimized for its intended application. This head type is selected based on the specific application requirements for load distribution, aesthetics, and accessibility.

How to choose the right screw size for my application?

To choose the right screw: 1) Determine the required thread size based on the tapped hole or nut; 2) Select the appropriate length based on the material thickness; 3) Choose the head type based on clearance and aesthetics; 4) Select the drive type based on torque requirements; 5) Choose the material based on environmental conditions. For MBT1007S (10-32, 7/16 inches), ensure your application requires this specific size.

What is the difference between MBT1007S and similar parts?

MBT1007S uses SUS304 Stainless Steel finish, while alternative variants in the same thread/length specification include MBT1007Z (Blue Zinc Plated Steel), MBT1007B (Black Zinc Plated Steel). The SUS304 Stainless Steel of MBT1007S is specifically selected because it offers superior corrosion resistance for outdoor, marine, and humid environments, excellent hygiene properties for food and medical equipment, and good mechanical strength at low cost relative to exotic alloys. This distinction makes MBT1007S the preferred choice when these properties align with your application requirements.
