10-32 x 3/8" Button Head Torx Machine Screw Steel Black
Why Choose MBT1006B?
MBT1006B is a 10-32 Button Head head Torx drive screw with 3/8 inches length, featuring a Black Zinc Plated Steel finish. Compared to alternative finishes in the same specification such as MBT1006S (SUS304 Stainless Steel), MBT1006Z (Blue Zinc Plated Steel), the Black Zinc Plated Steel of MBT1006B offers a black decorative finish combined with good corrosion resistance, ideal for consumer electronics, automotive interiors, and applications where both appearance and rust prevention matter. The Button Head head design ensures optimal load distribution across the mating surface, while the Torx drive allows efficient torque transmission during installation. Each MBT1006B screw is manufactured to industry standards, RoHS compliant, and supplied with material test reports (MTR) for full quality traceability.
Payment Method: T/T & Paypal and other payment method
Shipment Method: Air Express , Air Freight, Sea Shippment
1. Order online directly, made payment via Paypal or bank transfer.
2. Superneer arrange production according to drawing,all demensions are within drawing specification.
3. Parts ready, ship to customer.
Frequently Asked Questions about MBT1006B
What is MBT1006B screw?
MBT1006B is a 10-32 Button Head head Torx drive screw made of Black Zinc Plated Steel, manufactured by Superneer Limited. It has a length of 3/8 inches and is commonly used in electronics, watches, precision instruments, and 3D printers.
What are the specifications of MBT1006B?

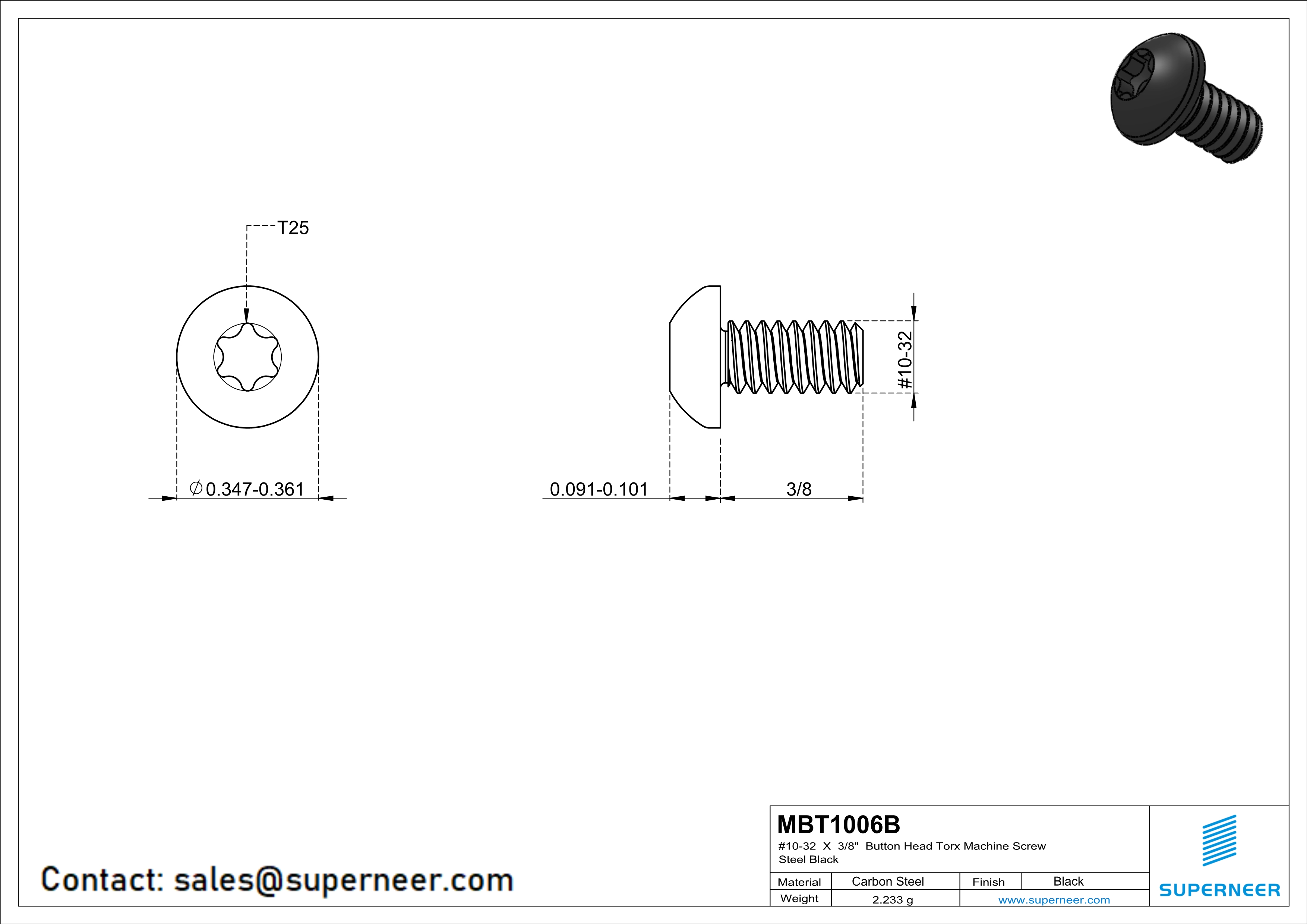

The MBT1006B screw features thread size 10-32, length of 3/8 inches, head type Button Head (head diameter 0.347-0.361 inches), drive type Torx (drive size T25), and is made of Black Zinc Plated Steel.
What material is the MBT1006B screw made of?
The MBT1006B screw is made of Black Zinc Plated Steel. Superneer provides material test reports (MTR) and RoHS compliance certificates for all products. Black Zinc Plated Steel offers excellent corrosion resistance and mechanical strength.
What is the thread size of MBT1006B?
The MBT1006B screw has a 10-32 thread. This is a UNC (Unified National Coarse) thread with 10-32 specification, widely used in North American applications.
What are MBT1006B screws used for?
MBT1006B Button Head head Torx drive screws are used in electronics assembly, PCB mounting, precision instruments, watches, 3D printers, optical devices, medical equipment, and consumer products where reliable fastening with Button Head head aesthetics is required.
What is the MOQ and price for MBT1006B?
The minimum order quantity (MOQ) for MBT1006B is 10,000 pieces. The unit price is $0.062 USD for MOQ quantity. Larger quantities receive discounted pricing. Contact [email protected] for custom quotes.
What is the lead time and shipping for MBT1006B?
The lead time for MBT1006B is 15-25 days for production. Shipping to USA takes 5-15 days via sea freight, with shipping cost starting from $50 USD. Air freight is available for urgent orders. DDP and FOB terms are both available.
What is the metric equivalent of 10-32 thread?
The 10-32 thread is approximately equivalent to M5 (approx). When substituting inch screws with metric screws, always verify the actual diameter and pitch compatibility.
What head type does MBT1006B use and why?
The MBT1006B uses a Button Head head type. Button Head head provides a specific head design optimized for its intended application. This head type is selected based on the specific application requirements for load distribution, aesthetics, and accessibility.
How to choose the right screw size for my application?
To choose the right screw: 1) Determine the required thread size based on the tapped hole or nut; 2) Select the appropriate length based on the material thickness; 3) Choose the head type based on clearance and aesthetics; 4) Select the drive type based on torque requirements; 5) Choose the material based on environmental conditions. For MBT1006B (10-32, 3/8 inches), ensure your application requires this specific size.
What is the difference between MBT1006B and similar parts?
MBT1006B uses Black Zinc Plated Steel finish, while alternative variants in the same thread/length specification include MBT1006S (SUS304 Stainless Steel), MBT1006Z (Blue Zinc Plated Steel). The Black Zinc Plated Steel of MBT1006B is specifically selected because it offers a black decorative finish combined with good corrosion resistance, ideal for consumer electronics, automotive interiors, and applications where both appearance and rust prevention matter. This distinction makes MBT1006B the preferred choice when these properties align with your application requirements.
