6-32 x 1/4" Button Head Torx Machine Screw Steel Blue Zinc Plated
Why Choose MBT0604Z?

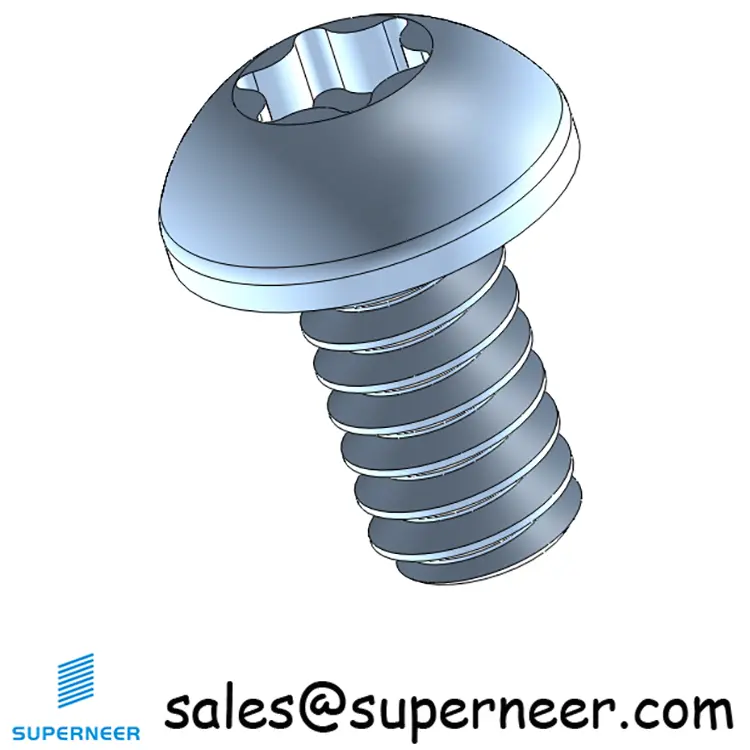

MBT0604Z is a 6-32 Button Head head Torx drive screw with 1/4 inches length, featuring a Blue Zinc Plated Steel finish. Compared to alternative finishes in the same specification such as MBT0604S (SUS304 Stainless Steel), MBT0604B (Black Zinc Plated Steel), the Blue Zinc Plated Steel of MBT0604Z offers moderate corrosion resistance with a distinctive blue iridescent appearance, commonly used in automotive assembly, machinery, and general industrial fastening. The Button Head head design ensures optimal load distribution across the mating surface, while the Torx drive allows efficient torque transmission during installation. Each MBT0604Z screw is manufactured to industry standards, RoHS compliant, and supplied with material test reports (MTR) for full quality traceability.
Payment Method: T/T & Paypal and other payment method
Shipment Method: Air Express , Air Freight, Sea Shippment
1. Order online directly, made payment via Paypal or bank transfer.
2. Superneer arrange production according to drawing,all demensions are within drawing specification.
3. Parts ready, ship to customer.
Frequently Asked Questions about MBT0604Z
What is MBT0604Z screw?
MBT0604Z is a 6-32 Button Head head Torx drive screw made of Blue Zinc Plated Steel, manufactured by Superneer Limited. It has a length of 1/4 inches and is commonly used in electronics, watches, precision instruments, and 3D printers.
What are the specifications of MBT0604Z?

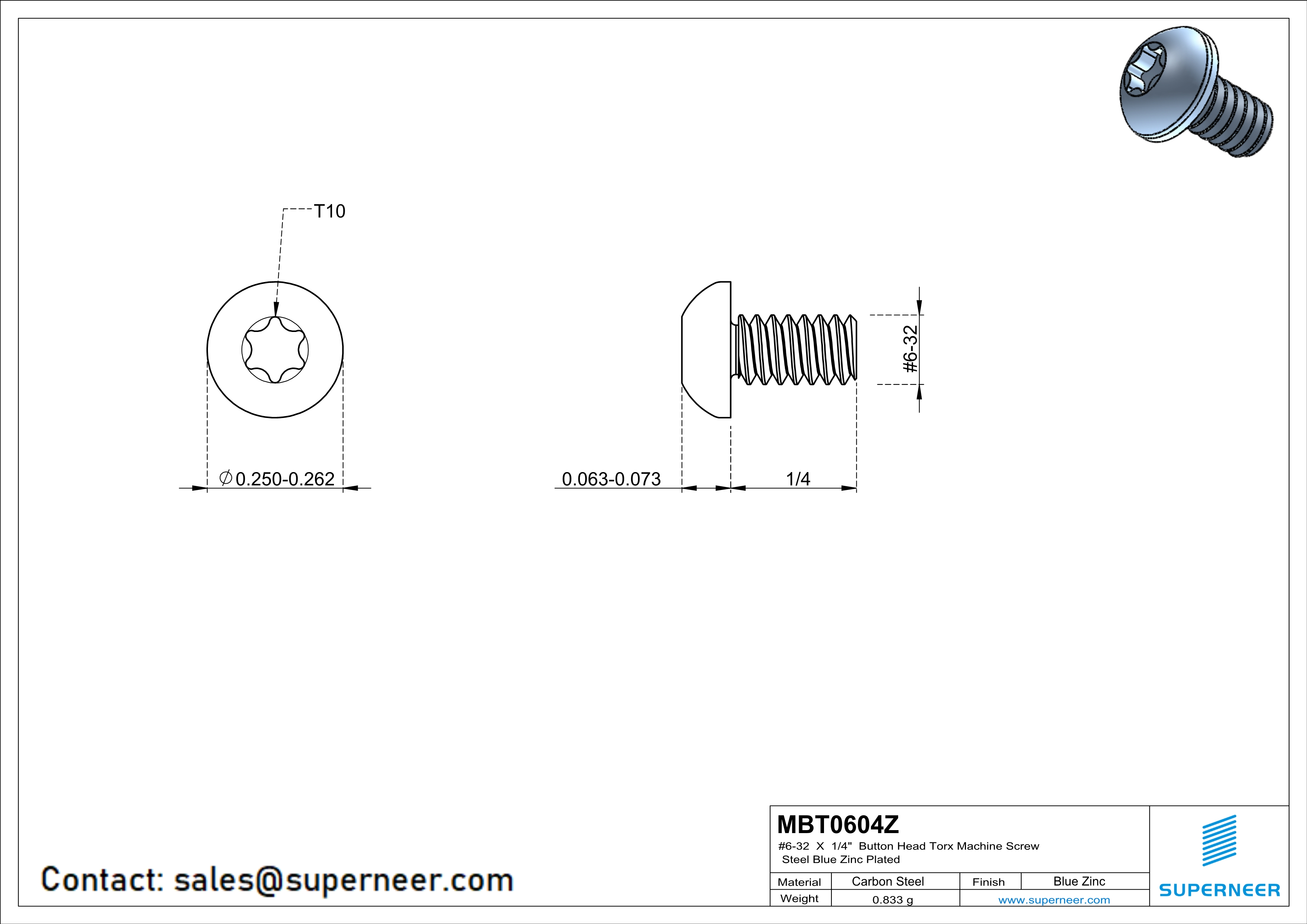

The MBT0604Z screw features thread size 6-32, length of 1/4 inches, head type Button Head (head diameter 0.250-0.262 inches), drive type Torx (drive size T10), and is made of Blue Zinc Plated Steel.
What material is the MBT0604Z screw made of?
The MBT0604Z screw is made of Blue Zinc Plated Steel. Superneer provides material test reports (MTR) and RoHS compliance certificates for all products. Blue Zinc Plated Steel offers excellent corrosion resistance and mechanical strength.
What is the thread size of MBT0604Z?
The MBT0604Z screw has a 6-32 thread. This is a UNC (Unified National Coarse) thread with 6-32 specification, widely used in North American applications.
What are MBT0604Z screws used for?
MBT0604Z Button Head head Torx drive screws are used in electronics assembly, PCB mounting, precision instruments, watches, 3D printers, optical devices, medical equipment, and consumer products where reliable fastening with Button Head head aesthetics is required.
What is the MOQ and price for MBT0604Z?
The minimum order quantity (MOQ) for MBT0604Z is 10,000 pieces. The unit price is $0.026 USD for MOQ quantity. Larger quantities receive discounted pricing. Contact [email protected] for custom quotes.
What is the lead time and shipping for MBT0604Z?
The lead time for MBT0604Z is 15-25 days for production. Shipping to USA takes 5-15 days via sea freight, with shipping cost starting from $50 USD. Air freight is available for urgent orders. DDP and FOB terms are both available.
What is the metric equivalent of 6-32 thread?
The 6-32 thread is approximately equivalent to M3.5 (approx). When substituting inch screws with metric screws, always verify the actual diameter and pitch compatibility.
What head type does MBT0604Z use and why?
The MBT0604Z uses a Button Head head type. Button Head head provides a specific head design optimized for its intended application. This head type is selected based on the specific application requirements for load distribution, aesthetics, and accessibility.
How to choose the right screw size for my application?
To choose the right screw: 1) Determine the required thread size based on the tapped hole or nut; 2) Select the appropriate length based on the material thickness; 3) Choose the head type based on clearance and aesthetics; 4) Select the drive type based on torque requirements; 5) Choose the material based on environmental conditions. For MBT0604Z (6-32, 1/4 inches), ensure your application requires this specific size.
What is the difference between MBT0604Z and similar parts?
MBT0604Z uses Blue Zinc Plated Steel finish, while alternative variants in the same thread/length specification include MBT0604S (SUS304 Stainless Steel), MBT0604B (Black Zinc Plated Steel). The Blue Zinc Plated Steel of MBT0604Z is specifically selected because it offers moderate corrosion resistance with a distinctive blue iridescent appearance, commonly used in automotive assembly, machinery, and general industrial fastening. This distinction makes MBT0604Z the preferred choice when these properties align with your application requirements.
