Home Set Screws Flat Socket Set Screw 0 x 1/8" Flat Socket Set Screws 12.9 Carbon Steel Black

0 x 1/8" Flat Socket Set Screws 12.9 Carbon Steel Black

Screw
Screw
Part No. HFS0001G rohs Rating:

material 12.9 Grade Steel
Ship Date 2026-11-20
Thread 0-80
Length 1/8 inch
Unit Price USD$ 0.039 /pcs
Unit Weight 0.029 g
Quantity pcs
Amount USD$ Total Amount USD$
Amount USD$ Total Amount USD$

Related Parts
0 x 1/8" Flat Socket Set Screws 12.9 Carbon Steel Black 0 x 1/8" Flat Socket Set Screws 12.9 Carbon Steel Black
0 x 5/32" Flat Socket Set Screws 12.9 Carbon Steel Black 0 x 5/32" Flat Socket Set Screws 12.9 Carbon Steel Black
0 x 3/16" Flat Socket Set Screws 12.9 Carbon Steel Black 0 x 3/16" Flat Socket Set Screws 12.9 Carbon Steel Black
0 x 1/4" Flat Socket Set Screws 12.9 Carbon Steel Black 0 x 1/4" Flat Socket Set Screws 12.9 Carbon Steel Black
0 x 5/16" Flat Socket Set Screws 12.9 Carbon Steel Black 0 x 5/16" Flat Socket Set Screws 12.9 Carbon Steel Black
Item Information

Why Choose HFS0001G?

HFS0001G is a 0-80 head Socket drive screw with 1/8 inches length, featuring a 12.9 Grade Steel finish. Compared to alternative finishes in the same specification such as HFS0001S (SUS304 Stainless Steel), HFS0001B (Black Steel), the 12.9 Grade Steel of HFS0001G offers high tensile strength for mechanical and structural applications where corrosion resistance is not the primary concern, often used in machinery, automotive chassis, and load-bearing assemblies. The head design ensures optimal load distribution across the mating surface, while the Socket drive allows efficient torque transmission during installation. Each HFS0001G screw is manufactured to industry standards, RoHS compliant, and supplied with material test reports (MTR) for full quality traceability.

0 x 1/8" Flat Socket Set Screws 12.9 Carbon Steel Black
HFS0001G This part demension will be same as the drawing indicate below, length tolerance will be ±0.5 .
It is with Socket drive, 0-80 Thread and 1/8 inch Length .
material 12.9 Grade Steel, Finsh is Rohs Black which has good function of anti-corrosion .
On website, you can choose use your shipping account which shippcost is 0, or you can use our DHL/UPS account to ship which will have ship cost indicate.
Payment terms: Payment advance, On website, you can choose pay via paypal or pay via bank transfer. when bank transfer , you can send your bank slip to us via order process or send it to our email:[email protected]. when payment made, We will soon make production and update process for you via email.
BUY HFS0001G - 0 x 1/8 Flat Socket Set Screws 12.9 - 12.9 Grade Steel for Precision Instruments | Superneer today,high quality product and best service will be provided by superneer.Each order will be made shippment on time.
Different Finish :
0-80 x 1/8 inch
0-80 x 1/8 inch
HFS0001S
SUS304 Stainless Steel
0-80 x 1/8 inch
0-80 x 1/8 inch
HFS0001B
Black Steel
0-80 x 1/8 inch
0-80 x 1/8 inch
HFS0001G
12.9 Grade Steel

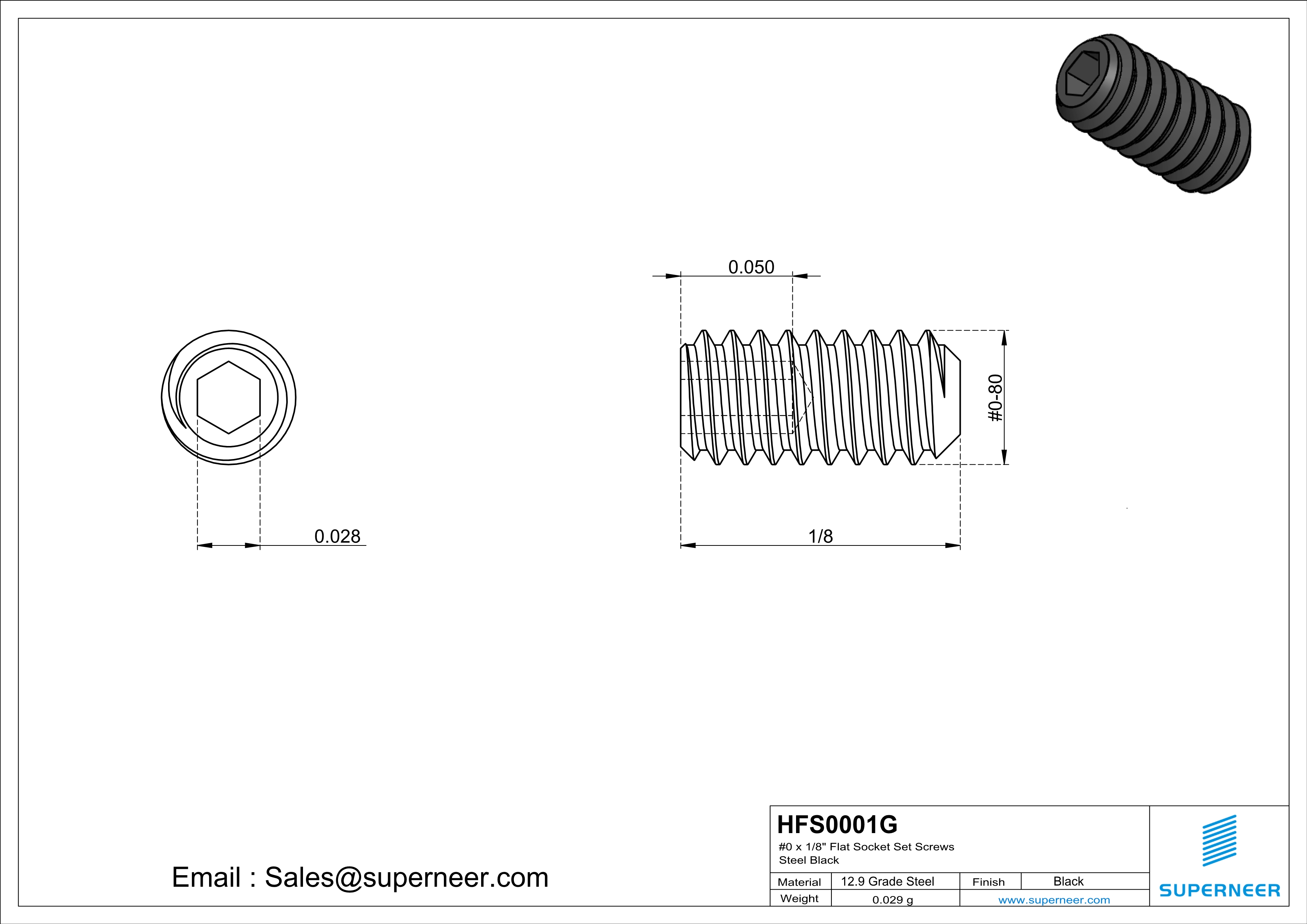

Item Drawing
0 x 1/8" Flat Socket Set Screws 12.9 Carbon Steel Black
HFS0001G Screw 1
HFS0001G Screw 2
HFS0001G Screw 3
HFS0001G Screw 4
HFS0001G Screw 5
HFS0001G Screw 6
Other Parts
2-56 x 3/16 screw 2-56 x 3/16" Pan Head Torx Machine Screw SUS304 Stainless Steel
2-56 x 5/16 screw 2-56 x 5/16" Pan Head Torx Machine Screw SUS304 Stainless Steel
2-56 x 3/4 screw 2-56 x 3/4" Pan Head Torx T7 Machine Screw SUS304 Stainless Steel
M3 x 6 screw M3 x 6 mm Flat Head 82° Torx Machine Screw SUS304 Stainless Steel
2-56 x 7/16 screw 2-56 x 7/16" Flat Head 82° Torx T7 Machine Screw SUS304 Stainless Steel
M2.5 x 12 screw M2.5 x 12 mm Pan Head Torx Machine Screw Steel Blue Zinc Plated
M3 x 6 screw M3 x 6 mm Pan Head Torx Machine Screw Steel Blue Zinc Plated ISO 14583
undercut screw M3 x 6 mm Flat Head Undercut Slotted Machine Screw SUS304 Stainless Steel
M3 x 8 pan torx screw M3 x 8 mm Pan Head Torx Machine Screw Steel Black ISO 14583
M3 x 10 pan torx screw M3 x 10 mm Pan Head Torx Machine Screw Steel Black ISO 14583
M3 x 6 screw M3 x 6 mm Flat Head 82° Torx Machine Screw Steel Black
M3 x 5 mm flat screw M3 x 5 mm Flat Head 120° Phillips Machine Screw Steel Black
2-56 x 13/32 screw 2-56 x 13/32" Standoff Screw SUS303 Stainless Steel Hex Male Female Spacers
M3 × 6mm screw M3 × 6mm Indented Hex Washer Serrattion Phillips Thread Forming Screws for Metal Steel Black
M2.5 x 6mm screw M2.5 x 6mm Socket Cup Point Set Screws Steel Black DIN916
M2 x 2.5mm screw M2 x 2.5mm Flat Head Torx Machine Screw SUS304 Stainless Steel
M3 x 8mm screw M3 x 8mm Thumb Screw Knurled Head (Head Diameter 8mm,Head Height 8mm) SUS304 Stainless Steel
M3 X 3mm screw M3 X 3mm 12.9 Grade Steel Black Flat Socket Screw
M4 x 10mm screw M4 x 10mm Socket Set Screw Cone Point SUS304 Stainless Steel DIN914 Nylon Patch
M3 x 4mm screw M3 x 4mm Torx Flat Head Machine Screw Carbon Steel Black Oxide
standoff 2-56 x 13/32" Standoff Screw with 7/32" Outer Thread Length SUS303 Stainless Steel Hex Male Female Spacers
self sealing screw M2 x 8 mm Self Sealing Screw Pan Torx Head SUS304 Stainless Steel Waterproof Screws
SEMS Screw M3 x 10 mm Button Head Socket SEMS Screw with Internal Tooth Washer Steel Black Oxide
Payment & Trasportation 5-10 days

Payment Method: T/T & Paypal and other payment method

Shipment Method: Air Express , Air Freight, Sea Shippment

How to Order

1. Order online directly, made payment via Paypal or bank transfer.

2. Superneer arrange production according to drawing,all demensions are within drawing specification.

3. Parts ready, ship to customer.

Frequently Asked Questions about HFS0001G

What is HFS0001G screw?

HFS0001G is a 0-80 head Socket drive screw made of 12.9 Grade Steel, manufactured by Superneer Limited. It has a length of 1/8 inches and is commonly used in electronics, watches, precision instruments, and 3D printers.

What are the specifications of HFS0001G?

The HFS0001G screw features thread size 0-80, length of 1/8 inches, head type (head diameter N/A inches), drive type Socket (drive size N/A), and is made of 12.9 Grade Steel.

What material is the HFS0001G screw made of?

The HFS0001G screw is made of 12.9 Grade Steel. Superneer provides material test reports (MTR) and RoHS compliance certificates for all products. 12.9 Grade Steel offers excellent corrosion resistance and mechanical strength.

What is the thread size of HFS0001G?

The HFS0001G screw has a 0-80 thread. This is a UNC (Unified National Coarse) thread with 0-80 specification, widely used in North American applications.

What are HFS0001G screws used for?

HFS0001G head Socket drive screws are used in electronics assembly, PCB mounting, precision instruments, watches, 3D printers, optical devices, medical equipment, and consumer products where reliable fastening with head aesthetics is required.

What is the MOQ and price for HFS0001G?

The minimum order quantity (MOQ) for HFS0001G is 10,000 pieces. The unit price is $0.039 USD for MOQ quantity. Larger quantities receive discounted pricing. Contact [email protected] for custom quotes.

What is the lead time and shipping for HFS0001G?

The lead time for HFS0001G is 15-25 days for production. Shipping to USA takes 5-15 days via sea freight, with shipping cost starting from $50 USD. Air freight is available for urgent orders. DDP and FOB terms are both available.

What head type does HFS0001G use and why?

The HFS0001G uses a head type. head provides a specific head design optimized for its intended application. This head type is selected based on the specific application requirements for load distribution, aesthetics, and accessibility.

How to choose the right screw size for my application?

To choose the right screw: 1) Determine the required thread size based on the tapped hole or nut; 2) Select the appropriate length based on the material thickness; 3) Choose the head type based on clearance and aesthetics; 4) Select the drive type based on torque requirements; 5) Choose the material based on environmental conditions. For HFS0001G (0-80, 1/8 inches), ensure your application requires this specific size.

What is the difference between HFS0001G and similar parts?

HFS0001G uses 12.9 Grade Steel finish, while alternative variants in the same thread/length specification include HFS0001S (SUS304 Stainless Steel), HFS0001B (Black Steel). The 12.9 Grade Steel of HFS0001G is specifically selected because it offers high tensile strength for mechanical and structural applications where corrosion resistance is not the primary concern, often used in machinery, automotive chassis, and load-bearing assemblies. This distinction makes HFS0001G the preferred choice when these properties align with your application requirements.
